Stainless Steel Wire Mesh for Anti-Mosquito or Filter

Name: Stainless Steel Wire Mesh for Anti-Mosquito or Filter
Brand: FullPackage
SKU: 829688415
Availability: InStock
Rating: 4.4 (84 reviews)

Price:	US $ 20-30/Square Meter
Min Order:	150/Square Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Anping Huansi wiremesh Products Co.,Ltd is Specialized manufacturer of all kinds of wire mesh and
Security fence In Hebei, AnPing, Our company have a wealth of experience in the production and sales of
wire mesh products.

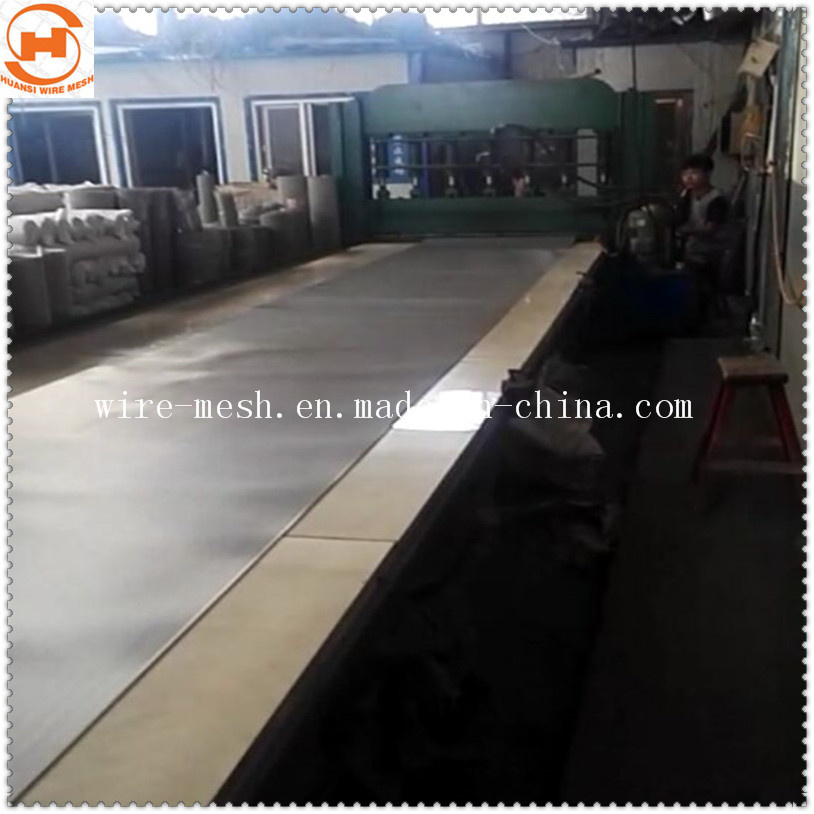

Our company has the most advanced weaving equipment, strong technical force, scientific process,
quality inspection system, the use of high-quality raw materials, strict quality control, product specifications
complete, quality excellent, the company's main products are: Stainless steel wire mesh,Galvanized wire mesh,
PVC mesh, Conveyor belt, Aluminum Alloy screening,Welded wire mesh, Concertina razor barbed wire ,
Chain link fence , Security fencce and so on. Product specifications complete, excellent quality, trusted
by the user, and in the wire mesh market has achieved good reputation

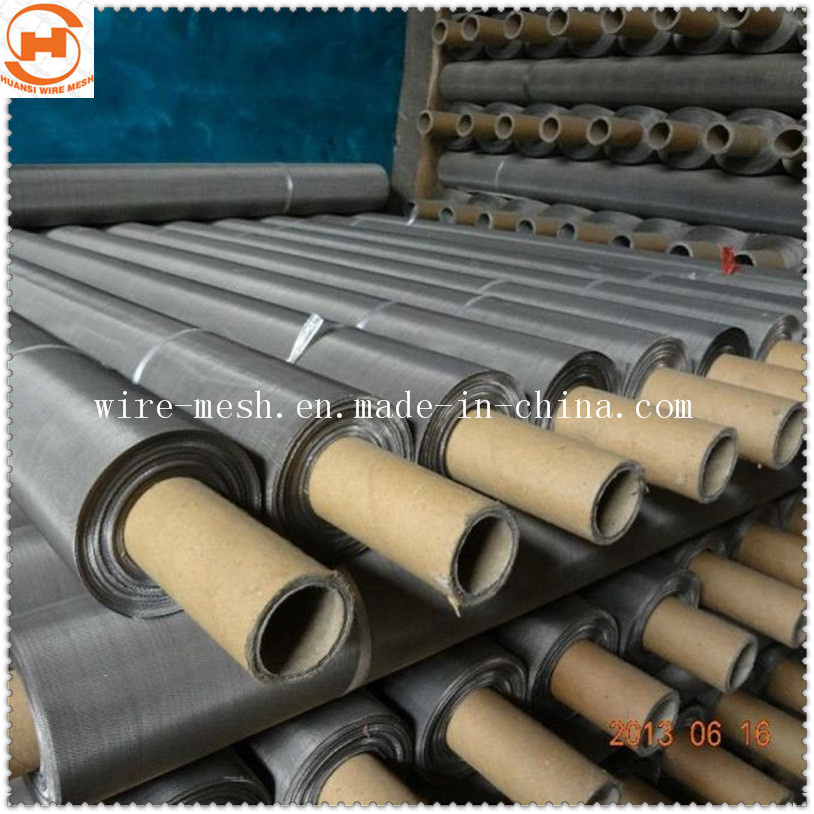

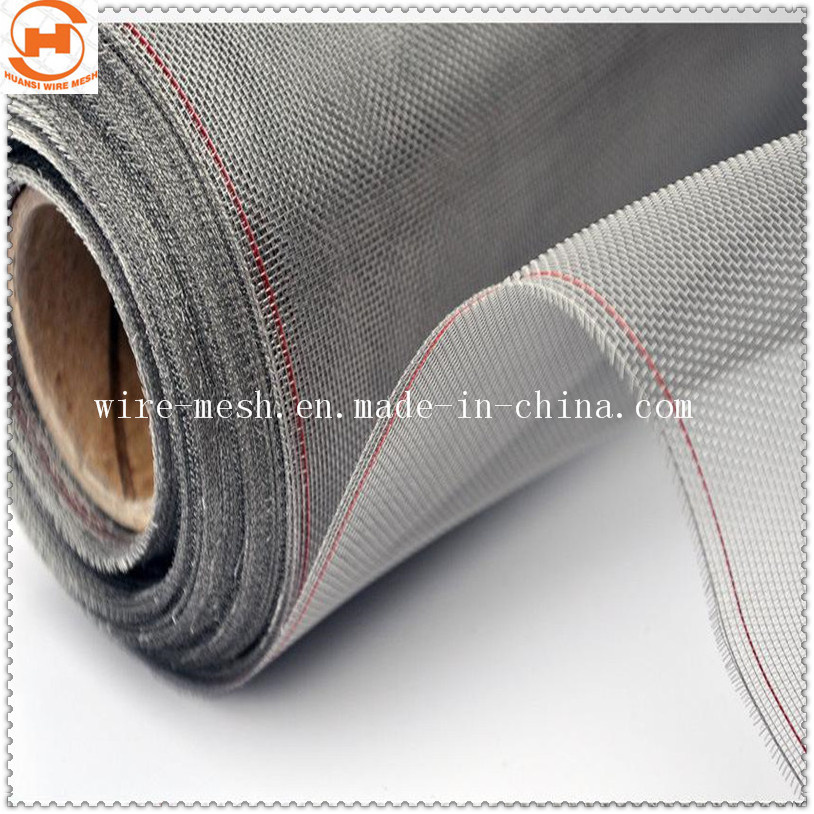

Stainless Steel Wire Mesh
Material: stainless steel wire 302,201,304,304L, 316,316L, 310,310S and so on
Weaving: plain weave, twill weave
Mesh: 1 mesh --2800 mesh
Usage:
1. For acid, alkali conditions for screening and filtering, the petroleum industry as mud mesh, chemical fiber
industry, as the sieve plating.
2. For mining, petroleum, chemical, food, medicine, machinery manufacturing, and other industries.
3 for acid, alkali conditions sieving and filtering, the mud for the oil industry, chemical fiber industry as
screen, electroplating industry for pickling net, the factory can according to user needs to design the
production of various types of products.

Specification list of Stainless Steel Wire Mesh
Meshes Per Linear Inch	Diameter of Wire		Width of Opening		Open Area, %
Meshes Per Linear Inch	Inches	mm	Inches	mm	Open Area, %
10 x 10	0.047	1.2	0.053	1.34	28.1
10 x 10	0.035	0.9	0.065	1.65	42.3
10 x 10	0.032	0.8	0.068	1.27	46.2
10 x 10	0.025	0.63	0.075	1.90	56.3
12 x 12	0.041	1.0	0.042	1.06	25.4
12 x 12	0.035	0.9	0.048	1.22	33.2
12 x 12	0.032	0.8	0.051	1.29	37.5
12 x 12	0.028	0.7	0.055	1.39	43.6
12 x 12	0.023	0.58	0.060	1.52	51.8
14 x 14	0.032	0.8	0.039	1.52	29.8
14 x 14	0.025	0.63	0.046	0.99	41.5
14 x 14	0.023	0.58	0.048	1.22	45.2
14 x 14	0.020	0.5	0.051	1.30	51.0
16 x 16	0.028	0.7	0.035	0.89	30.5
16 x 16	0.023	0.58	0.040	1.01	39.9
16 x 16	0.018	0.45	0.045	1.14	50.7
18 x 18	0.020	0.5	0.036	0.91	41.1
18 x 18	0.018	0.45	0.038	0.96	48.3
20 x 20	0.023	0.58	0.027	0.68	29.2
20 x 20	0.020	0.5	0.030	0.76	36.0
20 x 20	0.018	0.45	0.032	0.81	41.0
20 x 20	0.016	0.40	0.034	0.86	46.2
24 x 24	0.014	0.35	0.028	0.71	44.2
28 x 28	0.010	0.25	0.026	0.66	51.8
30 x 30	0.013	0.33	0.020	0.50	37.1
30 x 30	0.012	0.30	0.021	0.53	40.8
35 x 35	0.012	0.30	0.017'	0.43	33.8
35 x 35	0.010	0.25	0.019	0.48	42.4
40 x 40	0.014	0.35	0.011	0.28	19.3
40 x 40	0.012	0.30	0.013	0.33	27.4
40 x 40	0.010	0.25	0.015	0.38	36.0
40 x 40	0.0095	0.24	0.016	0.40	38.4
50 x 50	0.009	0.23	0.011	0.28	30.3
60 x 60	0.0075	0.19	0.009	0.22	30.5
70 x 70	0.0065	0.17	0.008	0.20	29.8
80 x 80	0.0070	0.18	0.006	0.15	19.4
80 x 80	0.0055	0.14	0.007	0.17	31.4
90 x 90	0.0055	0.14	0.006	0.15	25.4
100 x 100	0.0045	0.11	0.006	0.15	30.3
120 x 120	0.0040	0.10	0.0043	0.11	26.6
120 x 120	0.0037	0.09	0.005	0.12	30.7
150 x 150	0.0026	0.066	0.0041	0.10	37.4
165 x 165	0.0019	0.048	0.0041	0.10	44.0
180 x 180	0.0023	0.058	0.0032	0.08	33.5
180 x 180	0.0020	0.050	0.0035	0.09	41.1
200 x 200	0.0020	0.050	0.003	0.076	36.0
200 x 200	0.0016	0.040	0.0035	0.089	46.0
220 x 220	0.0019	0.048	0.0026	0.066	33.0
230 x 230	0.0014	0.035	0.0028	0.071	46.0
250 x 250	0.0016	0.040	0.0024	0.061	36.0
270 x 270	0.0014	0.040	0.0022	0.055	38.0
300 x 300	0.0012	0.030	0.0021	0.053	40.1
325 x 325	0.0014	0.040	0.0017	0.043	30.0
325 x 325	0.0011	0.028	0.0020	0.050	42.0
400 x 400	0.0010	0.025	0.0015	0.038	36.0
500 x 500	0.0010	0.025	0.0011	0.028	25.0
635 x 635	0.0009	0.022	0.0006	0.015	14.5

Prod Model:	Stainless steel mesh
Mesh:	10 X 10 , 12 X 12 , 14 X 14 , 18 X 18
Material:	SUS304
Hole Shape:	Square
Application:	Fence Mesh
Type:	Five Heddle Stainless Steel Wire Mesh
Material Type:	Stainless Steel Wire
Weave Technique:	Plain Weave
Wire Mesh Width:	0.5m
Technique:	Woven
Nickels:	8%
Certification:	ISO9001

Anping Huansi Wiremesh Products Co., Ltd(Global Source China Co., Ltd) is located in the famous " wire mesh village" - Hebei Province Anping County, Is a provider of a wire mesh research and development and production and sales as one of the professional.

Our company has the most advanced weaving equipment, strong technical force, scientific process, quality inspection system, the use of high-quality raw materials, strict quality control, product specifications complete, quality excellent, the company's main products are: Stainless steel wire mesh, Galvanized wire mesh, PVC mesh, Conveyor belt, Aluminum Alloy screening, Welded wire mesh, Concertina razor barbed wire, Chain link fence, Security fencce and so on. Product specifications complete, excellent quality, trusted by the user, and in the wire mesh market has achieved good reputation.

Our company sincerely welcome friends from all over the world to our company to negotiate business, is willing to work with each and every customer hand in hand, create a better future.
