Juyun Wire Mesh Products Co., Ltd. >> Stainless Steel Wire Rope Mesh Net

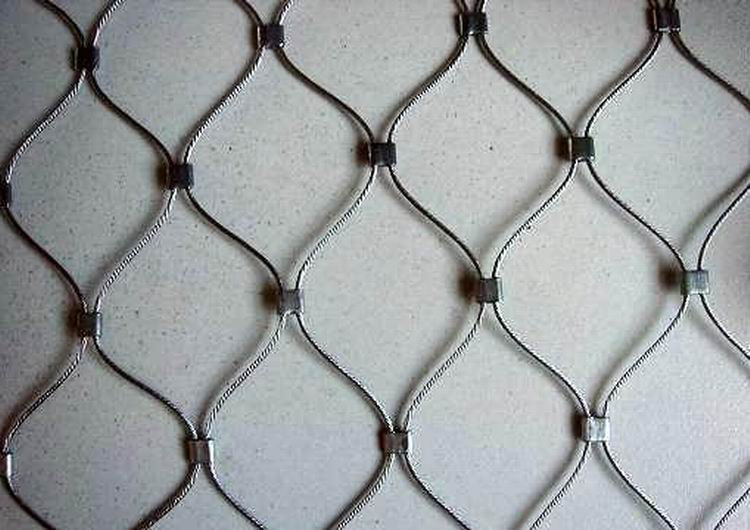

Stainless Steel Wire Rope Mesh Net

Stainless Steel Wire Rope Mesh Net
Price: US $ 10-100/Roll
Min Order: 5/Roll
Pay Type: L/C,T/T,D/P,Western Union,Paypal
stainless steel wire mesh
1)product range : usually,manufactured in 30m ( up to 200) long and in width of 36 48 1m 1.2m 1.5m 2.0m etc. or cut to length panels as per clients requirement.
2) Packing: water-proof paper ,woven bag and also can be made as per client requirement
3) weave:This type of mesh is available in Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch Twill Weave.
4) mesh counts: 1 mesh to 635 mesh.
5) sample: available.
Specification List of Stainless Steel Wire Mesh
Mesh/InchWire Gauge(SWG)Aperture in mm
3mesh x 3mesh146.27
4mesh x 4mesh164.27
5mesh x 5mesh183.86
6mesh x 6mesh183.04
8mesh x 8mesh202.26
10mesh x 10mesh201.63
20mesh x 20mesh300.95
30mesh x 30mesh340.61
40mesh x 40mesh360.44
50mesh x 50mesh380.36
60mesh x 60mesh400.30
80mesh x 80mesh420.21
100mesh x 100mesh440.172
120mesh x 120mesh440.13
150mesh x 150mesh460.108
160mesh x 160mesh460.097
180mesh x 180mesh470.09
200mesh x 200mesh470.077
250mesh x 250mesh480.061
280mesh x 280mesh490.060
300mesh x 300mesh490.054
350mesh x 350mesh490.042
400mesh x 400mesh500.0385
Roll width: 2'-8'







Prod Model: s-180
Wire Diameter: 0.01-4mm
Surface Treatment: Stainless Steel
Feature: Anti-Corrosion
Usage: Liquid Filter,Chemical Industry,Curtain
Material: SUS304
Hole Shape: Square
Application: Cages
Type: Stainless Steel Plain Wire Mesh
Material Type: Stainless Steel Wire
Weave Technique: Twill Weave
Technique: Woven
Nickels: 8%
Certification: SGS
Wire Mesh Width: 0.2-4m
JuYun Wire Mesh Products Co. Ltd. located in "The Hometown of Wire Mesh of China", We engage in production and export of various metal wires and wire meshes and Machine series...Because we pay much attention to continued effort in better quality products, our quality management system has been approved by ISOQAR to the standard of ISO9001: 2000 Management System Certification. We can offer not only reliable products but also services at competitive prices.

Insisting on the technique innovation, scientific and honest management, our factory emphasizes on introducing into the advanced production and inspection, thereby making sure of the quality and earning good reputation. So far, our products have been highly appreciated in Europe, Asia, Africa, and other regions.

Our main product, black wire, black annealed wire, hard drawn wire, galvanized wire, stainless steel wire, barbed wire, razor barbed wire, welded wire mesh, chain link fence, wire mesh fence, crimped wire mesh, hexagonal wire mesh, stainless steel wire mesh, expanded metal mesh, perforated metal mesh, gabion basket, filter mesh and so on.

Welcome to inquiry.
