Stand-up or Flat Pouch Bag with Zipper Filling Packing Machine
| Price: |
US $ 31769-39685/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
JRS-210Z |
| Warranty Period: |
One Year Warranty |
| Speed: |
High Speed |
| Apply For: |
Food,Cosmetic,Chemical,Pharmaceutical |
| Automatic Grade: |
Automatic |
| Application: |
Hair Care Products |
| Driven Type: |
Electric |
| Packaging Material: |
Composite Materials |
| Material Type: |
Liquid, Powder, Granule,Solid |
| Packaging Type: |
Bag Pouch Sachet |
Product Description

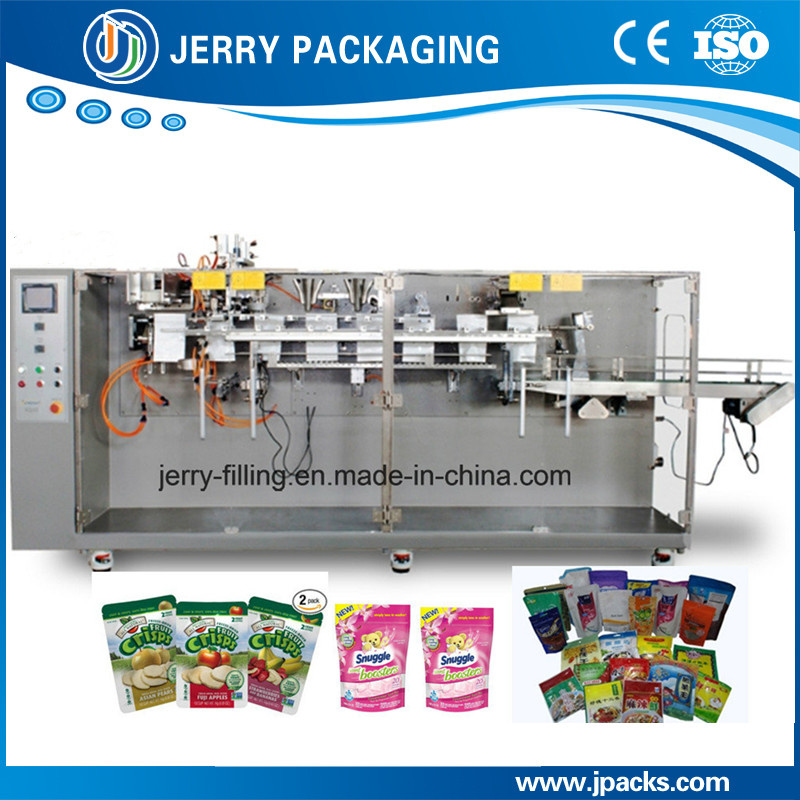

JRS-210Z Horizontal bag feed packing machine
Introduce JRS-210Z Horizontal Bag Given packing machine, mainly for stand-up bags, flat bags, hanging bags and shaped bag filling and sealing, especially for stand-up zipper bags, zipper bags to increase the level automatically open and close the zipper function. It may have packaging materials, powders, granules, suspensions and other materials. Particularly suitable for a variety of roasted seeds and nuts, chocolate candy, powder and other packaging. Bag type as an ordinary flat bags, stand-up pouches general packaging zipper bag flat, self-zipper bags, all kinds of special-shaped bag. Use of different cutting devices, different products can be packaged, is flexible, economical packaging solutions to meet the packaging specifications span, rich varieties bags, packaging companies choose to switch frequently.
Pouch sealing and filling are relatively independent system. The two systems are connected by mechanical connection and PLC. Therefore, suitable for different packaging material and pouch sizes. Pouches are flat pouch,doy pack ,zipper.Selecting different filler can package different products. Parameters| Basic Parameter of machine | Dimension | 3120*970*1400(L*W*H) |
| Weight | About 1000kg |
| Power Supply | AC 380V 50Hz |
| Power | 4.5KW |
| Working Gas Source | 0.5Mpa |
| Air Consumption | 250NL/min |
| Packaging Speed | 30-60ppm |
| Packaging Specification | Pouch Width | 90mm-210mm |
| Pouch Height | 110mm-310mm |
| Max packaging Capacity | 1200ml |

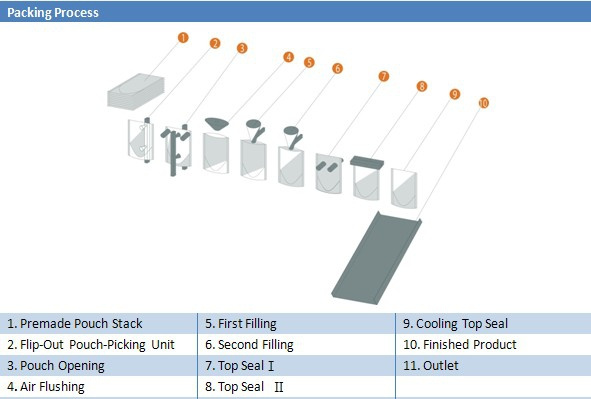

Process
Sample:
Pictures
n
The JAPACKS Story JPACKS designs and builds packaging machinery to help our customers reach their unique production goal. We build a wide range of Filling Equipment tailored to the way you do business. Our equipment is hand-built right in Chinese. We are not only a Filling Equipment manufacturer, we design and build Bottle Rinsers, Capping Machines, Cap Sorters, Conveyors, and Bottle Loading and Accumulating Turntables. Our equipment is engineered for durability and ease of use. We also work with leading manufacturers of Labeling Machines, Induction Sealers, Coding Machines, Shrink Wrapping Equipment, Case Building and Palletizing Machines to deliver complete turn-key packaging lines.
We develop the automatic packaging line, including bottle feeder, filling, capping, labeling, sealing, printing, carton erecting, carton packing, carton sealing. We develop the full automatic horizontal packaging machine, vertical packing machine, cartoner, assistant weighing. So far we have achieved ISO9001 quality management system certificate, CE certificate and 30 utility patents of single machine. JPACKS machines are exported to many countries, such as American, Malaysia, Vietnam, South Africa.
As an enterprise in the period of the high-speed development, JPACKS has always attached importance to innovation, taking technology leading as the quality policy, developing the new products actively, and meeting the customer's required in advance. JPACKS is fully integrated into the global market, learning advanced ideas and technologies, catching the different consumption demand, making efforts to improve the independent innovation.
CHANGZHOU JERRY PACKAGING TECHNOLOGY Co., Ltd (JPACKS)is founded in May 2006.
