Steel Frame Sandwich Panel Prefabricated House Tent for Mongolian Yurt
| Price: |
US $ 3356.68-3666.67/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Description of tent
The all steel framing of tent Green" construction framing and is 100% recyclable. Steel framing is non-combustible; Non-toxic and allergy free; And is termite, Insect and rodent resistant. When building with steel, you receive a safer and stronger product that will not contribute fuel to the spread of fire and is termite resistant. Enjoy the safety and environmental friendly advantages of tent from KEHOUSE.
The Constructive Green Choice!
Steel is Stronger. Safer. Smarter!
The Advantage of tent
1, Low cost: Low labour and material cost
2, Long life: 10-15 years
3, Easy assembly: 100m2house assembled by 4 workers in 2 days
4, Recycling use: Reused for more than 5 times
5, Flexible layout: Layout adjusted according to your requirement
6, Environment protection: Environment-friendly materials
7, Safe & Stable steel structure: Environment-friendly materials used

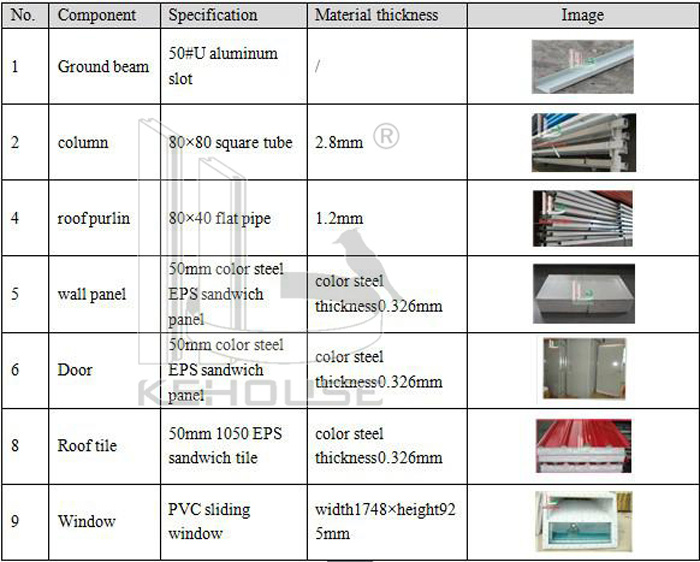

Main material
No.
Component
Specification
Material thickness
Remark
1
wall slot
50#U aluminum slot
1.2mm
greyish white paint
2
Column
80×80 square steel
2.8mm
greyish white paint
3
Roof A shape beam
80#C steel+50×30 flat pipe
1.8mm+1.2mm
greyish white paint
4
Roof purlin
80×40 flat steel
1.2mm
greyish white paint
5
External wall panel
100mm sandwich panel
color steel thickness:0.326mm
foam core,aluminum hemming
6
Internal wall panel
100mm sandwich panel
color steel thickness:0.326mm
foam core,aluminum hemming
7
Door
steel anti-theft door
870×2100
8
Roof tile
75mm 1050 sandwich tile
color steel thickness:0.326mm
blue paint
9
Window
PVC sliding window
W1150×H1000mm
10
Paint
LV SHU brand
Technical of tent
A, Overall weight: 50~60kg/sqm
B, Seismic fortification intensity: 8 grade
C, Wind-proof capacity: Wind speed 20m/s, resist 8grade wind
D, Floor loading capacity: 150kg/sqm
E, Roof loading capacity: 60kg/sqm
F, External wall bearing capacity: 50kg/sqm
Application of tent

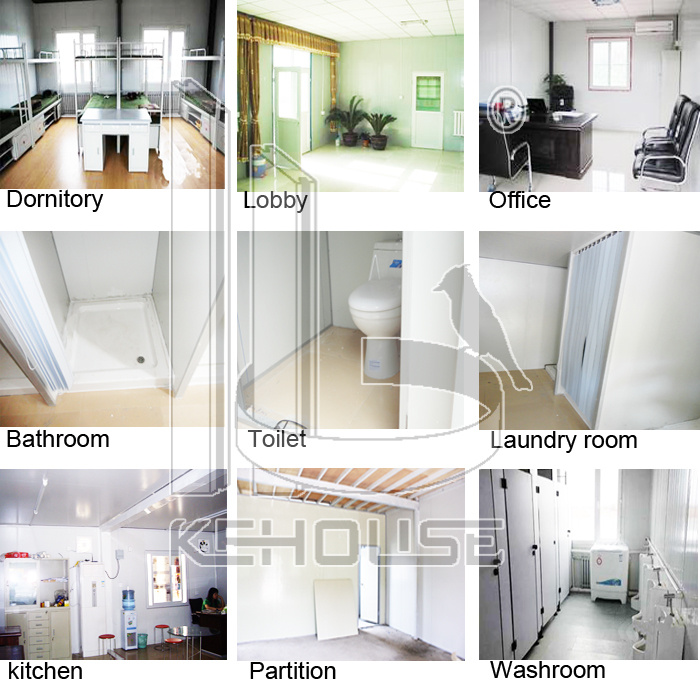

Construction site. Office building. Family living house. Dormitory. School. Canteen. Recreation room. Washing room. Bathroom. Outdoor temporary building etc.
Flexible design
The standard size of each room for the Wooden House is 3KX2KX3P(one floor)(K=1820mm, P=950mm), about 20sqm each room. Of course, you can choose what size and layout you want! Different usage, different size and layout. Just tell us your ideal, we can help to design accordingly.
About KEHOUSE
KEHOUSE, as a professional manufacturer in light steel house industry, we have experienced a lot of success owe to a team of highly dedicated professionals and superior-quality products, with which we have built up a reliable reputation at home and abroad. What's more, our products meeting the economic and social needs.
KEHOUSE providing"Quality Poructs, Excellent Heart to Heart Service, Competitive Prices and Prompt Delivery", we are now looking forward to even greater cooperation with overseas customer base on mutual benefits in order to achieve the win-win business goal. Please feel free to contact us for visit our website for more information. We are always been ready to satisfy your needs.
Frequently Ask Questions
Q: Does the house come complete as shown in the pictures?
A: KEHOUSE provides a complete light gauge steel framing system that includes the precision-cut and precision-punched components for the wall panels, roof trusses, floor trusses (where applicable), clips, framing angles, and fasteners necessary to erect the light gauge steel frame for the model you select. The picture shown in the brochure is an architect's rendering of what the house or building could look like using certain types of finish materials that are left up to the customers choosing.
Q: Can I erect the frame myself?

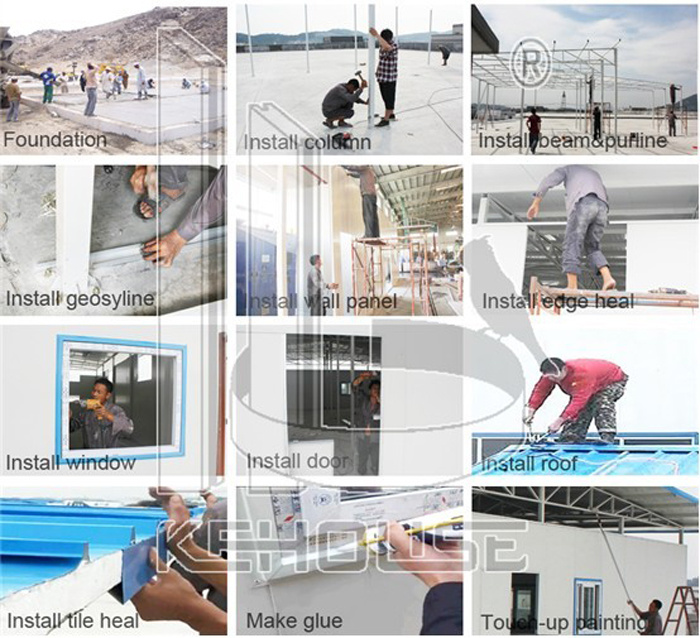

A: Certainly you may erect the frame yourself. Please check the easy installation step as below. Many customers choose to do just that. However, many customers also choose to hire an experienced general contractor or framer to provide this service as well. The choice is up to you.
Q: Does it come with assembly instructions?
A: Yes. Your purchase of any prefab house comes complete with the drawing, installation instructions and installation videos.
Q: Will the steel in my frame rust?
A: Inside the walls and roof of a home or structure where the steel is not constantly wet your steel frame will be very resistant to rust and corrosion.
| Prod Model: |
KHT1-080717-2 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Type: |
Tent |
| Structure: |
Light Steel Tent |
| Wall: |
EPS Sandwich Panel Tent |
| Roof: |
PU Tile or EPS Sandwich Tile Tent |
| Shape: |
Sloping Roof or Flat Top Tent |
| Size: |
Standard or Customize Tent |
| Layout Design: |
Technical Support Tent |
| Installation: |
Professional Guide Tent |
| Volume: |
250-450sqm/40hq Tent |
| Normal Using Life: |
About 25 Years Tent |
| Material: |
Steel Structure |
| Usage: |
Temporary Offices |
| Certification: |
TUV,SGS |
| Customized: |
Customized |
Foshan Kehouse Building Material Co., Ltd. Specialized in movable prefab house, prefabricate villas, proble house, container house, sentry box, adding storeys ect. We are a comprehensive company integrates scientific research industry and trade with main business in the production of steel structure house.
We adhering to design, develop, produce, promot energy conservation and environmental protection of steel structure building as our responsibility. Ke house is willing with you to actively promote the global housing industrialization.
Since its creation, Foshan Kehouse Building Material Co., Ltd. Insist "super products, super quality, super service" as our purpose. Our business philosophy is "solidarity and pragmatic, seeking and pioneering, technology and effective". Always maintain product in colleague's leading position. We have a high-quality technology team, advanced production equipment and detection system, sound sales networks and specialized technical site installation team.
All for you to rest on heart, live at ease, use for comfortable.
