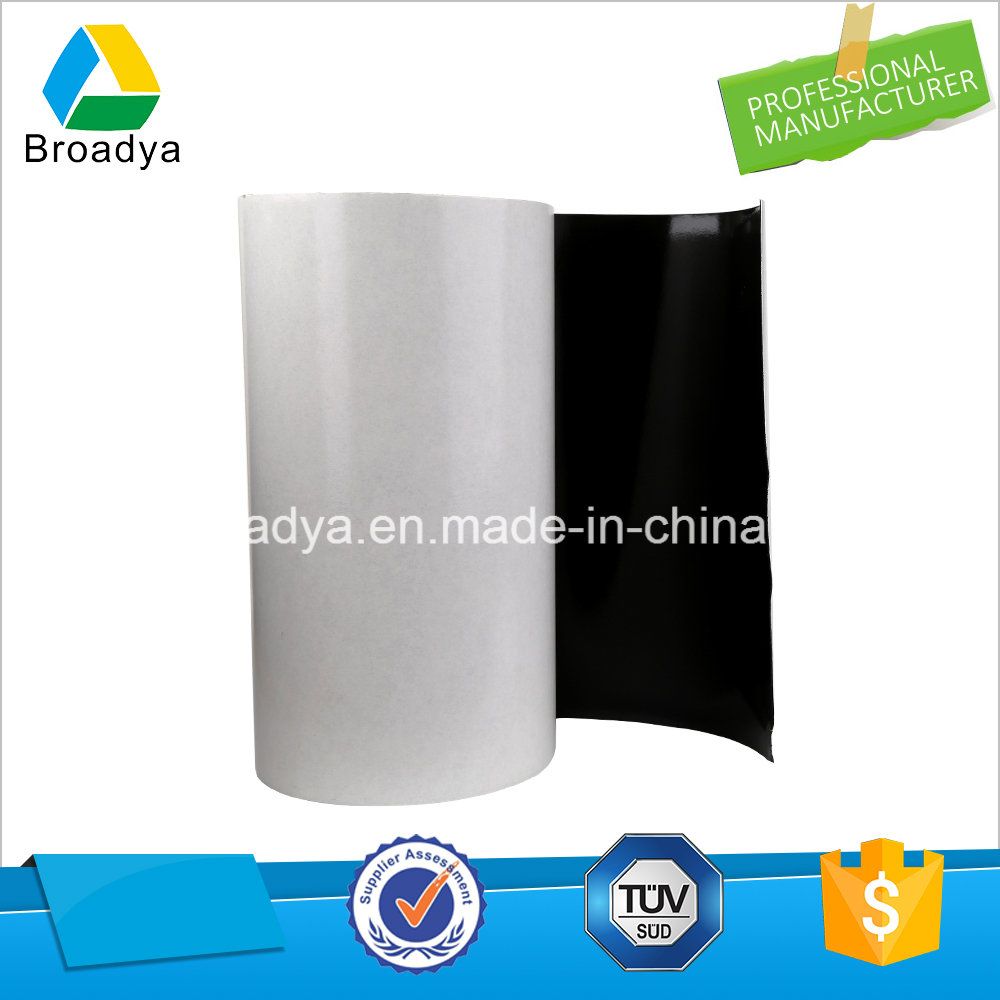

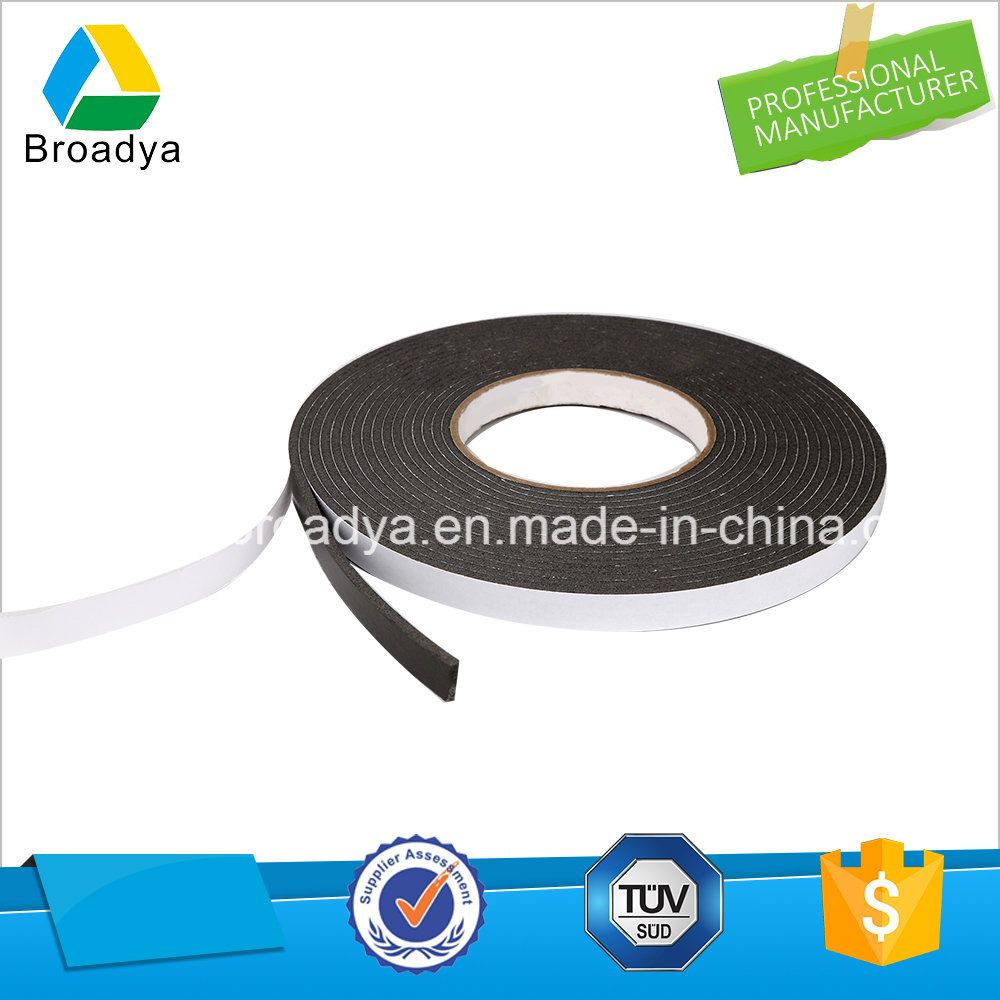

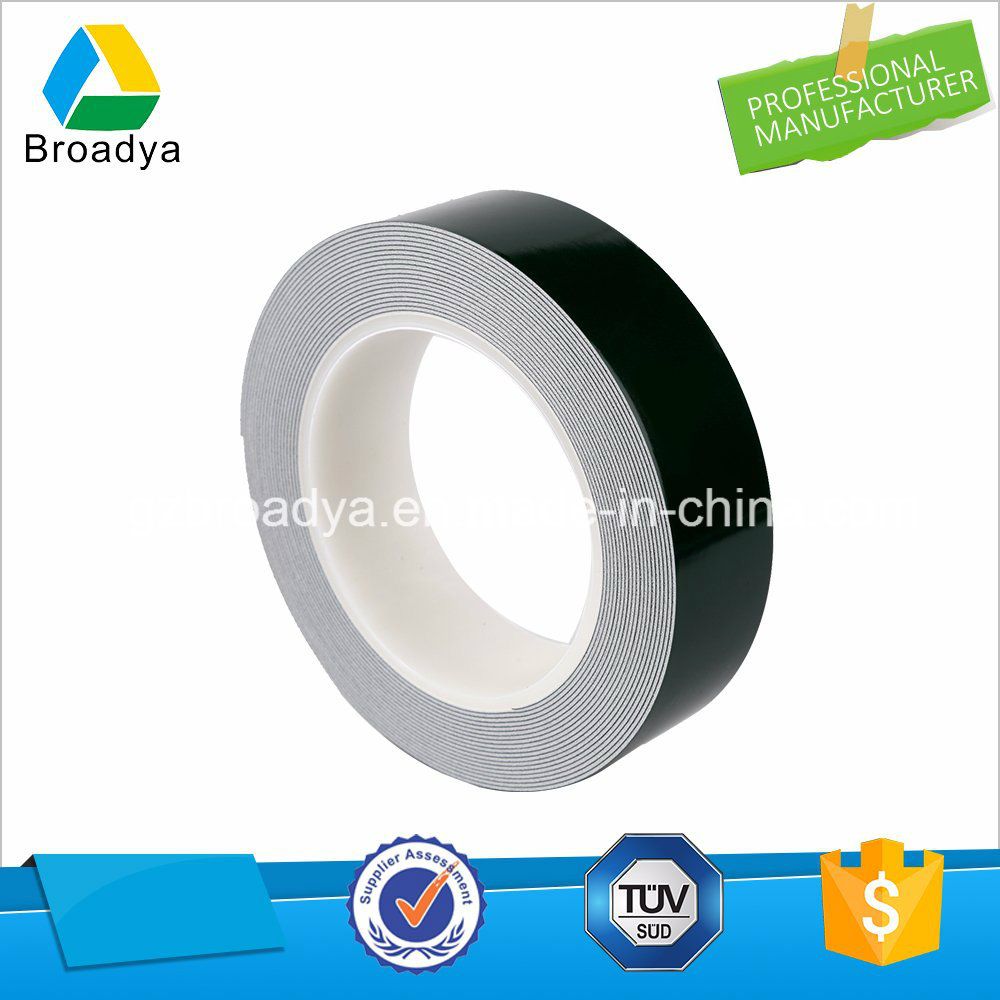

Substitute of Sekisui 5200 Ultrathin Foam Tape with Waterproof (BY6225G)
Introduction:High density ultra-thin foam tape is used ultra-thin foam as carrier, coated with specialized solvent acrylic base on both sides, laminated with double sided silicone release paper liner. Excellent performance of waterproofing. Heat resistance. Good and strong adhesion to wide range surface. Good for die-cutting.Characteristic:1. Ultra thin - support the ultra thin body and miniaturization of the product.
2. Waterproof - the optimal material for waterproofing.
3. Dust-proof - excellent performance of dust prevention.
4. Low resilience - prevent the deformation between the panel and frame.
5. Shock absorption - more than 55% of absorption rate with good shockproof and cushion performance.
6. High temperature and humidity - good stability and weather resistance in hard circumstances
7. Flexibility - ultra thin but flexible with good compressibility.
8. Die-cutting - use special release paper easy for die-cutting, no deformation and contraction for backing.
9. As a substitute of SEKISUI 5200.Application:1. Cushion and dust washer for LCD and case of mobile phone, computer, PDA, keyboard etc.
2. Washer for camera and video.
3. Shockproof, cushion and dust washer for speaker.
4. Shading and dust washer for LED.
5. Kinds of waterproof gaskets.
6. Fixation of windows.
product parameter list: | (Code) | (Backing) | (Thickness) | (Adhesive) | (Color) | (Temp. Res.) |
| BY6215 | High density PE | 0.15mm±0.05 | Solvent acrylic based | Black/Gray | -20---120 |
| BY6220G | High density PE | 0.20mm±0.05 | Solvent acrylic based | Black/Gray | -20---120 |
| BY6225G | High density PE | 0.25mm±0.05 | Solvent acrylic based | Black/Gray | -20---120 |
| BY6230G | High density PE | 0.30mm±0.05 | Solvent acrylic based | Black/Gray | -20---120 |
| BY6240G | High density PE | 0.4mm±0.1 | Solvent acrylic based | Black/Gray | -20---120 |
| BY6250G | High density PE | 0.5mm±0.1 | Solvent acrylic based | Black/Gray | -20---120 |
Product Show

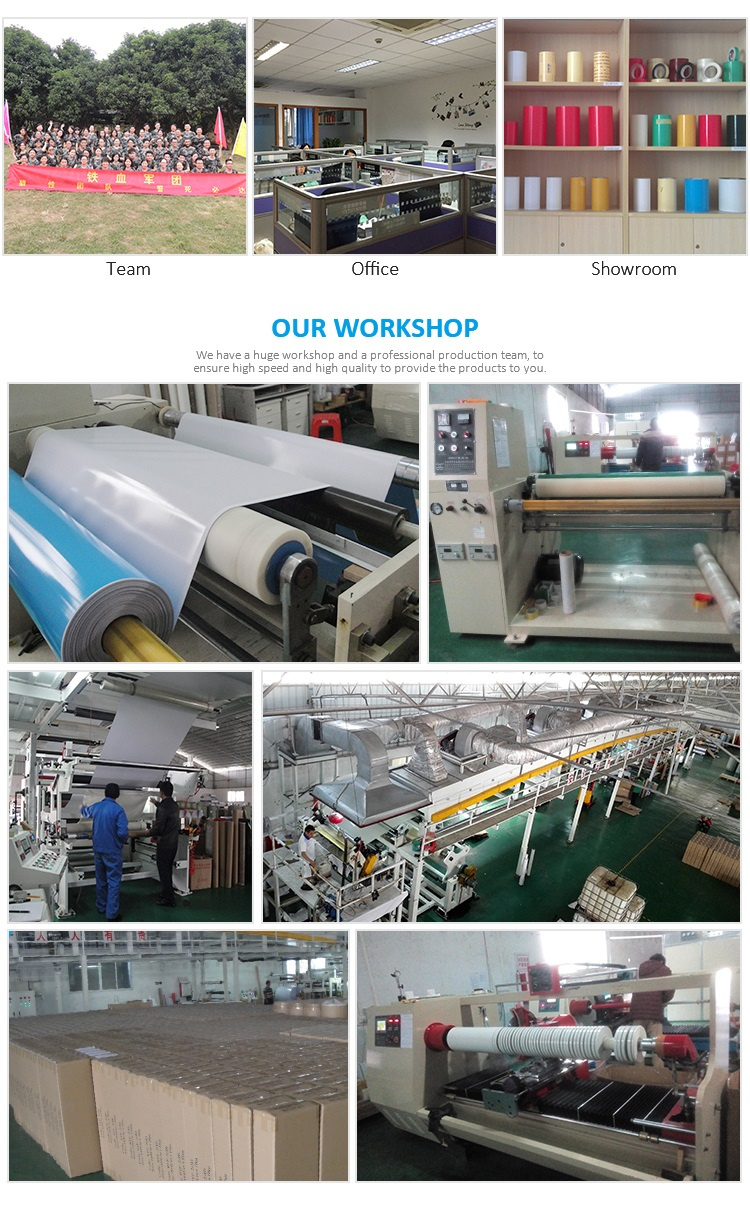

Company Profile
Guangzhou Broadya Adhesive Products Co., Ltd. was established in 2010, and is a high-tech enterprise integrating R&D, production and sales, possessing an excellent team and high-level technology for more than ten years. Broadya is committed to the research and development of adhesive products, and has already formed a complete product range including: Ultra-thin waterproof foam tape, PE/EVA foam tape, double sided PET/PVC tape, double sided tissue/non-woven tape, Acrylic foam tape, Non-carrier transfer tape and other industrial tapes. The product has been sold well all over the country and exported to Europe, North and South America, the Middle East, Asia, and other regions and countries with a great quantity.
With high- tech manufacturing facilities and high quality control system, Broadya concentrates on providing adhesive solutions for communication, household appliances, digital products, LCD/LED panel, automobile, construction and printing etc., and becomes one of the most professional manufacturers in Mainland China.
We have obtained the approval of ISO9001-2000 international quality management system. We adhere to high quality and superior service to meet the customer requirements. As our philosophy of "Quality First, Reputation First and Customer First", we are willing to have win-win cooperation with all the customers from domestic and abroad.
Contact UsTel: 86-20-89854282/89854472
Fax: 86-20-89854196Mobile: 86-13725165879 (Mr. Huang) Website: www.broadya.com (Ultrathin Foam Tape)Address: Room 902, B1 Building Wanda Plaza, Kaichuang Dadao, Huangpu District, Guangzhou, China
