| Prod Model: |
EM-4238 |
| Warranty: |
10 Months |
| Model No: |
Em-4238 |
| Users: |
Two Way Radio |
| Function 1: |
Noise Cancelling |
Product Description

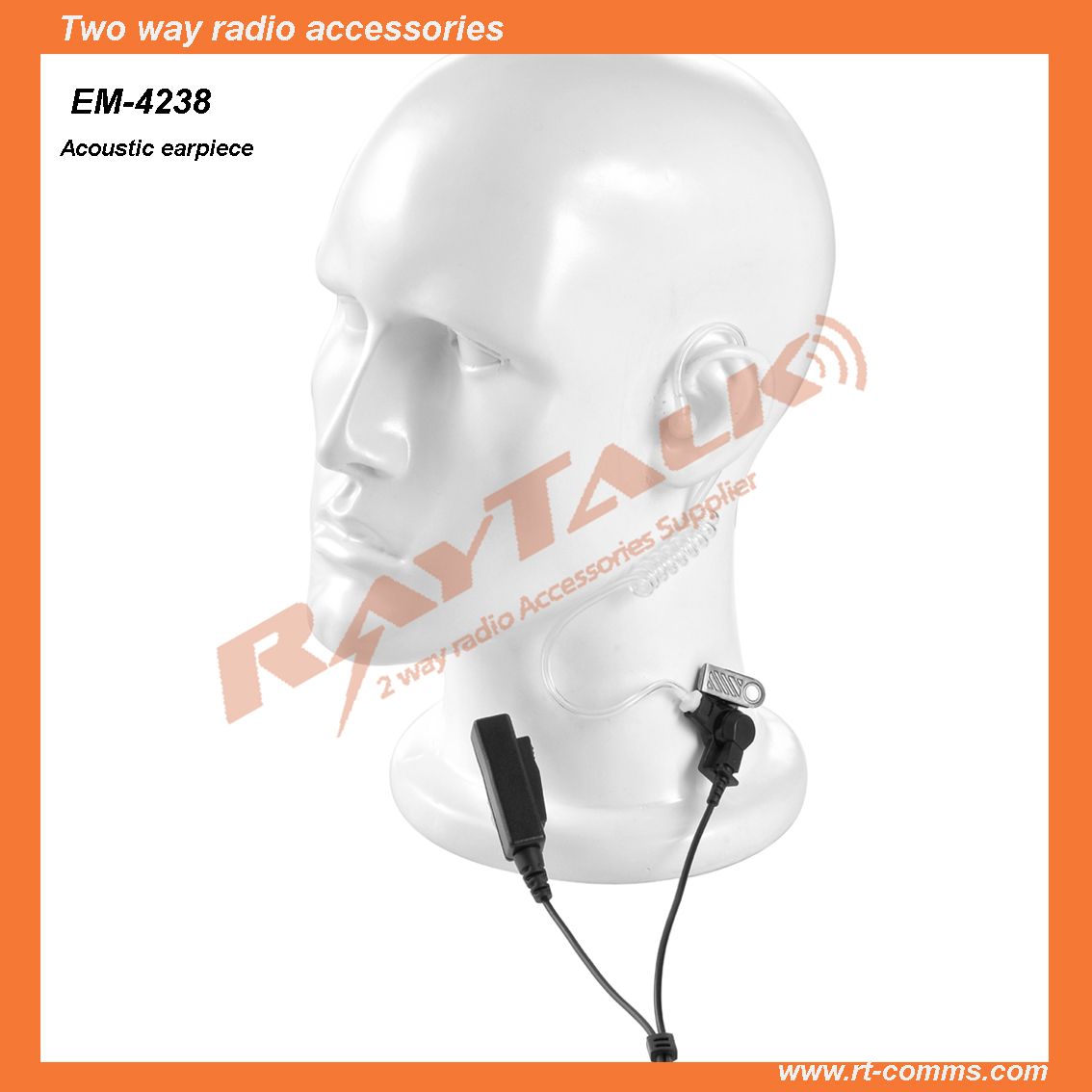

Acoustic Tube Earpiece for Two Way Radio with Ptt (EM-4238)
Connector can change for your two way radios
Features:
. Medium duty 2 wire surveillance kit with acoustic tube earphone
. Large lapel Push-to-talk(PTT) and built in microphone
. Earphone with Low Profile Acoustic Tube for discreet communications
. Molded strain reliefs to protect cables from excessive bending and pulling
. Can be worn on the lapel or shirt cuff
. Comfortable to wear for long hours
. Skin color,Beige color available
. Can be easily concealed under a sport coat,jacket or other clothing
. Design for Surveillance,Security,Public Safety,etc
1, Transparent acoustic tube style surveillance earphone received superior sound even in noisy environment, it's also discreet and portable.
2, Changeable acoustic tube assembly for hygiene and multiple users
3, Clip can secure to user's lapel to meet their need
4, All units feature heavy grade industrial jacketed cables and excellent strain relief for maximum life
5, Designed for surveillance, security, public safety, etc
6, Compatiable for Motorola, Kenood, HYT, Vertex, Icom...Two way radios
Speaker Specification
Type |
Transducer Moving coil dynamic speaker |
Impedance |
90Ω±15% @1KHZ |
Sensitivity |
110±3dB @1KHZ |
Resonance freq |
(F0) 400HZ±20% |
Frequency respond |
F0~5KHz |
Rated input power |
500mW |
Maximum input power |
800mW |
Microphone Specification
Sensitivity Range |
-34 ± 2dB RL=2.2K ΩVs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range |
1.0V-10V (DC) |
Max Sound pressure Level |
115dB S.P.L |
