| Prod Model: |
WY1201CS/1501CS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
24 Months |
| Control System: |
Topwisdom 7" Touch Screen |
| Machine Color: |
White / Black / Yellow |
| Main Motor: |
Servo |
| X.Y Motor: |
Stpper |
| Speed: |
1200spm |
| Auto-Color Change: |
Yes |
| Auto-Thread Trimmer: |
Yes |
| Language: |
12 Kinds |
| Flat Working Area: |
360*510mm and 356*1200mm |
Product Description

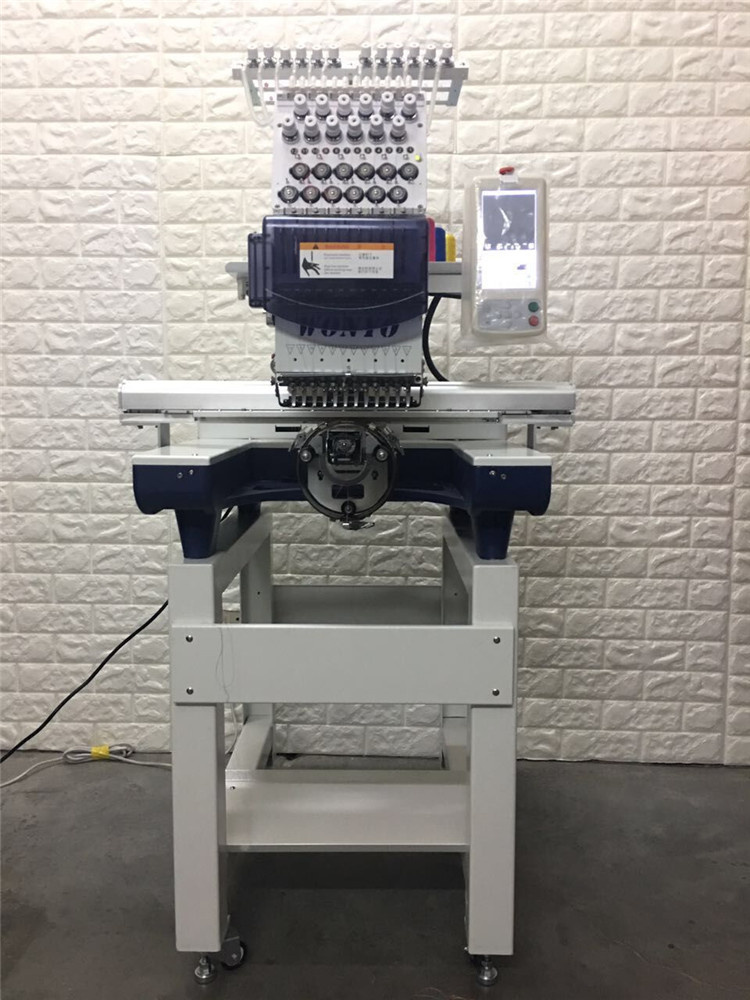

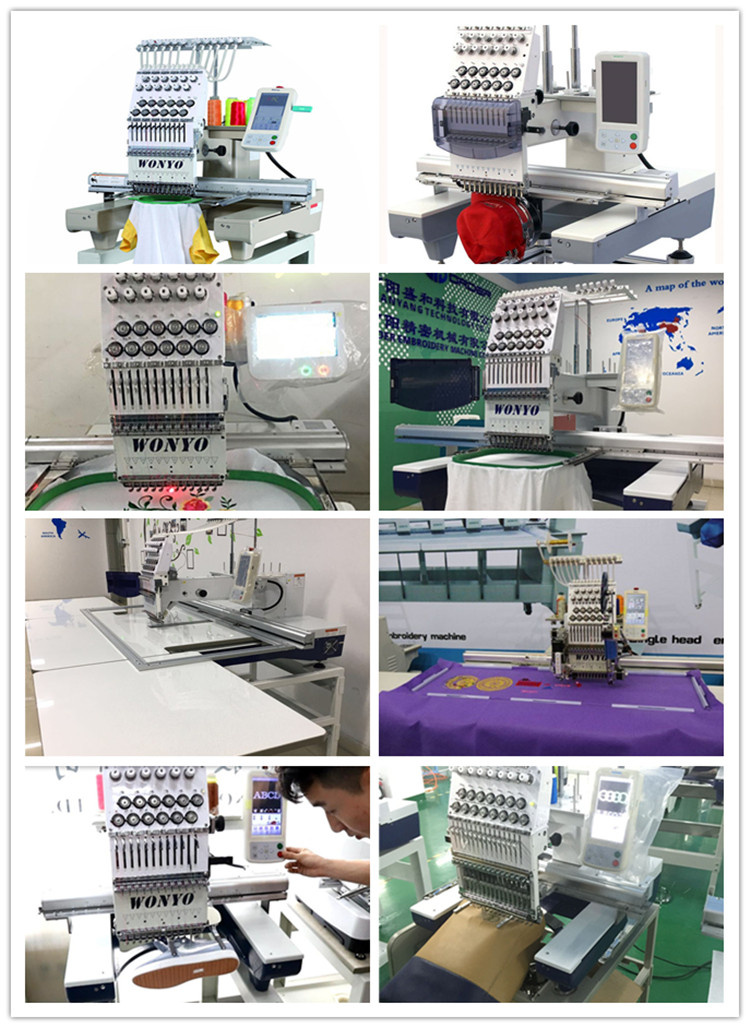

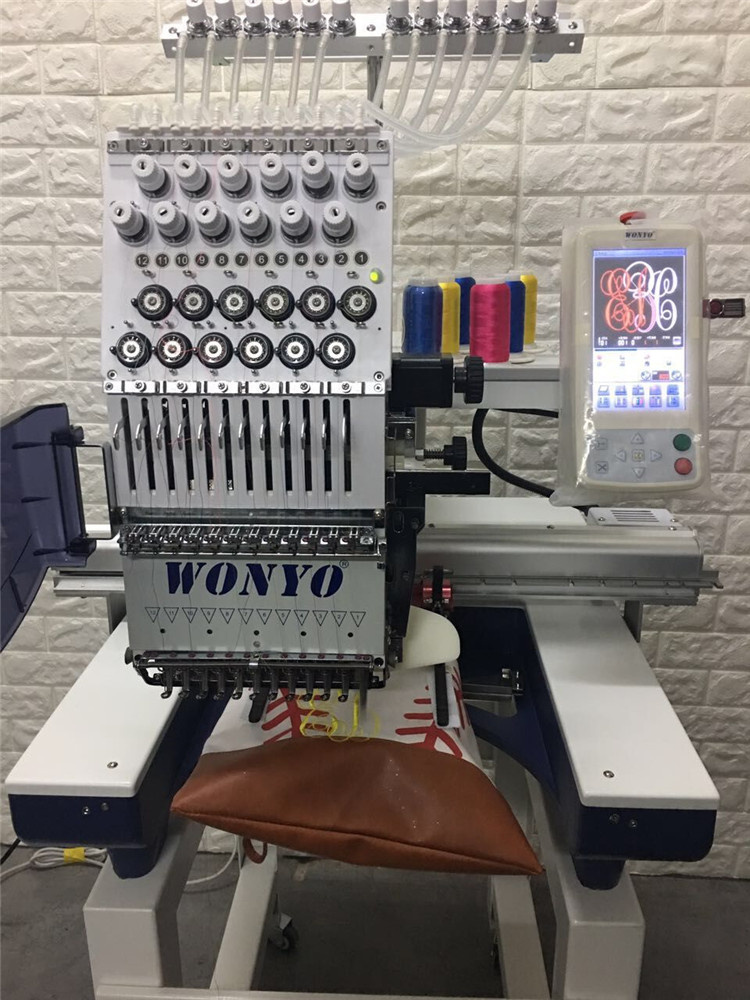

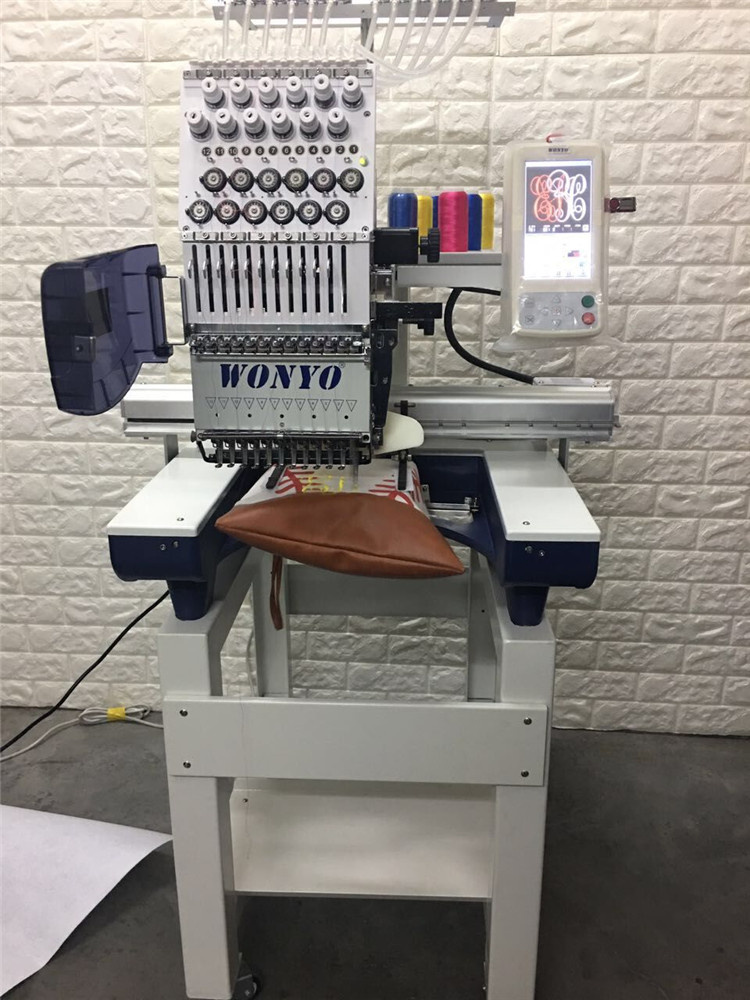

SWF Type Embroidery Machine Computerized Single Head Hat Embroidery Machine for Sales, which is suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery, with touch screen computer.
SWF Type Embroidery Machine Computerized Single Head Hat Embroidery Machine for Sales
Main Features:Suitable for flat embroidery, cap embroidery
Finished garments embroidery
Automatic thread trimmer
Maximum speed 1200 SPM
270° Wide cap frame unit
Color LCD display showing real time stitching
USB input port
Automatic color change
Thread break detection
Pre-sew design trace capable
Memory size 2, 000, 000 stitches
Emergency stop
Servo motor 150W
Electricity: 110V/60Hz or 220V/50Hz available
Machine Size: 75X74X85CM
Control Panel Functions:
Color LCD display showing real time stitching
Start, Stop, and emergency Stop
Function keys including Menu, Speed up and Slow down
(also Page Up and Page Down), Help, USB Input,
Dot Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
Numeric keys for selection of needles
Embroidery Status
Manual Trimming
On-board lettering
Manual Color Change
Multi languages available
Frame-moving keys

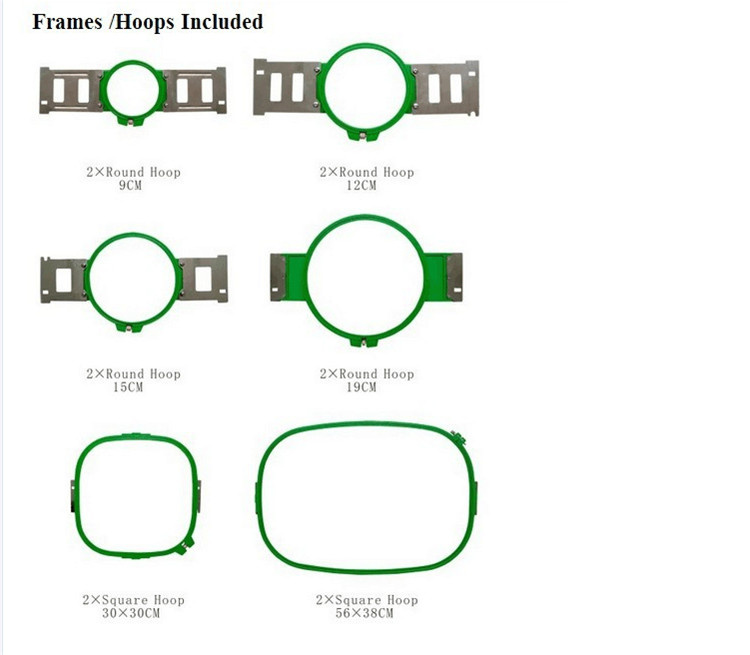

Frames / Hoops Included:
2 x Round Hoop 9 cm (3.5")
2 x Round Hoop 12 cm (4.7")
2 x Round Hoop 15 cm (5.9")
2 x Round Hoop 20 cm (9")
2 x Square Hoop 29 x 29 cm (12" x 12")
1 x Oval hoop 54 x 36 cm (21" x 14")

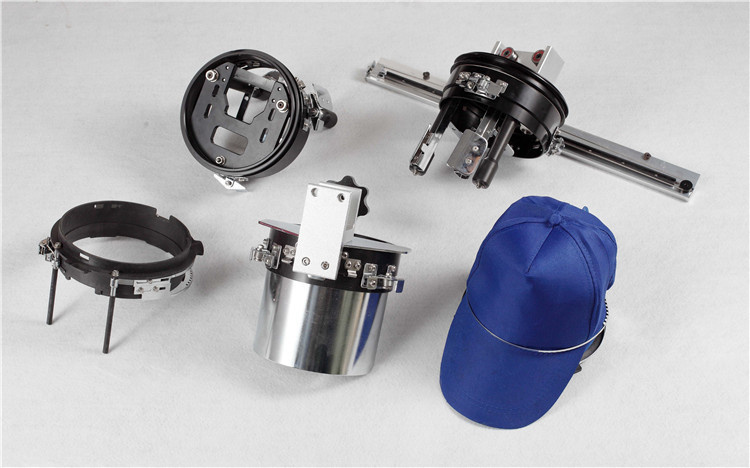

Cap Attachment Included
Accessories Included:
Table and stand with wheels for easy moving around, 70 x 70 x 78 cm or 27.50" x 27.50" x 30.50" with the net weight of 38 kilograms Operation Manual Tool Kit
Optional Device:
Sequin device
Cording device
Robot Frame
8 in 1 device
Belt hoop
Boring device
Laser positioning device
| Software | YES |
| Working area | 360*510mm or 360*1200mm |
| Payment | T/T . Western Union . PAYPAL |
| Delivery time | 20 days |
| Accessorries | 2 x Shirt Front Round Hoop 9 cm (3.5")
2 x Shirt Front Round Hoop 23 cm (9")
2 x Shirt Front Round Hoop 12 cm (4.7")
2 x Jacket Back Square Hoop 30 x 30 cm
2 x Shirt Front Round Hoop 15 cm (5.9")
1 x Sash Frame 56 x 38 cm |
