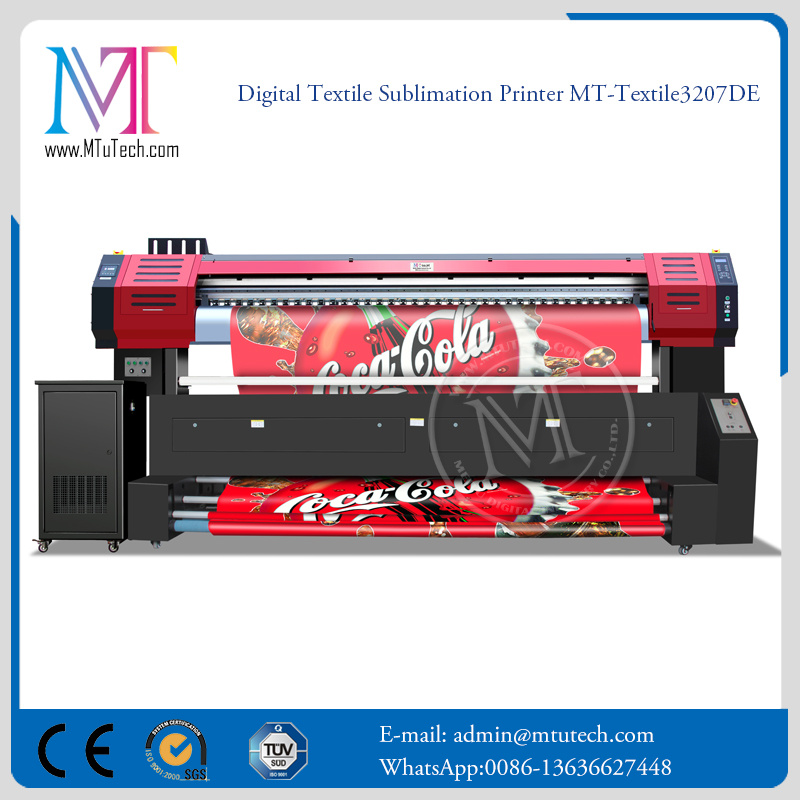

Swimwear Textile Printer for polyester and polyamid direct printing
Application:
Digital Inkjet printing machine specially for high flexibility, easy penetrate and thin fabric printing, without printing belt to relieve headache dirty belt, belt system maintenance and cleaning problems, make thin, large mesh fabric and other special fabric direct printing easier.
Configuration:
5KG open continuous ink supply system, automatic ink supply, ink pressure adjustable. The tension and direction for feeding and taking up roll are adjustable, fabric pressure also adjustable and equipped with fabric wrinkle elimination roller, pressure roller's pressure can be adjusted, constant tension adjustment etc.
Color:
Six-color printing system supports Cyan, Magenta, Yellow, Black and Blue, Orange, supporting multi-color separation printing software, breaking the restricts of traditional four-color on color reproduction. Fully enhance color brightness and maintain the delicate transition of colors and achieve reproduction of bright colorful fabric same as rotary screen printing.
| Type | MT-TX186 | MT-TX226 |
| Print Head | one or two pieces Epson optional |
| Number of Nozzles | 2160 nozzles print head |
| Color | double 4 color/quadruple 4 color, 6 color(CMYK Orange,sapphire blue royal blue) |
| Printing Height | 7 files manually, 0.5 mm/gear precision, range of 4 mm |
| Printing Weight | Nondestructive precision 100KG |
| Resolution | 360x1080dpi\720x720dpi |
| Automatic ink absorption device | The original ink stack |
| Ink Pressure | Adjustable, the accuracy of 0.01 kg/cm2 |
| Automatic Cleaning | Yes |
| Printing Size | 1800mm | 2200mm |
| Print Speed | high quality | 16sq.m per hour | 18sq.m per hour |
| High speed | 22sq.m per hour | 24sq.m per hour |
| Ink | Inl Capacity | 5 kg/color |
| Ink Type | Reactive ink, suitable for cotton, silk fabric; Disperse ink, suitable for polyester fabric; Acidic ink, suitable for nylon, wool |
| Max.load weight fabric | 80kg | 100kg |
| Max.fabric width | 1850mm | 2250mm |
| Interface | USB2.0 |
| Power | Power Voltage | AC220-240V 50-60HZ or AC110-120V 50-60HZ |
| RIP Software | Photoprint 10 TX Sever \MS Windows XP& Windows7 |
| Printing Environment | Temperature: 15-25 centi degree, Humidity: 40-60% |
| Printer Dimension | W3150mm×D940mm×H1300mm | W3550mm×D940mm×H1300mm |
| Net Weight | 600kg | 750kg |
