| Prod Model: |
VCT- RFT |
| Laser Power: |
10W/60W/100W/150W Synrad CO2 Laser Power; |
| Laser Source Brand: |
China Dawei & USA Synrad |
| Scan Head: |
High Quality Made in China (USA CTI Scan Head Is O |
| Marking Range: |
100*100mm /200*200mm/300*300mm |
| Wavelength: |
10.64nm |
| Marking Depth: |
0 ~0.5mm |
| Repeatability Accuracy: |
±0.003mm |
| Engraving Line Speed: |
≤7000mm/S |
Product Description
Table Type CO2 RF Laser Marking Machine Laser Engraving MachineMain Features:
1. With RF Metal laser tube, it can be marking on metal and non-metal materials.
2. RF metal laser source can be used repeatedly inflated, easy maintenance.
3. Bar code, GR code, graphics, text rules and irregular marking serial number, etc.
4. Can support the PLT,AI,DXF,BMP,JPG and other file formats
5. Can travel marking line, online printing, rotary engraving, etc.
6. Completely worktable, the electronic parts are inside of the machine body, nice design and good looking, most popular. (Standard Up-down height: 550mm, can make to 800mm)

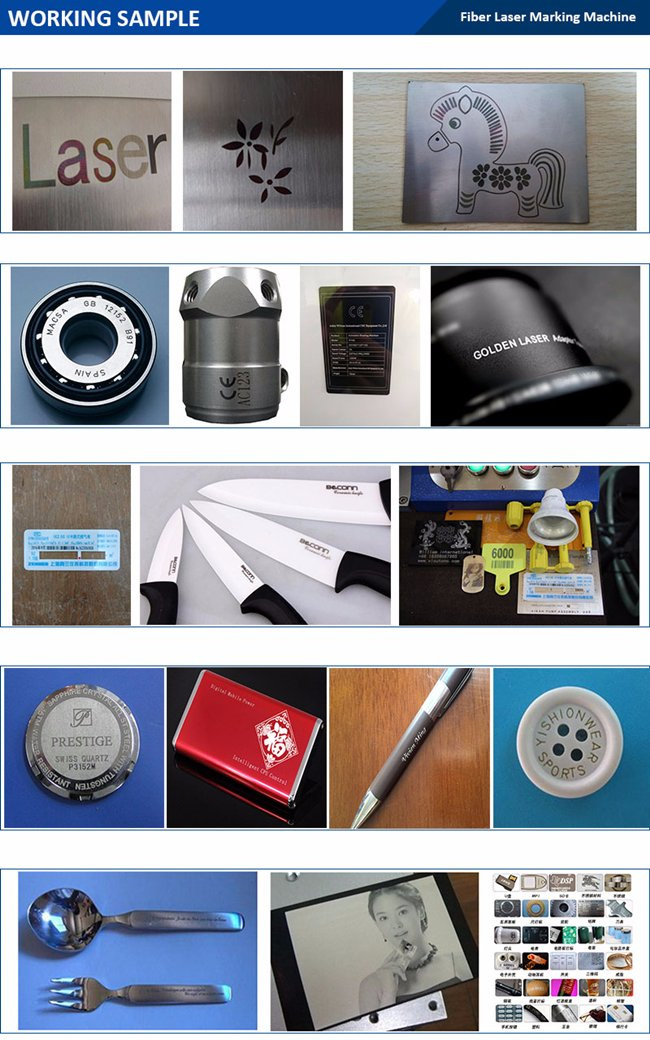

Applications:
1. Applicable Industries:Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical, appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
2 Applicable Materials: Metal: Stainless steel , copper, iron, aluminum, carbon steel ,
Non-metal: Plastic, wood, rubber, epoxy resin, ceramic, ABS, PVC, PES, Leather, bamboo, glass, tile, marble, jade, crystal, fabric, molds, hardware tools etc.
Technical Parameter:
| Model | VCT- RFT |
| Laser Power | 10W/60W/100W/150W Synrad Co2 laser power;
30W Dawei & Synrad Co2 laser power; |
| Laser source Brand | China Dawei & USA Synrad |
| Scan Head | High quality made in china (USA CTI Scan Head is optional) |
| Co2 Laser Source Frequency | 1 - 20 KHz |
| Laser Wavelength | 10.64nm |
| Marking Range | 100*100mm /200*200mm/300*300mm |
| Marking Depth 0 ~0.5mm | 0 ~0.5mm |
| Engraving Line Speed | ≤7000mm/s |
| Repeatability Accuracy | ±0.003mm |
| Beam Quality | M2:<1.2 |
| Marking Format | Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batch number, Serial number, Frequency, etc. |
| Graphic Format Supported | BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, etc. |
| Working Voltage | 220V±10%/50Hz/4A |
| Unit Power | <0.7kw-5kw |
| Working Environment | Clean and Dust Free or Dust less. Temperature: 15-35ºC |
| Working Condition: Humidity | 5%-75%,Free of Condensed Water |
| Laser Module Life | >45000 hours |
Packing Information:
| Model | Net Weight | Gross Weight | Packing Size |
| Table Type VCT-RFT | 100KG | 110KG | 0.97*0.77*1.65m=1.2CBM |

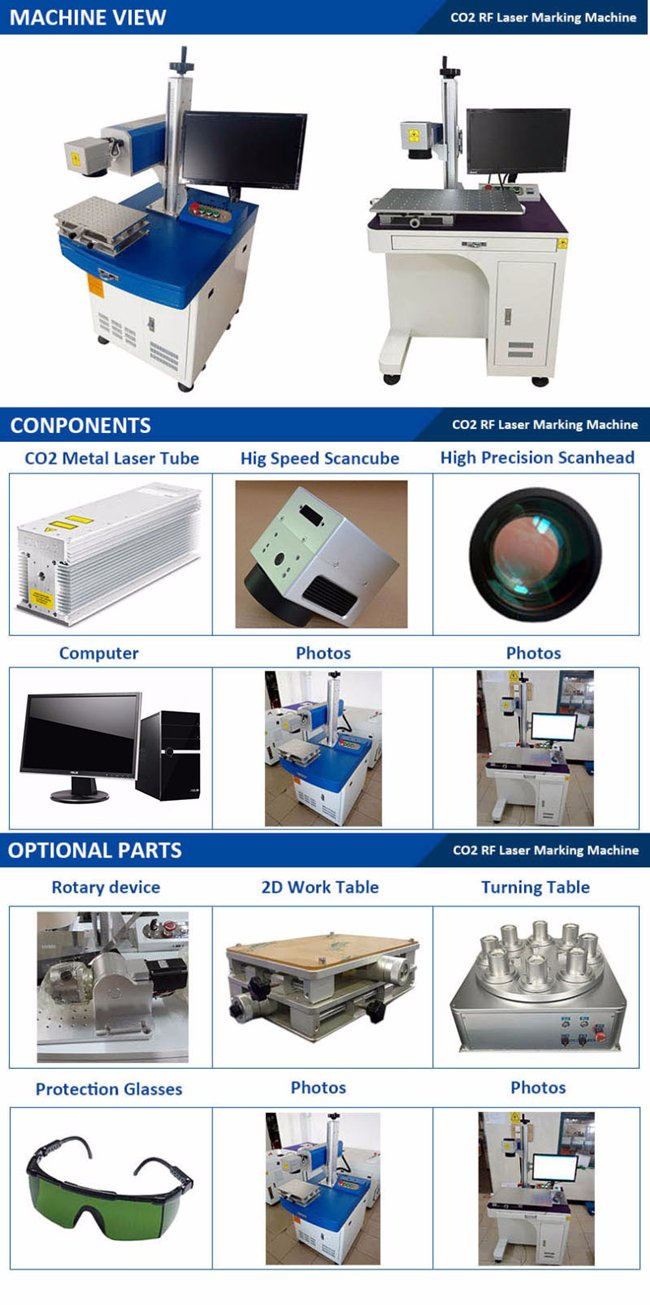

Details:
1. CO2 Metal Laser Tube: Applied for engraving leather, cloth, Plexiglas, acrylic, oxidized metal, paper, rubber, plastic, wood, bamboo, ceramic and other nonmetal materials.
2. Hig Speed Scancube: Germany technology high speed digital Scancube, the working speed is as high as 10000mm/s, as automobile gearbox. It's can play the best laser performance. We adopt high quality Scancube at cost ensure your machine is not only a good value, but also to play its performance.
3. High Precision Singapore Scanhead: Singapore imported high quality Scanhead, good shot, ensure the beam focusing ability is stronger and less energy loss. Machinery final energy loss id less than 5%.
4. Computer: Special industrial control computer, the civil office computer. It with industrial mainboard, watchdog, it can be avoid crash and ensure computer more durable and stable.( It's optional for all types)
Optional Parts:
1. Rotary Device: Suitable for marking on fixing cylinder shape materials which irregular surface.
2. 2D work table: The height of working table is adjustable. Suitable for processing high and thick materials.
3. Turning table: It can rotate to realize automatic transfer, after processed one object it can automatic rotate to the next target.
4. Protection eye Glasses: It's very cool when wear this protect glasses. It can protect your eyes when you see the laser light long time and directly.
