| Prod Model: |

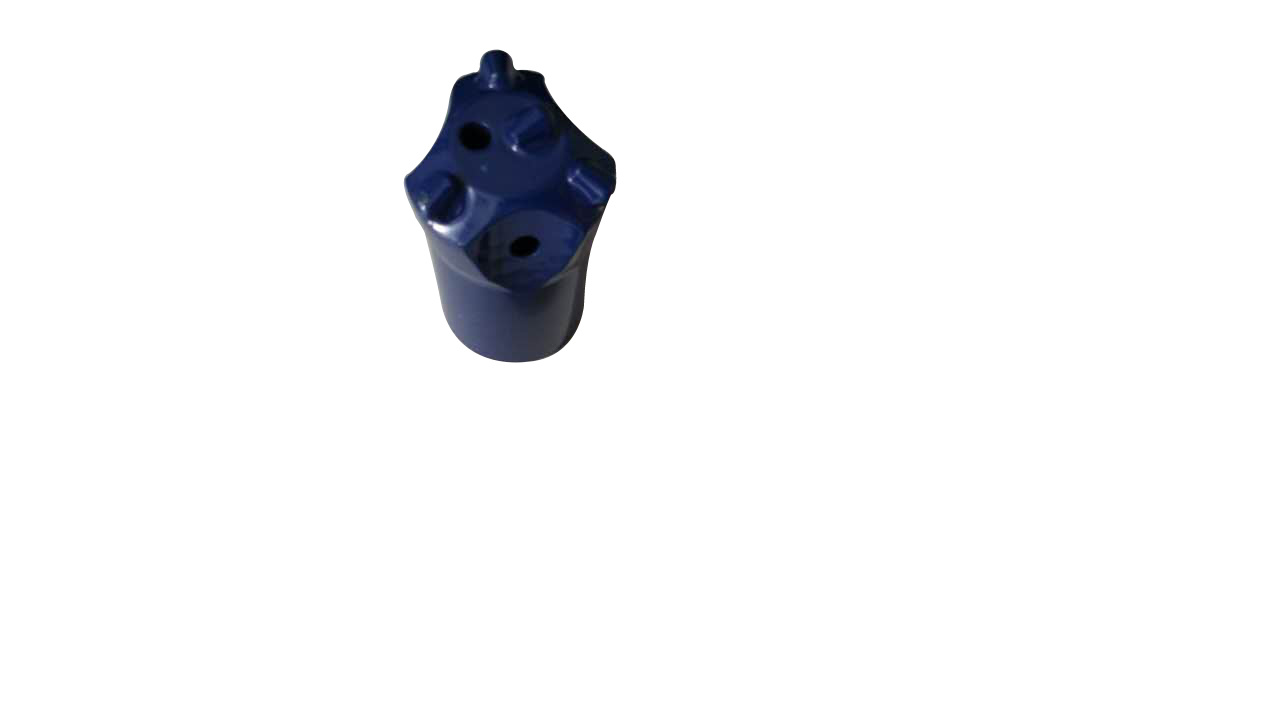

7° -32mm, 4 wedge-shaped button |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Prodrill |
| Model Number: |
Button Bits |
| Machine Type: |
Drilling Tool |
| Processing: |
Forging |
| Color: |
Red, Black, Yellow, White |
| Subject: |
Button Taper Bits for Rock Drill |
| Type: |
Drill Bit |
| Material: |
Carbide |
| Use: |
Rock Drilling |
Product Description
(1)Connect shank Size: Φ19, Φ22, Φ25 at most
(2)Bit Diameter:Diameter 32mm,34mm,36mm, 38mm,40mm
(3)Tapered connection: 6 degree, 7 degree, 11 degree, 12 degree etc.
(4)MaterialAlloy Steel Bar 45CrNiMoV, Tungsten Carbide Tips YK05 or T6.
(5)Button Shape Ballistic Face Type Flat Face; Bit BodyStandard
(6)Qty of button: 5,7, 8 pcs
Our taper drilling tools include taper drill bits and taper drill rod,and taper drill bits come into two types,taper button drill bits,taper chisel drill bits.These drill tools are mainly equipped on rock drilling equipment,well drilling equipment and oil field equipment.They are widely used for rock drilling,blasting holes and other drill works in quarries,coal mines,rod and dam constructions and other similar projects.
Product Name: | Tungsten carbides tapered drill bit |
| Types | Rock cross drill bit, Tapered cross bits, Tapered button bits/ 34mm button drill bit |
| Application:: | Use in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling |
| Feature: | Tapered drill bits connect tapered drill steel of rock drill for drilling holes |
| Material: | High quality carbide and high quality steel |
| MOQ: | 5pcs |
| We can design and manufacture according to your requirement of diameter, number air holes and carbide button shape. |
| Types of drill bits | Diameter (mm) | Taper Angle (Degree) | Length (mm) |
| Tapered chisel bits | 20/22/28/30/32/34/36/38/40 | 4 degree/ 6 degree/ 7 degree/ 11 degree/ 12 degree | 50/55/60/71/80 |
| Tapered cross bits | 24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55 | 50/55/60/71/80 |
| Tapered button bits | 28/29/30/32/33/34/35/36/37/38/40/41/42/45 | 50/55/60/71/80 |
Description:
Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency, so that the button bit is popular among the users.
Made with high quality of raw material through special heat treatment ,especially, tungsten carbide of tapered button bits are from Boart long year,widely applied in Hand Hold ( short-hole) drilling system for dimensional stone quarrying. At now, we are exporting the huge qty of Q7- 33- 7 22-80 , Q9 -45 -12 22- 71 for Indian quarry and Norway, Finland quarry.
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
