| Prod Model: |
SX-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Needles: |
10 Groups |
| Needle Distance: |
19mm |
| Automatic Grade: |
Manual Type |
| Computerized: |
No |
| Binding Size: |
460X310mm |
| Thickness: |
≥70mm |
| Type: |
Thread Binding |
Product Description

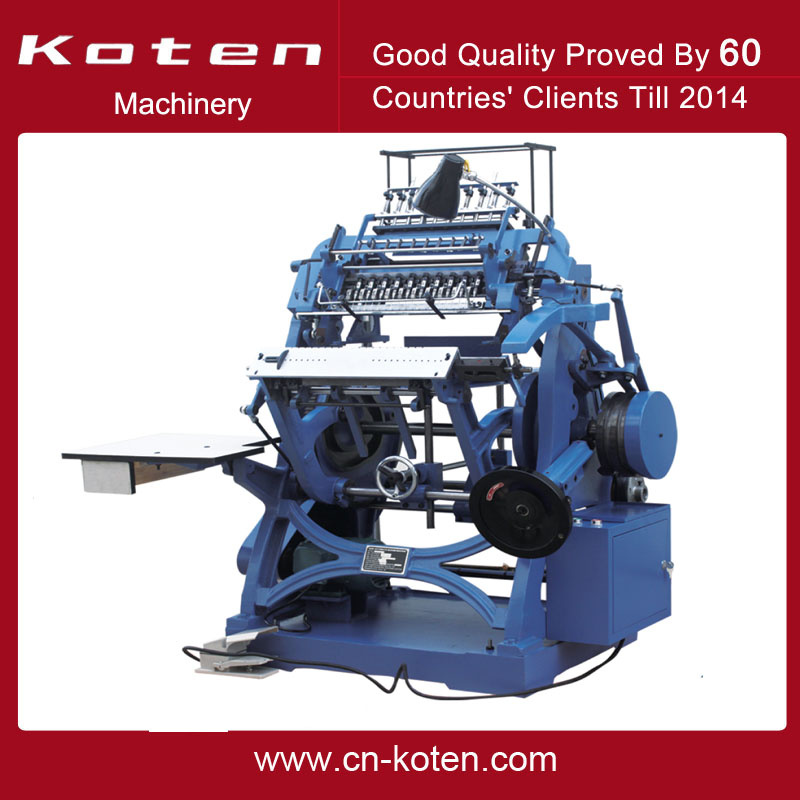

Video Checking.https://www.youtube.com/watch?v=xdgWVltk9cA&index=5&list=PLAe1kulyzP_Qiav9BV9TmIvo0crUDtTXJIntroduction.SX-01 book sewing machine, used to threads binding more thick books. The aircraft structural flexibility, easy to operate; Continuous operation without stopping; Secant automatically adjusting the convenient power small electric province wide binding.
Model SX-460E
1. Imported PLC control with 5.7 inch touch screen, speed adjusted.
2. With high quality sewing, adopt famous brand needles, beautiful finished sewing.
Model SX-01 and Model SX-460B
1. Advanced clutch control, reliable working condition
2. With IR safety system control device.(SX-460B)
3. Suitable for large and high-class books sewing.(SX-460B)
4. Automatic lubrication system.(SX-460B)
Finished Samples.
Main Specifications.| Model | SX-01 | SX-460B | SX-460B(Large size) | SX-460E |
| Max.Sewing Size | 400X300mm | 460x460mm | 630x460mm | 460x310mm |
| Min.Sewing Size | 150x100mm | 150x100mm | 150x100mm | 150x100mm |
| Speed | 43-53cycles/min | 50 cycles/min | 50 cycles/min | 100 cycles/min |
| Needles | 10groups | 12groups | 19groups | 19groups |
| Power | 0.55kw | 0.75kw | 0.75kw | 1.6kw |
| Weight | 650kgs | 850kgs | 1000kgs | 1100kgs |
| Dimension | 1.38x1.28x1.55m | 1.5x1.3x1.45m | 1.5x1.47x1.45m | 2.3x1.4x1.4m |
Packaging and Container Loading.
