Three Side Sealing Stand up Zipper Bag Making Machine

Name: Three Side Sealing Stand up Zipper Bag Making Machine
Brand: FullPackage
SKU: 759090535
Availability: InStock
Rating: 4.9 (121 reviews)

Price:	US $ 32000-42000/Set
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BH-600ZD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Name:	Pouch Making Machine
Bags Type:	Laminating Bags Food Packing Bags
Certificate:	CE, SGS
Shipment:	by Sea
Machine Type:	Bag Forming Machine
Computerized:	Computerized
Type:	Plastic Bag Making Machine
Product Line:	Pouch Making Machine

Product Description

Features For Laminated Film Stand Up Bag Making Machine

1. Suitable for kinds PE laminated film ,Paper Laminated, Alu. Laminated,and co- extrude film
2. To produce three side seal bags, stand up pouch,zipper pouch,
3. EPC and double photocell tracking for unwinder
4. Unwinder with automatic tension control

Bags You can make on this type machine :

1.3 sides sealing bag
2. Centra sealing bag
3. Centra sealing and gusset
4. Sand up bag
5.Four Side Seal bags
6.zipper bags

Main Technical Parameters For Laminated Film Stand Up Bag Making Machine

Model	BHZD--600	BHZD-500
Max.Diam eter of roll material	600mm	600mm
Max.width of roll material	1200mm	1000mm
bag size width	70-600mm	70-500mm
bag size length	70-380mm x N ( N≤6)	70-380mm x N ( N≤6)
bag-making speed	30-150pcs/min	30-150pcs/min
Temperature control	Normal temperature to 3600C	Normal temperature to 3600C
Total power	35kw	32kw
gas resource	0.6mPa(6kg/cm2 )	0.6mPa(6kg/cm2 )
Cooling water	5L/min	5L/min
Machine weight	6000kg	5500kg
outline diameter	L11505W2400H1865mm	L11505W2300H1865mm

Optional:
Double layer unwinder device
Punching device for handle

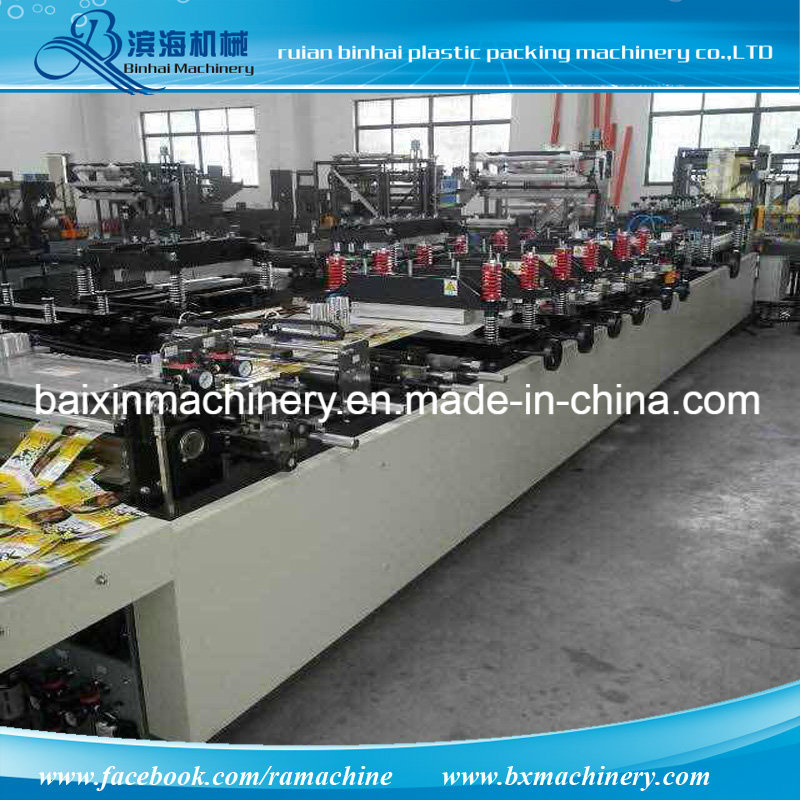

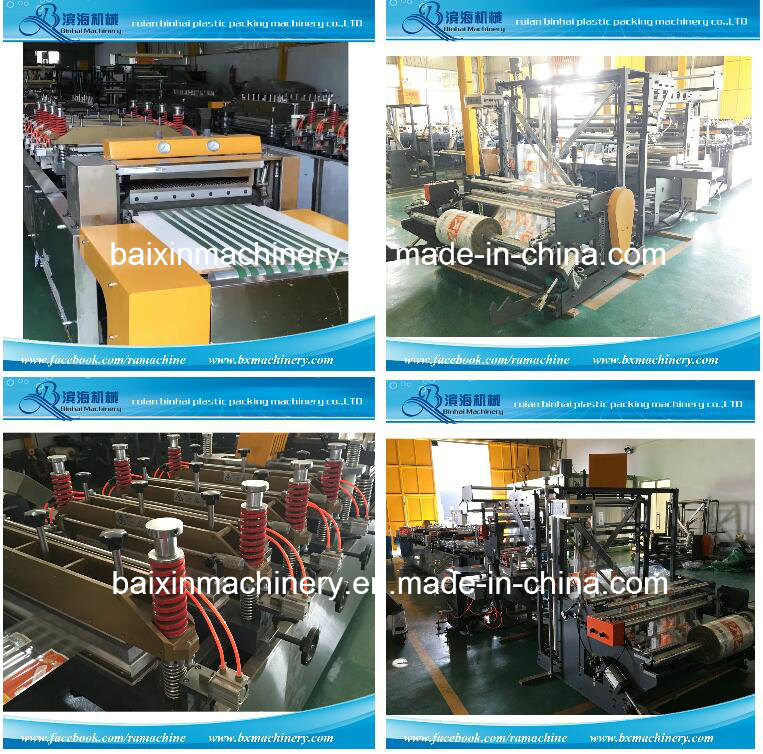

Following machine pictures are Patch one Stand Up Bag Machine .(bottom from second roll)

,

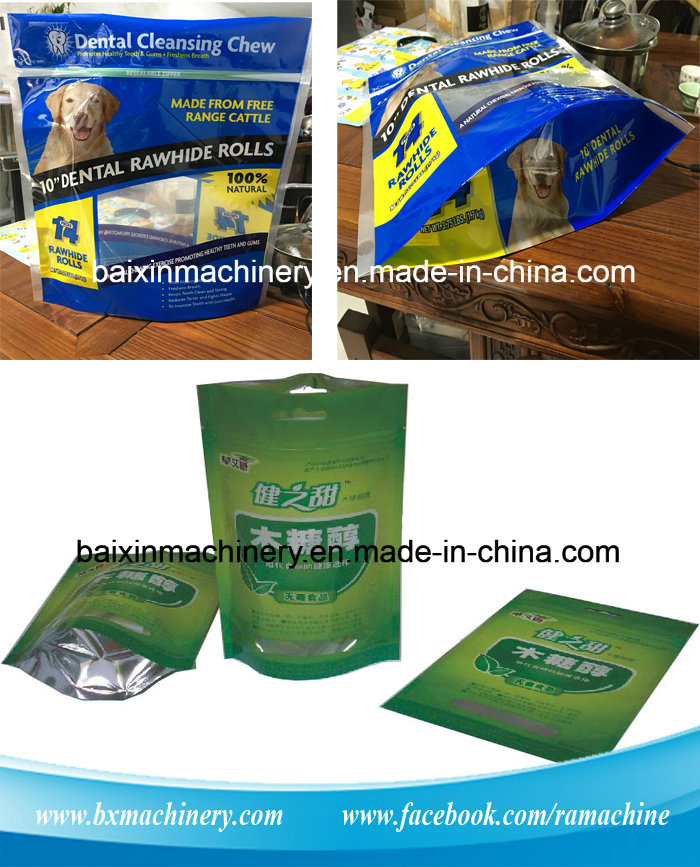

For BH- ZD Series Machines, it can produce two type stand Up zipper bags.
see belowing bags .

1) two bags both are stand Up zipper Pouch .
2) first bag, we produce those bags only need on roll film .We use Gusset method to do it .
If your bags bottom have pictures , you can tell us , you need produce those bags.

3) second bags, we produce those bags, need one big roller for bags and one small roller for bottom.
those bags bottom is from second small roller, suitable for no printing bottom bags.or simple printing bottom bags.

whether which bags yours are , should tell us when we discuss machines and bags .
So usually , before send you details offer , we will send you email to learn more about your bags .
if you have bags samples, pls send to us . thanks .

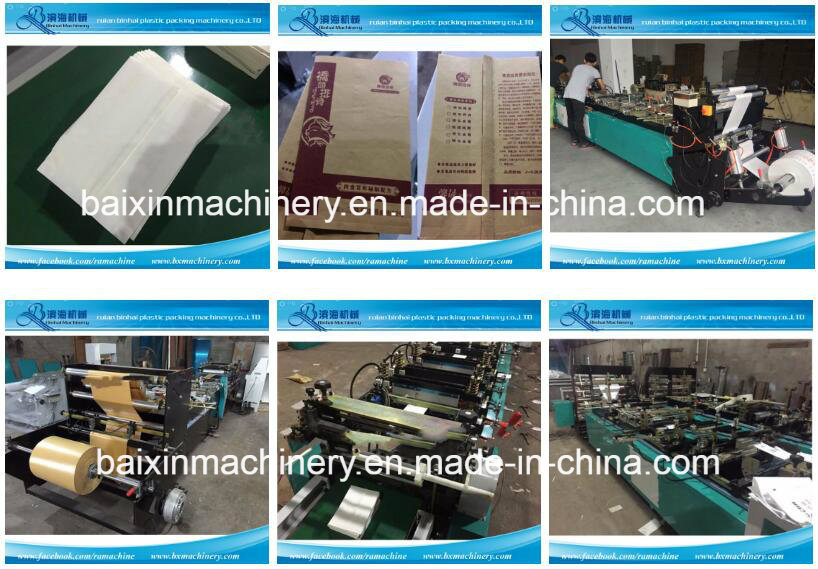

If you only Produce Central Seal Paper Bags . here we have economic Model .

Bags can do On this Model Machine

---Material : PE Coated Paper Rolls
---Bags: Central seal and Bottom Seal Bags

Main Technical Parameter :

Model	BH-350	BH-500
Max.Diam eter of roll material	600mm	600mm
Max.width of roll material	700 mm	1000mm
bag size width	350mm	500mm
bag size length	70-350	70-350
bag-making speed	220pcs/min	30-220pcs/min
Temperature control	Normal temperature to 3600C	Normal temperature to 3600C
Total power	1.5KW	2KW

This Model Machine is cheap and economic One for producing Central seal and Bottom Seal pouches .
Usually , for fast food disposable paper packing .
One worker can Do it .


Packing and shipping

Machines will Packed with Waterproof oil , stretch Film
If need , Fumigation wooden case as option
Delivery date: 35days after receipt of down payment.
Shipment from Ningbo port ,China By Sea

RFQ:

Are you a factory or Trading Company
   We are a factory with experienced exporting products. We also help clients
   To look for products which they can not sure of.

Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 40minutes by plane from Shanghai, about 5 hours by train from
Shanghai .
We are pleasured to pick up you when you arrived .

How you work if I am not come to China
   Usually , I will offer you our All Government Certificates (all Certificates are got after Government persons' Strict Investigation
to show that we are a true exist company,
Then I will show you machines that you want to buy on computer by video and pictures , So that If you have any questions or Good Ideas
on machines , we will discuss with engineers to offer you a well resolution .
When machines finished , If you are too busy to come To China , we can show you pictures and videos .If machines not good ,you can refuse
to pay us .
Surely , If it is no problem , you should pay us the rest 70% Before shipping .
The Whole Shipping Process We will keep in Touch with you by Email or Whatsapp .

IF Have more questions , Contact with me !!!
THE ENDING ...........THANKS FOR YOUR READING

Ruian Binhai Plastic Packing Machinery Co., Ltd

Engaged in manufacturing Film Blowing Machine, Bag-making Machine, Printing Machine, bubble film making machine, Recycling Machine and so on complete sets of plastic packaging machines and equipments. Our machines have been exporting to East Europe, North America, South America, South-east Asian, Africa, the Middle East and so on,

Which without any exception, have been given good accomplishment by

Our customers and consumers.

With the concept: "customers the first, reputation the life" we follow scientific management system in every proceeding, each machine is after strict testing before its delivery.

Our company is authorized CE Certificate and also ISO9001 certification. We have been also authorized to advanced enterprise in domestic market for 14 years.

Now win a big market both in domestic and overseas after 20 years efforts with powerful technical support and complete service system. We will sincerely do our best to offer best quality and service to every customer and consumer.
