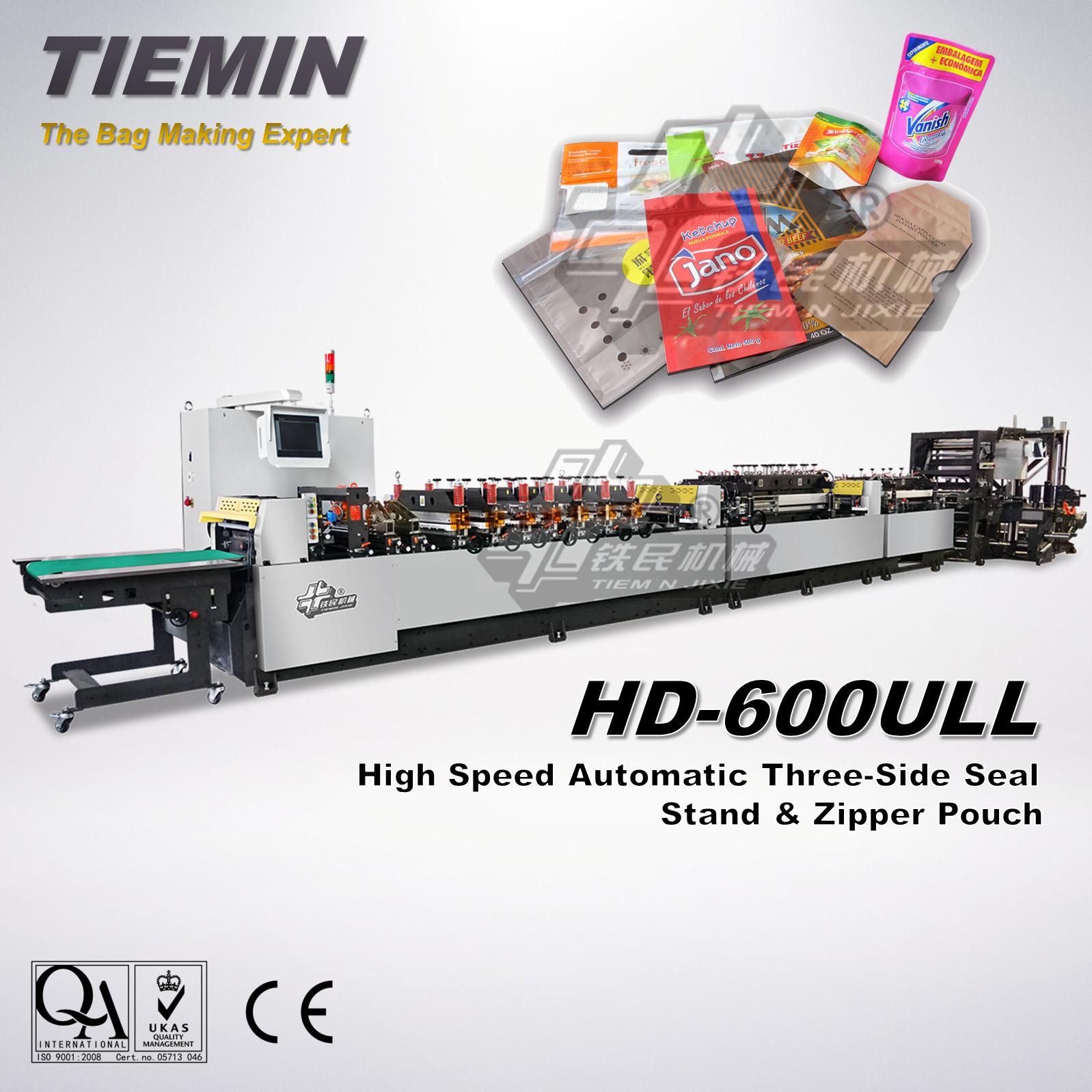

Tiemin Automatic High Speed Three Side Seal Stand up & Zipper Bag & Pouch Making Machine HD-600ull
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HD-600ULL |
| Machine Type: |
Bag Forming Machine |
| Type: |
Plastic Bag Making Machine |
| Voltage: |
According to The Need to Choose |
| Layer: |
Multiwall |
| Computerized: |
PLC |
Product Description
Tiemin High Speed Automatic Three Side Seal Stand and Zipper Bag & Pouch Making Machine HD-600ULL
Function Indication:1.Application scope| Material : various compound films |
| Roll folding | Max Wdith | 1200mm |
| Max Diameter | 800mm |
| Auxiliary material | Max Wdith | 150mm |
| Max Diameter | 600mm |
2.Adaptability | Bagging speed | 160 shots/min
(mechanical design speed)
Zipper 120 shots/min |

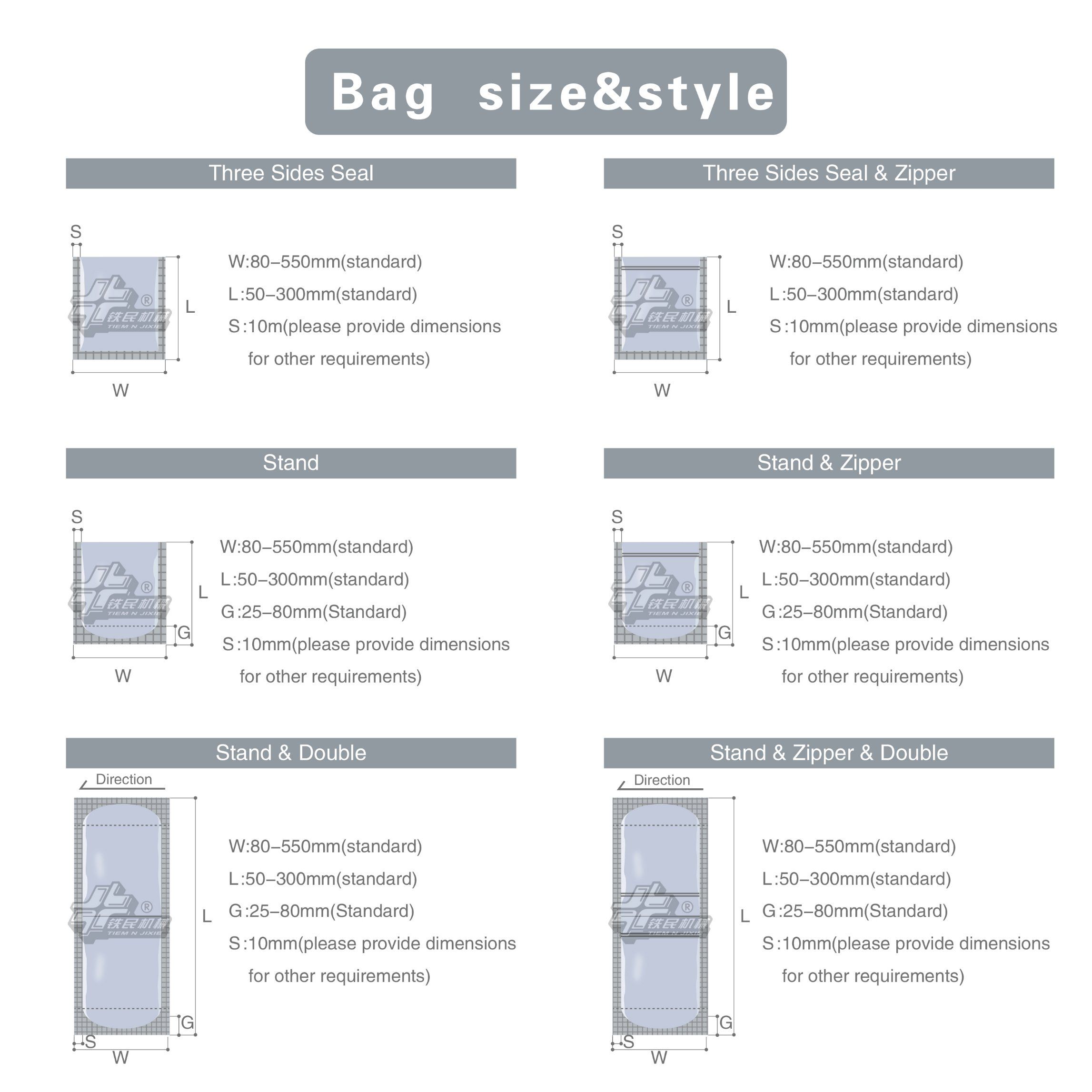

| Bagging width | Max Width | 600mm . |
| Bagging length | 30-500mm
(When the length setup is above 300mm , it will be automatically changed into skip mode ) |
| | | |
Notes:The actual operation speed may be a little bit lower because of different type of bag or different material . 3.Warping mode Fabrication : put the warp beam horizontally , with V fold support , and pneumatically lock .Auxiliary material : put the warp beam horizontally , with triad plate .Control : tension is automatically controlled by swimming roller , magnetic powder brake , encoder ,ect . 4.Driving mode Feeding traction : drove by AC servomotor .Upper & lower sealing press : drove by AC servomotor .Notes : the customers , according to the requirements for bag material , can add the third servomotor driving system . 5.Control mode Adopts the industrial control equipment , domestic displayer .Adopts PLC to control , touching screen displaying .Adopts multiple photoelectric control . 6.Functions Heat seal : speed of heat seal .Temperature : contact-free automatic control , CRT displaying .Automatic count : presetting is available .Conveyance of finished bag : conveyance quantity is available .Punching device : time can be preset , continuous or interval punching is available .Setting up mode : alternatively first sealing press and second sealing press .Working mode : printing , non-printing .Mode of multiple conveyances : twice to six times conveyance .Measurement for length : distance between color scales can be measured photo-electrically .Selectivity : feeding without movement , upper & lower regulating trimmer can be selected.Message alert : lost of photoelectricity ,lost of temperature ,warping alarm ,servomotor alarm ,tension alarm and auto-switch off the machine .7.Electricity-use configuration | Feeding driving AC motor | 1.5 kw × 3 = 4.5 kw |
| Upper & lower driving AC motor : | 3.5 kw × 1 = 3.5 kw |
| Warping traction motor | 0.37kw × 1 = 0.37 kw |
| Side heat seal device | 3.6 kw × 5 = 18.0 kw |
| Lateral heat seal device | 4.8 kw × 5 = 24.0 kw |
| Zipper heat seal device | 4.0 kw × 2 = 8.0 kw |
| Auxiliary material traction motor | 0.09 kw × 2 = 1.8 kw |
| Control system and others | 3.0 kw |
| Total | Approx. 60 kw |
| Gas pressure | 0.6MPa (6kwfim²) |
| Cooling water | Approx. 15L/min |
| Occupying area of equipment | Approx. 13m × 2.5m |
| Gross weight of equipment | Approx. 7t |
Tie Min Printing Machine Co., Ltd is an advanced enterprises with core technology specializing in professional bag and pouch making machine R&D and manufacturing in China.
We focus on designing and manufacturing high quality at the reasonable price Pouch Making Machines for meet different kinds of requirements. Since it was established in 2001, our machines are now located in over 30 countries and areas all over the world and are highly regarded by well-established companies.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
