Toma Aluminium Window, Roller Shutter and Retractable Mosquito Net

TOMA aluminium window, roller shutter and retractable mosquito net (monoblock)

Two types for window:

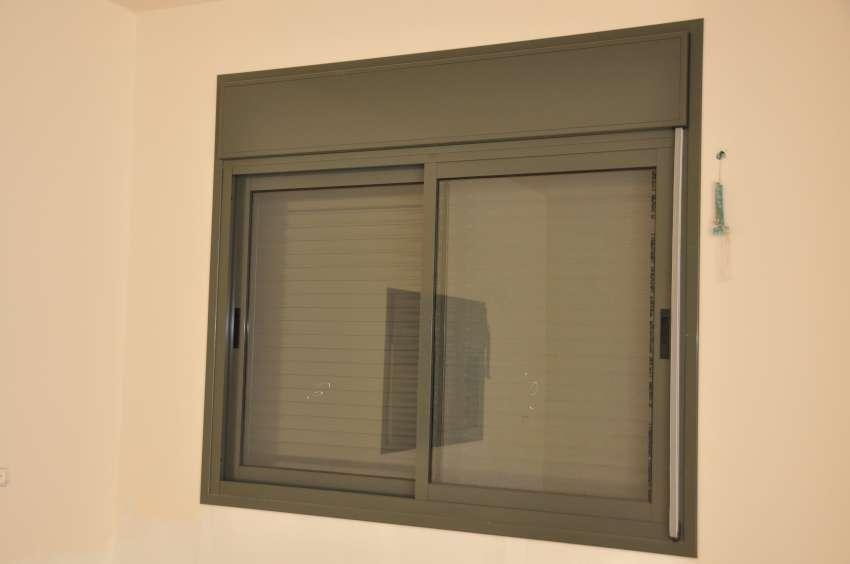

1. Sliding window

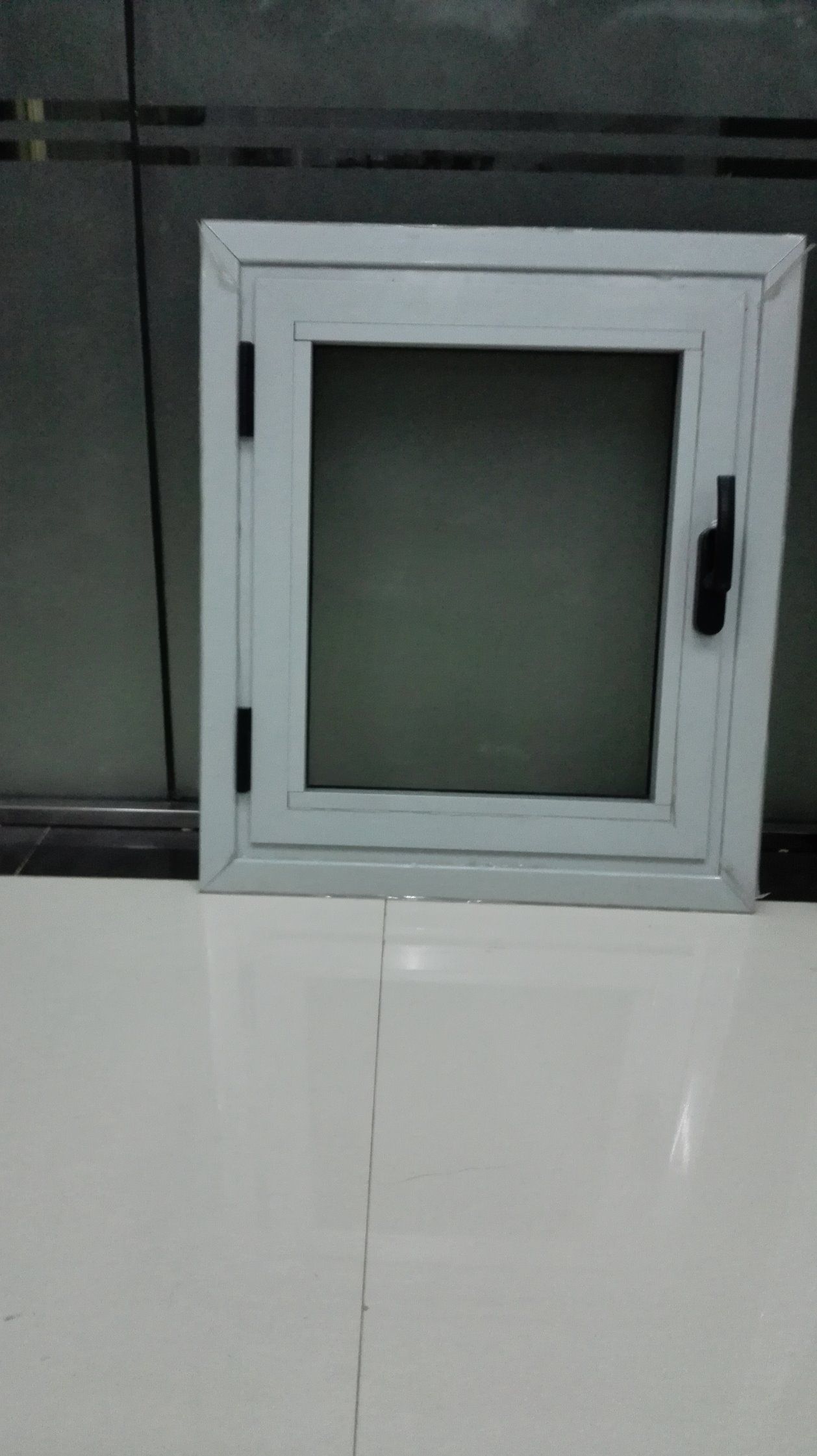

2. Tilt and turn window

Your advantage: Heat insulation+soundproofing+visual cover+weather protection+safety+design+multi functionality

Fuel economization
A ROMA front-mounted roller shutter will save energy, in comparison to a lintel box since no thermal bridge occurs between shutter element and inner room.

Optimal heat protection with roller shutters closed
Between window and shutter curtain there will develop a strong insulating air cushion. The insulation of a heat-insulated window pane will increase by 20 %.

Additional Soundproofing through closed roller shutters
Aluminum panels are filled with sound-absorbing foam-material and lower the noise level extremely. (All ALUMINO slats). This gives you a restful night of sleep and higher concentration and efficiency during the day.

Protection of curious glimpses
Enjoy undisturbed protection in your house. By means of group control you can either open or close all roller shutters automatically or by pushing a button

High Soundproofing values
Optimal soundproofing, tested in many laboratory experiments. If the inside is plastered or equipped with additional insertions soundproofing values (RW) of up to 42dB will be possible.

Protection from good or bad weather
Rain, snow and hail as well as strong solar radiation will be kept away by roller shutter curtains made of aluminium slats. Enjoy a cool, shady room even at midsummer. By photo sensor all roller shutters will be closed or opened automatically,

Security package as effective protection against burglars (optional)
TOMA does not make it easy for burglars. Shutter systems with aluminum roller shutter curtains are very safe. The TOMA-Security Package with reinforced bottom panel, concealed bolted guiding rails and the push-up protection are hard to break through. You will receive a proven system with the security package at a reasonable price.

Wooden windows and floors need special protection
Climatic conditions can be detected at wooden windows and floors. Wooden windows have to be painted often at the weather side and have to be replaced after a few years. Parquet and laminate flooring will bleach near the window are a within a few years and should be protected.

Presence-Simulation with timer
The programmable timer opens and closes your roller shutters while you are away even at sporadic intervals and pretends an occupied home.

The Approach sensors
The area in front of the window will be guarded by these sensors and will start up the shutters after 10 seconds should there be a person. Should this person not be discouraged and should not leave the area the roller shutter curtain will close completely.

Mosquito proof
You will be free of mosquito and insect.

Technic parameter:
Heat transfer coefficient K=2.0 low temperature grade 8
Wind resistance: Class 3
Air tightness: Class 5
Water tightness: Class 4
Sound insulation performance RW=40~44dB
Section parameter
Material: Thickness of aluminium profile upon 1.4mm, overall thickness 130mm
Mullion: Thickness of aluminium profile upon 1.4mm, overall thickness 55mm
Sash stuff: Thickness of aluminium profile upon 1.4mm, overall thickness 65mm
Heat insulation bar nylonPA66, 25% fiber glass reinforced

Control mode:
1. Manual crank
2. Manual switch
3. Motorised with remote control with time control
4. Manual tape coiler system
5. Motorised with remote control
6. Motorised with remote control with sensor is optional
