Triple Sided LED Follow Me Sign for Guiding Aircraft on Apron (FMS-T01)
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Triple Sided LED Follow Me Sign For Guiding Aircraft On Apron
FL-DF-P8*10-32X128-RED+AMBER Double Sides 2-Lines Follow Me Truck Signs for AirportParameter
| Item | Description | Spec | Remark |
| 1 | Module | P8*10 red or amber | |
| 2 | Led chip
| RED 620-630nm 950-1600mcd
AMBER 578-580nm 430-800mcd | Taiwan Opto |
| 3 | IC DRIVE | PHILIP 74HC595,74HC138,74HC245 | |
| 4 | PCB | 1.6mm Double sides board | |
| 5 | Switch power supply | 5V10A | 12V input |
| 6 | Control system | Wifi and bus information system | |
| 7 | Panel display dimension | Max Latter Length:1224mm,Depth:340mm,
Max Top length:1124mm,Depth:200mm,
Panel Height:less than 600mm(include the base) | |
| 8 | Pixel resolutions | Wide 128dots, Height 32dots | |
| 9 | Display color | red and amber | |
| 10 | Drive mode | 1/16 Scan | |
| 11 | Screen Refresh frequency | 400Hz | |
| 12 | Continues operation time | more than 64hours | |
| 13 | work environment temperature | -25ºC~+60ºC | |
| 14 | work environment humidity | 10%-95%RH | |
| 15 | Work voltage | DC12V | |
| 16 | Pixel pitch | Wide 8,m Height 10mm | |
| 17 | Frame | Frame Wide 20mm | |
| 18 | Characters on screen | Wide 8characters Height 2characters | |
| 19 | Galvanized Plate | Spray matte galvanized plate | black |
| 20 | Display mode | Fixed and shift | |
| 21 | Installation mode | sit on the top of the car | |
| 22 | powerful flash light | Yellow flash 60-90/Min | |
Product designing picture and dimension
Hand hold phone software and picturePresetintelligent connector CPU: Core 4 Brand: Lenovo Screen size : 7.0inch Hardisk capacity : 8GB Operation System: Android Touch type: capacity screen RAM: 1GBSoftware interface: Display mode and functions
| Item | Functions | Descriptions |
| 1 | Display Text, Number | 6red characters in the middle, each amber character on both ends |
| 2 | Operation | Operate via hand hold phone, to edit and display the content |
| 3 | Car zone function | When connected to the car, drive normally, turn, hand brake and other modes, |
Remark: can shift between the airline and airport gate information, interval, 4sec,10sec, 15sec. 4.1Normal drive 4.2Turn right drive(Arrow flash ) 4.3Turn left drive(Arrow flash ) 4.3hand brake Thanks for your interest and trust!Welcome to contact us freely! The LED Follow Me Sign is a movable LED display that can be easily mounted onto a follow me car for visually guiding aircraft to correct site at apron. The high attractive display can be programmed by user-self and showing real-time messages to pilot in aircraft such as flight number, follow me, stop, turning right or left and more. The LED sign can work on vehicle's 12V power supply and be operated from car's cab with Android pad or Ipad via WIFI communication.It has been proved in many airports practical application that, a follow me sign can help aircrafts taxi orderly. Since the follow me car is familiar the runway, which will save the time for aircraft to taxi to right location and improve the efficiency of airport, the punctuality rate of scheduled flight can be raised accordingly.Features- Single LED sign can be operated by pad computer or Remote control.

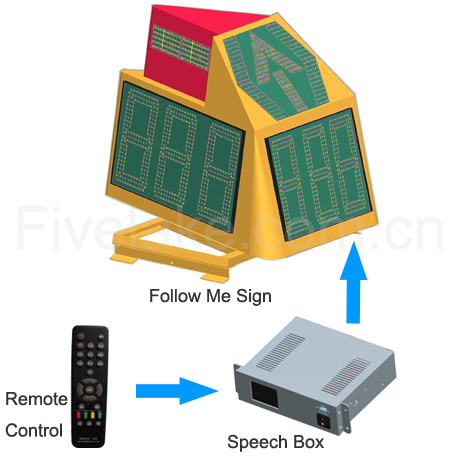

- Aircraft information input to Speech box with Remote control.
- Speech box sends information to LED sign thru RS232 connecting.
- Able to network several signs in LAN with 3G or 4G network.
- To safely guide aircraft to right location on apron.
Our Advantages:1). Over 20years experience in led display sign industry enhances our good reputation throughout many countries. Our agent work with us and they are spead in world wide, cover Europe,America,Asia,Arifca,Australia and etc.2). OEM and ODM services are provided due to customers' requirement.3). CE RoHs certificates and quality control by ISO9001-2008, providing our products with quality assurance.4). Excellent raw material suppliers provide a good foundation for the best quality of the products.5). Strict raw material inspection improves the product qualification rate, extends the life.6).100% aging line test before packing minimizes the possibility of defective products flowing out of the factory.7). Quality inspection in random before shipping assures products reliability with technical data.8).We offers a great variety of goods with all kinds of quality that can meet the requirement of most markets in the world.,Services:1). your inquiries related to our products will be replied in 24 working hours;2). Samples charged to customer, and offered in certain quantity and delivered in 3-7 work days;3). OEM and ODM service are provided, we can design and produce according to your needs; 4). Exchange for defective products in warranty time;5). Arrange shipping and custom declaration.6). Relevant products sourcing and management service.The FutureThe business group of Fivelake is to continue to develop and expand both our product ranges and market developing. This will be achieved through continued co-operation with our strategic partners which will ensure that our all of our products use the latest technologies and this coupled with our adoption of the latest advanced production methods and strict quality control will ensure that Fivelake will continue to grow and become a name synonymous with quality and reliability.FAQQ1: Are you a factory or trading company? We are a factory manufacturer.Q2: How do you offer samples?We offer 1 to 2 pcs samples in certain quantity and delivery within 7-10days, charged to customer. Q3: What is your delivery time?Sample order: 7-10 working daysMass order: 25-30 days after 30% deposit received Q4: What is your payment term?Payment shall be 50% deposit by TT, 50% TT before shipment. Or L/C will be considered. Q5: What is your warranty?We offer 2 year warranty for this product. Q6: What is your MOQ?For this model, usually our MOQ is 12pcs, but we also accept sample order for trial.Q7: Can your factory make the lights based on customers' design?Yes, we offer OEM and ODM service; we have professional engineers for R&D. Q8: Where is your factory? How can I get there? Our factory is located in Gongshu district, Hangzhou, Zhejiang Province,about 1 hours by train from Shanghai;2 hours by plane from Guangzhou. Welcome to visit our factory! , ContactsKat Zhao sales managerMobile : +86 13575470939Website :http://www.ledmanufacturer.cnAdd: NO. 39 Xiangyuan Road,Gongshu District, Hangzhou city, Zhejiang Province,ChinaWelcome your inquiry of our LED display signs!
| Prod Model: |
FMS-T01 |
| Tube Chip Color: |
Dual-color |
| IP Rating: |
IP67 |
| Pixel Pitch: |
10mm |
| Display Function: |
Image & Text Display |
| Average Power Consumption: |
180W / m² |
| Pixel Density: |
1024 dot / m² |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Dot Matrix Display |
| Certification: |
CCC |
| Pixel Configuration: |
Red + Green + Yellow |
| Application: |
Follow Me Sign |
