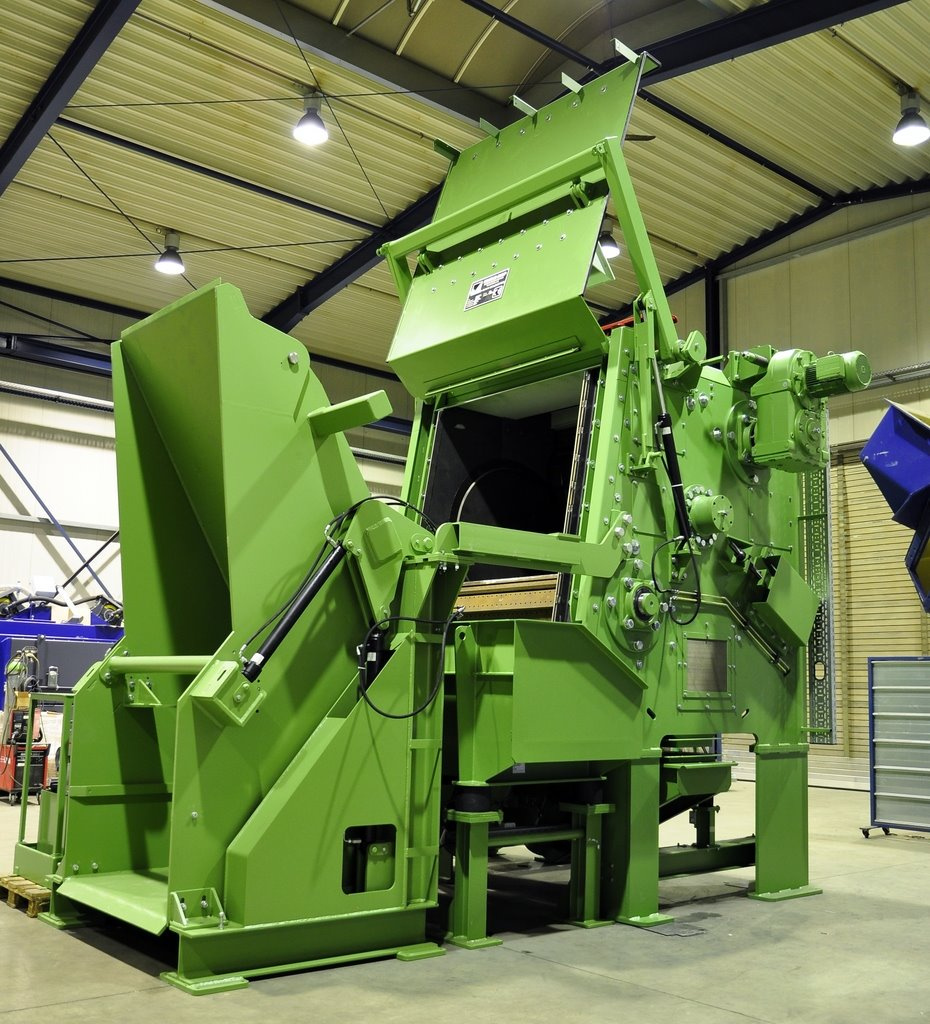

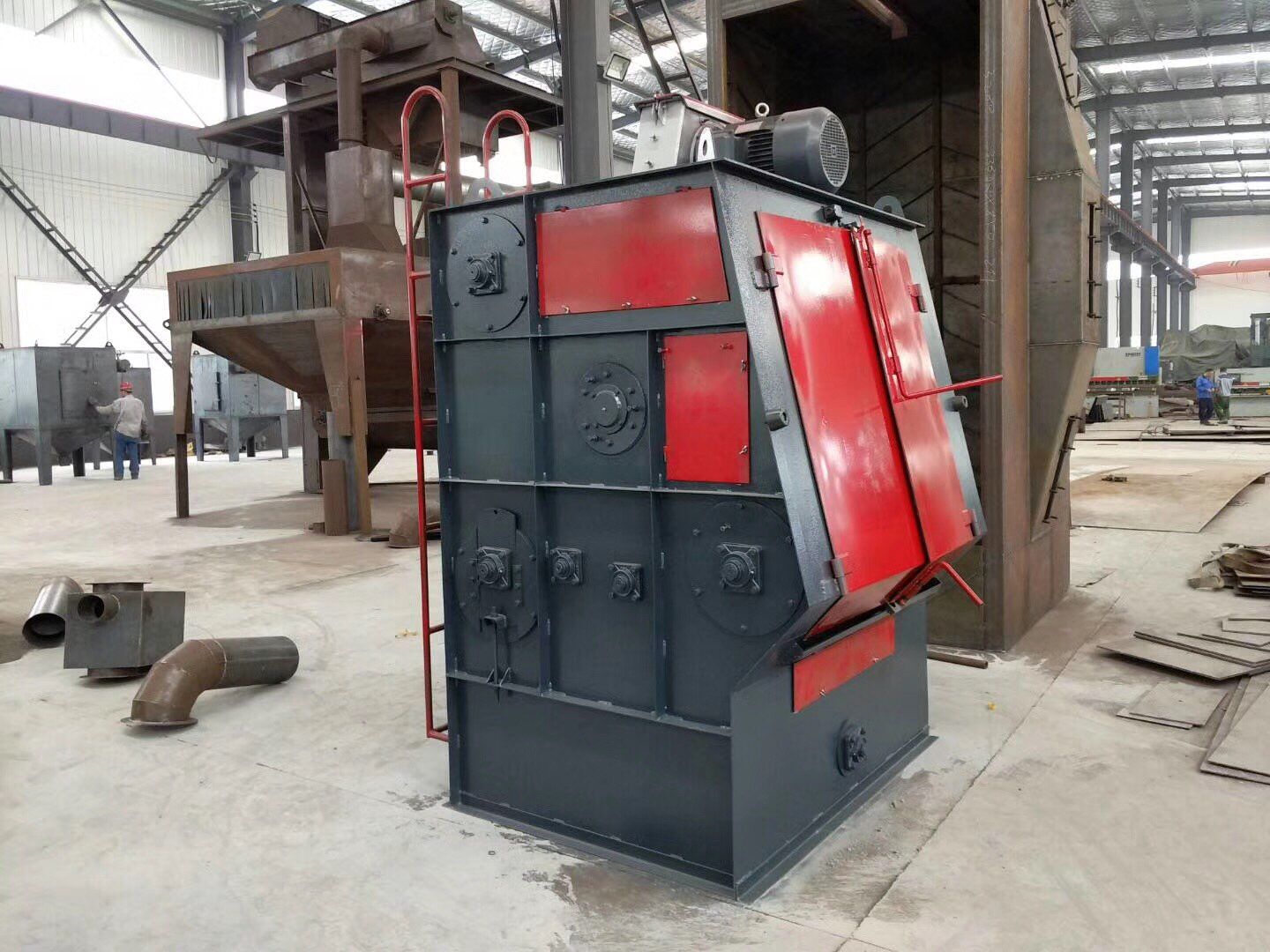

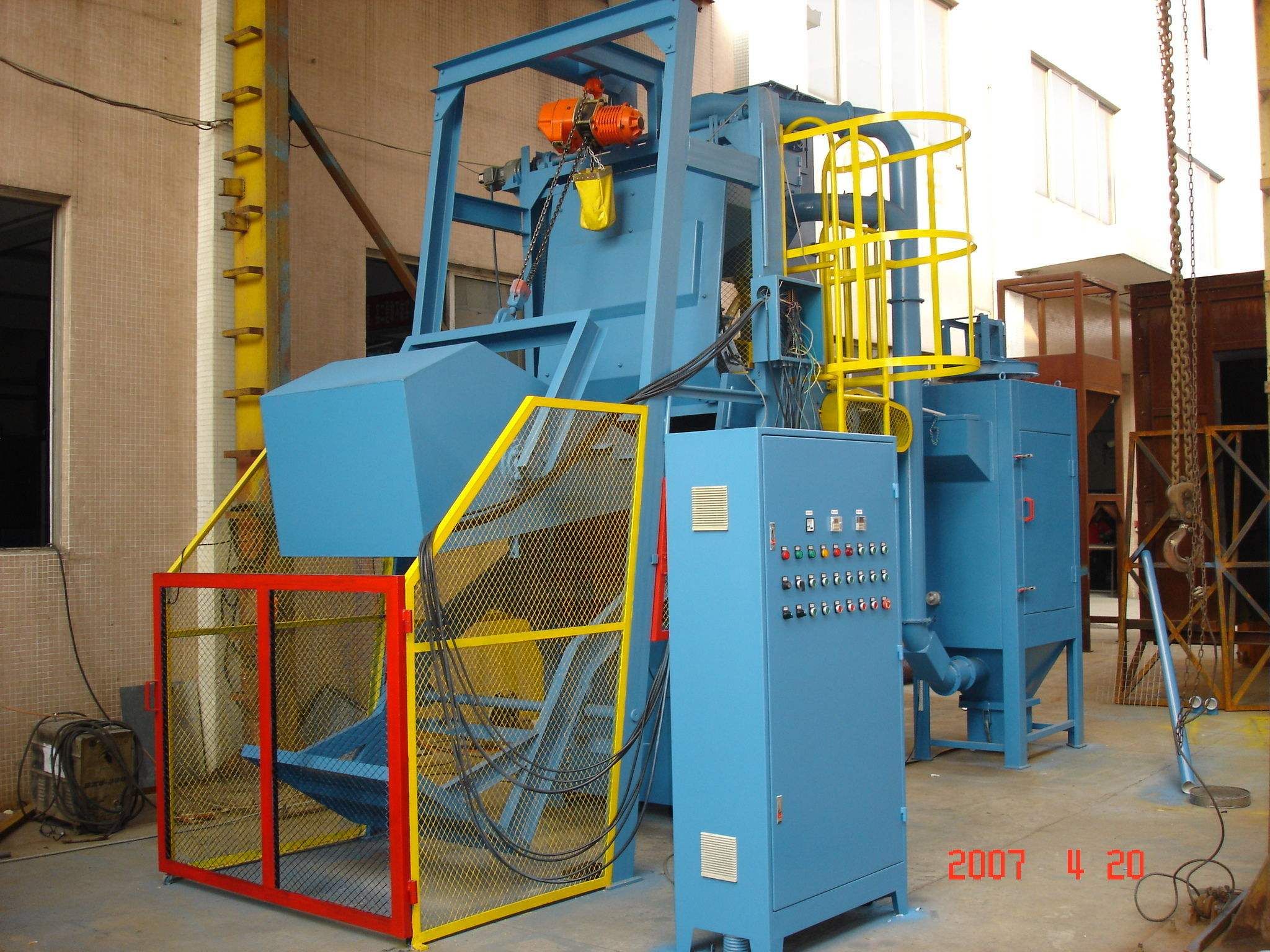

Tumble Automatic Rubber Belt/Apron Type Shot Blasting Machine
| Price: |
US $ 5000-100000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Tumblast Crawl Apron shot blasting machine
Rubber belt apron / Crawler shot blasting cleaning machine
- Application: It provides a cost-effective solution for batch cleaning, deburring, descaling, decoring, deflashing and peening a wide variety of products.
- Equipment: Track Loading device (Optional), blast wheel, abrasive recycle system, separator , dust collector, control system.
Tumble Barrel Type Shot Blasting Machine Uses
- Ferrous and non-ferrous castings
- Heat treated forgings
- Small Automotive parts
- Die castings and much more
- Lower value parts where part on part impingement is not an issue
- When production requires dictate batch processing
- Small to medium size castings, fabrications and heat-treated parts
- Sand removal or part cleaning
Machine details:
- Our barrel blast machine are designed to process a variety of parts that can be tumbled.
- The endless conveyor belt and lateral round place creates a trough in which parts are treated.
- The number and power of the turbines are chosen according to the requirement production rate.
- Optional PLC control system, stable quality and easy to get support from local.
- Component key parts adopt world famous brand, such as Siemens, Omron, Schneider, Mitsubishi.
- No-pit, easy for install and move and save cost.
- A high volume of parts can be processed in a small working area.
- All shot blasting machines are totally integrated with abrasive reclaim systems, separator and dust collector.
- 20 years experienced engineers, customized service avaliable.
- Superior design, quality and rugged construction make our barrel machines more reliable and easier to maintain.
- After-sale service support will be provided within 24hours.
Technical Parameter
| Item | | Q326 | Q3210 | QR3212 |
| Productivity | kg/h | 600-1200 | 2500-3500 | 8000-10000 |
| Feeding amount | kg | 200 | 600 | 1000 |
| Max. weight of single piece | kg | 15 | 30 | 50 |
| Diameter of end disk | mm | 650 | 1000 | 1000 |
| Effective Volume | m3 | 0.33 | 1.05 | 1.6 |
| Abrasive flow rate | kg/min | 200 | 250 | 500 |
| Ventilation capacity | m3/h | 2500 | 3500 | 8000 |
| Power consumption | kw | 13.47 | 25.05 | 50 |
| Dimension (L*W*H) | mm | 3200*1520*3715 | 4290*1900*4500 | 6000*3010*5800 |
Please feel free to contact us for more information.

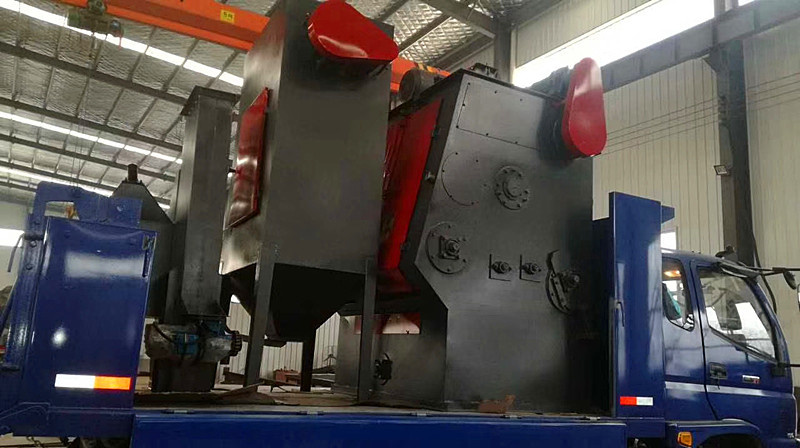

Plastic wrap - - MDF wooden carton -- container -- ship -- your factory
- 20 years experienced engineers provide best proposal for your need.
- Customized design available
- Oversea engineer service avaliable
- To aim to save your cost and improve efficiency
We also provide foundery machine as below:
Stone shot blasting machine, Tumble shot blasting machine, spinner hook blasting machine, hook shot blasting machine, rotaray table type shot blasting machine, etc. and clay sand produce machine, resin sand produce machine, clay and resin sand regenerate machine, sand blasting machine, sand mixer, moulding machine, dust collector.
| Prod Model: |
Q32 series |
| Power(W): |
Customized |
| Dimension: |
Customized |
| After-Sales Service: |
Engineers Available to Service |
| Optional: |
PLC Control System |
| Electricity Key Parts: |
Siemens, Omron, Schneider, Mitsubishi |
| Dust Collector: |
Dust Less |
| Separate Rate: |
99% up |
| Pit: |
No |
| Customerized Service: |
Avaliable |
| Engineers Experience: |
20 Years for Blasting Industry |
