Tumble Belt Shot Blasting Machine/Crawler/Apron
| Price: |
US $ 5000-20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |

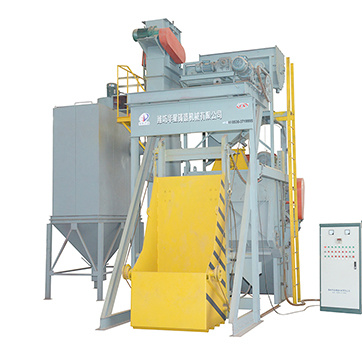

GN series belt shot blasting machineGN series belt shot blasting machine advantages:1)Using a belt type high efficiency shot blasting, shot blasting with high efficiency, long life, simple structure and so on.
2) Winnowing separator, with good separation and higher productivity, improved blasting blade life.
3) The use of bag filter, dust emission concentration is lower than the national standard, improve the working environment of workers.
4)Wear-resistant rubber track, reducing the impact on the workpiece, the damage phenomenon, reducing the noise of the machine.
5) The workpiece cleared, automatic unloading, reducing the labor intensity.GN series belt shot blasting machine applications:1)Descaling of forged or heat treated parts.
2)Desanding of ferrous and non-ferrous metal casting .
3)Deburring of metllic and non-metallic parts.
4)Shot peening (specific versions with 2 bidirectional wheels and automatic control cage adjustment ).GN series belt shot blasting machine specifications:| No | Item | Unit | 3GN | 8GN-5R | 8GN | 15GN | 28GN |
| 1 | Productivity | t/h | 0.6-1.2 | 3.0-5 | 2-2.5 | 5-8 | 10-14 |
| 2 | Feeding amount | kg | 200 | 800 | 600 | 1300 | 3500 |
| 3 | Max. weight of single piece | kg | 10 | 150 | 30 | 250 | 365 |
| 4 | Diameter of end disk | mm | 650 | 1000 | 1000 | 1092 | 1245 |
| 5 | Effective volume | cubic meters | 0.15 | 0.4 | 0.3 | 0.43 | 0.79 |
| 6 | Abrasive flow rate | kg/min | 120 | 250 | 250 | 480 | 2X350 |
| 7 | Ventilation capacity | cubic meters/h | 2000 | 6000 | 3500 | 5000 | 6000 |
| 8 | Power consumption | kw | 12.6 | 32.6 | 24.3 | 50 | 64 |
| 9 | Track type | Belt | Rubber | Rubber | Rubber | Metal | Metal |
Introduction:
Weifang Huaxing Machinery Co. Ltd. is located in Shandong province Linqu County Road Su Dongcheng Development Zone, covers an area of 33350 square meters, construction area of 16000 square meters, including preparation workshop, assembly workshop, assembly workshop, machining workshop, molding workshop, casting workshop, heat treatment workshop, electrical assembly workshop, a total of eight workshops, a total of a staff of 276 people, engineering design personnel 62 people. The annual output of various cast (spray) pill cleaning machine more than 600 sets; molding sand handling and sand regeneration complete production line 40; various types of shot blasting machine more than 5200 units, special cast iron wear-resistant parts 1100 tons; 600 tons of gray iron ductile iron. It is an industrial entity which integrates development, development, design, production and management. It has formed a professional manufacturer of metal surface cleaning, complete set of equipment for casting machinery and related accessories production.
It is a member of the enterprise management association of China's machinery industry and the "high-tech enterprise" at the provincial level.
Main product:
Series caterpillar shot blasting machine
Series hook type shot blasting machine
Series rotary table shot cleaning machine
Series roller ball cleaning machine
Series trolley passing ball cleaning machine
Series of suspending chain continuous type, hanging chain step type, suspension chain set Throwing Shot cleaning machine.
Series stepping electric hoist ring rail type shot blasting machine
Series steel pipe inner wall and outer wall blasting cleaning machine
Molding complete water production line with resin sand and water glass sand
Complete water production line for recycling of old sand
Sandblasting room, sandblasting machine
Various types of high efficiency Shot Peen
Low chromium, medium chromium, high chromium and ZGMn13 special wear resistant cast iron for all kinds of casting machinery and mining machinery; cast steel, ball cast iron and gray cast iron fittings.
Various environmental type cyclone type, cloth bag type, filter cartridge type dust remover.
And to undertake the design, production, transformation and overhaul of the foundry machinery.
Application:
It is suitable for machinery, auto parts, metal products, decoration parts, household appliances, furniture and other industries. Widely used in the current cleaning equipment of shot blasting, because of the reasonable design, convenient maintenance and low cost, it is highly recommended by the broad masses of customers.
Q: Are you a trading company or a manufacturer?A:We are factories.Q: How long is your delivery time?A: It is generally 5-15 working days if the goods are in stock. Or 15-60 days if the goods are not in stock, it is based on the quantity and machine model.Q:Do you try the sample for free?A: Yes, we test the sample free of charge. But you will provide freightQ:What are your terms of payment?A: Pay 100% down payment < 10000USD > = 10000USD, 30% T / T in advance, balance
Pre shipmentQ: What's your pre sale service?A: 1. Advisory support
2. Sample test support
3. Technical solutions and quotations
4. Visit the customer's factory and negotiate.
5.customers visit our factory and check the production.Q: How long is the feedback of your company after sale?A: In 0-24 hoursAdvantages:1.We are the most professional company with more than 15 years experience
2 Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers).
3. Non standard shot blasting machine:can according your demand to design it
4. Factory direct selling with competitive price.
5.Quick delivery/good quality
6. Low energy consumption, cost province;
7.Dustless blasting conforms to environmental friendly.Our Services:1. Installation and commissioning issue:We will send 1-2 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
5-6 skilled worker and prepare insallation machinery and tools.2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.3. Supply full English documents:including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
Every clients care about the after-sell service, so we are:
1/ The Machine gets one year warranty period.
2/ During the time ,if the machine get in trouble we will guide you to deal with the problem .
if it still don't work we will send our engineer to serve you until the problem be done. And we will pay the fly ticket .Notice that if you just need the spare part to instead the broken one after we found the cause , we will send you that free.
That is our words . And we are looking for a good distributor in your country ,so the problems above they will be solved more timely .And we hope after tested the machine here could take a good business cooperation.Wholesaler & DistributorIf you are dealing on shot blasting cleaning business and have interesting on us. if you want became ours wholesaler or distributor on your place ,we are very willing to share profits together with you. You will get
1.VIP price available
2.New products update at first time
3.1 year free spare parts
4.quickly delivery
5.free technical engineer
Weifang Huaxing Machinery Co., Ltd. is located in Linqu Dongcheng Development Zone, Shandong Province, covering an area of 33, 350 square meters with building area of 16, 000 square meters. The company is an industrial entity including research and development, design, production. It has now formed professional manufacturer with metal surface cleaning equipment, painting equipment, complete sets of sand processing equipment and related accessories production. It is equipped with preparation workshop, painting workshop and equipment 1, equipment 2, equipment 3, machining, special casting, electrical assembly totally eight workshops.
Main products: Various types of shot blasting equipment, painting equipment, drying equipment, resin sand, water glass sand molding sets of production line; Old sand recycling complete sets of production line; Various specifications of sand blasting room, sand blasting machine; ZGMn13 special wear-resistant cast iron; All kinds of casting machinery, mine machinery with low chromium, medium chromium, high chromium, ZGMn13 special wear-resistant cast iron; Cast steel, cast iron, gray cast iron accessories.
Undertake casting machinery and equipment design, production, alteration, overhaul.
