Price: | US $ 14775-16885/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Money Gram |
Focus Polar-Jet Two pallets available garment t shirt printing machine fabric printer | ||
Print head | Epson Newest Advanced MicroPiezo Print Head Variable Size Ink Droplet Technology - Smallest droplet size of 3.5 picoliters Nozzle Configuration - 720 nozzles per color (x5) | Maximum Resolution - 2880 x 1440 dpi | |
Printing speed (40*55cm area) | 720*360dpi | 200pcs shirt / Hour |
720*720dpi | 160pcs shirt / Hour | |
720*1440dpi | 100pcs shirt/ Hour | |
1440*1440dpi | 50pcs shirt/ Hour | |
Color channel setting | Optional choose | |
Color management | ICC curve | |
Max. Printing size | 1000mm*700mm | |
Pallet size | 520*500mm standard shirt pallet*2pcs | |
Printing Direction | Uidirection / Bidirection | |
Ink dot jet frequency | 1Hz-2000Hz optional | |
Carriage drive type | Epson servo motor | |
Table drive type | AC servo motor | |
Guide type | Linear rail | |
Ink dot type | 1bits, 2bits, dark, halfton, real time | |
Fire type type | Rand, fog, wave, 2D | |
Head maintainance type | Wet-cap system / Auto flash system | |
Control type | Computer Intelligent & PLC controller | |
Printing resolution | 720*360dpi / 720*540dpi/ 720*720dpi/ 720*1080dpi 720*1440dpi / 720*2160dpi/ 720*2880dopi | |
Color Ink Tank Volume | 700ml cartridge * 4pcs | |
White ink tank volume | 700ml Cartridge supply | |
Ink type | DTG ink/ sublimation ink/ reactive ink/ discharge ink/ eco solvent ink/ CTS ink. | |
Ink process | Filter system+white ink shaking system+white ink circulation system | |
Printhead Protection | Intelligent Self Protect System | |
Power | 110-220V 50-60HZ 250W | |
Printing Interface | USB2.0/ USB3.0 | |
Operation System | Win2000/ WinXP/.Win7 / Win8 | |
Working Environment | 50%humidity, 21-29ºC | |
Printer Size | L1608mm*W1400mm*H1128mm | |
Shipping Size | L1800mm*W1600mm*H1600mm | |
Printer N.Weight/G.Weight | 570KG/598KG |
1. New revolutionary printing technology
Focus T-shirt printer T shirt printing machine Direct to garment printer was built with newest T7000 printing technology, Mounted with newest advanced piezzo print head. Variable size ink droplet technology, Smallest drop size 3.5 piccolitters to get a grayscale printing result, 720 nozzle per color X 5 color, total 3600 nozzle, Maximum printing resolution 2880*1440dpi.
2. New ink supply system to anti-clog of print head.
Configure with negative air supply system to the damper and print head kit to solve out the head clog problem. Can get a obvious effective for white ink printing especially and high speed printing. The old version model with DX5 print head as R1900, 4880, 7880... all are suppy the ink to the print head by syphonage way, so the white ink will be easy to clog as longtime settling. But with the negative pressure system, the ink inside the damper and print head will be absorbed by the negative pressure to keep a certain ink level without change. so it can prevent the ink clog, ink dripping and ink Oblique jet effectively.
3. New designed keep wet cap station
The new designed cap station divide each cap for each color line individual, Before printer all use one cap for all color or half color, so it will cause the ink get mixed inside the cap station during keep wet at night. so the color near white head will be easy to be clogged, so the new cap station is designed specially for prevent the ink mixture and head clog.
4. No chips reset require
Focus invented chips reset system let you forget the problems of reset the ink cartridge chips, chips can not be detected... also 700ml big ink tank can reduce you job of refilling.
5. TCP/IP Ethernet cable interface
Print via TCP/IP Ethernet cable let the data processing faster than traditional USB 2.0/3.0 way
6. Supported by Wasatch professional Image raster RIP software
Wasatch SoftRIP helps users achieve superior color accuracy, high production speed, variable data customization, spot matching and cost savings with direct-to-garment inkjet printers, support ICC revise, ICC maker, Custom ink channel setting. Printing to dark garments has never been easier! With Wasatch's new Auto-Generation features selected, white ink will automatically be printed as an underlay of your image. Polar-Jet use the Wasatch Tracer to create a mask around your image to easily eliminate any image data that you don't want printed. This is ideal for images with background colors that are not a solid fill. This will save on ink consumption and keep the "hand" of your printed shirt light.
7. Intellective PLC control system
Focus Industrial level direct to garment printer Polar-Jet use the intellective French Scheider brand PLC controller to control all motion signal as forward/backward, online/offline to ensure the reliable working.
8. French Schneider brand control panel
The Schneider brand control panel make you opreate the machine easier and Humanity .
9. Mounted with Fuji 750W servo motor
The Fuji brand 750W servo motor was mounted at Multi-color digital printing machine direct to garment printer for drive the flatbed/ pallet backward/forward motion. Strong powerful and the open loop design make sure the flatbed motion with high precision.
10. Automatic media thickness adjustment
Polar-Jet support maximum 80cm media thickness, just input the media thickness number to the control panel.
11. Duall ball screw & linear rail for Z axis motion
Ball screw and linear rail were mounted at both side of the flatbed to guide the top printer move at Z axis with high precision, ensure the printing table water level at any positon to get a equal printing quality.
12. Dual ball screw and linear rial for Y axis motion
Printing table motion precision will effect the printing result directly, especially for print on dark underbase, as the rough motion precision will cause the printing image overlap. Polar-Jet mounted with the Japan NSK brand ball screw combine with THk brand rail at both side for a high motion precision with error less than 0.05mm repeatedly.
13. Easy-changing pallet
Polar-Jet direct to garment printer support dual T-shirt printing pallet with size 40cm*55cm for each and big pallet with maximum printing size.
14. This is Focus Digital printer test &inpection report of Polar-Jet.
Expo:

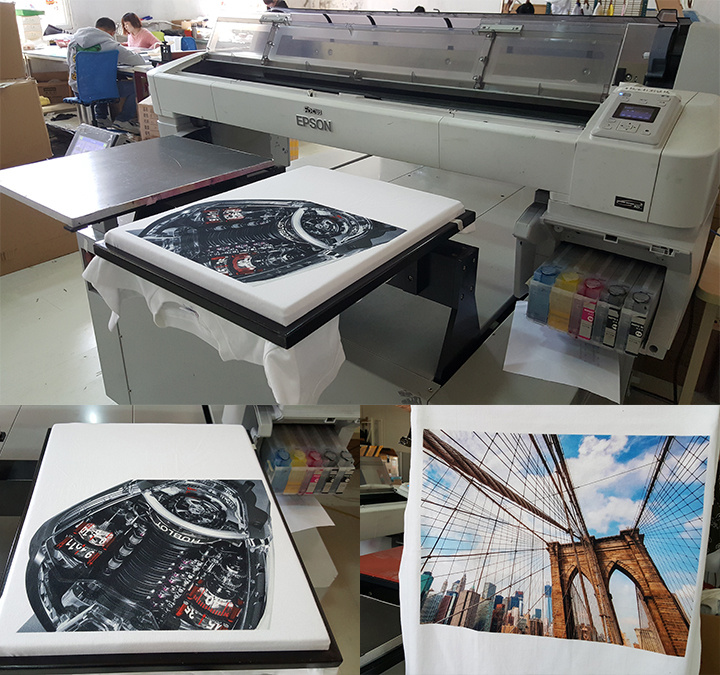

Printing samples:
Factory:
Customers visiting:
Warranty:
1.We provide 13month warranty and lifelong technical support since the shipping date.
2.We have completely english instruction video and manual for you.
3.We provide 2 days free online training.
4. Engineer fly to your site for final repair if needed.
QUALITY IS OUR CULTURE
Our mission is making the best solution for international printing industry!
Welcome to vist our company and willing to contact us if you need any further support before or after sales:
Focus Digital Technology Company Limited.
ADD: Jianan Hongta building, #246 Sibao Road, Sijing Town, Songjiang District, Shanghai 201615, China
Website: www.focus-printer.com
www.focusdigi.com
Please contact us for Big surprise :) ( Only limited for first 10 enquiry people each day on Beijing time)
Prod Model: | Polar-Jet |
---|---|
Product Name: | Two Pallets Available Garment T Shirt Printer |
Ink Channel: | 10 Ink Channels |
Max.Print Speed: | 200PCS / Hour |
Max. Resolution: | High Resolution 2880dpi |
Rip Software: | Wasatch / Custom |
Driver Type: | Dual Ball Screw Driving |
Ink Color: | Textile Ink, Eco Solvent Ink, Sublimation Ink |
Max. Printing Size: | 1000*700mm |
Style: | Planographic Press |
Structure: | Reversible Printing Press |
Color & Page: | Double Faced Multi Colors |
Print Interface: | USB3.0 |
System Supported: | Windows 7/8/10/XP |
