| Price: | US $ 0.1-1/Meter |
|---|---|
| Min Order: | 10000/Meter |
| Pay Type: | L/C,T/T |
| Prod Model: | YK9820 |
|---|---|
| UL Electronic Lines: | 600V |
| Type: | Bare |
| Conductor Type: | Solid |
| Insulation Material: | PVC |
| Certification: | RoHS |
| Application: | Internal and External Connection |
| Conductor Material: | Bc/Tc |
This cable is used to record equipment, electronic circuits and laptops, as well as connection configurations.
Due to the variety of models, we offer range negotiable prices,welcome to contact us for more details.
Reference standard: UL758,UL1581,CSA C22.2 No.210.2

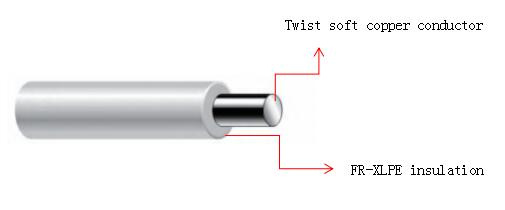

UL3271 Cable structure:
Material: 10awg-30awg solid or stranded,tinned or bare copper conductor.
Insulation material: FR-XLPE
Shielding: tin-coated copper wire or bare copper braid shield
Color: customizable color
Advantages of metal materials:
Uniform insulation thickness to ensure easy stripping and cutting.

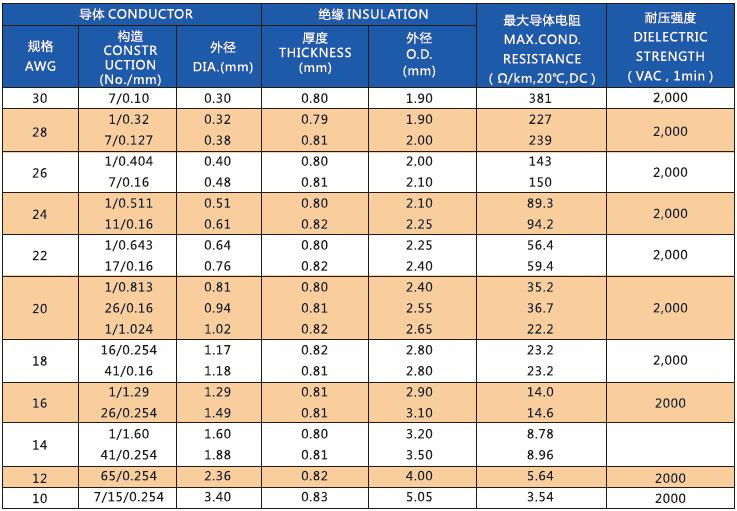

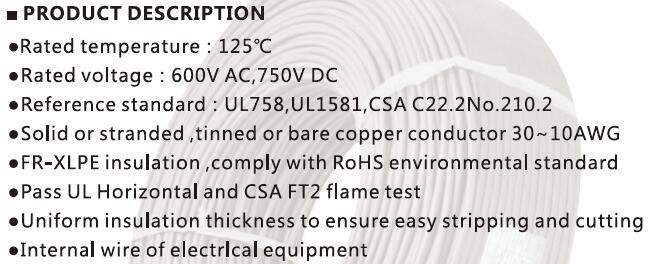

Parameters:
Rated voltage: 600V AC,750V DC
Rated temperature: 125ºC
Combustion test: UL VW-1,CSA FT2
Our services:
1. All enquiries will be answered within 24 hours.
2. Trained and experienced salesmen can reply to your inquiry in English.
3. Project professional production, wholesale 4 years.
4.OEM and ODM projects are very popular and we have a strong r&d team.
There is a mark on the product.
The order will be produced according to order details and samples. Our QC will submit the inspection report before shipment.
7. Work. All our products are tested for aging before shipment, and we guarantee the safety of our products.
8. Good after-sales service. We have the best after-sales service. If any problems arise, our team will try to solve these problems.
9. Payment terms: PayPal, T/T, Western Union, L/C.
CABLE CONSTRUCTION:
This cable is suitable for use in desktop,computer internal cable, floor and pendant, and is suitable for many applications, including wire fans and small appliances.You should consult qualified electricians to ensure that the specifications of the wires you choose are safe to support the electrical load on the length of the wire used by your lamp or gadget.
We are able to producewires and cables based on UL,CSA,VDE,GB, JB, IEC, BS, DIN, ASTM, JIS,JASO D, ISO,VW,QC/T PSASTE, SAE J,GJB, AS/NZS,, etc. Meanwhile, we can design and manufacture the cables and harnesses according to the samples and technical specification the customer supply.
