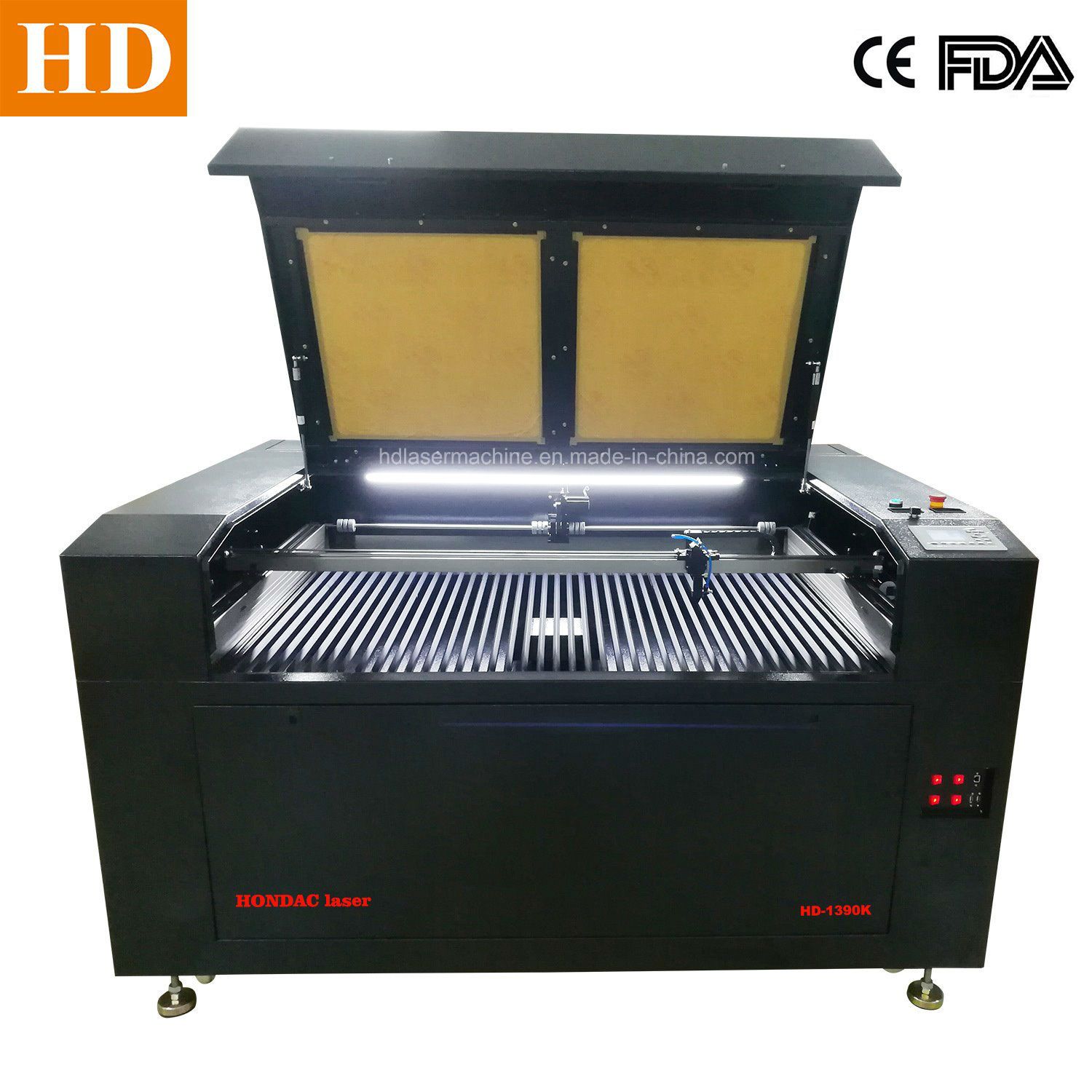

Updown Table Laser Cutting Engraving Machine 1390K
| Price: |
US $ 4200-7000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
HD-1390K |
| Engraving Machine Type: |
Laser Cutting Machine |
| Power: |
Small Power |
| Drive Type: |
Stepper Drive |
| Certification: |
Ce, FDA |
| Laser Type: |
CO2 |
| Control: |
Automatic |
| Current: |
AC |
| Condition: |
New |
| Usage: |
Signage, Garments, Craft, Advertising, Textiles |
Product Description
Updown table laser cutting engraving machine 1390K 1. The machine body applied with most solid design which can ensur no deformation long time operation and transportation.
2. The machine fixed with LEADSHINE brand stepper motor and driver, inner sliding guide system.
3. Adpots with adanced DSP control technology, fixed with high quality electronic parts, ensure high cutting engraving speed, high accuracy and high stability, long time usage life.
4. Applied with imported lens and reflector mirror, ensure high laser power efficiency.
5. The machine connect with computer by USB/ INTERNET wire or U disk directly.
6. With water cooling system, exhaust fan and water pump, etc.

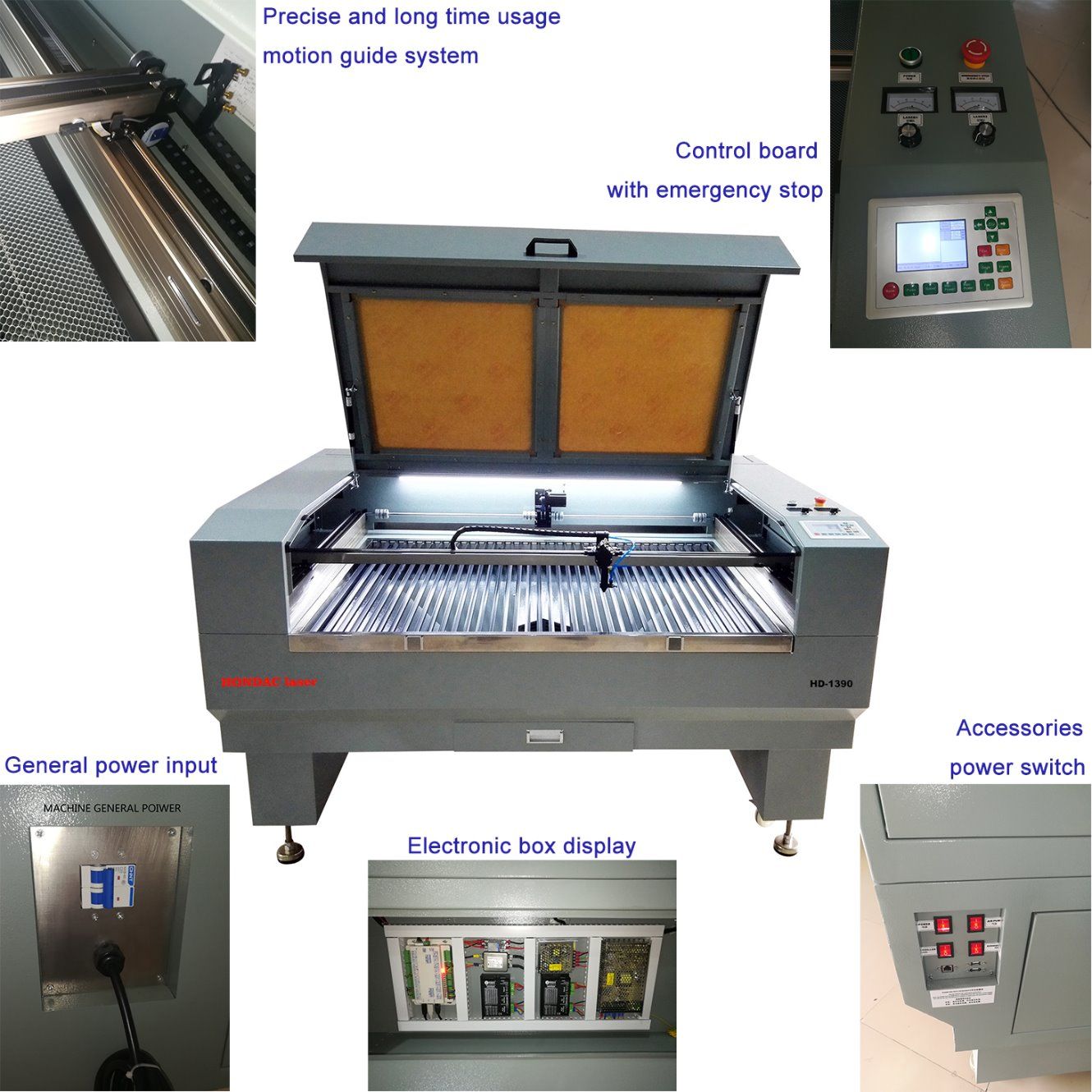

7. It have cutting and engraving function, it have half-cut function.Machine details:
laser cutting machine parameter as below: | Model | HD-6040 | HD-9060 | HD-1080 | HD-1390 | HD-1410 | HD-1610 | HD-1810 | HD-1612 |
| Laser source | Wave Length(µm) | 10.6 |
| Optional Power ( w ) | 60w, 80w, 100w, 130w, 150w |
| Cooling | Water Cooling |
| Working Para. | Working Area ( mm ) | 600X400 | 900X600 | 1000X800 | 1300X900 | 1400X1000 | 1600X1000 | 1800X1000 | 1600X1200 |
| Min. Line width( mm ) | 0.15 ~ 0.3 |
| Working speed ( mm/M ) | 0 ~ 36 |
| Repeat precision (mm) | ±0.05 |
| Compatible format | PLT, DXF, AI, DST, DSB, JPG, BMP, GIF |
| Power | AC220V ± 10%, 50/60HZ |
| Dimension (cm ) | 135X100X115 | 150X120X115 | 160X140X115 | 190X150X115 | 200X160X115 | 220X160X115 | 240X160X115 | 220X180X115 |
| Net Weight/ Gross weight ( kgs ) | 240/320 | 270/360 | 300/400 | 350/500 | 400/550 | 450/600 | 500/650 | 550/700 |
| Working environment | 0 ~ 40ºC, clean and no-dust room, without water |
| Others | total power(w) | <1500 |
| protection class | IP54 |
| Laser safety class | 4 class |
Applicable industry:Advertising, signage, gifts, garments, shoes, bags, curtain, model, home furnishing, decoration, label, electronical etc industry,Suitable materials:acrylics, wood, paper, bamboo, fabric, cloth, leather, shoe bottom, woollen, plastic, ABS, resin, ceramic, and other nonmetal materials.Samples display:

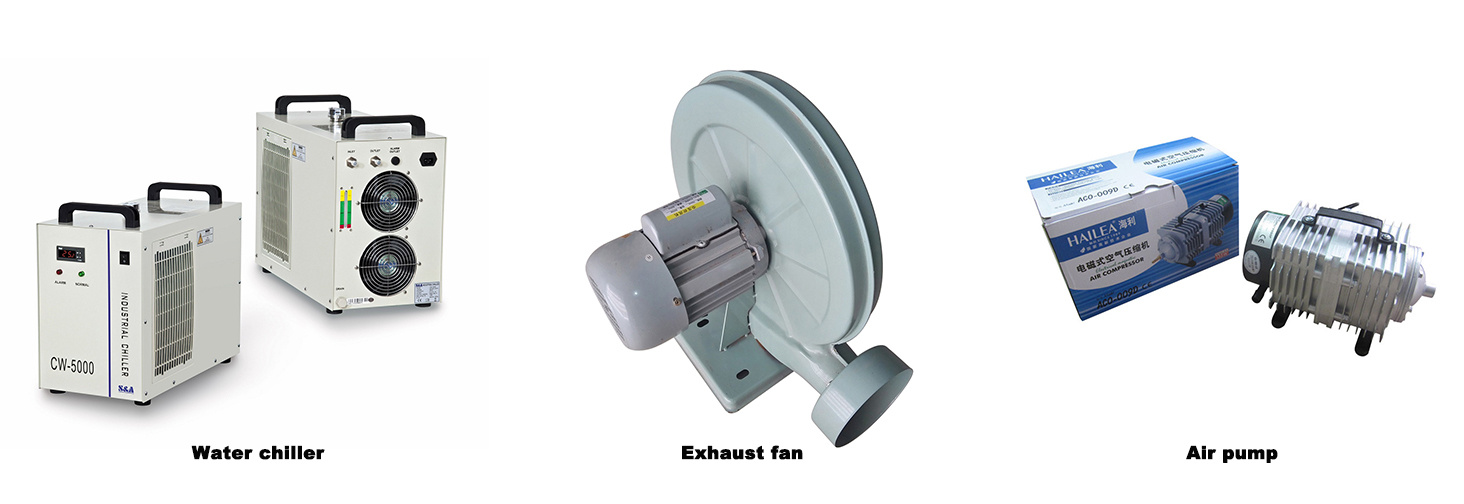

Main accessories with machine:

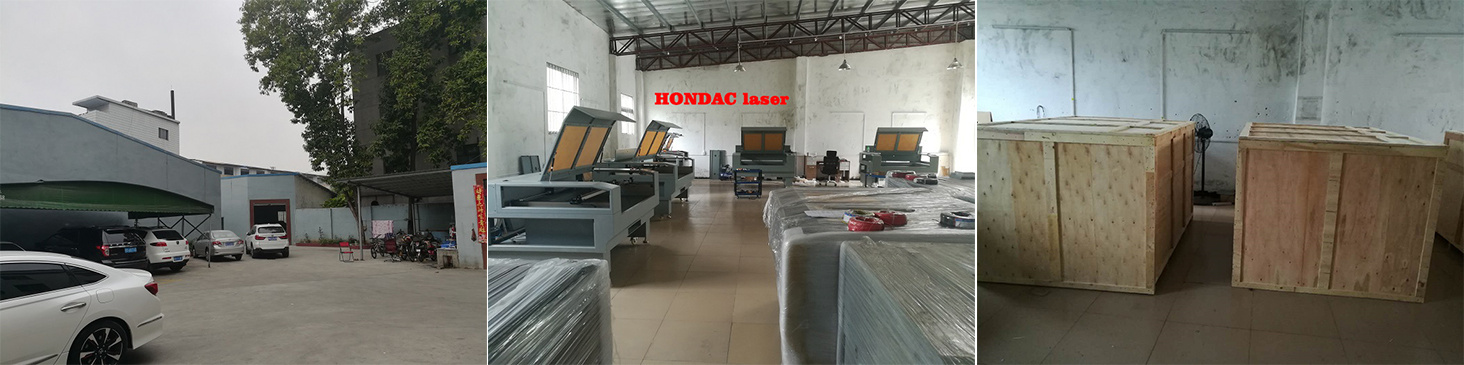

Factory photo:
Aftersales service1. Except consumable parts, whole set machine with 1 year warranty.
With durable maintainance and repair support.
2. Profesional technical support by email or online timely, free software update.
3. If need, we can send technician to cuostomer place to supply service and support. Contacts details:
HONDAC laser is professional laser machine company, located in DONGGUAN city, near GUANGZHOU and SHENZHEN city, we supply good quality laser cutting machine, laser marking machine, laser engraving machine, etc.
Hondac laser have 2000 square meters factory, which can supply 1000sets of all kinds of laser machine one year, we can supply customized machine.
All our person are proficient in laser machine, have many years experiece on it, which worked more than 5 years at least in laser machine field.
Our machine have been exported more than 60 country, the export ratio is about 50% of total turnover.
