Utility Electrical Co., Ltd. >> Utl A1 Series Short-Handle Turn Button with LED Pilot Light

Utl A1 Series Short-Handle Turn Button with LED Pilot Light

Utl A1 Series Short-Handle Turn Button with LED Pilot Light
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal



UTL-A1 series Turn-button Switches with indicator light
Product Details:
Features:

The series switches were made of imported high-quality plastic, high-precision copper and are inspected by national
uthorialive institution through 3 flows and meet six standards.
The every process are under control for continuous improviement.

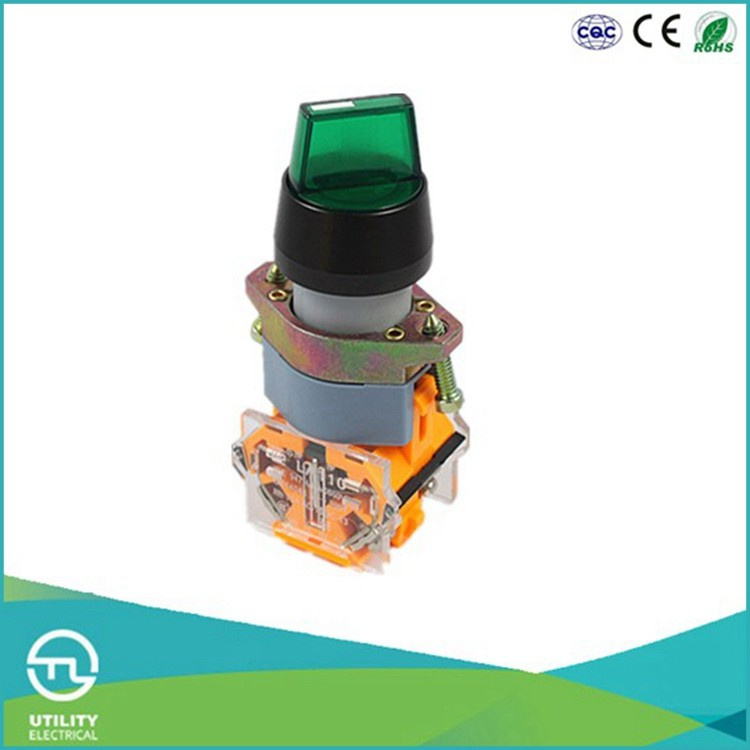

Photo:

Parameters:



Service conditions
Operating temp+55ºC to -25ºC
Operation categoryAC-15  DC-13
Pollution class3

Control Ability
Rated Voltage660V/380V/220V/110V/48V/24V
Ith conventional heating current10A Max
contact resistance≤500MΩ
IP levelIP65

Materials
Front ringAL
Actrator housingPBT
ContactAgNi
Switch housingPC
Contact partsCu
Indicator LightLED in single color

Operation condition/ methodSelf-Reset/ Returning, Self-locking

Contact state1xNC, 1xNO, 2xNC, 2xNO, 1xNC+1xNO
Color of buttonRed/ Green/ Yellow/ Blue/ White
CertificationCE, CQC



Shipping Info:

  • Samples:will be prepared within three days.
  • Bulk order:around one weekdays.
  • Large order:15-20 days will be OK.

Company Info:


Please feel free to contact us for more info, recommendation or quotation. Any questions or inquires are welcome! Custom products can be made upon request!

We are looking forward to hearing from you soon!


Dennis Lee
International Sales and Consultant

Utility Electrical Co., Ltd.
Tel : +86 021-61478345











Prod Model: LA110-A1XD-1234
Operating Condition: Self-Reset or Self-Locking
With LED Indicator Light: Yes
IP Rate: up to IP65
Type: Normal Open
Usage: Check Button
Kind: Single-pole on-off Switch
Brand: Utl
