Price: | US $ 210/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |

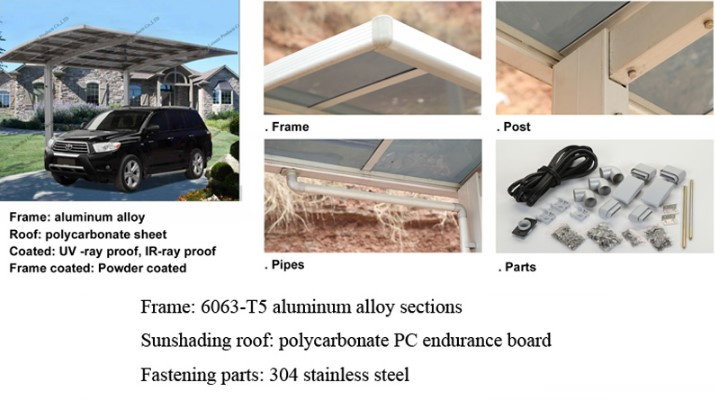

Frame | 6063-T5 Titanium alumimun alloy sections |
Frame colour | Brown,coffee,champagne |
Sunshading roof | polycarbonate PC endurance board |
Roof colour | white and transparent,light gray,gray,heavy gray,tawny,Sky blue |
Accessories | 304 stainless steel,ABS |
UV-Ray protection | 90%(Based on colour) |
Wind resistance | 42m/s |
Snow resistance | 35cm |
Materials List | ||
Window Awning | ||
Material | Thickness(mm) | Size(mm) |
Gutter | 1.5-2.7 | / |
Middle frame | 1-1.8 | / |
Side frame | 1.1-1.65 | / |
Beam | 2.00 | 95x58 |
After frame | 1.0-2.0 | / |
Polycarbonate panels | 2.20 | Intervals660 |
Maximum span:1.7m | ||
Terrace Awing | ||
Material | Thickness(mm) | Size(mm) |
Gutter | 1.5-2.7 | / |
Middle frame | 1-1.8 | / |
Side frame | 1.1-1.65 | / |
Pillar | 1.75 | 70x70 (Standard high2.5m) |
Polycarbonate panels | 2.20 | Intervals660 |
Carport | ||
Material | Thickness(mm) | Size(mm) |
Pillar | 2.1-4.5 | 156x86 Standard high2.7m |
Gutter | 1.22-2.0 | / |
Beam | 2.0-4.12 | 109x62 |
Forward frame | 1.00 | / |
Side frame | 1.12-2.25 | / |
Polycarbonate panels | 2.20 | Intervals530 |
Single carport Maximum span: | 4.5m | |
Double carport Maximum span: | 6.5m |
•teffect Of Anti-UV-Ray: | 40%-98%(Based on Colour) |
---|---|
•twind Resistance: | 42m/S |
•tsnow Resistance: | 20cm |
Frame Colour: | Brown, Coffee, Champagne |
Covered PC Colour: | White and Transparent, Light Gray |
Covered PC Colour2: | Gray, Heavy Gray, Tawny, Blue Like Sky |
Operation Method: | Ordinary Switch |
Frame Material: | Aluminum Alloy |
Outer Tent Waterproof Index: | >3000mm |
Color: | Multicolor |
Control: | Fixed |
Sail Material: | Polycarbonate |
Sail Finishing: | Electrophoresis-Method/Spray-up/Dull-Polish |
