| Protection Grade: |
IP55 |
| Sensing Range: |
1-15cm |
Product Description
Description of Automatic Door Infrared Sensor/No Touch Exit Button:
** "No Touch" Request-To-Exit Sensor uses IR technology to open a door or activate a device with the simple wave of a hand. The trigger distance is up to 4 inches. Since it is no touch, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination) or for use in schools, factories, or offices (anywhere an easy way to exit is required). FEATURES: Attractive "ring" illuminator turns from green to red when the sensor is activated. Durable stainless-steel plate. Quick-connect screwless terminal block. SPDT 3A relay output.
**Automatic door no touch infrared access control system (infrared detection)
**Infrared optical technology
**Prevent the spread of infections and keep hygiene & healthy
**Convenient operation
**Featured with infrared technology, touch free, more convenient to use.
**Contactless, free from contagious disease spread.
**The switch responds agilely and quickly. IP55 industrial protection level.
**Suitable for doors, gates, or other exit automation control systems
Technical Specifications of Automatic Door Infrared Sensor/No Touch Exit Button :
Supply voltage |
12V DC |
Contact ratings |
3A/120V AC,30V DC |
Operating temperature |
-20~55ºC |
Service life |
100,000 times |
Size |
86*86mm |
Weight |
85g |
Protection grade |
IP55 |
Sensing range |
1-15cm |
Contact output |
NO \ NC \ COM contacts |
Applicable type |
Application of various narrow door frames |
Operating humidity |
0 ~ 95% (relative humidity) |
Sensing distance |
0.1~10cm |

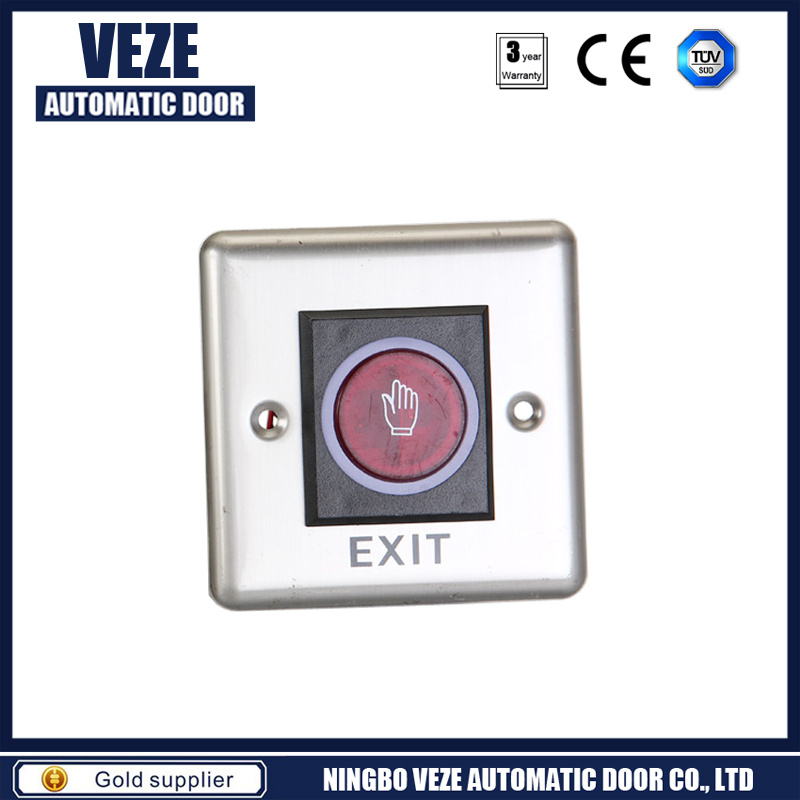

Picture of Automatic Door Infrared Sensor/No Touch Exit Button

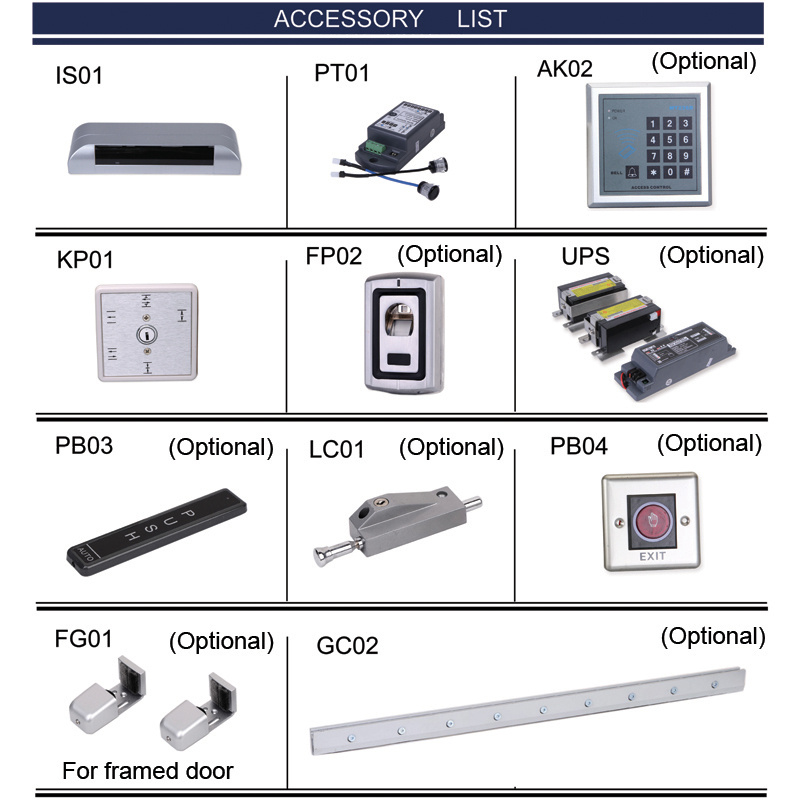

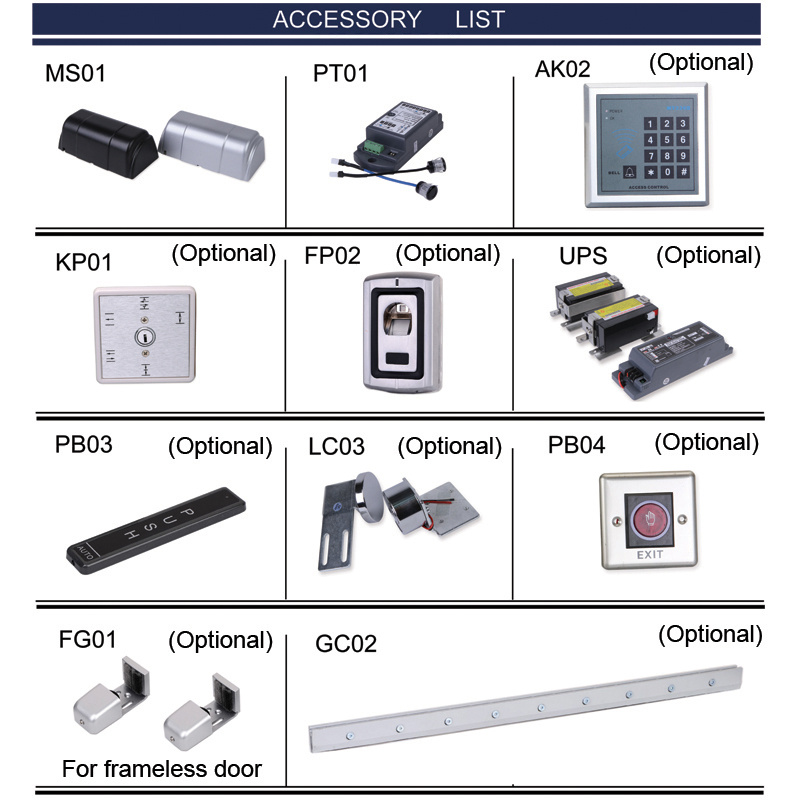

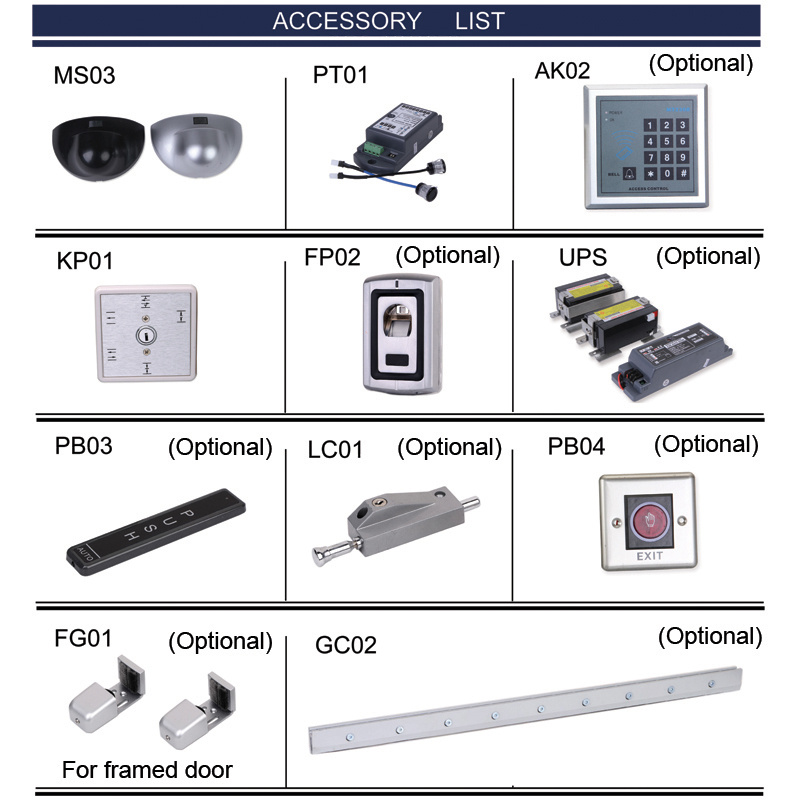

Accessory List & Optional Parts
Other Automatic Doors Accessories
1. Operation
The automatic door operator is to be fully electronic operator, housed in a fully anodised aluminum transom section.
2.Controller
The intelliget controller unit can be programmed for connection to any security/alarm systems, is self monitoring and calibrating, has memory for all data on door stoke and brake positions.
3.UPS
The operator has built-in uninterrupted power supply (Battery back up) operation and security during power failure.
4.Belt Drive
Drive is by way of toothed belt, which is reinforced with fiberglass tensile members, and has nylon facing surface for tooth protection on the pulleys. This combination produces silent accurate operation.
5.Tracking
The track is self-cleaning duel linear. The upper track is made of harder stronger alloy 6351T6, and can be replaced without moving the transom. The wheel trolley is fitted with anti-rise wheels, resulting in very firmly fitted doors with operation free of any racking.
6.Locking
Electromechanical Locking: An electric lock option is available to give total security and can be adapted where manual locking cannot be achieved, i. E. Frameless toughened Glass doors. Lock is the microprocessor controlled electric locking system. The microprocessor monitors all aspects of the lock functions. E. G. To ensure the door is fully closed when the lock is 100% engaged. Terminal outputs are available to signal to security system both door positions and lock status.
Ningbo VEZE Automatic Door Co., Ltd. Was established in September 2005 and is a professional enterprise specialized in researching, designing, manufacturing and selling automatic door systems, automatic sliding doors, automatic swing doors, hospital hermetic doors, automatic curved doors, automatic telescopic doors, automatic revolving doors and high quality automatic door accessories: Brushless DC motors, infrared sensors, controllers, access control system, etc.
Safety Certification
Our products have certificates of CE, UL, RoHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)
R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check that all electronic devices are working well, each motor will go through severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with high-class quality and competitive price.
Sales & Services
VEZE Automatic doors Co., Ltd takes Quality, Efficiency and Service as our motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new parts for free.
VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.
OEM&ODM Service
We have a professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.
Competitive Advantages:
1. We are professional manufacturer in automatic door field.
2. We have the certificates of CE, UL, RoHS, TUV, CCC, ISO9001.
3. We provide 24 months warranty.
4. We use wooden carton packing to ensure security in transit.
5. We could control our products quality by our quality control dept.
6. We have a large storage to ensure supplying in time.
