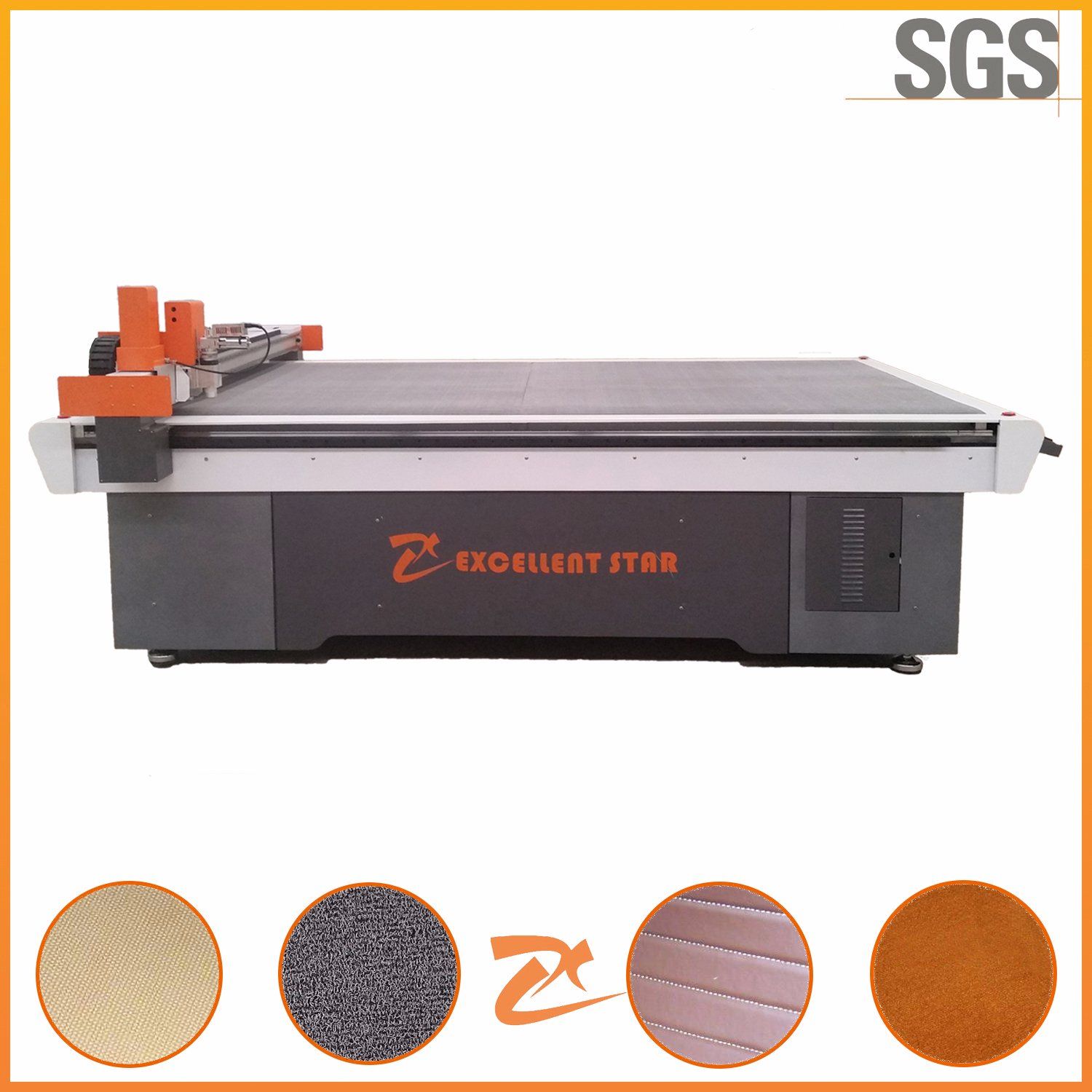

Vibrating Knife Carpet Cutting Machine 2516
| Price: |
US $ 16000-35000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Parameter configuration| Model no. | ZX-2516V |
| Working area | 2500×1600mm(L*W) |
| Machine size | 3230x2255x1240(L*W*H) |
| Cutting thickness | 0.1-18.0mm(depend on the material) |
| Cutting precision | 0.1-0.3mm(depend on the material) |
| Cutting extent | Full cut, kiss cut, dot cut |
| Max cutting speed | 1000mm/s |
| Translational velocity | 1200mm/s |
| Working voltage | AC 220V 380V±10%, 50HZ |
| Rated power | 11KW |
| Transmission interface | RJ-45 |
| Control panel | Liquid crystal display |
| Fixed type | Intelligent vacuum adsorption |
| Drive system | Fuji Servo motor, Hiwin linear guideway, rack drive |
| Safty device | Infrared sensors, 4 emergency stop buttons, rapid response, safe and reliable |
| Applicative material | Leather, fabric, cotton and linen, foam, foam composite leather, chemical fiber, PVC coil, IXPE, rubber and other flexible materials |
| Standard configuration | vibrating knife cut head, 30 pcs of blade, red light pointing |
| Other optional configuration | hobbing cutting head, angling cutter, half knife cutter, V-shaped cutter, milling cutter, drawing pen, punching tool, scanner, automatic feeding, MARK camera |
| Operating characteristic | Can work offline; 24 hours continuous and efficient working |

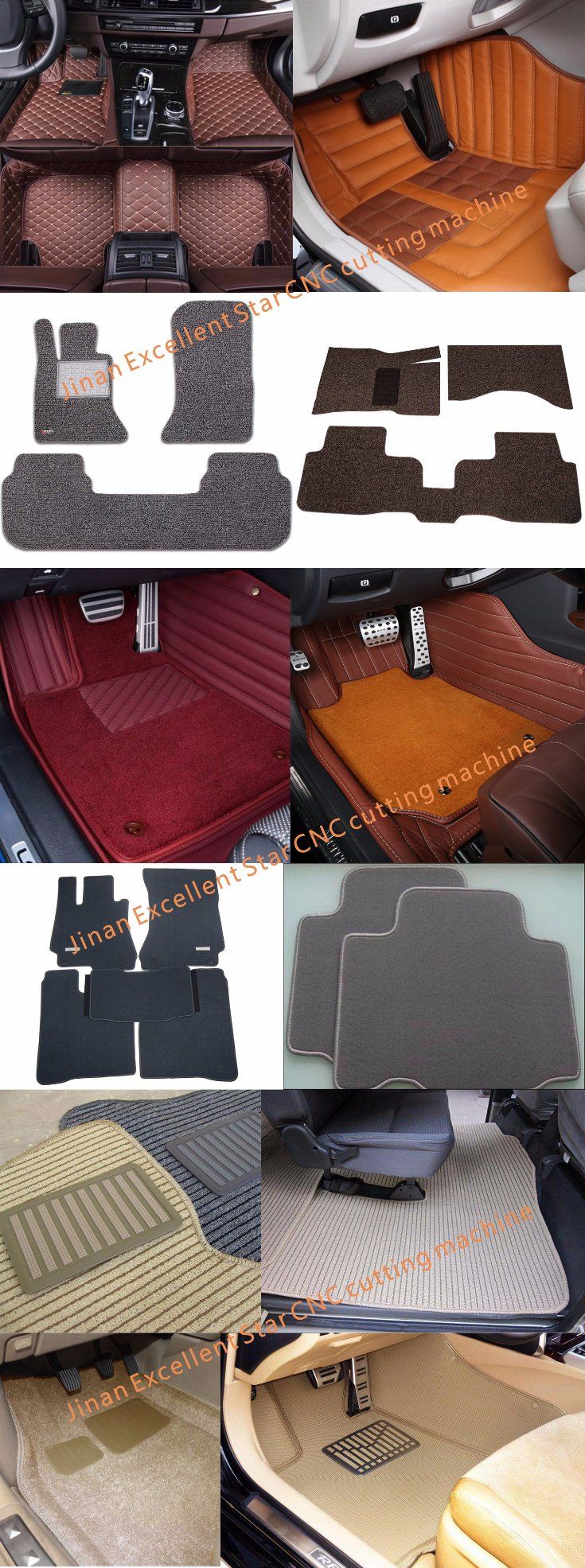

Application: carpetCarpet is popular used in recent years, it protects our car and makes it more clean and comfortable.
It's made of different materials, like leather, PVC coil, IXPE, chemical fiber, cotton&linen, wool and foam composite leather.
And have different sizes for differnent car models, also it classifies all-rounded, surrounded.
But no matter which kind of material and size it is, our machine can cut it accurate and smooth. With its build-in software, only need to choose the car model or upload your own design, the machine will finish the rest cutting, saving time and reducing cost.
Detail pictures
Our advantage and servise1. We are manufacturer, so we accept customization and support machine design for your particular request for different purpose or material and etc.
2. We have professional technician, they can help when you need any technological support.
3. Self-development knife head and purpose made high quality knife realize perfect cutting, and more durable than others.
4. With our patented correction system, cutting more exact.
5. We promise to use the best quality components, also support customization.
6. A free operation training in our factory, welcome to visit, and if you don't have enough time, we will send you a training video.
7. One year guarantee, and life-time technological guidance.
8. Consumables(like blade, table cover) always supply at cost price.
9. You can use build-in routine make your design or any CAD & CAM software, any output format is DXF or PLT can be recognized.
10. Welcome to send us materials, we will finish cut and show you the result.Package and transportation

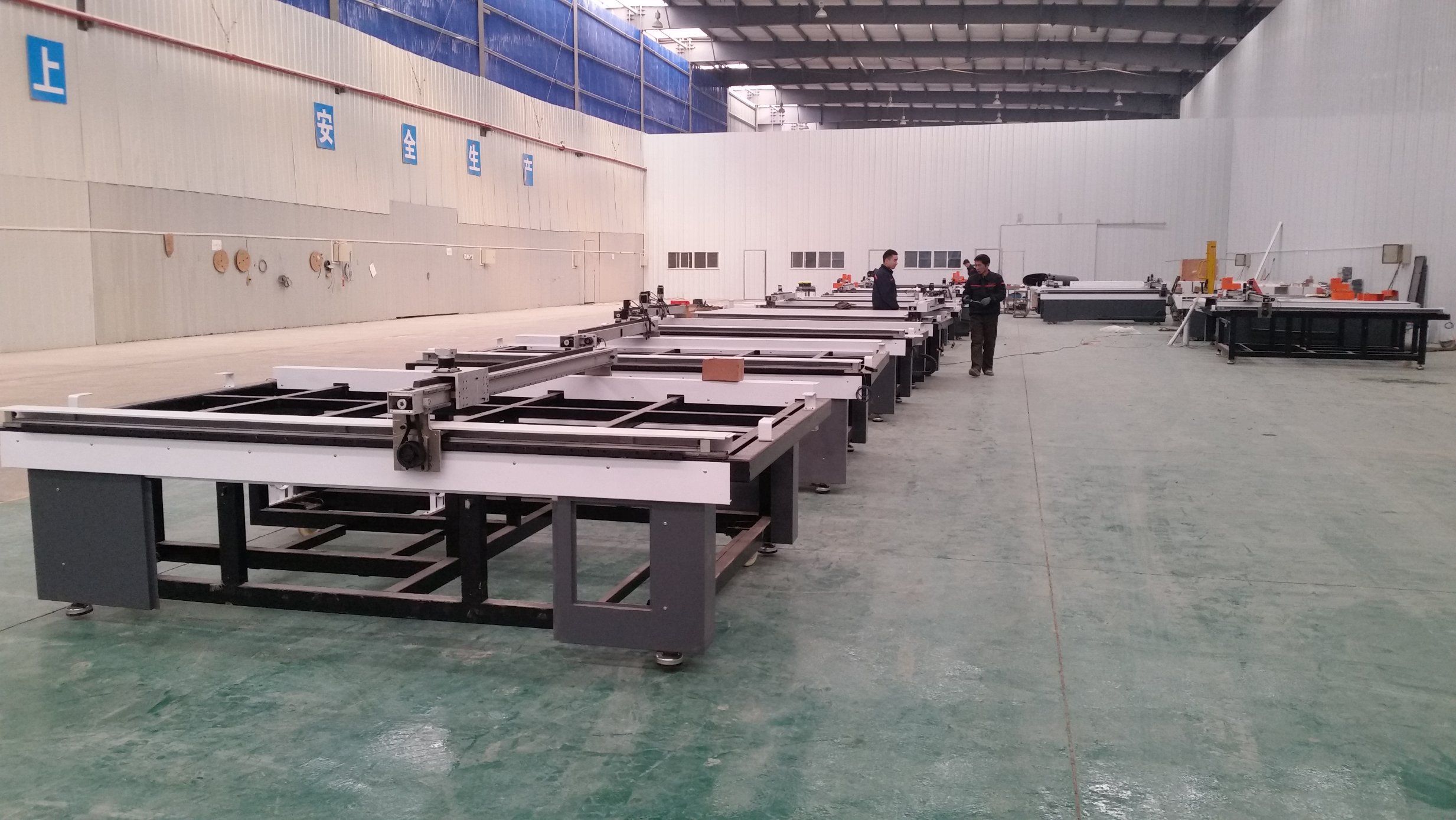

Company profile
Jinan Excellent Star intelligent technology CO.,LTD. is the first company engaged in independent research, produce, market, and after-sales services of vibrating cutting machine in north of China.
From develop the first generation digital cutting machine with our own proprietary intellectual property rights to now the fifth generation, we promote the market demands, fill the void.
And always keep in the forefront of our industry through unceasing innovation. We promise to offer
the best product at same price,
the best price at same quality.
| Prod Model: |
ZX-2516V |
| Working Area: |
2500*1600mm (L*W) |
| Max Cutting Speed: |
1000mm/S |
| Cutting Thickness: |
0.1-18.0mm(Depend on The Material) |
| Cutting Precision: |
0.1-0.3mm(Depend on The Material) |
| Working Voltage: |
AC 220V 380V |
| Rated Power: |
11kw |
| Fixed Type: |
Intelligent Vacuum Adsorption |
| Drive System: |
FUJI Servo Motor, Hiwin Linear Guideway |
| Safety Device: |
Infrared Sensors, 4 Emergency Stop Buttons |
| Application Material: |
PVC Coil, Leather, Foam Composite Leather and etc |
Jinan Zhuoxing Intelligent Technology Co., Ltd. is a key state enterprise specialized in research and development, production, sales and service of CNC cutting equipment for leather industry and industry CAD/CAM system.
From the research and development of the first generation of CNC cutting machine with independent intellectual property rights to the birth of the fifth generation of new cutting machine of ZHUOXING, it has promoted the market demand and made up the industry gap. Through the unceasing innovation and refinement, ZHUOXING always walks in the forefront of the industry, and its products have been exported to Europe, South Korea, India, Malaysia, Vietnam, Hong Kong, Taiwan and other countries and regions, and the global network marketing strategy has been realized.
In the future, ZHUOXING will lead more national enterprises to complete industry upgrade from quantity to quality, trademark to brand, labor-intensive to technological innovative, make more "made in China" into "created in China", help our national enterprises stand in the new highs, and fight for better international market.
We supply different kinds of products. High quality and favorable price. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
