| Price: | US $ 5000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | VMS50-10060DD |
|---|---|
| Automatic Grade: | Manual |
| Condition: | New |
| Driven Type: | Hydraulic |
| Factory: | Yes |

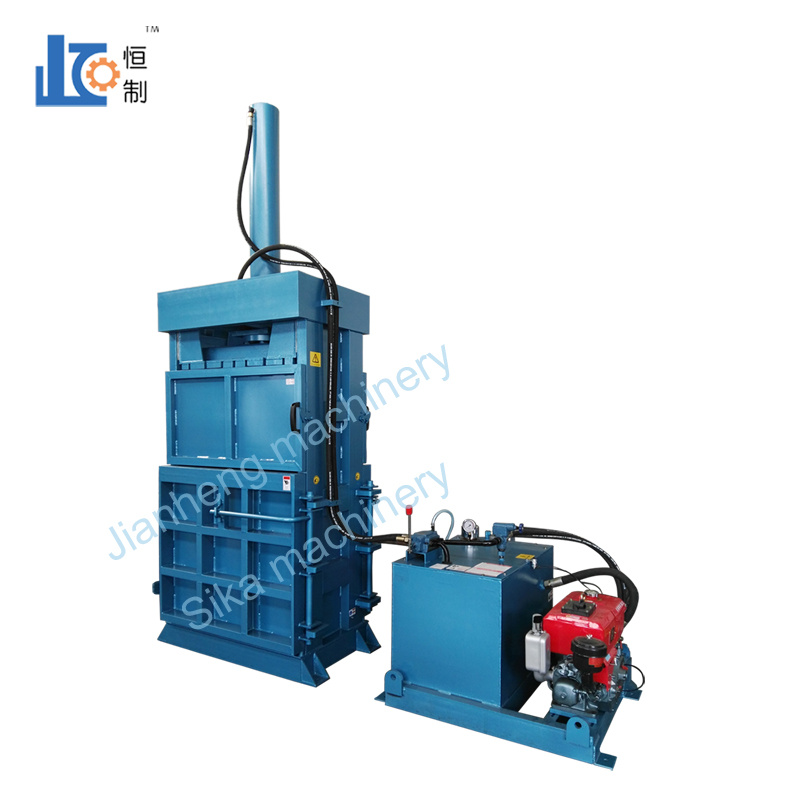

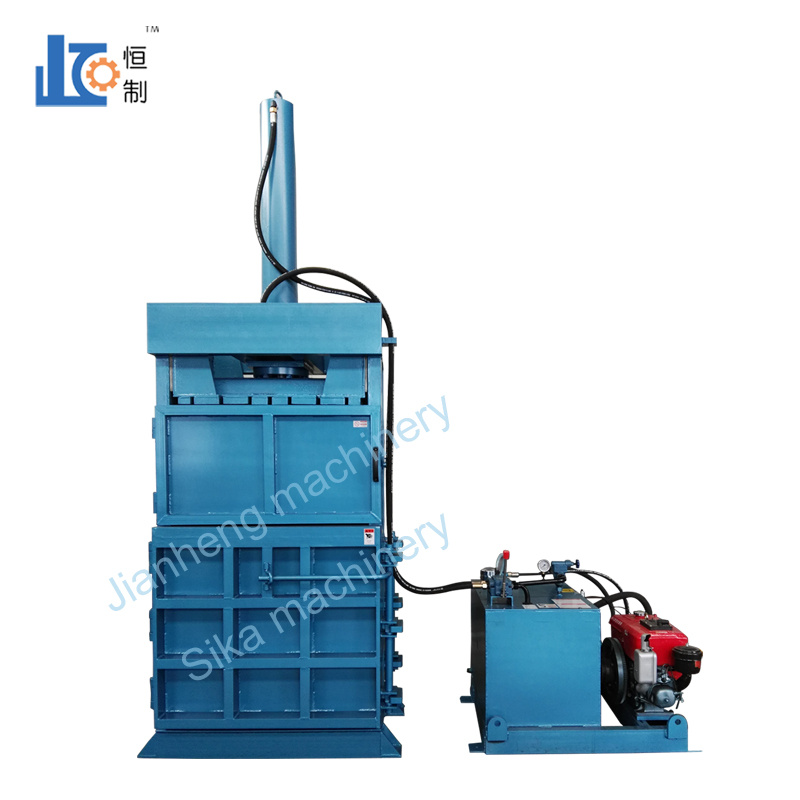

1.VMS50-10060DD Characteristics and Usage:

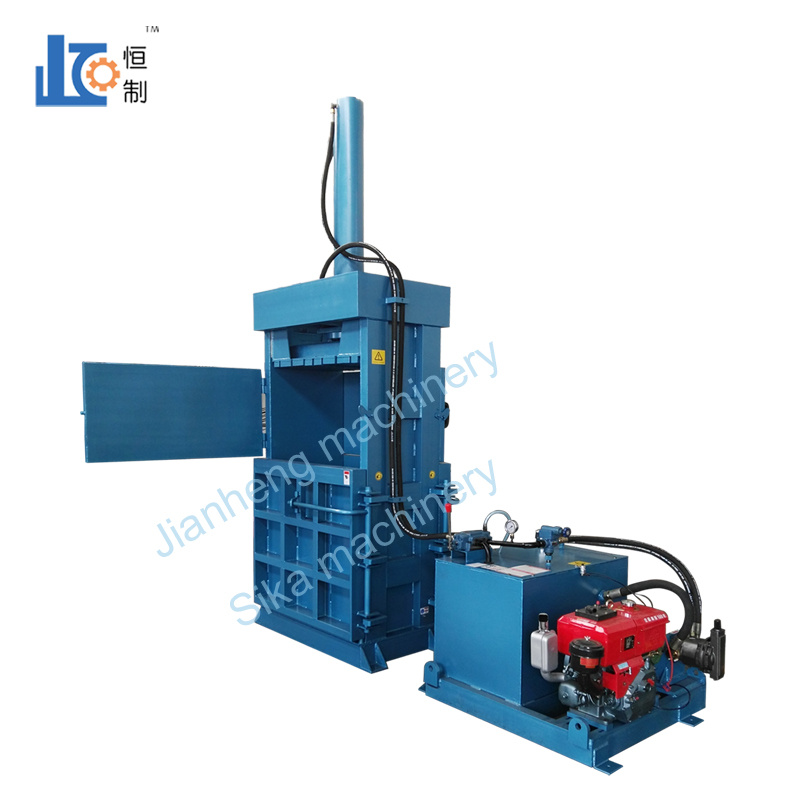

Front and rear doors can be opened. The bale looks neat and beautiful. Suitable for small size material, no material spattering when press.
Hydraulic driving, stable, self-lubrication and long life. Manual control model and electrical button control model are available for your choice.
Turnover by lifting hook,safe and quick.
Relieving lock device is equipped to ensure operator's safrty.
Highly accurate joint-shaft bracket ensures the precise condentricity of motor and oil pump, extend oil pump service life.
2.VMS50-10060-DD Technical parameters
| Pressure of cylinder | 50 tons | |
| Bale size | W1000×D600×H(400~1000)mm | The height can be adjusted |
| Feed opening size | 1000×600 mm(L×H) | |
| Pressure of hydraulic system | 25 MPa | |
| Bale weight | 250~320 kg | |
| Diesel engine | 10 HP | |
| Hydraulic pump | HY40 | Displacement 40 ml / r |
| Number of belting | 6 Lines | |
| Bale out | Turn over by wire rope | |
| Operation mode | Handle | |
| Voltage | 3P-200V/220V/380V/400V/415V-50/60Hz | The voltage can be customized |
| Oil reservoir | 260L | |
| Machine overall dimension | 2500mm×1000mm×3500mm(L×W×H) | |
| Machine weight | 2500 kg |
