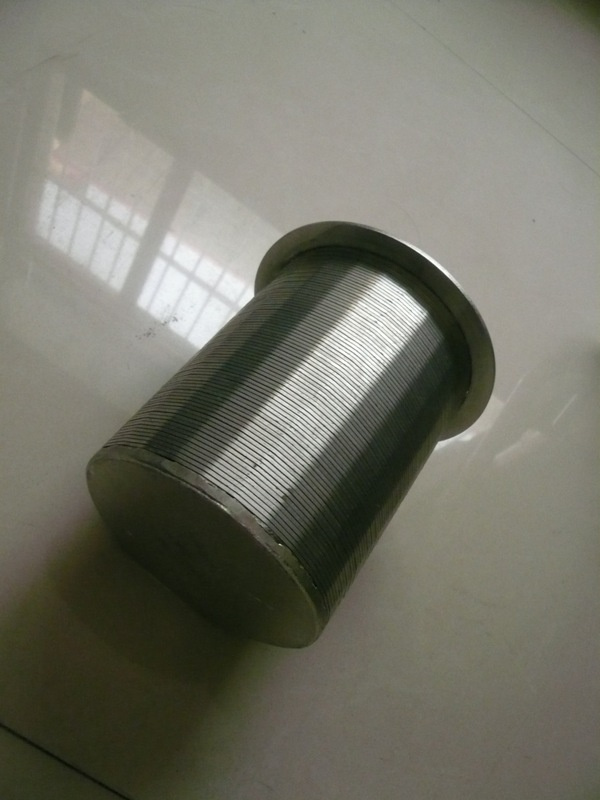

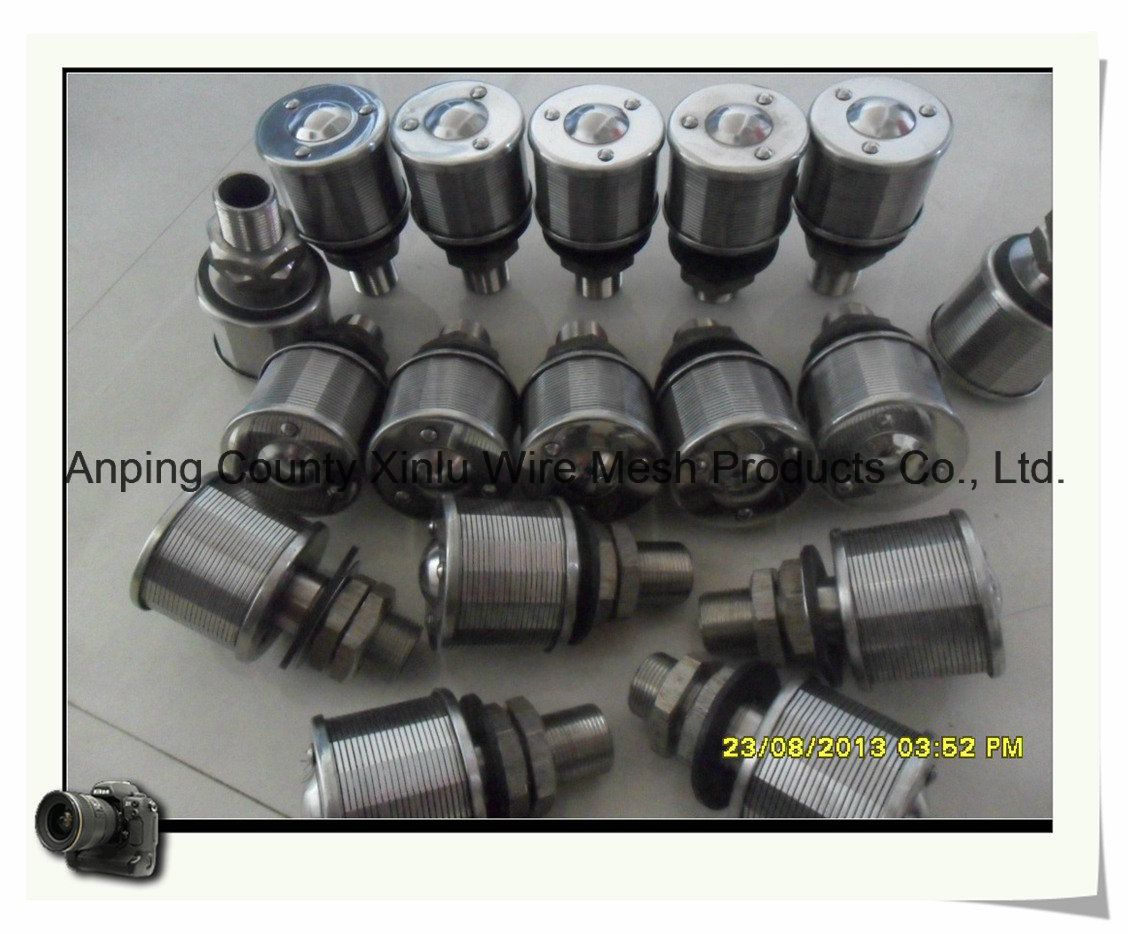

Water Filter Screen Nozzle
Price: |
US $ 10-20/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
30/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Wedge wire strainer nozzle, stainless steel filter nozzle, screen nozzle johnson type, water&gas strainer
nozzle, changeable filter element, wire wrapped nozzle pipe, , water filter nozzle, single tube type valve
bounet, double tube type diving helmet, double flow screen nozzle, single flow screen nozzle. filter
bottom nozzles, pipe screens, water input device, resin sprayer fittings, water distributor, center
distribution drainage device, Resin Traps,stainless steel lateral arm, lateral pipe, head lateral, wedge
wire candle filters, stainless steel screen candle, resin traps fitting, intake strainer screens, filter bottom
nozzles, inlet distributor, distributor traps, outlet basket, scale traps, distributor basket
XINLU WIRE MESH PRODUCTS CO., LTD RESIN TRAPS
Xinlu Wire Mesh Products Co, . Ltd Screens resin traps feature a continuous slot design that prevents the loss of ion exchange resin, activated carbon media, filter media, greensand media, sand and other media. Not only is this essential to prevent the loss of expensive material, but it's also critical to avoid damaging downstream equipment.
However, this safety precaution will not diminish flow. Xinlu Wire Mesh Products Co, . Ltd Screens can manufacture resin traps to guard against your exact media particle size while also providing the flow rate your system requires.
Reliable, durable and extremely low maintenance, the non-clogging, continuous slot design allows for a large amount of open area with extremely consistent spacing. Xinlu Wire Mesh Products Co, . Ltd Screens can manufacture resin traps in a wide variety of materials and sizes to suit your application needs.Type | DiameterD | L | L1 | Slot | Thread | Open area |
FYN1 | 45 | 98 | 34 | 0.2-0.25 | M20 | 380-493 |
FYN2 | 45 | 100 | 34 | 0.2-0.25 | M24 | 551-690 |
FYN3 | 53 | 100 | 34 | 0.2-0.25 | M24 | 453-597 |
FYN4 | 53 | 100 | 50 | 0.2-0.25 | M27 | 680-710 |
FYN5 | 53 | 105 | 34 | 0.2-0.25 | M32 | 800-920 |
FYN6 | 57 | 115 | 35 | 0.2-0.25 | M30 | 560-670 |
FYN7 | 57 | 120 | 55 | 0.2-0.25 | M32 | 780-905 |
FYN8 | 60 | 120 | 55 | 0.2-0.25 | G1″ | 905-1100 |
FYN9 | 82 | 130 | 50 | 0.2-0.25 | M33 | 1170-1280 |
FYN10 | 108 | 200 | 100 | 0.2-0.25 | G2″ | 3050-4600 |
Prod Model: |
XL-FY468 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Diameter: |
Dn 45-108m |
Slot: |
0.2-0.25 |
End Connection: |
Welded Ring, M&F, Flange |
Flow: |
Fito, Foti |
Material: |
Metal |
Usage: |
Solid Filter |
Type: |
Filter Cylinder |
Hole Shape: |
Square |
Anping County Xinlu Wire Mesh Products Co., Ltd, . Is located in Anping county which well known of "The hometown of wire mesh in China", emerged from Anping mine screen mesh factory in 1994 with a founding of 1.5 million RMB. It has a comparatively long history, a large scale production rate, and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.
