| Prod Model: |
UND-TC005 |
| Fr: |
M1/M2/Nfpa701 |
| UV: |
Anti-UV, Rain, Typhoon and Frost |
| Mildew: |
Anti-Mildew |
| Color: |
White,Black,Blue,Green and So on |
| Surface Treatment: |
Acrylic or PVDF |
| Type: |
Tarpaulin |
| Style: |
PVC Coated |
| Material: |
PVC+Polyester |
| Applications: |
Industrial Curtain Walls,Truck Cover,Covers |
| Pattern: |
Gossly, Matte and Imprint |
| Width: |
1-3.2m |
| Gram Weight: |
550g-750g |
Product Description

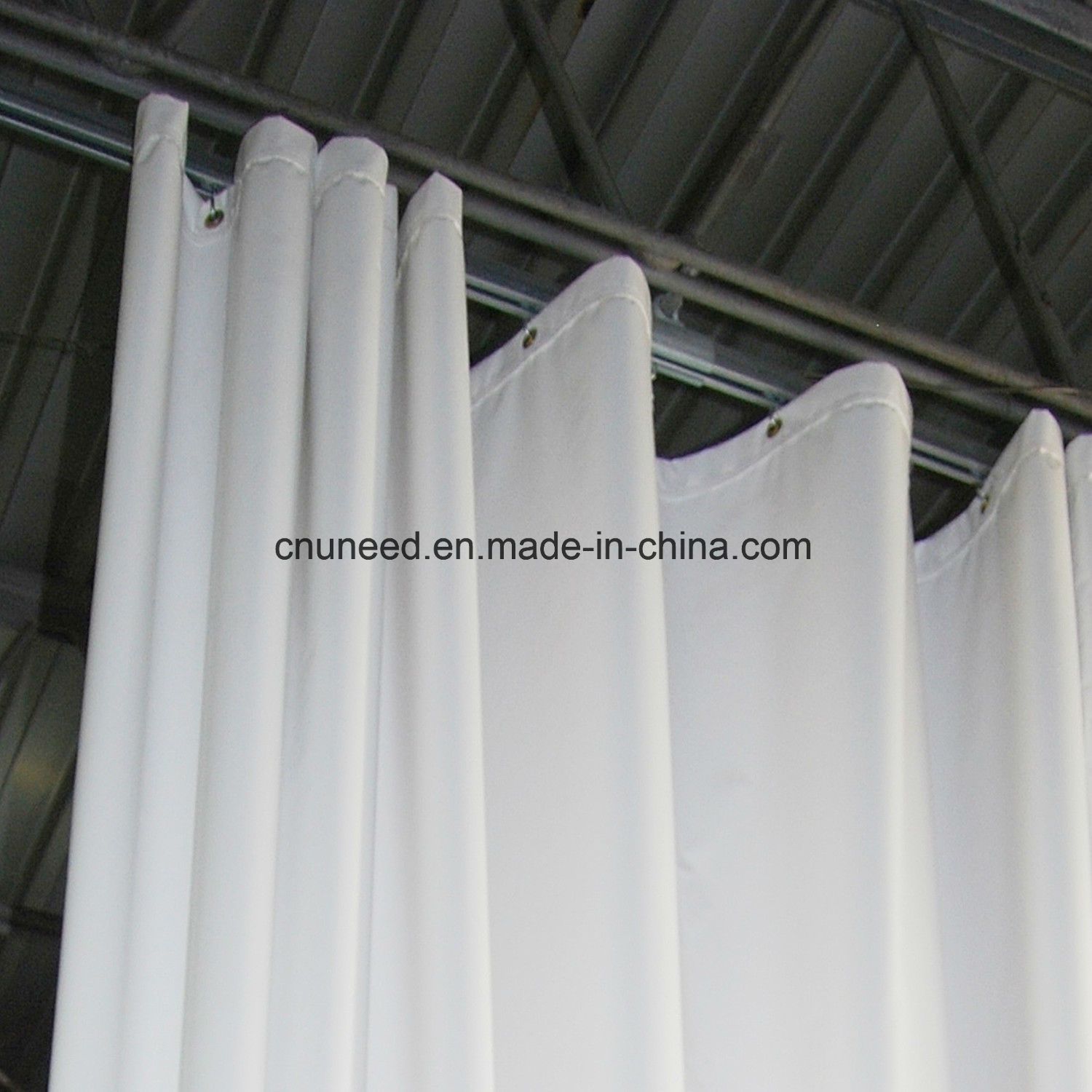

Product Name: INDUSTRIAL CURTAIN WALLS
CNUNEED's fabrics offer the following advantages:
The Features for tarpaulin used:
Mould proof, anti-bacterial, anti-aging
Hot Resistance and Cold Resistance
NFPA fire retardant, CFM fire retardant
Waterproof, Flame Retardant
High Tenacity, Tear Strength and Adhesion Strength, Durable
Prefect Light fastness
Finished edges for clean crisp appearance
Customer's requirement available
A wide range of weights, widths and colours make all manufacturing options possible.
| Material | Top pvc vinyl fabric +Middle pvc transparent fabric+Bottom pvc vinyl fabric |
| Base Fabric | 500D*500D | 1000D*1000D | 1000D*1000D | 1000D*1000D |
| Density | 18*18/inch | 18*18/inch | 20*20/inch | 23*23/inch |
| Fabric weight(gsm) | 500 | 610 | 650 | 750 |
| Tensile strength (N/5cm) | 2000/1800 | 2500/2200 | 2500/2400 | 2600/2400 |
| Tear strength (N/5cm) | 320/250 | 380/300 | 280/250 | 250/250 |
| Adhesion(N/5cm) | 80 | 90 | 90 | 90 |
| Temperature resistance (degree) | -30~70 | -30~70 | -30~70 | -30~70 |
| Flame Resistant | B1,B2,M2,NFPA701 |
| Surface | glossy, semi-glossy, matte |
| Lacquering | Acrylic (one side, two-sides) |
| Processing | Four edged are sewn and reinforced by metal grommets. |
Industrial Curtain Walls Features:
Dividing up manufacturing sapce
Rapid energy savings
Temperature control
Dust control
Doubles as noise control
Paint or wash over spray control
Smoke containment
Humidity containment
Welding spark containment
Less expensive than rigid walls
Easy to move and customize
Quick to install and take down and store
HAINING UNEED INDUSTRIAL MATERIAL Co., Ltd excellent matching with advanced PVC knife coating line. Laminated, calendaring, knitting and woven fabric equipment, has been committed to world-wide for technical techtextiles and innovation. Application of different substrates developed projection screen series, PVC tarpaulin material series, blockout curtain fabric, flex banner, PVC ceiling film and other products and so on. The products are widely applied to education, home, construction, medical, transportation and so on.
UNEED company has a experienced production, marketing, research and development team. Continuously increases quality of products and corporate image make the management system complete. Through several years of production innovation and market development, we can ensure the production standardization and stability of products'quality and have established long-term and stable friendly cooperative relations with the customers in the world.
Welcome the customers from the world to negotiate, the UNEED team hopes to cooperate with you and create a better future.
