Waterproof IP Remote Control Power Adjustable RF GPS GSM Signal Jammer
| Price: |
US $ 10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |

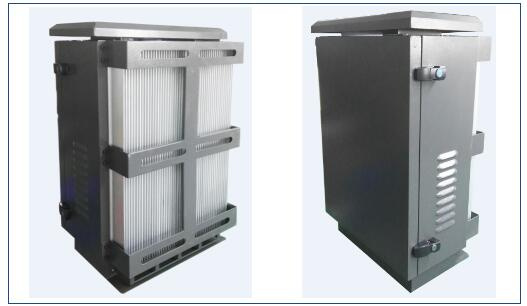

waterproof and sand proof IP Remote control Power adjustable RF Signale jammerModel: AAT-HPJ6-1200W
Features: Using ultrahigh frequency boardband jamming technology.Effective power (Channel power) high, and interference radius bigValid subsection, only interference downlink, not cause interference to the base station.Import component, slow starting circuit design and can avoid mechanical switch generated spark phenomenon, high level of integration and working stabilizationPerfect self-protective function, when the equipment overheating, output over power, VSWR ect fault warning, the jammer will auto turn-off which have fault module, to avoid the jammer damage.Ethernet IP Remote Monitoring System availableRF module alarm type: Temperature alarm, Over power alarm, Standing wave alarm. Technical Specifications:Effective shielding CDMA, GSM, SCDMA, DCS1800MHz, PCS1900MHz, PHS, GPS, WIFI,3G WCDMA, 4G LTE,VHF,UHF ect, wireless signal.RF output Power Total: 1200WEach module Max RF output power: 200W (RF output Power: 53dbm) 0-200W (Power adjustable)
Effective shileding radius: 100-1000M ,( depending on the environment signal strength)
The better choose directional antenna, shileding effective more better.
Complete blocking time 30 seconds.
Operation way: Independent RF switch on/off, RF Power regulation
Power supply: Input 110v~ 240VAC / Output 24V-32V
Power consumption: 2160W
Continuous working hours: 24hours ongoing working.
Remote Control: RS 485 or RJ 45
Antenna type: High Gain Directional Panel Antennas or Omni Antennas
Antenna Gain: 17dBi
Waterproof level: IP66
Sand proof: Yes
Operating Temp: -25ºC - +60ºC
Humidity: 30%-95%
Net Weight: 7kgs;
Dimension:730(L)*450(W)*320(H)mm
Packing size:830(L)*565(W)*435(H)mm
Accessoris: Power cable, antenna, RS485 connector, USB cable wall-mounted expansion bolt.
Applications:
Prisons, Military or Government buildings, and other sensitive locations where the mobile phone signals are not allowed.

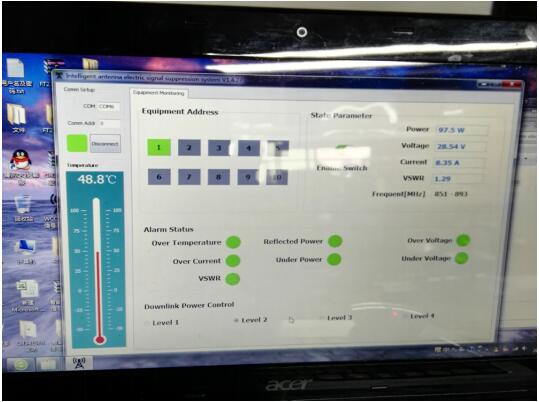

Jammer Monitoring Software Platform Introduction:
The Jammer Monitoring Software Platform allows customers to keep a query or control all Jammers accessed to the Internet, and all the alarm information jammers real-time feedback to the customer, so that customers can stay at home to have all information of jammers running, and adjust the control parameters of the Jammers to suit the operating environment of the installed area, greatly reduce the customer's maintenance workload.
The platform enables real-time display of all Jammers' output power, operating
Compared with similar products: 1.Import chip: Product all chip come from Texas Instruments chips, to ensure product quality and stability
2. Power supply: Product desgin used aluminum alloy metal power supply, heat disspation is much better than plastic shell power, can guarantee product long-term stablility.
3. Switch off/on: Product and power supply both have switch button, easy for user opereation on platform.
4. Muti-channel module free choice.
5. Within 30mins not connect antenna, the module not burn.6. The power from 0-200W power adjustable by PC. Avoid interference power is too large, the jamming range too big, no need to blocking place intertererence.7. Each module is independent, can be independent adjustment. Same time also can intergrated control
| Prod Model: |
AAT-HPJ6-1200W |
| RF Output Power: |
1200W |
| Waterproof Level: |
IP 66 |
| Sand Proof: |
Yes |
| Shileding Radius: |
250-1000m |
| Operating Time: |
24hours Ongoing Working. |
