| Prod Model: |
WD-2284 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
48/52kg |
| Size: |
66*35*62cm |
| Power: |
250/400/550W Optional |
| Max. Sewing Speed: |
5000rpm |
| Classification: |
Sewing Machine |
| Over-Lock Stitch: |
Single Wire |
| Nailcatcher Machine Stitch: |
Single Chain Stitch |
| Buttonholing Machine Type: |
Flat Head Buttonholing Machine |
| Type: |
Garment |
| Automatic Grade: |
Semiautomatic |
Product Description

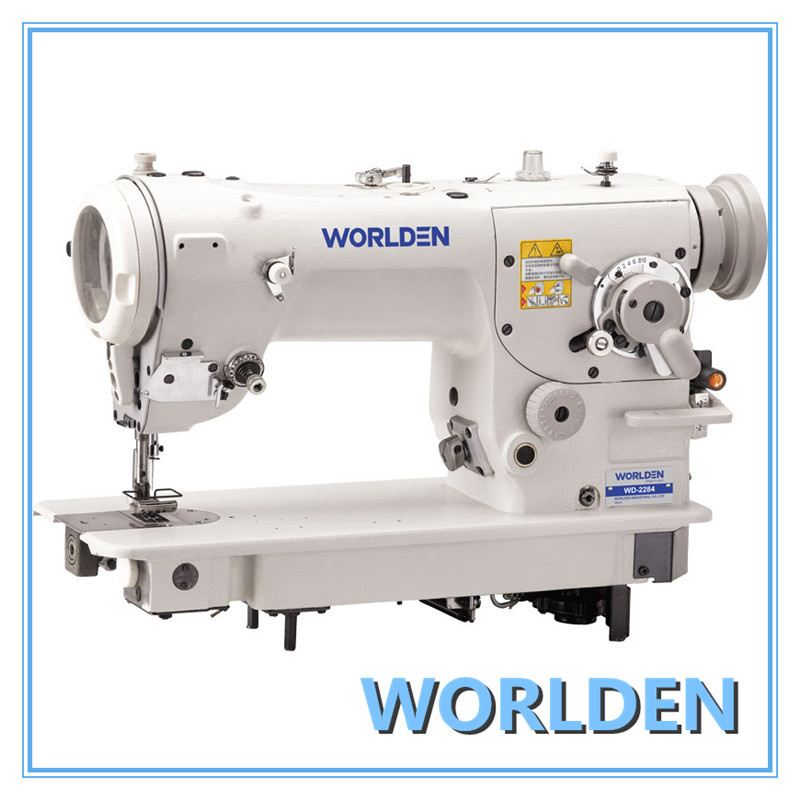

WD-2284 (worlden) high speed zigzag sewing machine series
APPLICATIONS:
1. Attaching laces, shoulder straps, and general zigzag stitching.
2. Attaching elastic tapes or laces to leg or waist portion of tights, swim suits etc..
3. Attaching elastic tapes or laces to corsets, bras, ladies' underwear etc.. Also can work for decorative purpose sewing.
4. General or decorative sewing for tights, pajamas, negligee, ladies' & children's ware etc...
FEATURES:
1. Outer switching-button design, makes the switch between 2-step and 4-tep zigzag very
easy & convenient.
2. Outer switching- late design, makes the adjustments amongst 2mm, mm., 8mm., 10mm so easy and quick.
3. Adopting Japan-made HIROSE highest quality Titanium Hook, ensures
smooth stitches & durability. Also China-made hook is optional.
4. With the improved needle-position-shifting-lever, fine adjustments of needle
position much more simplified. Moreover, needle position can be fixed firmly by the new design of a stopper provided on the lever.
5. New design of rotary thread take-up lever ensures uniform thread tension at no matter
high or low tension stitching.
6. Off-center axis hook mechanism has been adopted eliminating problems of jumping
stitches and thread breakage.
7. Hemmer & folder are optional.
8. Fully improved built-in type bobbin winder makes it easier to adjust the amount of
thread to be wound in bobbin and thread tension when winding bobbin.
9. Elastic feeding device for zig-zag sewing machine, special for sewing high quality
ladies'& gentlemen's underwear.(optional)
10. Screw pump type fully automatic lubrication system ensures stable flow of oil to the hook under pressure at all speeds.
11. The new presser bar pressure regulating knob enables the simple adjustment of presser bar pressure.
12. Standard zig zag exceeding zig zag width of 6mm of more and 3-step zig zag
exceeding bight width of 8mm or more conform to Table.
