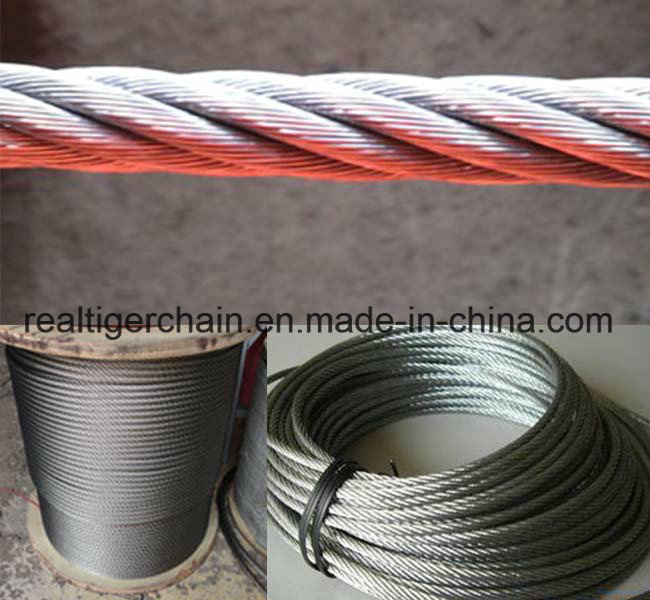

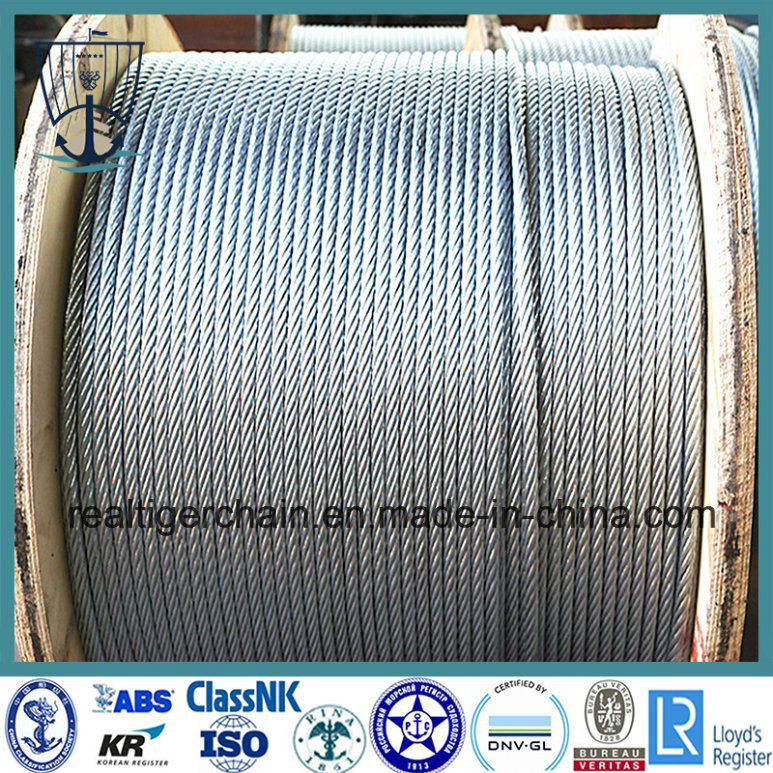

Wire Rope Sling/ Galvanized Wire Rope 67 69

Name: Wire Rope Sling/ Galvanized Wire Rope 6*7 6*9
Brand: FullPackage
SKU: 723074502
Availability: InStock
Rating: 4.5 (27 reviews)

Price:	US $ 560-600/Ton
Min Order:	1/Ton
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

*Product Name: 6*7 Steel Wire Rope
*Dia.: 2-50mm
*Material: Carbon Steel, Staineless Steel
*Structure: 6X7+FC 6X19+IWS 6X9W+FC 6X9W+IWR
*Tensile Strength: 1570Mpa, 1670 Mpa, 1870Mpa, 1960 Mpa
*Twist Dirction: RHOL, RHLL, LHOL, LHLL
*Standard: GB/T, DIN, BS, ASTM, JIS,ISO
*Application: Various cable carriage, rope and belt conveyer, ropeway drawing and slope winch, etc.

Nominal Diameter	Approx.Weight			Nominal Tensile Strength of Rope(Mpa)
				1570		1670		1770		1870		1960
				Minimun Breaking Load of Rope
	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
	NF	SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
mm	kg/100m			(KN)
2	1.40	1.38	1.55	2.08	2.25	2.22	2.4	2.35	2.54	2.48	2.69	2.6	2.81
3	3.16	3.1	3.48	4.69	5.07	4.99	5.4	5.29	5.72	5.59	6.04	5.86	6.33
4	5.62	5.5	6.19	8.34	9.02	8.87	9.59	9.4	10.2	9.93	10.7	10.4	11.3
5	8.78	8.6	9.68	13	14.1	13.9	15	14.7	15.9	15.5	16.8	16.3	17.6
6	12.6	12.4	13.9	18.8	20.3	20	21.6	21.2	22.9	22.4	24.2	23.4	25.3
7	17.2	16.9	19	25.5	27.6	27.2	29.4	28.8	31.1	30.4	32.9	31.9	34.5
8	22.5	22	24.8	33.4	36.1	35.5	38.4	37.6	40.7	39.7	43	41.7	45
9	28.4	27.9	31.3	42.2	45.7	44.9	48.6	47.6	51.5	50.3	54.4	52.7	57
10	35.1	34.4	38.7	52.1	56.4	55.4	60	58.8	63.5	62.1	67.1	65.1	70.4
11	42.5	41.6	46.8	63.1	68.2	67.1	72.5	71.1	76.9	75.1	81.2	78.7	85.4
12	50.5	49.5	55.7	75.1	81.2	79.8	86.3	84.6	91.5	89.4	96.7	93.7	101
13	59.3	58.1	65.4	88.1	95.3	93.7	101	99.3	107	105	113	110	119
14	68.8	67.4	75.9	102	110	109	118	115	125	122	132	128	138
16	89.9	88.1	99.1	133	144	142	153	150	163	159	172	167	180
17	101	99.4	112	151	163	160	173	170	184	179	194	188	203
18	114	112	125	169	183	180	194	190	206	201	218	211	228
20	140	138	155	209	225	222	240	235	254	248	269	260	281
22	170	167	187	252	273	268	290	284	308	300	325	315	341
24	202	198	223	300	325	319	345	338	366	358	387	375	405
26	237	233	262	352	381	375	405	397	430	420	454	440	476
28	275	270	303	409	442	435	470	461	498	487	526	510	552
30	316	310	348	469	507	499	540	529	572	559	604	586	633
32	359	352	396	534	577	568	614	602	651	636	687	666	721
34	406	398	447	603	652	641	693	679	735	718	776	752	813
36	455	446	502	676	730	719	777	762	824	805	870	843	912
38	507	497	559	753	814	801	866	849	918	896	969	940	1020
40	562	550	619	834	902	887	959	940	1020	993	1070	1040	1130
42	619	607	683	919	994	978	1060	1040	1120	1100	1180	1150	1240
44	680	666	749	1010	1090	1070	1160	1140	1230	1200	1300	1260	1360
46	743	728	819	1100	1190	1170	1270	1240	1340	1310	1420	1380	1490
48	809	793	892	1200	1300	1280	1380	1350	1460	1430	1550	1500	1620
50	878	860	968	1300	1410	1390	1500	1470	1590	1550	1680	1630	1760

Prod Model:	Wire Rope
Product Name:	6*7 Wire Rope
Structure:	6X7+FC 6X9+Iws 6X9w+FC 6X9w+Iwr
Standards:	GB/T, DIN, BS, ASTM, JIS, ISO
Surface:	Galvanized, Oil Painted
Packing:	Coil, Reel
Tensile Strength:	1570MPa, 1670 MPa, 1870MPa, 1960 MPa
Twist Dirction:	Rhol, Rhll, Lhol, Lhll
Usage:	Lifting, Bearing for Ship/Crane etc.
Products Supplied:	Anchor Chain, Anchor, Mooring Rope, Fender
Application:	Crane
Material:	Carbon Steel
Type:	Chain Hoist

Qingdao Real Tiger Marine Company is located in the beautiful coastal city of Qingdao, which is a professional one-stop marine equipment suppliers. Main products are anchor chain and accessories, ship anchor, mooring rope, wire rope, door, window, cover, bollard, chain stopper and other deck equipment. Products got CCS, DNV, GL, ABS, BV, LR, NK, KR, RINA classification society certificate, and passed the ISO9001-2008 international quality system certification.

Companies adhering to the "High Quality for Success, Sincere Credit for Cooperation

" concept, sincerely serve for the domestic and foreign customers, efforts to achieve win-win cooperation.

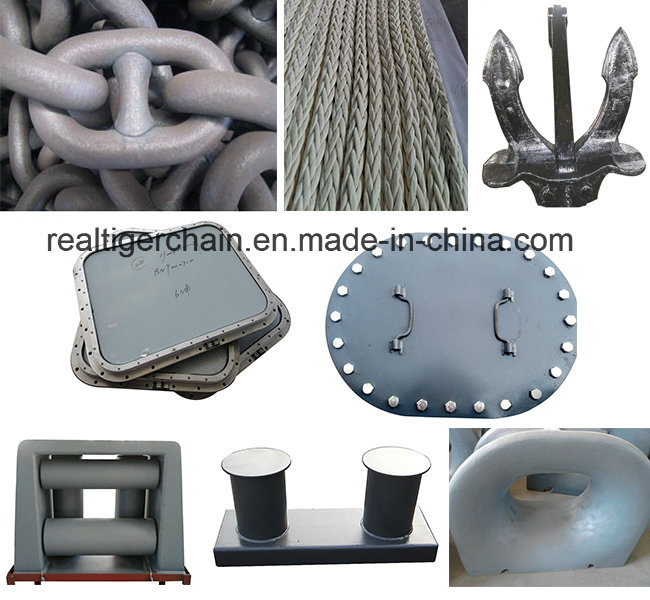

Maine Products:

*Anchor Chain: U1 U2 U3( Dia. 6-162mm)

*Offshore Mooring Chain: R3 R3S R4 R4S R5 R5S( Dia. 34-162mm)

*Anchor Chain Accessories: Kenter Shackle, Joining Shackle, End Shackle, Swivel, Pear Kenter Shackle, C Connector, Swivel Shackle, etc

*Ship Anchors: Hall Anchor, Spek Anchor, Admiralty Anchor, Japan Stockless Anchor, AC-14 HHP Anchor, Danforth Anchor, Pool Anchor, Delta Anchor, etc

*Mooring Rope: 3/4/6/8/12 Strands Ropes, Double Braided Ropes, UIIMWPE Ropes, and rope net

*Deck Equipments: DoorS, Windows, Hatch Cover, Manhole Cover, Chock, Roller Fairlead, Chain Stopper, Guide Roller, Bollard, etc

*Marine Rubber Fender: Pneumatic Rubber Fender, Super Cell Rubber Fender, Cone Rubber Fender, Semi-Circular Rubber Fender, Cylindrical Rubber Fender, Super Arch Rubber Fender, etc.

*Lashing Securing Series: Lashing Chain, Tension Lever, Ratchet Load Binder, D Ring, Hooks, etc

*Hardware: US Type Shackle (G209/210/2130/2150/2410/2160), Turnbuckle, D Ring, Hooks, Ratchet Load Binder, Wire Rope Clips, etc.

If you have requirements for OEM or CUSTOMERISED PRODDUCTS, are also available.

For more infomation, you can contact me at any time.
