| Prod Model: |
WY902/1202/1502C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Topwisdom |
| Display: |
8" Touch Screen |
| Main Motor: |
Servo Motor |
| Hook: |
Japan Koban Hook |
| Belts: |
Italy Belts |
| Warranty: |
24 Months |
| Weight: |
450kg |
| Speed: |
850/1200rpm |
| Rail: |
Linear Rail |
| Language: |
12 Languages |
| Knitting Product Type: |
Hat |
| Knitting Method: |
Double |
| Computerized: |
Computerized |
| Certification: |
SGS |
| Condition: |
New |
| Type: |
Embroidery Machine |
| Knitting Style: |
Tubular |
| Knitting Machine Cut: |
Wy902c/Wy1202c |
Product Description

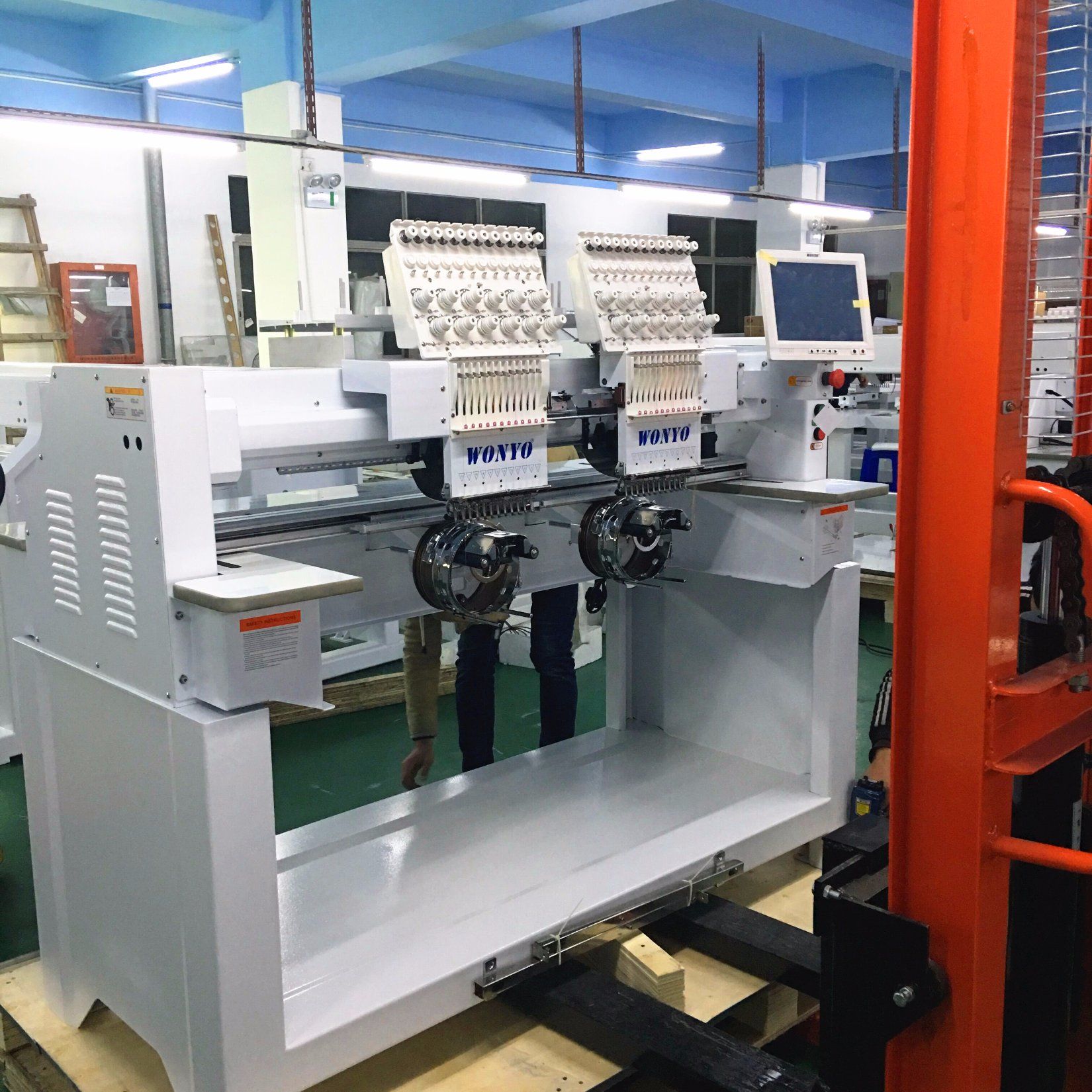

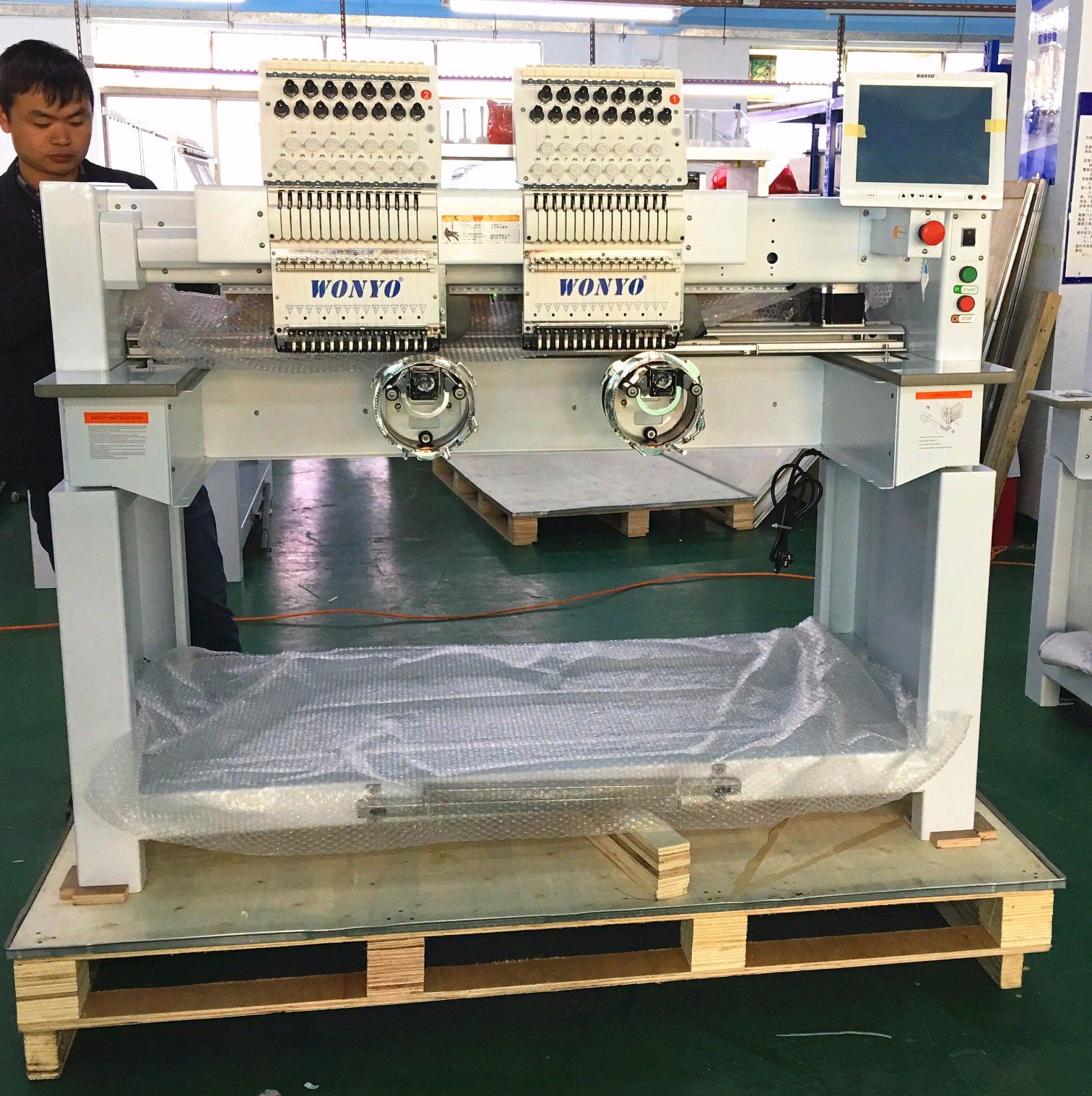

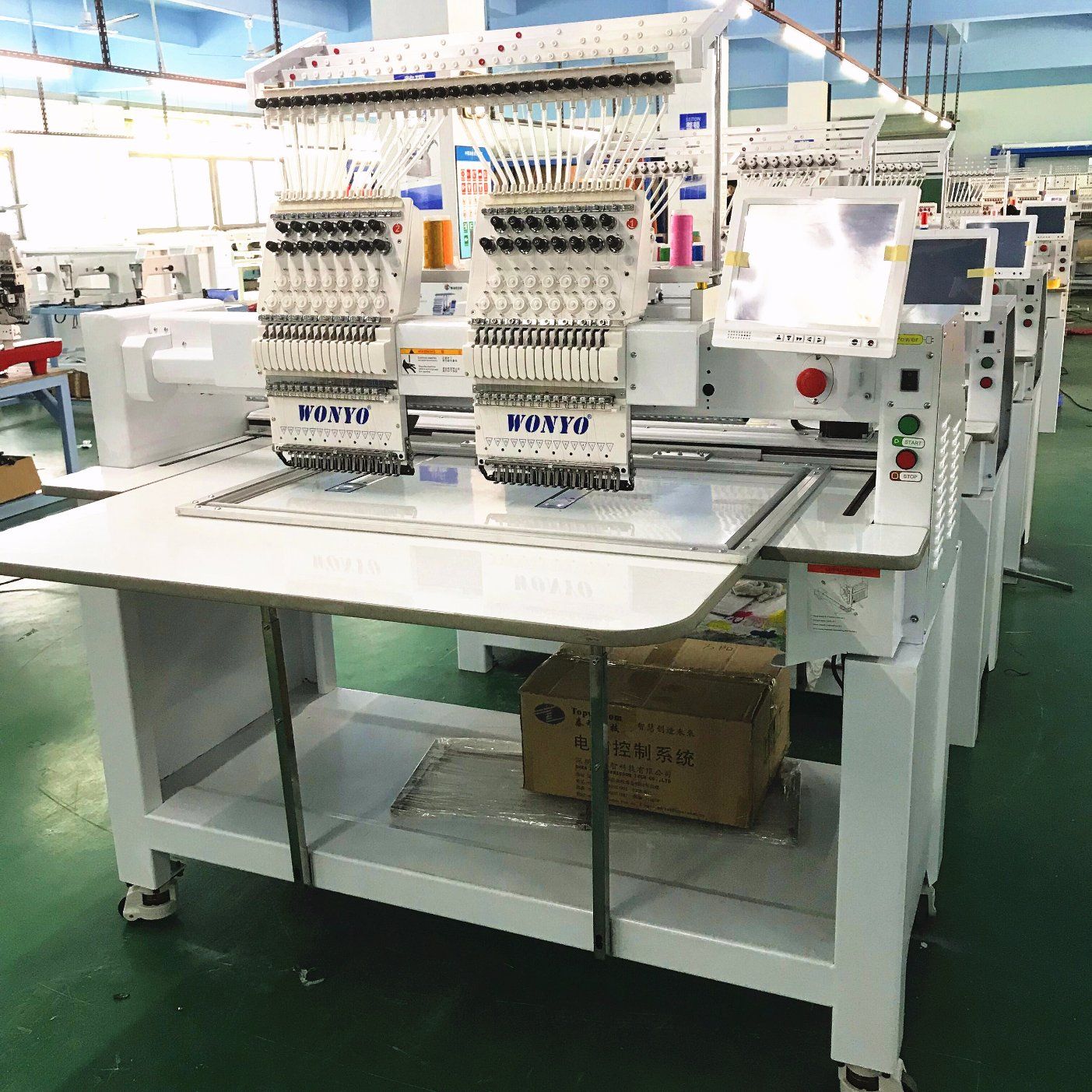

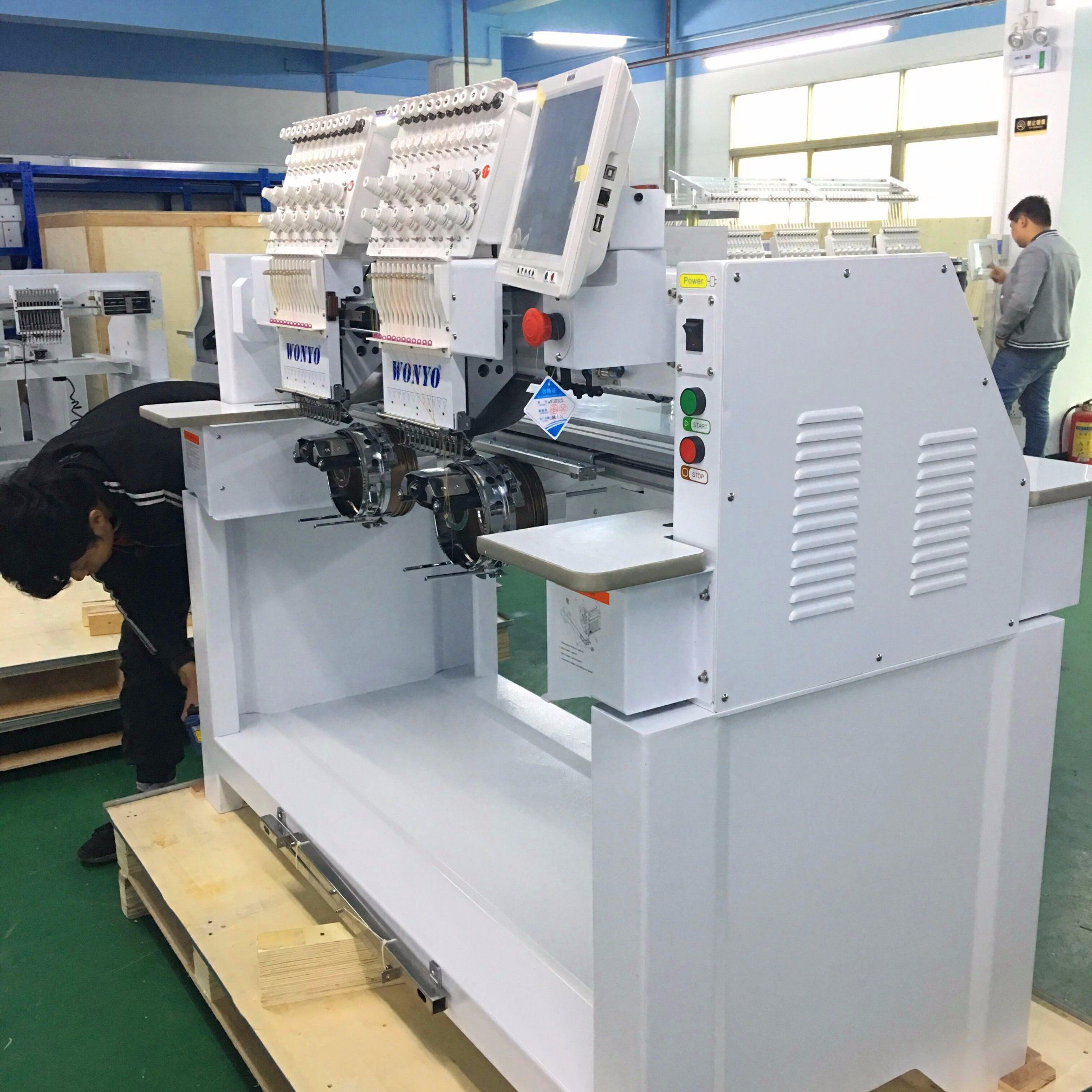

Wonyo 2 Heads Computer Embroidery Machine Maquina De Bordado
Shen Zhen Wangyang Technology Co., Ltd is a science and technology enterprise that integrated in design, manufacture and sales of computerized embroidery machines.
After years of development and technology accumulation, a team with full range of professional scientific research, development, sales and service has been made up and done a good work in the field of precision machinery and software control.
Industrial embroidery machines include: single head embroidery, multi heads embroidery machines.
Mainly do caps, shirts, finished garments, flat embroidery etc.
WONYO values: innovation, dedication, loyalty, service, gratitude, sharing, team philosophy and win-win business.
Main Features
1) Suitable for flat embroidery, cap embroidery and finished garments embroidery
2)Automatic thread trimmer
3)Maximum speed 1000 RPM
4)270 degree Wide cap frame unit
5)Color LCD display showing real time stitching
6)USB input port
7)Automatic color change
8)Thread break detection
9)Pre-sew design trace capable
10)Memory size 20, 000, 000 stitches
11)Emergency stop
12)Electricity: 110V/60Hz or 220V/50Hz available
13)Built-in bobbin winder
14)Keeping current data or work when emergency stop or power off
15)Mending function. (back and skip stitches under controller)
16)Switch of Cap/ flat embroidery mode eliminating hitting the frame.
17)USB port with fast data transmission and good compatibility
18)Mainboard intergated into control panel protecting from dust or external force.
19)Lay-out of keys on panel is user-friendly.
20)Built-in Network

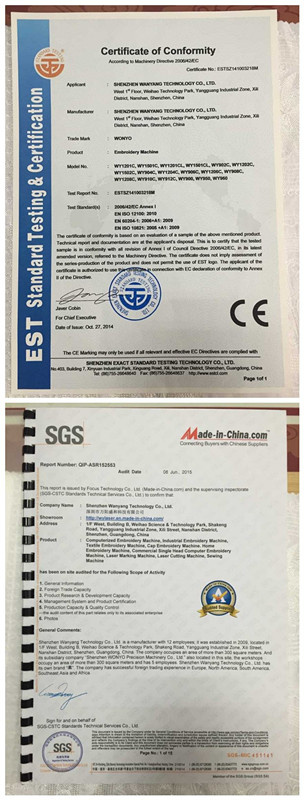

Certificates
Compact control panal
A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles
Machine Hoops/frames inclued2 x Shirt Front Round Hoop 9 cm (3.5")
2 x Shirt Front Round Hoop 12 cm (4.7")
2 x Shirt Front Round Hoop 15 cm (5.9")
2 x Shirt Front Round Hoop 19 cm (7.8")
2 x Jacket Back Square Hoop 30 x 30 cm (12" x 12")
1 x Sash Frame 56 x 38 cm (22" x 15")
| DLES | HEAD | EMBROIDERY SPACE(L*W)
| HEAD
INTERVAL | LENGTH(mm) | WIDTH(mm) | HEIGHT(mm) | WEIGHT(kg) |
9\12\15
| 2
| 400*450
| 400
| 1530
| 1270
| 1500
| 400 |
Pre-Sales Service
*Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
