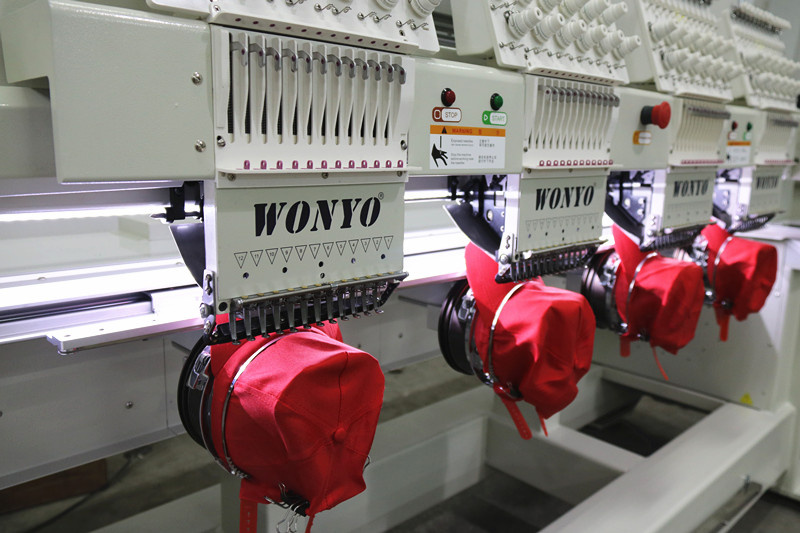

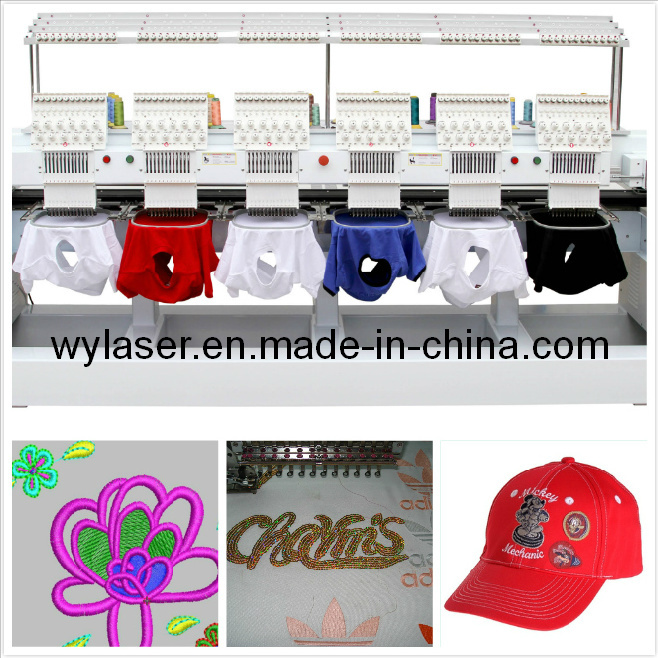

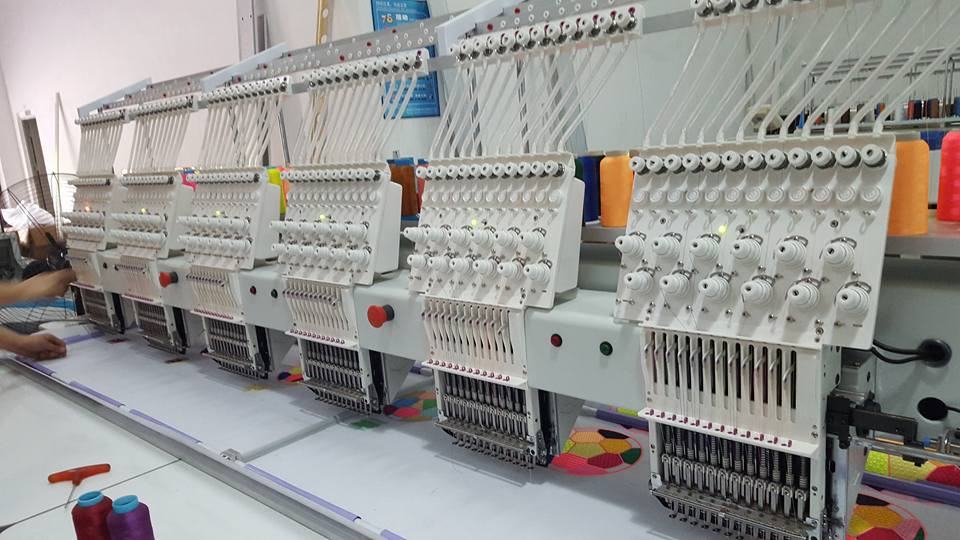

Wonyo 6 Head Computerized embroidery machines in south korea 6 heads computer embroidery machine WY906/1206C suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery etc, with 10" touch screen computer.
Computerized 6 Head Embroidery Machine with CE/ISO/SGS certificates
| Model NO. | WY906/1206/1506C |
| Operation | Computerized |
| Head Number | 6 Heads |
| Needle/Color Number | 9/12/15 |
| Embroidery Area | 400*450mm |
| Worktable Size | 450*500mm |
| Head Interval | 400mm |
| Overall Dimensions | 3760*1440*1690mm |
| Certification | CE, SGS |
| After-sales Service | Engineers available to service machinery overseas |
| application | flat, cap, T-shirt, finished garments, logo, 3D |
| Package | Wooden Case |
| Motor | Panasonic Servo Motor |
| Warranty | 24 months limited warranty with lifetime support |
| language | 12 languages |
| Speed | 850RPM/1000RPM |
| Computer | 10 inch LCD display and touch screen showing real time stitching |
Main Features
1) Suitable for flat embroidery, cap embroidery and finished garments embroidery
2)Automatic thread trimmer
3)Maximum speed 1000 RPM
4)270 degree Wide cap frame unit
5)Color LCD display showing real time stitching
6)USB input port
7)Automatic color change
8)Thread break detection
9)Pre-sew design trace capable
10)Memory size 20, 000, 000 stitches
11)Emergency stop
12)Electricity: 110V/60Hz or 220V/50Hz available
13)Built-in bobbin winder
14)Keeping current data or work when emergency stop or power off
15)Mending function. (back and skip stitches under controller)
16)Switch of Cap/ flat embroidery mode eliminating hitting the frame.
17)USB port with fast data transmission and good compatibility
18)Mainboard intergated into control panel protecting from dust or external force.
19)Lay-out of keys on panel is user-friendly.
20)Built-in Network

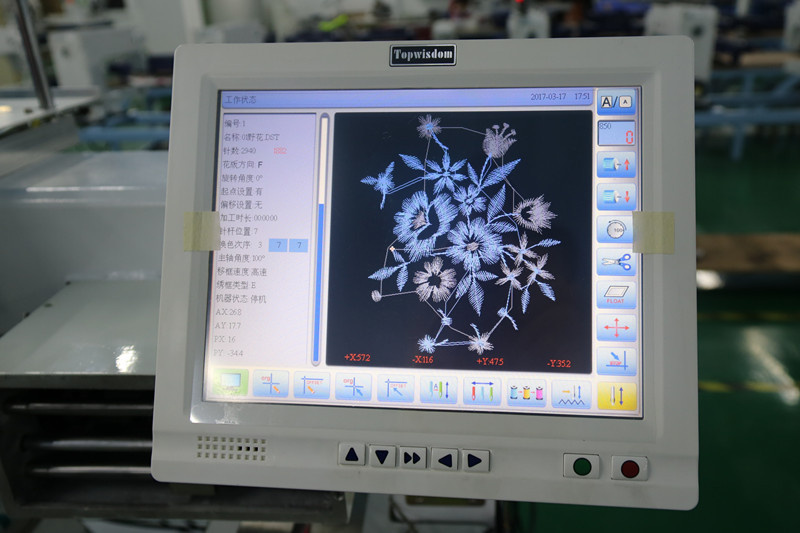

Compact control panel
| 1 | Color LCD display showing real time stitching |
| 2 | Manual Color Change |
| 3 | Function keys including Menu, Speed up and slow |
| 4 | Multi languages available |
| 5 | DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc |
| 6 | On-board lettering 11. Numeric keys for selection of needles |
| 7 | Frame-moving keys |
| 8 | Manual Trimming |
| 9 | Start, Stop, and emergency Stop |
| 10 | Embroidery Status down (Page Up and Page Down), USB Input |
Hoops/frames inclued
| 1 | 2 x Shirt Front Round Hoop 9 cm (3.5" ) |
| 2 | 2 x Shirt Front Round Hoop 23 cm (9" ) |
| 3 | 2 x Shirt Front Round Hoop 12 cm (4.7" ) |
| 4 | 2 x Jacket Back Square Hoop 30 x 30 cm (12" x 12" ) |
| 5 | 2 x Shirt Front Round Hoop 15 cm (5.9" ) |
| 6 | 1 x Sash Frame 56 x 38 cm (22" x 15" ) |
