| Prod Model: |
WY908C/1208C |
| Main Motor: |
Panasonic Servo Motor |
| Speed: |
850 Rpm; Customized 1000rpm |
| Memory Size: |
20million Stitch with 200 Patterns |
| Trimming: |
Auto Trimming |
| Thread Broken Checking: |
Auto |
| Computer Screen: |
10" Topwisdom Touch Screen |
| Language: |
12 Languages |
| Embroidery Area: |
400*450mm |
| Warranty: |
24 Months |
| Power: |
100V/60Hz - 240V/50Hz |
Product Description

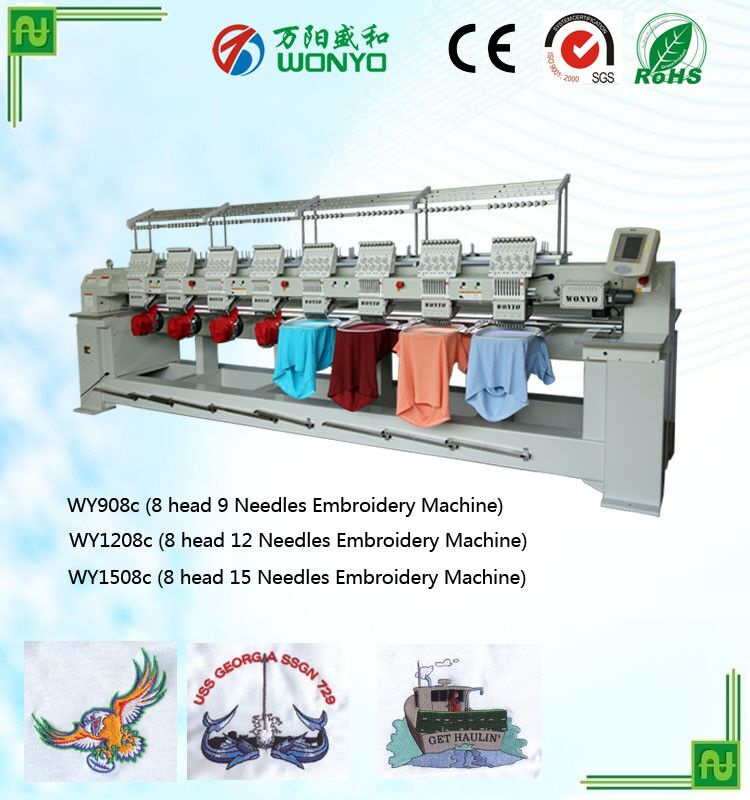

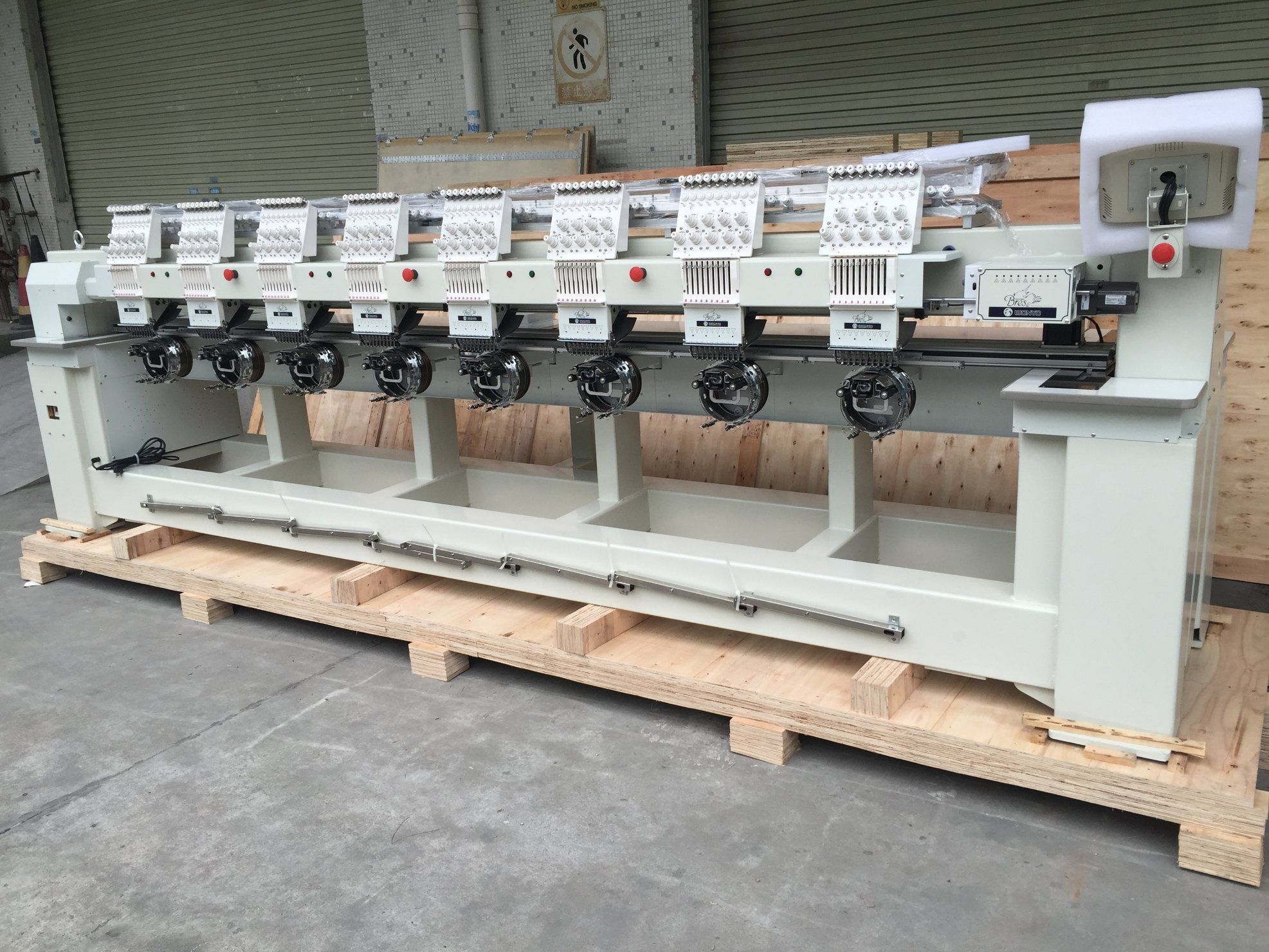

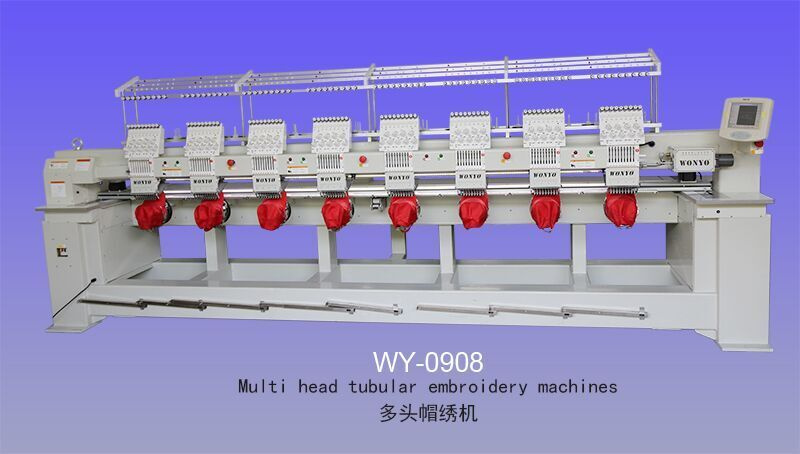

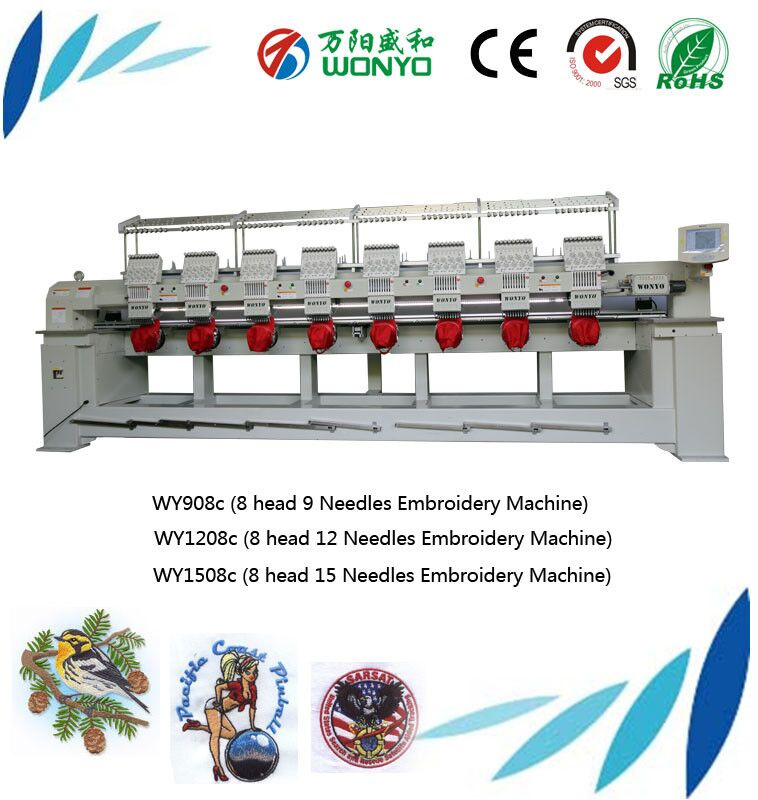

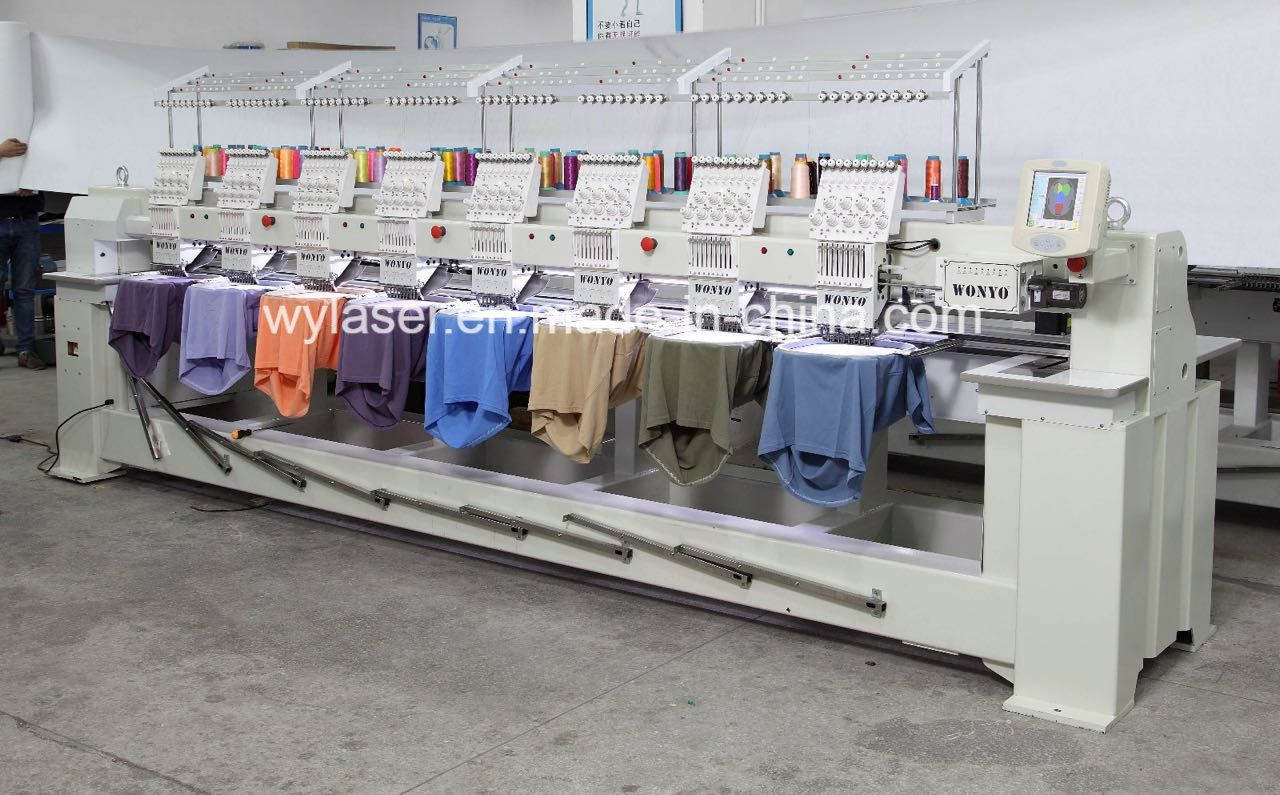

WONYO Best Selling 9/12 Needles 8 Heads High Speed Computerized Most Durable Embroidery Machine
Much Better Than Second-hand Barudan Machine!
Suitable for cap, finished garments, jeans, belt, shoes, socks, insoles, bead, sequin, cording, boring, 3D, flat embroidery.
1.flat Embroidery machine
2.High Speed embroidery machine
3.cap embroidery machine
4.Sequin embroidery machine(optional device)
5.Cording embroidery machine(optional device) | Model | Needle | Head | N.w
G.w | Emb.area | Meas
Outer
CBM |
| WY1201CS/WY1501CS | 12/15 | 1 | 120kg
138kg | 360*510mm | 750*740*850mm
840*830*930mm
0.648CBM |
| WY1201CL/WY1501CL | 12/15 | 1 | 201kg
238kg | 360*1200mm | 1490*980*1000mm
1580*1030*1090mm
1.774CBM |
| WY1202CS/WY902CS | 12/9 | 2 | 390KG
429KG | 400*450MM | 1520*970*1400mm
1710*1060*1470mm
2.665CBM |
| WY1204CS/WY904CS | 12/9 | 4 | 720KG
900KG | 400*450MM | 2638*1090*1500mm
2700*1140*1660mm
5.110CBM |
| WY1206CS/WY906CS | 12/9 | 6 | 1100KG
1210KG | 400*450MM | 3438*1160*1500mm
3460*1200*1670mm
6.934CBM |
| WY1208CS/WY908CS | 12/9 | 8 |
1200KG
1335KG
| 400*450MM | 4238*1090*1500mm
4510*1130*1670mm
8.511CBM |
| WY1212CS/WY912CS | 12/9 | 12 | 1800KG
1960KG | 400*450MM | 5838*1490*1610MM
6000*1500*1680MM
15.120CBM |
1. Main featuresA. Suitable for flat embroidery, cap embroidery and finished garments embroidery, like T-shirt
B. Automatic thread trimmer
C. Maximum speed 850 SPM, customized 1000SPM.
D. 270 degree Wide cap frame unit
E. 8"Color LCD display showing real time stitching
F. USB input port
G. Automatic color change
H. Thread break detection
I. Pre-sew design trace capable
J. Memory size 2, 000, 000 stitches
K. Emergency stop
L. Electricity: 110V/60Hz or 220V/50Hz available
M. Built-in bobbin winder
N. Keeping current data or work when emergency stop or power off
O. Mending function. (back and skip stitches under controller)
P. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
Q. USB port with fast data transmission and good compatibility
X. Mainboard intergated into control panel protecting from dust or external force.
Y. Lay-out of keys on panel is user-friendly.
Z. Built-in Network
2. Compact control panalA. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available like English, French, Spanish etc.
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles
3. Hoops/frames included 1pcs x aluminum embroidery frame 450*3200mm
2pcs x square hoops 290*290mm
2pcs x round hoops 180mm per head
2pcs x round hoops 150mm per head
2pcs x round hoops 120mm per head
2pcs x round hoops 90mm per head4. Cap Attachment Included 2pcs x cap ring per head
1pcs x hoop station per head
1pcs x cap driver per head
5. Other accessories 1pcs x Table top
1pcs x Operation manual
1pcs x Tool kit
1pcs x Bobin winder
1pcs x U disk6. Optional devices 1. Sequin device
2. Boring device
3. Simple Coiling/Cording
4. 8 in 1 device (for shirt pockets, socks, cap backs, bags, shirt sleeves, collar tips, gloves, cuffs of sleeves, ribbons, CD cases,)Testing and inspection
The machine will be fully assembled and tested in our factory to the standard test procedures. If the customer has arranged any special test materials or test procedures these will be carried out the same time. Upon approval, the machine will be packed and shipped.
Delivery and payment term
Delivery term :Production takes around 20 days ship within 7-10days after receiving 100% payment .
Payment term:30% TT advance payment before production, 70% TT remaining balance before shipping.Our Service
1.Our Engineers are available to serve overseas
2.Warranty: 24months for whole machine, 36 months free upgrade for control system.
3.Train1or2 engineers for customer for free ,but the traveling expenses (tickets for arrive and depart) should on customer;
4.During the warranty period, such as machine failure is a quality problem ,free maintenance.
The service does not include human or environmental factors, customers fault and supplies section.
5.All charge should be taken by customers for on-the-spot service after exceeding warranty period.
Our Company
Shenzhen Wanyang technology Co., Ltd is a highly advanced technology enterprise in which design, manufacture and marketing are integrated.We adheres to the value of integrity, innovation, surpass, teamwork, passion, appreciation and win-win policy.
We offer high - quality product and service beyond our customer's expectation. And we will do our best to be the international lead brand of special embroidery machines and equipments.
The main focus of our company is single head embroidery machine, cap embroidery machine, finished garments embroidery machine,shoes embroidery, multifunctional sewing and embroidery machine, customized service of intelligent and automatic sewing equipment.
