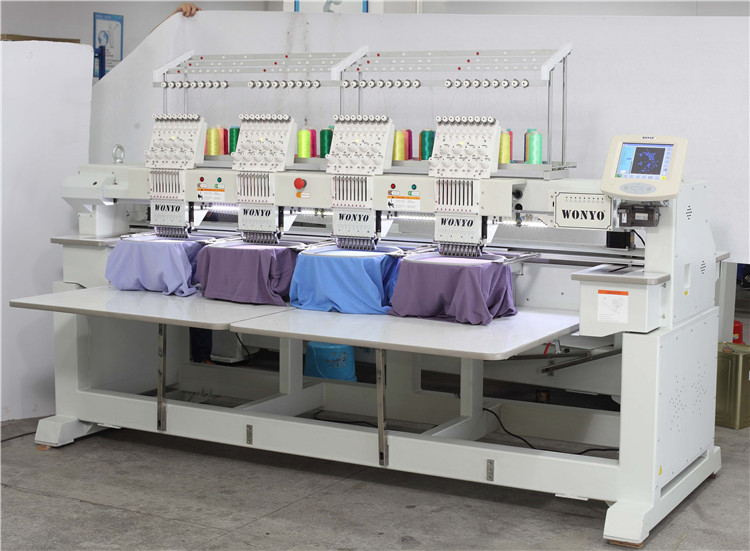

2017 Computerized 4 Head Embroidery Machine with Touch Screen Computer for Industrial Cap / T-Shirt / Flat Embroidery (WY1204C/904C)
WONYO
Computerized Four Head Embroidery Machine with Touch Screen Computer for Industrial Cap / T-Shirt / Flat /Finished garments Embroidery (WY1204C/WY904C) is Four head computerized embroidery machine with 9/12 needles, which is suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery.Looking for Agents/ Distributors from all over the world!
In the premise of high quality, what I can do is to provide you with the best service.I. Main features of the embroidery machine1. Suitable for flat, cap ,T-shirt and finished garments embroidery
2. Embroidery area: 400 x 450 mm, or 15.7" x 17.7"
3. Automatic thread trimmer
4. Maximum speed 1200 RPM
5. 270 degree wide cap frame unit
6.Free changing between finished garments frame and cap frame
7. 5", 8" or 10" color LCD display showing real time stitching
8. USB port or computer connection
9. Auto color change
10. Thread break detection
11. Pre-Sew Design Trace capable
12. Memory size:20 million stitches matched with 200 patterns
13. Electricity: 110V/60Hz or 220V/50Hz available
14. Start, Stop, and Emergency Stop
15. On-board letteringII. Full coler control panel1. 5", 8" or 10" High Definition color LCD display showing
Real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages availableIII. Frames/hoops1 Sash Frame: 40.5cm x 48cm (16" x 19") for single head, 81cm x 48cm (32" x 19") for 2 head
2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each headIV. AccessoriesTable top
Operation Manual
Tool Kit
Bobbin WinderV.Details
NEEDLES | HEAD | EMBROIDERY SPACE(L*W) | HEAD INTERVAL(mm) | LENGTH(mm) | WIDTH(mm) | HEIGHT(mm) | WEIGHT(kg) |
9\12 | 2 | 400*450 | 400 | 1520 | 900 | 1530 | 350 |
9\12 | 4 | 400*450 | 400 | 2620 | 900 | 1500 | 600 |
9\12 | 6 | 400*450 | 400 | 4250 | 900 | 1500 | 950 |
9\12 | 8 | 400*450 | 400 | 5050 | 900 | 1500 | 1200 |
