| Prod Model: |
WY1201CS/1501CS |
| Computer Screen: |
7" Touch Screen |
| Embroidery Area: |
400*450mm |
| Trimming: |
Auto Trimming |
| Warranty: |
2 Years Machine Warranty, 3 Years Operating System |
| Language: |
12 Languages |
| Main Motor: |
Panasonic Servo Motor |
| Memory Size: |
20million Stitch with 200 Patterns |
| Needle: |
12/15 Needles |
| Thread Broken Checking: |
Auto |
| Speed: |
1200 Rpm |
Product Description

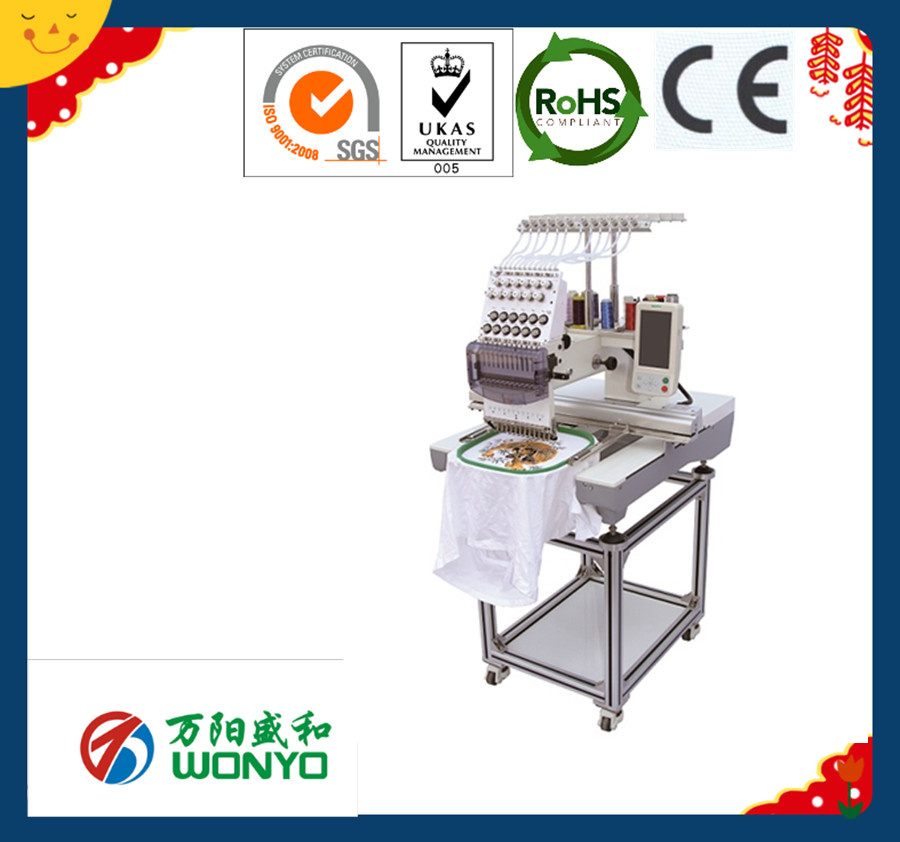

Wonyo Best Selling Single Head Computerized Cording Sequin Embroidery Machine
Modle WY1201CS/1501CS with High Quality and Cheapest Price
Suitable for cap, finished garments, jeans, belt, shoes, socks, insoles, bead, sequin, cording, boring, 3D, flat embroidery.
I. Main features1. Suitable for flat embroidery, cap embroidery, T-shirt embroidery, cording embroidery, sequin embroidery and finished garments embroidery
2. Automatic thread trimmer
3. Maximum speed 850 SPM
4.270° Wide cap frame unit
5. Color LCD display showing real time stitching
6. USB input port
7. Automatic color change
8. Thread break detection
9. Pre-sew design trace capable
10. Memory size 2, 000, 000 stitches
11. Emergency stop
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Machine Size: 75X74X85CM and NW90KG/200Lbs
14. Built-in bobbin winder
II. New Features1.110V or 220V self-adaptable power supply. No more external power box needed.
2. Only 150W power consumption.
3. Mainboard is built into the control panel, which reduces the possibility of damage by dust or external force.
4. Support large capacity of USB flash drive from 2GS and upwith faster data transmission and more compatibility
5. Proper shut-down function powers off only moving parts such as X&Y axis and needle bar, but still keeps the data on screen when the emergency button is pushed.
6. Precise digital degree on stop point: Main shaft can be turned to any angle digitally with the number of degrees shown on the screen.
7. Cap to flat (or vise versa) embroidery mode switch eliminating the possibility of hitting the frame.
8. Keeping original file names in memory makes it easy to manage designs.
9. Lay-out of keys on panel is more user-friendly.
10. Real time and date is showing on screen.
11. High speed up to 850 SPM.
12. Memory size up to 2 million stitches and 200 designs
III. Compact control panal1. Color LCD display showing real time stitching
2. Manual Color Change
3. Function keys including Menu, Speed up and slow
4. Multi languages available
5. Frame-moving keys
6. Manual Trimming
7. Start, Stop, and emergency Stop
8. Embroidery Status down (Page Up and Page Down), USB Input,
9. DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
10. On-board lettering
11. Numeric keys for selection of needles

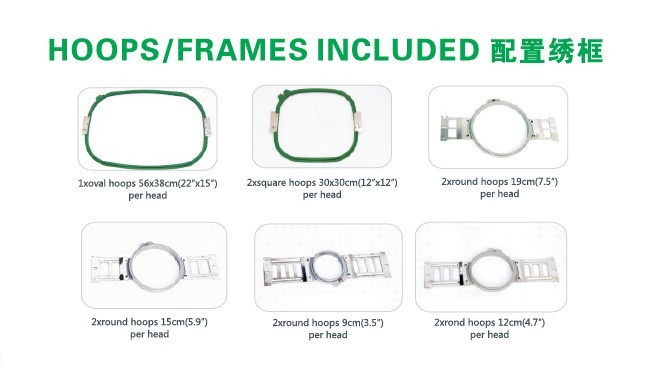

IV. Hoops/frames incluedA. 2 X Shirt Front Round Hoop 9 cm (3.5")
B. 2.2 X Shirt Front Round Hoop 23 cm (9")
C. 2 X Shirt Front Round Hoop 12 cm (4.7")
D. 2 X Jacket Back Square Hoop 30 X 30 cm (12" X 12")
E. 2 X Shirt Front Round Hoop 15 cm (5.9")
F. 1 X Sash Frame 56 X 38 cm (22" X 15")

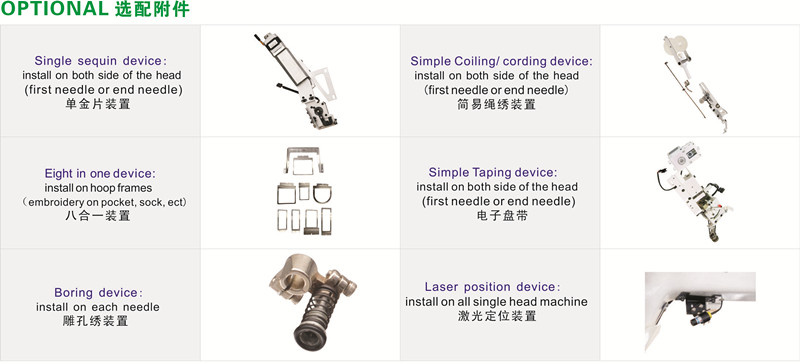

V. Optional
VI. Our CompanyShenzhen Wanyang technology Co., Ltd is a highly advanced technology enterprise in which design, manufacture and marketing are integrated.We adheres to the value of integrity, innovation, surpass, teamwork, passion, appreciation and win-win policy.
We offer high - quality product and service beyond our customer's expectation. And we will do our best to be the international lead brand of special embroidery machines and equipments.
The main focus of our company is single head embroidery machine, cap embroidery machine, finished garments embroidery machine,shoes embroidery, multifunctional sewing and embroidery machine, customized service of intelligent and automatic sewing equipment.
