Wonyo Single Head Computer Embroidery Machine for Cap and Flat Knitting Embroidery Machine

Prod Model:	WY1201CS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	12 Months
Working Area:	360*1200mm
Working Areas:	360*510mm
Width:	360*1200
Winding Device:	Automatic Winding Device
Control System:	Topwisdom
Model No:	Wy1201CS
Main Motor:	Japanese Panasonia Servo Motor
Xy Motor:	Stepper Motor
Needles:	Groz-Beckert
Knitting Style:	Flat
Knitting Method:	Single
Computerized:	Computerized
Certification:	SGS
Condition:	New
Type:	Embroidery Machine

Product Description

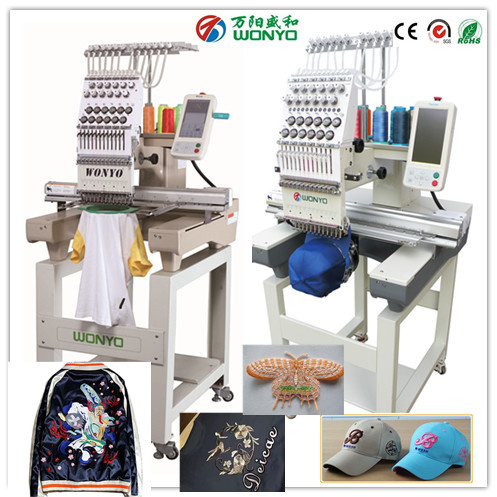

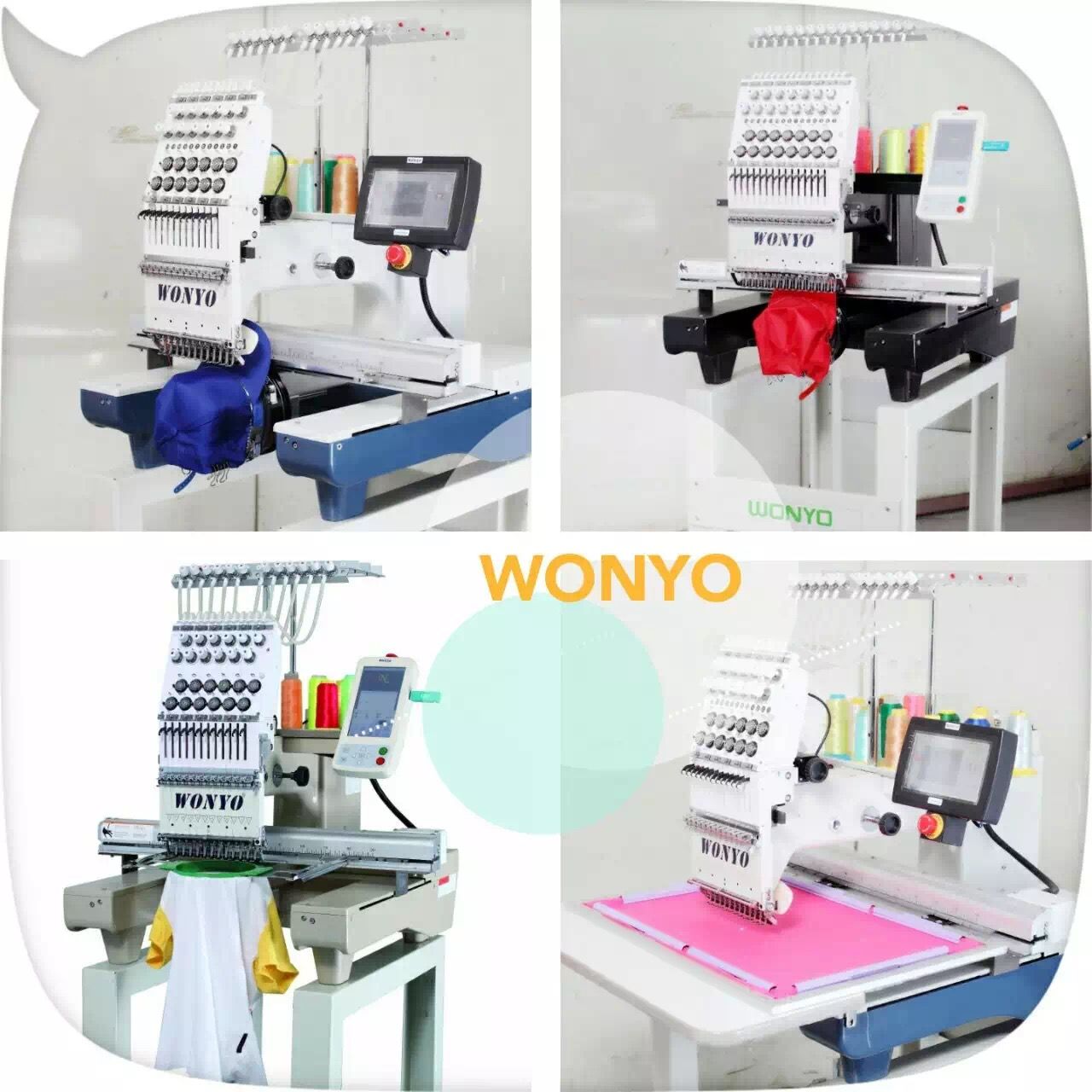

Single Head Commercial Computerized Embroidery Machine with Touch Screen Computer (WY1501CS)
Single Head Commercial Computerized Embroidery Machine with Touch Screen Computer (WY1501CS) is single head computerized embroidery machine with 15 needles, which is suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery, with touch screen computer.


Main Features:
Suitable for flat embroidery, cap embroidery
Finished garments embroidery
Automatic thread trimmer
Maximum speed 1200 SPM
270° Wide cap frame unit

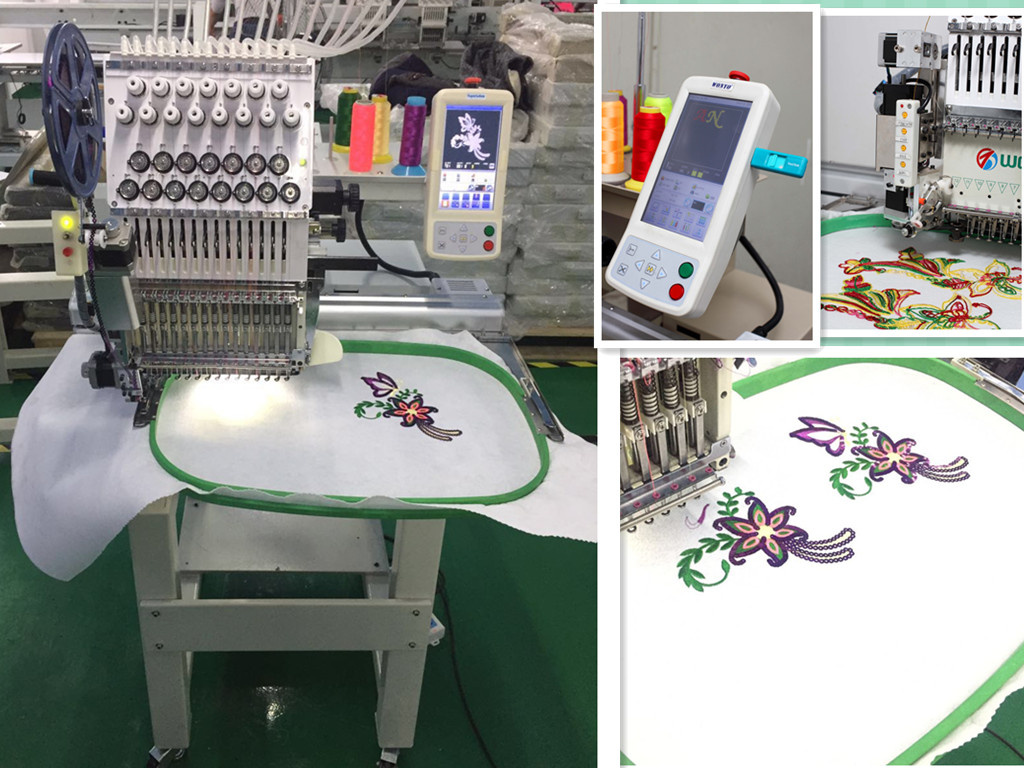

Color LCD display showing real time stitching
USB input port
Automatic color change
Thread break detection
Pre-sew design trace capable
Memory size 2, 000, 000 stitches
Emergency stop
Servo motor 150W
Electricity: 110V/60Hz or 220V/50Hz available
Machine Size: 75X74X85CM

Control Panel Functions:
Color LCD display showing real time stitching
Start, Stop, and emergency Stop
Function keys including Menu, Speed up and Slow down
(also Page Up and Page Down), Help, USB Input,
Dot Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
Numeric keys for selection of needles
Embroidery Status
Manual Trimming
On-board lettering
Manual Color Change
Multi languages available
Frame-moving keys

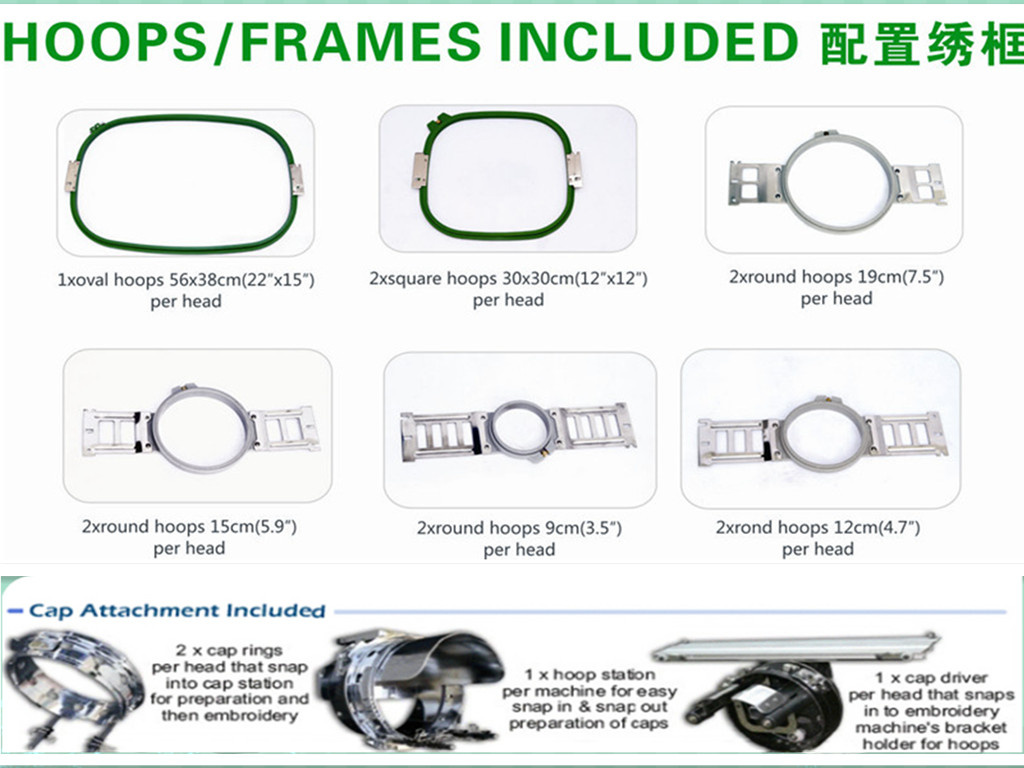

Frames / Hoops Included:
2 x Round Hoop 9 cm (3.5")
2 x Round Hoop 12 cm (4.7")
2 x Round Hoop 15 cm (5.9")
2 x Round Hoop 20 cm (9")
2 x Square Hoop 29 x 29 cm (12" x 12")
1 x Oval hoop 54 x 36 cm (21" x 14")

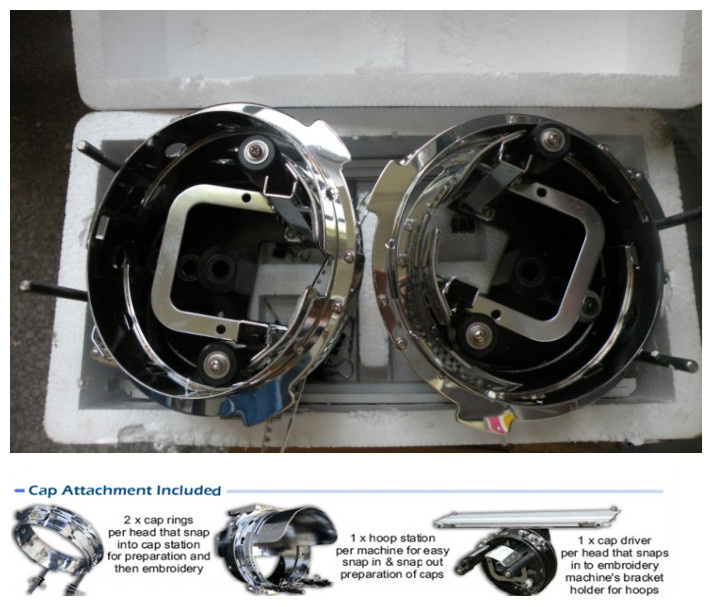

Cap Attachment Included

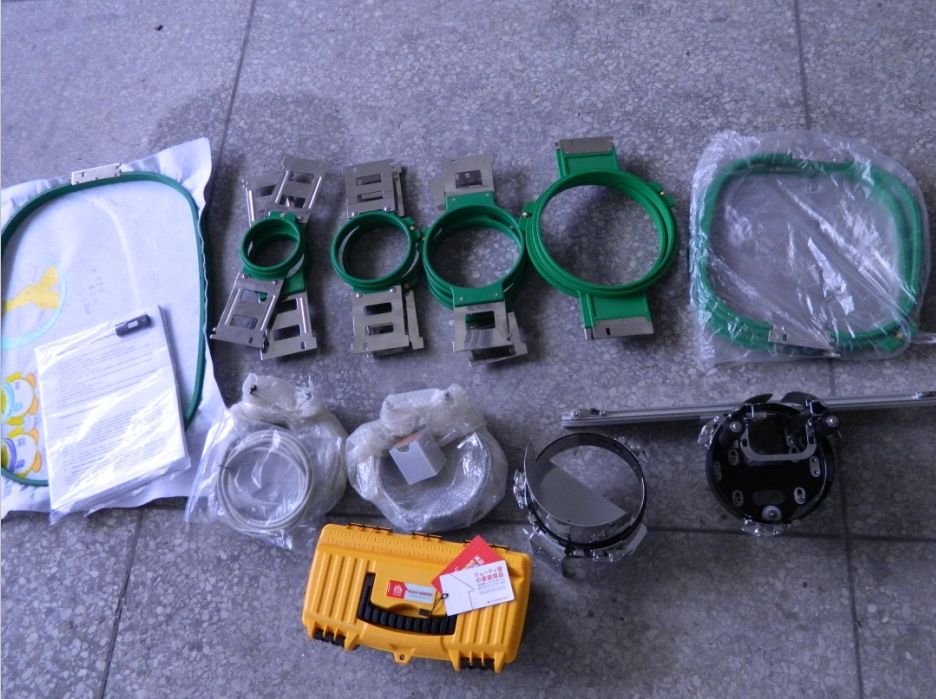

Accessories Included:


Table and stand with wheels for easy moving around, 70 x 70 x 78 cm or 27.50" x 27.50" x 30.50" with the net weight of 38 kilograms Operation Manual Tool Kit
Optional Device:
Sequin device
Cording device
Robot Frame
8 in 1 device
Belt hoop
Boring device
Laser positioning device

Software	YES
Working area	360*510mm or 360*1200mm
Payment	T/T . Western Union . PAYPAL
Delivery time	20 days
Accessorries	2 x Shirt Front Round Hoop 9 cm (3.5") 2 x Shirt Front Round Hoop 23 cm (9") 2 x Shirt Front Round Hoop 12 cm (4.7") 2 x Jacket Back Square Hoop 30 x 30 cm 2 x Shirt Front Round Hoop 15 cm (5.9") 1 x Sash Frame 56 x 38 cm

Q&A:Hot Questions from Customers

Q: Is this a trustable long-term strategic partner?
A: Just ask our customers, view our company profile, assessment of capability, factory glimpse, and the honor we had. And why not contact us or pay a visit to us?
Q: What service will I get with this buying?
A: Simply at your service: available consultancy before sales, easy communication during sales, easy payment term, smooth and safe delivery of guaranteed quality, and assured timely services after sales.
Q: What kind of embroidery work and embroidery machine do I need?
A: Think: ready-made garment/cap/hat, or garment before sewing, or just flat fabric?
Normal flat stitch, or special chenille/chain/loop stitch, or sequin/paillette, or cord/tape/ribbon to add value to your embroidery?
Q: How many heads do I need and what embroidery area on each head?
A: Think: how big is your factory and how much is your expected production?
The embroidery area on each head depends on the maximum area of your embroidery design to run.
Q: How many stitches do I get per minute (SPM) on each head?
A: Super high speed model gives max. 1500SPM,
High speed model gives max. 1200SPM,
Normal speed model gives max. 1000SPM,
Lower speed model gives max.850SPM.
Q: Do I need the Elite model or economy model?
A: Think: How much would you pay for a machine? What we offer is what you need!
Q: Can I represent and sell ORDER machines in my market?
A: Welcome to join ORDER family and grow to be a strong distributor.

Look for agent all over the world!!!
 About Us
    Shenzhen Wanyang Technology Co., Ltd is a science and technology enterprise that integrated in design, manufacture and sales of the application of laser machines and computerized embroidery machines.
      After years of development and technology accumulation. A team with full range of professional scientific research, development, sales and service has been made up and done a good work in the field of optics, electronics, precision machinery and software control under the concept of pioneering and innovation.
Industrial embroidery machines include : single head embroidery machine, multi-heads embroidery machine, flat embroidery machine , sequin embroidery machine, towel embroidery machine, and the NEW MODEL: laser embroidery machine.
Laser machines include : fiber laser marking machine, semi-conductor laser marking machine, UV and C02 marking and printing machine; fiber laserwelding machine, C02 laser cutting/engraving machine.

WONYO Mission:
Excellence in innovation and service, always focus on customer and meet increasingly diverse needs of our customers.

WONYO Values:
Innovation, dedication, loyalty, service, gratitude, sharing, team philosophy, and Win-Win business.

WONYO Target:
WONYO Target:
We always adhere to customer demand-oriented, providing customers with high quality products, professional, efficient, in time after-sales service; committed in the field of laser equipment and embroidery equipment to become world-renowned companies, worthy of the trust of customers industry experts.

WanYang insists exploration, innovation and sustained value creation concept, providing top quality products and perfect service from production& processing solutions to comprehensive pre-sales, sales, after-sales support and services for customers all over the world.
