| Price: | US $ 0.25-0.36/Piece |
|---|---|
| Min Order: | 1000/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |

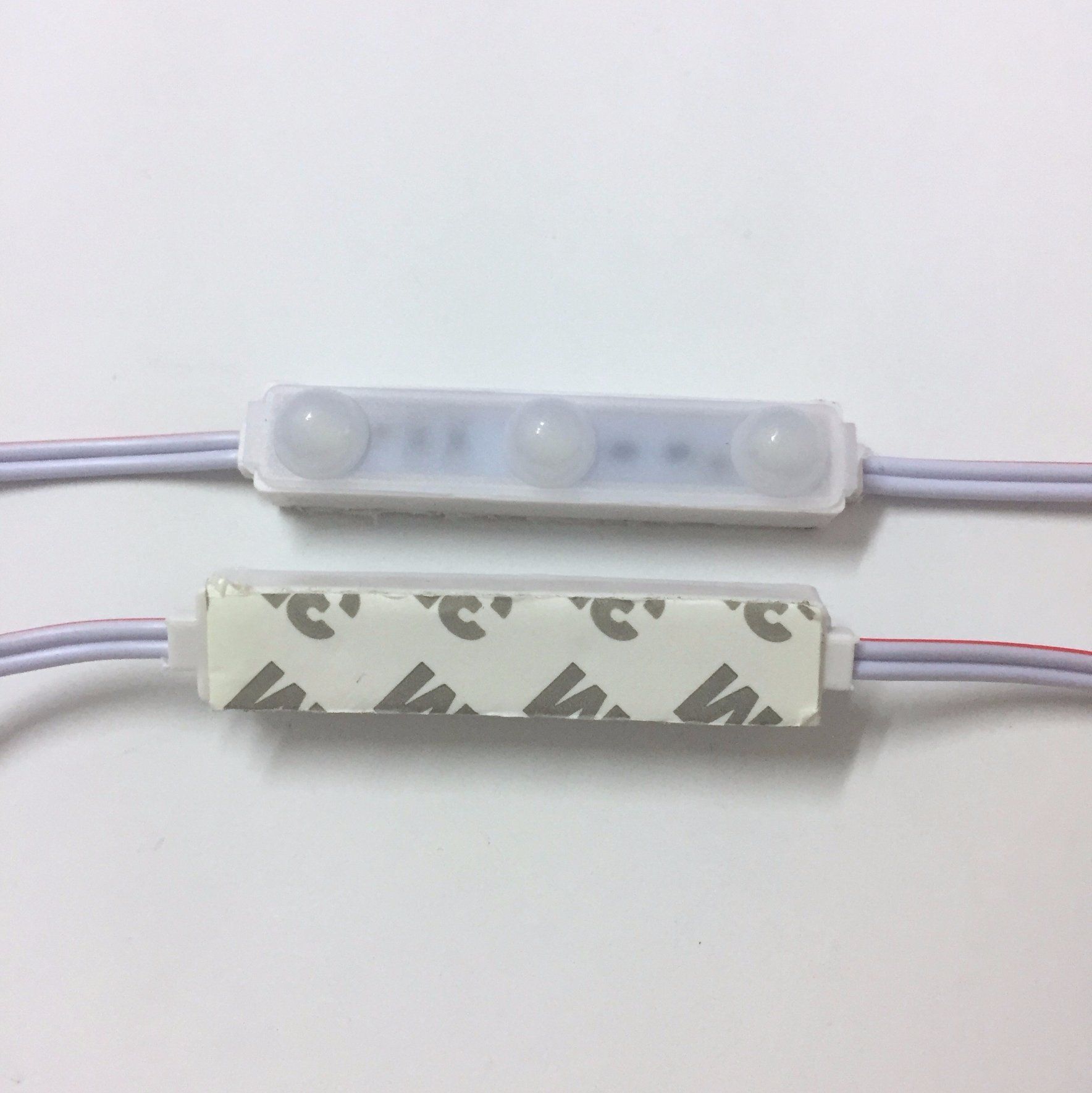

CE Rohs Approved,12V 0.72W, new type smd LED module for backlit slim lightbox
1. Adopt 3030 SMD LED, no light spot, with a low lumen recession and good consistency.
2. With a low power consumption and high lumen value, 90LM/led, a long life-span, maintenance-free.
3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect.
4. IP Rate: IP67,safe for outdoor use can risistant rain and usually watter .
5. DC 12V low voltage input , reliable and safe.
6. Adopt series-parallel connection circuit, 20/50pcs per string, each module could be singled out.
7. Viewing angle: 60°. side brightness
8. 3-7 years warranty.
| led chip | samsung,Cree,Epistar,Everlight,ChiMei,Sanan |
| led type | 5730 |
| Led lumen /module | 120lm |
| Working Voltage | DC 12V |
| Working Watts | 1.5W |
| produciton color | white,warm white, yellow, blue, red, green, pink |
| PCB material | aluminum |
| View angle | 160° |
| shell material | ABS |
| led module size | 65*12*10mm |
| working tempreature | -30ºC-- +60ºC |
| Store Tempreature | -30ºC-- +60ºC |
| IP grade | IP 67 |
| Certification | CE,Rosh |
| Delivery time | 3-7 days |
| can cut pcs /module | every one module |
| life Span | >50000 |
| led module pcs/line | 20pcs/line |
This product is applicable for 10-20cm glowing character, advertisement board, light box or local lighting.
Best service SupplyQ1:What is the warranty for the LED products?
A1:For the leds,we have 2 -3years warranty.And some special offer with 5-7 years warranty as customers request.
Q2:What is color temperature?
A2:Shenzhen Green Sunlight Optoelectronic Co.ltds LED Lighting offter Led lights in warm, natural,pure and cool white with colour temperatures measured in Kelvin(K). The lower the colour temperature is the warmer the light given by the LED:
Warm white =2700-3200k
Natural white=4000-4500k
Pure white=5000-5500k
Cool white=6000-6500k
Q3:What is CRI?
A3:CRI is a figure which feedback real objects colors.Highter GRI with highter cost.For LED tubes,the CRI is highter than 80. For the outdoor light,the CRI highter than 70 is OK at most of applications.
Q4:What is the AC Voltage tolerance for our LEDS?
A4:Their AC voltage tolerance is +/- 10%.
Q5:Is there cheap shipping cost import to our country?
A5:For small order,express will be best(4-5 working days by DHL/FED/UPS) And for bulk order,sea ship way is best but take longer time(about 3 weeks).For urgent orders,we suggest via air to airport plus our ship partner send to your door(one week time).
Q6: Could you offer OEM led light.
A6:Yes, we offer OEM led light.the OEM leds could offer your customized laber and your color box.
| Prod Model: | GS-6512-5730 |
|---|---|
| Lumen: | 130lm |
| LED Type: | 5730 |
| Pack: | 2000PCS/Carton |
| Delivery Time: | 3-7days |
| Warranty: | 3year |
| View Angle: | 160 |
| Emitting Color: | White |
| 1 LED Power: | 0.3-0.5W |
| LED Chips: | Osram |
| IP Rating: | IP67 |
| Waterproof: | Waterproof |
| LED Light Source: | SMD |
| Power: | 1.5W |
