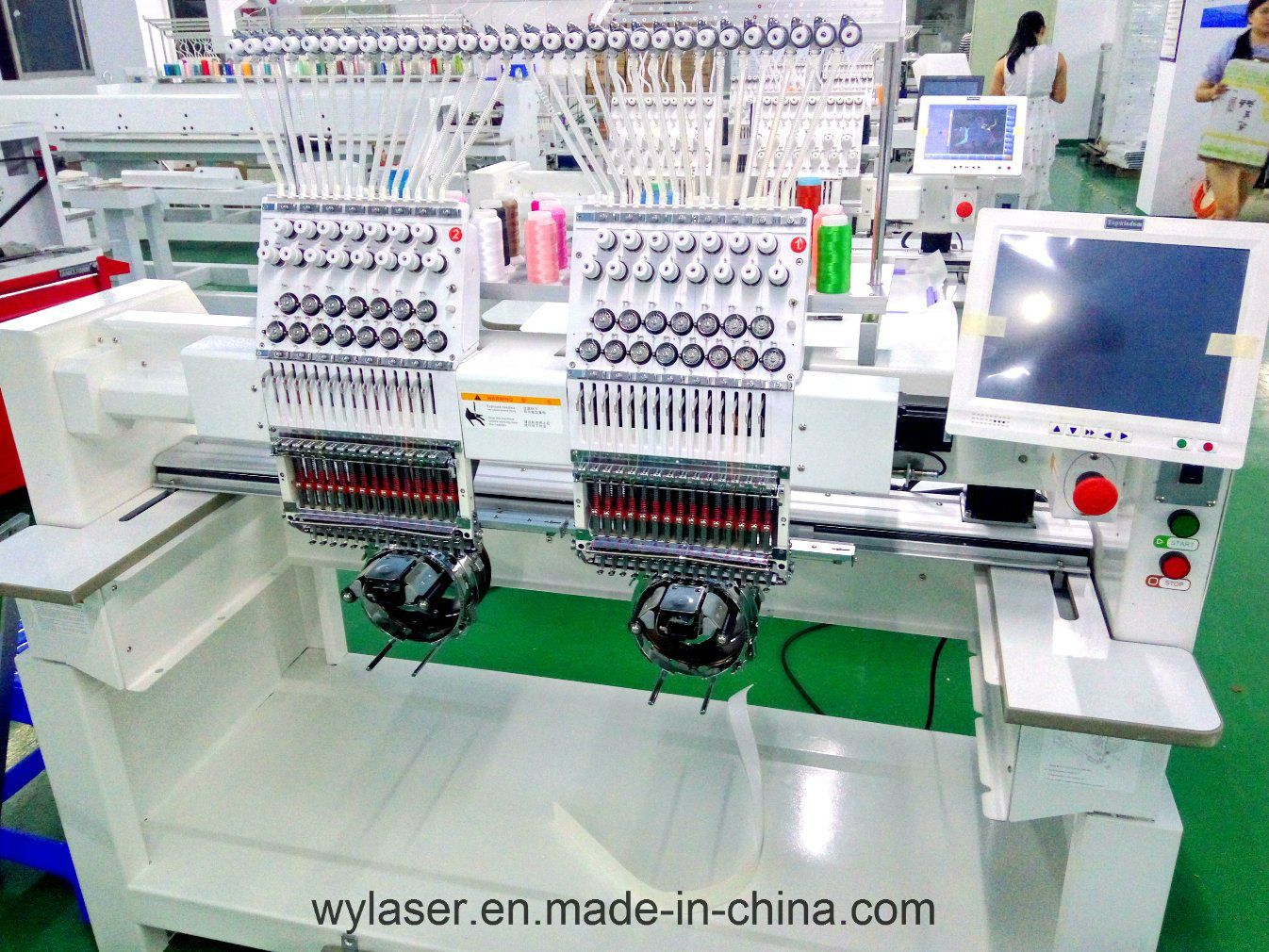

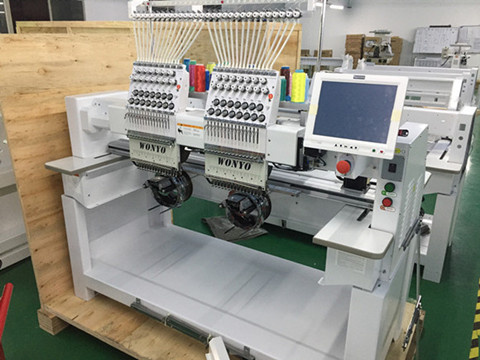

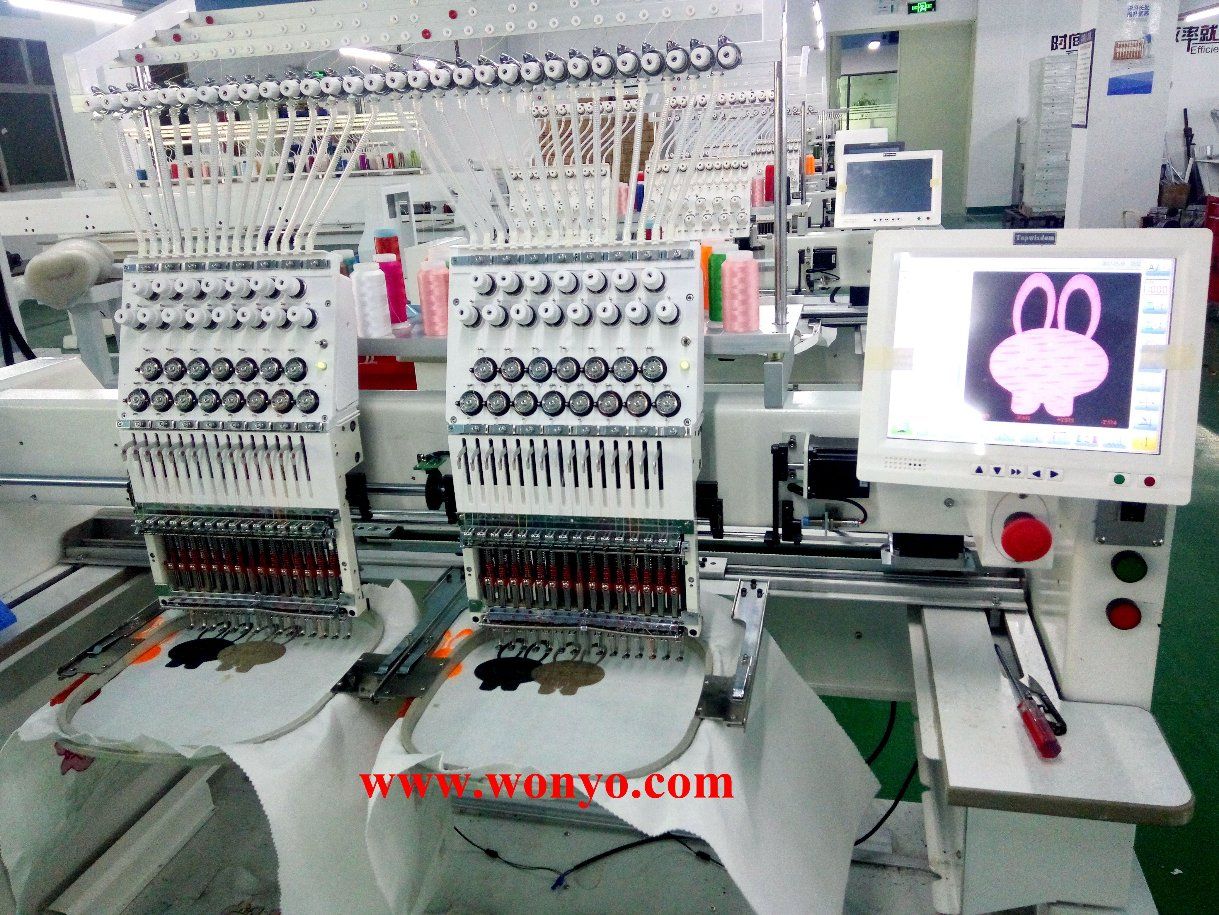

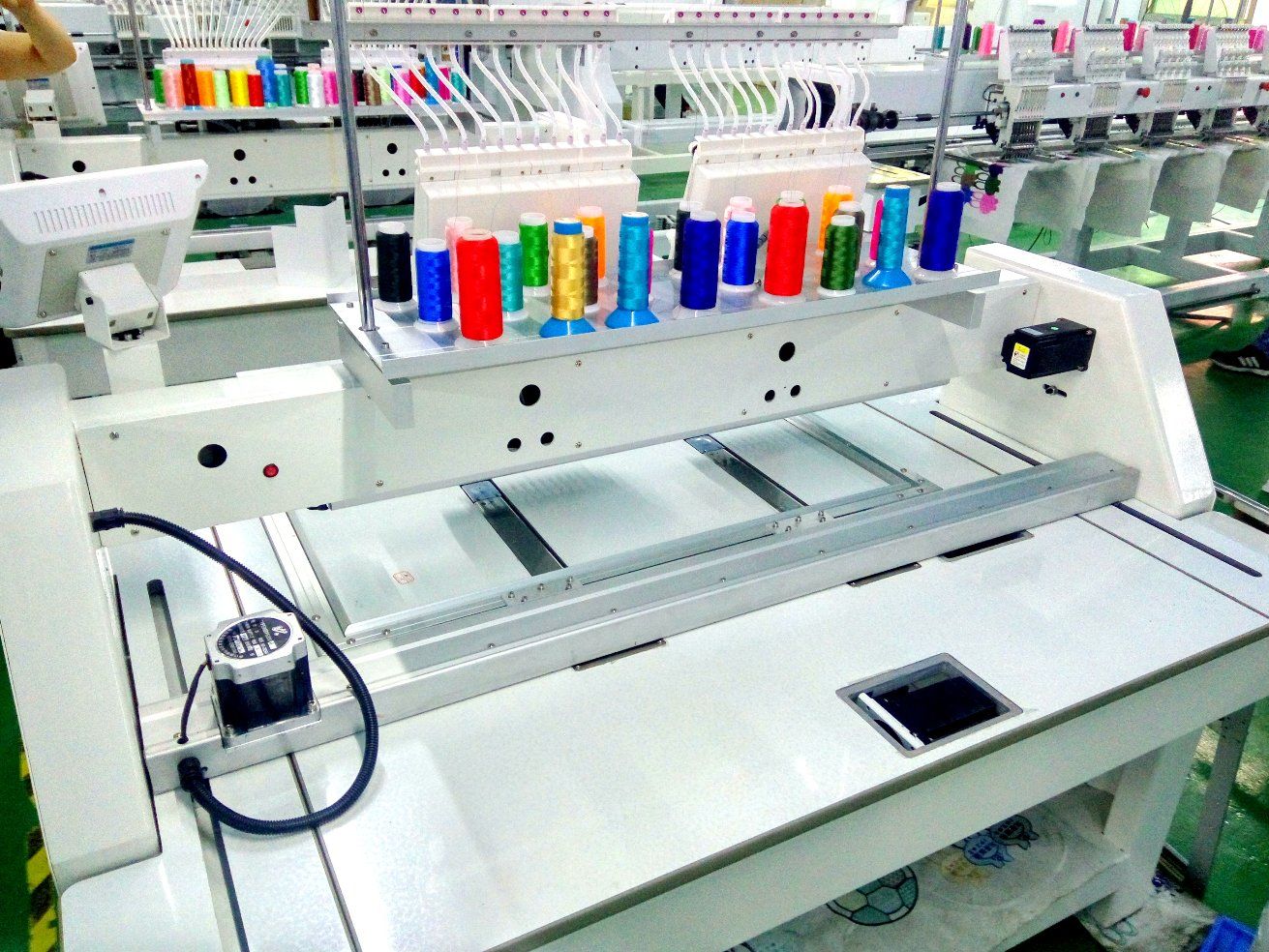

WY1202C 2 Head Touch Computer Commercial Cap Embroidery Machine Tajima style
WY1202C Computerized embroidery machine 2 heads 12 color, suitable for cap, t-shirts, finished garment, jacket, leather, clothes, flat, shoes, bag,logo embroidery and so on .
MAIN FEATURE
1.A.Suitable for flat embroidery, cap embroidery and finished garments embroidery
2. Free changing between finished garments frame ang cap frame
3.Pattern auto rotation with 180°after changing cap frame unit
4.270° wide cap frame unit
5. Maximum speed 1000 RPM
6. Color LCD display showing real time stitching
7. USB input port with fast data transmission and good compatibility
8. Auto star and color change,200times color change setted
9. Thread break detection
10. Pre-sew design trace capable
11. Memory size 2, 000, 000 stitches with 200 patterns
12. Emergency stop ,Prevent accidents
13. Electricity: AC86-264V input available
14. Built-in bobbin winder
15. Keeping current data or work when emergency stop or power off
16. Mending function. (back and skip stitches under controller)
17. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
18. Mainboard intergated into control panel protecting from dust or external force.
19. Lay-out of keys on panel is user-friendly.
20. Built-in Network
embroidery machine parts
FULL COLOR CONTROL PANEL
| 1 | Color LCD display showing real time stitching |
| 2 | Manual Color Change |
| 3 | Function keys including Menu, Speed up and slow |
| 4 | Multi languages available |
| 5 | Frame-moving keys |
| 6 | Manual Trimming |
| 7 | Start, Stop, and emergency Stop |
| 8 | Embroidery Status down (Page Up and Page Down), USB Input, |
| 9 | DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc. |
| 10 | On-board lettering |
| 11 | Numeric keys for selection of needles |
| Accessories included | |

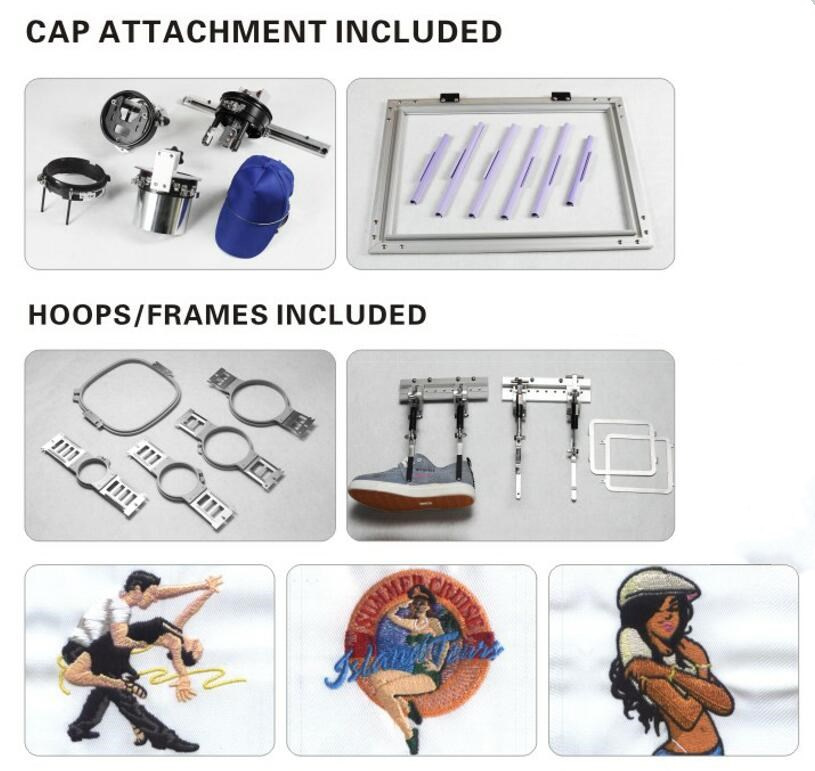

| Frames:( free sent) | 2 sets of back hoops for 30cm x 30cm (11.80" x 11.80") for each head 2 sets of front hoops of 19cm (7.50") for each head 2 sets of front hoops of 15cm (5.90") for each head 2 sets of front hoops of 12cm (4.70") for each head 2 sets of front hoops of 9cm (3.50") for each head |
| Cap attachment | (2 cap ring, 1 cap drive, 1 cap frame)for each head |
| Flat frame | 1 Sash Frame: 81cm x 48cm (32" x 19") for 2 heads |
| Foot wheels | included for easy movement of the machine |
| Operation manual | English and French version, other languages can be added |
| Bobbin Winder | Included |
| Tool box | yes, with needles, reciprocators, sensor, bobbin... |
| Optional Devices: |
| Sequin embroidery |
| Taping embroidery |
| Boring embroidery |
| Cording/Coiling embroidery |
| Bead embroidery |
Delivery
We will arrange production of the machine affter received the 30% down payment.production takes around 7-20days .EXW /FOB /CIF /CFR are available on our side.
packing
The normal package is wooden box but it is ok to pack it according to customer special request.
OUR CAMPANY:
Shenzhen Wanyang technology Co., Ltd is a highly advanced technology enterprise in which design, manufacture and marketing are integrated.We adheres to the value of integrity, innovation, surpass, teamwork, passion, appreciation and win-win policy.
We offer high - quality product and service beyond our customer's expectation. And we will do our best to be the international lead brand of special embroidery machines and equipments.
The main focus of our company is single head embroidery machine, cap embroidery machine, finished garments embroidery machine,shoes embroidery, multifunctional sewing and embroidery machine, customized service of intelligent and automatic sewing equipment.
Service
1. Pre-sale & in-sale services
Offer consulting service, sample's process experiment , equipment selection, training and the installation to the engineers and the user of the buyer.
1) Training : after the acceptance check by the buyer, the supplier offer the free training for 2-3 operators and maintenance persons of the buyer.
2) Training and installation time is 3-5 days
3) Installation & adjustment : When the buyer receives the equipment, the supplier install and adjusts the equipment with buyer's assistance on site then finally deliver it to the buyer.
2. After-sale services
Our company offer One-year warranty and lifetime maintenance for the buyer , during the warrantyperiod, if there is any fault in the course of using the equipment (except the man-made factors and factors other than force majeure), we offer free maintenance, the parts which need to change also provided by us(except the consumable parts) . After the warranty period, we will charge appropriately according to the maintenance situation.
FAQ Hot Questions
Q: Is this a trustable long-term strategic partner?
A: Just ask our customers, view our company profile, assessment of capability, factory glimpse, and the honor we had. And why not contact us or pay a visit to us?
Q: What service will I get with this buying?
A: Simply at your service: available consultancy before sales, easy communication during sales, easy payment term, smooth and safe delivery of guaranteed quality, and assured timely services after sales.
Q: What kind of embroidery work and embroidery machine do I need?
A: Think: ready-made garment/cap/hat, or garment before sewing, or just flat fabric?
Normal flat stitch, or special chenille/chain/loop stitch, or sequin/paillette, or cord/tape/ribbon to add value to your embroidery?
Q: How many heads do I need and what embroidery area on each head?
A: Think: how big is your factory and how much is your expected production?
The embroidery area on each head depends on the maximum area of your embroidery design to run.
Q: How many stitches do I get per minute (SPM) on each head?
A: Super high speed model gives max. 1500SPM,
High speed model gives max. 1200SPM,
Normal speed model gives max. 1000SPM,
Lower speed model gives max.850SPM.
Q: Do I need the Elite model or economy model?
A: Think: How much would you pay for a machine? What we offer is what you need!
Q: Can I represent and sell ORDER machines in my market?
A: Welcome to join ORDER family and grow to be a strong distributor.
| Prod Model: | WY1202C |
|---|---|
| Language: | 12 Languages |
| Motor: | Servo Motor |
| Screen: | 10" Inches Touch Screen |
| Needle: | 12 Needle |
| Trimmer: | Automatic |
| Memory Size: | 20million Stitches with 200 Patterns |
| Thread Broken Checking: | Automatic |
| Function: | Flat/Cap Embroidery |
| Control System: | Topwisdom(Optional Dahao) |
| Main Parte: | Janpanese Rotary Hook, Groz-Backert Needles |
