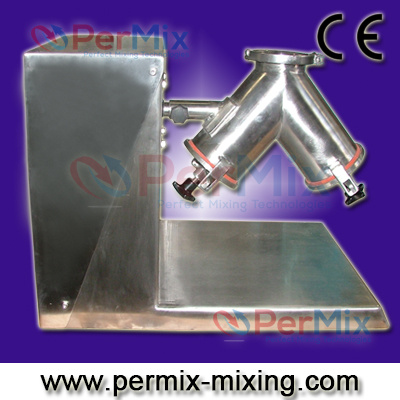

Welcome to PERMIX, your professional and reliable supplier of industrial mixing solutions for any industry! PERMIX is a Chinese-Israeli cooperative venture with the famous Srugo family in Israel, who has been active and reputed in mixing technology since 1954. Therefore, our strong advantages over other competitors are 60 years of Designed-in-Israel know-how along with competitive Made-in-China prices! INTRODUCTION:The PerMix PVM series Y Mixer, is one type of the so-called Tumble Mixer (the other type is the PerMix PDC series Double Cone Mixer) which is very popular for the intimate blending of free flowing dry powders, granules, and crystals. It is featured by the very simple design and easy to clean construction.
The PerMix PVM series Y Mixer features a gentle high-flowing mixing process for solids/solids in a proportion of up to 1: 100.000 with the possibility of using an intensifier bar to enhance the mixture, and solids/liquids in powder or granulate form with different specific weights.
HOW IT WORKS:The PerMix PVM series Y Mixer has a "V" chamber made up by two cylinders. Powders and granules are fed into the V chamber either manually or by a vacuum conveyor. A gear motor drives V chamber to roll in 360 degrees. This multi-dimensional motion makes the powders and granules inside tumbling up and down and colliding to each other all the time, and achieve uniform mixing in short time.
FEATURES & OPTIONS:The simplicity of design of the PerMix PVM series Y Mixer allows a low initial cost, easy maintenance and simple operation. It is available from the 2 liter laboratory to large industrial 6000 liter units. The PerMix PVM series Y Mixer can be supplied with a variety of accessories, including:
1. Internal choppers
2. Vacuum/Drying execution
3. Special spray unit
4. Special safety fence
5. Mobile trolley
APPLICATIONS:The PerMix PVM series Y Mixer is widely used in pharmaceuticals, colors, plastics resins, food products, ceramic glazes, metal powders, cosmetics, detergents, insecticides, explosives materials, and a lot of others.
- PharmaceuticalsSupplements, Active ingredients, Silica, Sugar, Tablet coating
- ChemicalsGraphite, Alumina, Inorganic powder, Dye stuff, Silica, Adhesives, Agricultural supplements, Plastic powders, Colored cement mixes, Glass ingredients, Insulation materials
- Food & BeverageSugar, Aspartame, Fragrance, Spice, Dextrin, Chocolate mixes
- Cosmetics & Daily CareBaby powder, Tooth paste, Cosmetic creams, Detergents, Cleaning compounds
SPECIFICATIONS:| Model | Total Volume, Liter | Operation Volume, Liter | Power, kW | Length, mm | Width, mm | Height, mm | Operation Height, mm |
| PVM-15 | 15 | 7 | 0.37 | 700 | 525 | 1,100 | 1,150 |
| PVM-45 | 45 | 20 | 0.55 | 1,000 | 760 | 1,300 | 1,400 |
| PVM-100 | 100 | 50 | 0.75 | 1,200 | 990 | 1,500 | 1,630 |
| PVM-200 | 200 | 100 | 1.1 | 1,560 | 1,240 | 1,715 | 1,890 |
| PVM-300 | 300 | 150 | 1.5 | 1,750 | 1,400 | 1,900 | 2,000 |
| PVM-500 | 500 | 250 | 2.2 | 2,200 | 1,600 | 2,550 | 2,825 |
| PVM-700 | 700 | 350 | 3 | 2,400 | 1,900 | 2,720 | 2,970 |
| PVM-1000 | 1,000 | 500 | 4 | 2,670 | 2,120 | 2,850 | 3,150 |
| PVM-2000 | 2,000 | 1,000 | 5.5 | 3,550 | 2,680 | 2,280 | 2,660 |
| PVM-3000 | 3,000 | 1,500 | 7.5 | 4,050 | 3,060 | 2,620 | 3,050 |
| PVM-4000 | 4,000 | 2,000 | 11 | 4,450 | 3,350 | 2,880 | 3,300 |
| PVM-5000 | 5,000 | 2,500 | 15 | 4,800 | 3,570 | 3,070 | 3,550 |
1. All specifications are as accurate as is reasonably possible, but they are not binding.
2. Customized sizes are available against request.
3. PerMix reserves the right to modify the design without notice.
