Model: YTD-2030 Desktop Flat Silk Screen Printing Machine
1. Application:
All kinds of small flat screen printing products, such as CD, member card ,mouse pad, little package, small electronic products, electronic component ,name plate, silica gel products,thin-film switch, etc.
2. Main features:
> Fine grinding printing table with strong and uniform vacuum holes.
> High quality stainless steel machine structure, very light but solid.
> High precision microcomputer control system with easy operation.
> Three control mode: manual, semi-automatic ,automatic.
> 4 directions adjustment for printing table and micro-adjust for screen frame.
> Adjustable printing route and speed for various printing.
> Auto-balance slicker ensuring constant printing pressure.
> Inside supposes four figures automatic counters.
> Equipped with a foot switch for one-touch operation.
3. Specification:
| Model | YTD-2030 |
| Plate size | 220*400mm |
| Max print size | 300*200mm |
| Max frame size | 300*500mm |
| Dimension | 550*600*900mm |
| Net Weight | 90kg |
| Print Color | single/various color |
| Alignment Accuracy | 0.002-0.005mm |
| Print type | flat surface |
| Print speed | 1000pcs/hr |
| Applications | flat materials |
| Air pressure requirement | 5/6 bar |
| Stock thickness | 0-100mm |
| Power | 220V |

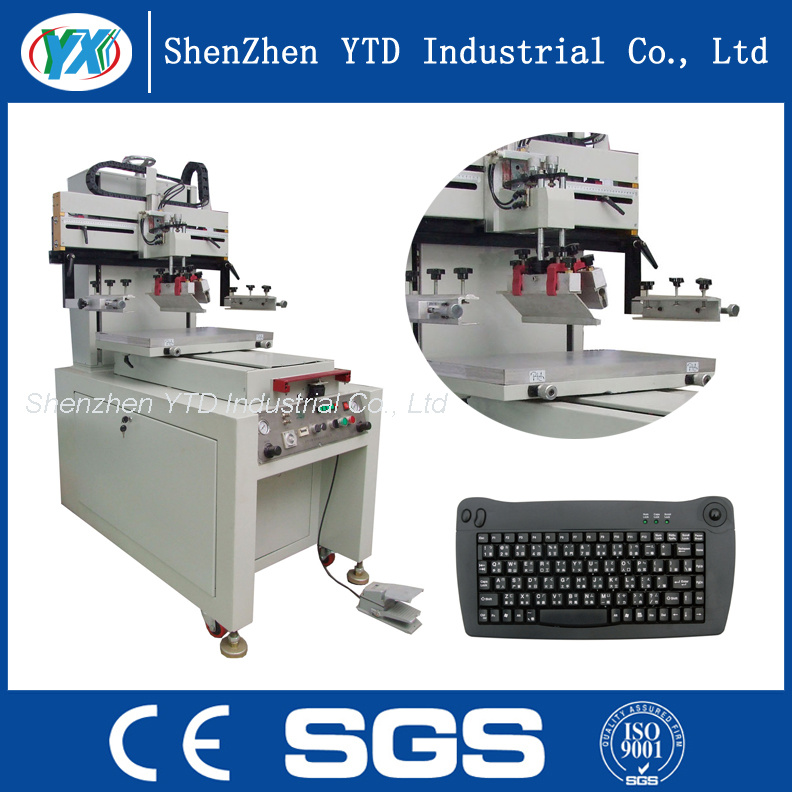

Model: YTD-4060/7090 Vertical Flat Silk Screen Printing Machine
1. Application:
This kind of silk screen printing machine is widely used in PCB, PET, PC, IC, LCD, EL, LMD, IMD, IML, textile, keyboard, film, paperboard, name plate, trademark, membrane switch, glass, lens, display board, scutcheon, etc.
2. Main features:
> Electric motor driving system for precision and stable printing.
> High quality stainless steel machine structure, very light but solid.
> High precision PLC control system for simple operation.
> Three control mode: manual, semi-automatic ,automatic.
> 4 directions adjustment for printing table and micro-adjust for screen frame.
> Adjustable printing route and speed for various printing.
> Auto-balance slicker ensuring constant printing pressure.
> Inside supposes four figures automatic counters.
> Equipped with a foot switch for one-touch operation.
3. Specification:
| Model | YTD-4060 | YTD-5070 | YTD-6080 | YTD-7090 |
| Plate Size(mm) | 400*600 | 500*700 | 600*800 | 700*900 |
| Max Print Size (mm) | 500*350 | 600*450 | 500*700 | 600*800 |
| Max Frame Size (mm) | 700*500 | 800*600 | 700*900 | 800*1000 |
| Dimension(mm) | 840*700*1700 | 950*850*1700 | 1100*900*1700 | 1200*1000*1700 |
| Net Weight(kg) | 240 | 280 | 450 | 600 |
| Print Color | Single/Various color |
| Alignment accuracy(mm) | 0.002-0.005 |
| Print type | Flat surface |
| Print speed (pcs/h) | 800-1200 |
| Air source(Bar) | 4-6 |
| Stock thickness (mm) | 0-100 |
| Voltage(V) | 220/380 |
Model: YTD-300R/400R Cylindrical Silk Screen Printing Machine
1. Application:
This machine is specially designed to print on the cylindrical, cone and oval abject, such as plastic buckets, bottle, glass,caps and etc.
2. Main features:
> For cylindrical surface and circular conical surface printing.
> High quality stainless steel machine structure, very light but solid.
> High precision microcomputer control system with easy operation.
> Three control mode: manual, semi-automatic ,automatic.
> 4 directions adjustment for printing table and micro-adjust for screen frame.
> Adjustable printing route and speed for various printing.
> Auto-balance slicker ensuring constant printing pressure.
> Inside supposes four figures automatic counters.
> Equipped with a foot switch for one-touch operation.
3. Specification:
| Model | YTD-300R | YTD-400R |
| Max Print size | 70*250mm | 110*250mm |
| Max Print speed | 1200pcs/h | 1500pcs/h |
| Air Pressure | 5Bar | 5Br |
| Power | 220V 50HZ 60W | 220V 50HZ 60w |
| Net Weight | 100kg | 150kg |
| Dimension | 730*580*1280mm | 830*580*1280mm |
Packing and shipping:
1. Wooden box package;
2. 10-20 business days for ready goods;
3. Ship by air, railway or sea;
4. Shenzhen, Yantian, Shekou, Guangzhou port.
Our service:
1. Overseas engineering available;
2. One-year machine quality guarantee;
3. Life-long overseas technical support.
Free to contact us:
SHENZHEN YTD INDUSTRIAL CO., LTD
Web: www.ytdgroup.com
Mob: +8613480680357
Shenzhen YTD industry Co., Ltd is a supplier that specializes in developing, designing and manufacturing all kinds of automatic machine serves FPC. Currently we have full-automatic FPC laminating machine, automatic stiffening laminator, manipulator for stamping machine, ict/fct functional jig, complete of testing solution, micro-needle module test jig and bending, bevel, hot-pressing, laminating, vacuum adsorption, no-automatic jig etc.
Our company was established in 2003, after more than 10 years of development, we have many advanced processing and testing equipments, such as precise CNC imported from Japan, precise carving machine, corrosion machine, detector, 2D measuring instrument, CNC milling machine, grinder, laser machine, automatic variable machine, powerful CNC microscope etc.
By virtue of strong development power, high-end equipments and well-knit organization structure, strict details management, complete team support, excellent after-sales service, our reputation and development has ranked top in the industry.
Quality policy: Quality is our soul, we adhere strictly to ISO 9001 quality management system. We pay attention to every detail, take care of every detail, try our best to be excellent.
Excellent products, credibility first, win-win cooperation----- YTD will always be your most sincere partner.
