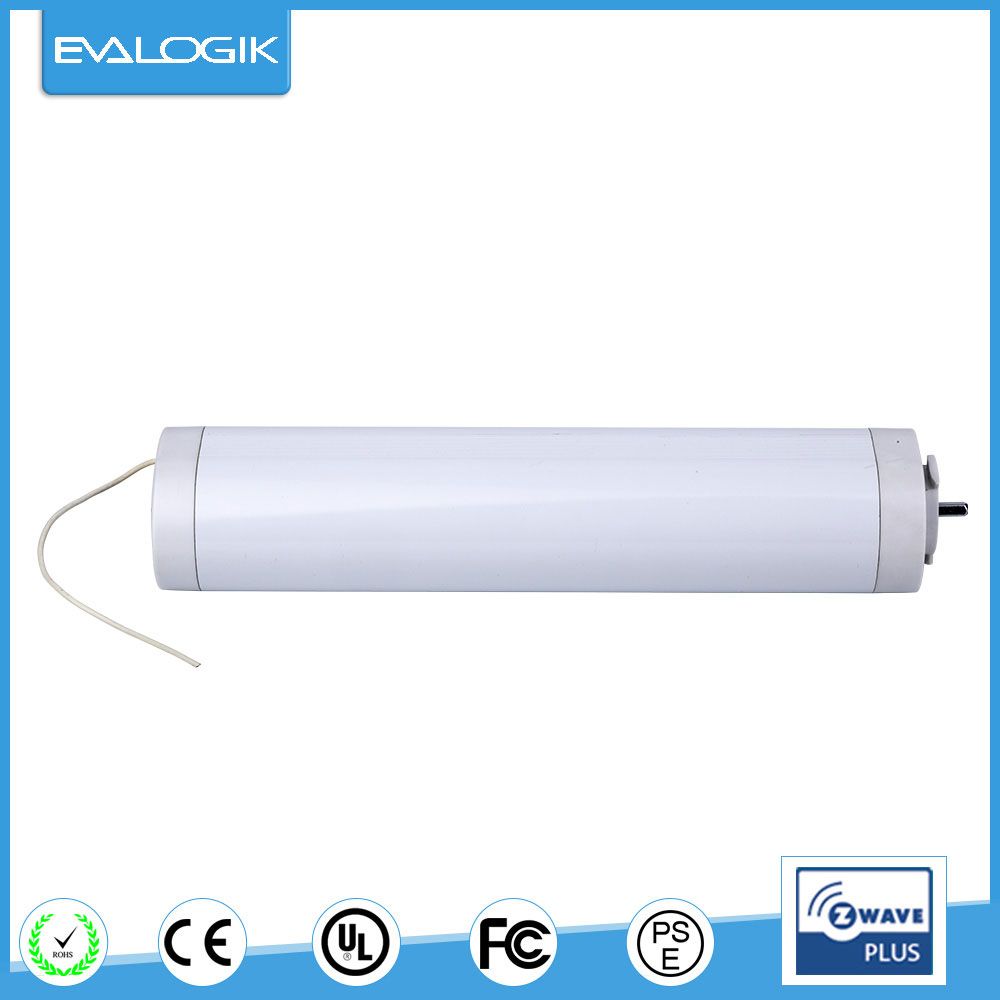

ZW42A Curtain motor - left/right
Introduction
This Z-wave motor is a standard motor, smooth running, low noise & easy installation,
suitable for residences, hotels, office buildings, and so on.
Technical data
| Rated voltage | AC 230V 50Hz / 120V input |
| Rated currency | 0.2A |
| Rated power | 45W |
| Rated torque | 1.2N.m |
| Rail | not include (sample included 1m rail) |
| Motor size | 258*60*49mm |
| Net weight | 1.40Kg |
| Range | Min 30m line of sight |
| Frequency | 868.42MHz/865.2MHz/908.42MHz/921.42MHz/869.0MHz |
Safety and maintenance instruction
Ø Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instruction.
Ø Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
Ø Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
Ø Keep all parts away from young children's reach.
Ø Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
Ø Avoid dropping or shocks, this can damage the electronic boards.
Ø Never replace damaged power cables yourself! In such case, remove them from the net and take the devices to a workshop.
Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.
Warranty 1 year
