Zip Top Can PE Film Wrapping Machine (YCTD-YCBS26)
| Price: |
US $ 90000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Name: Zip top can PE film wrapping machine (YCTD-YCBS26)
Model:YCBS26
Total Weight:4500KG
Product Specifications:L13100mm×W1530mm×H2500mm
Category:Single Rollers Film Shrinking Packaging Machine
Characters:

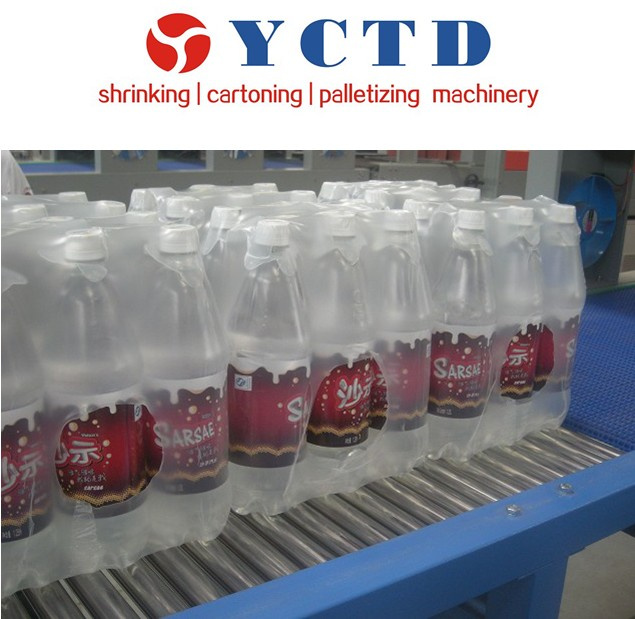

Specially designed and manufactured for the middle speed packing requirements of drinks(pure water, beverage,fruit juice and milk product,etc).
During the product forward conveying process,it can automatically group into package,so as to save time and enhance packing efficiency.
Adopt the Programmable Logic Controller(PLC),which can carry out the automatically work flow.
Use the isothermal sealing cutter,its surface spray TEFLON COAT,the seal is even and secure.
Touch-screen operating panel with user-friendly interface and absolutely an easy-to-operate machine.
It can suit for different bottleneck and bottle combination.
The ideal model of middle-speed heat-shrinking packager in the domestic market.National Patent Technology [ZL200930204939.X].
Technical Parameters:
Dimension For The Whole Unit | L13100mm×W1530mm×H2500mm |
| Thermal Shrinkage Tunnel Dimension | L2500mm×W700mm×H450mm |
| Max Package Dimension | L460mm×W280mm×H350mm |
| Packaging Speed | 20-22 Pcs/minute |
| Transfer Belt Dimension | 533mm |
| Sealing And Cutting Time/Temperature | 0.5-1s 180oC-260oC |
| Work Voltage/Power | 3-phase-5-line 380V 60KW |
| Work Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 0.6m3/minute
|
| Prod Model: |
YCBS26 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: Shrink Packing Machine: |
Application: Beverage |
| Packaging Type: Cartons, Cans, Bottles,: |
Brand Name: YCTD |
| Model Number: Ycbs26: |
Certification: CE |
| Rollers: Single Roller: |
Place of Origin: Beijing, China (Mainland) |
| Operate Way: Touch Screen: |
Manufacture: Yes |
| Packing Film: Print Film And Common Film: |
Life Span: Long |
| Packing Speed: 20-22 Packs/Min: |
Automatic Grade: Automatic |
| Dimension(L*W*H): 13100*1530*2500: |
After-Sales Service Provided: Engineers Available |
| Weight: 4500kg: |
National Patent Technology--Have |
| Print Film Function:Have: |
Packing Way:PE Film |
| Applicable Industry: |
Beverage |
| Packaging Type: |
Bottles |
| Type: |
Automatic Wrapping Machine |
| Driven Type: |
Mechanical |
| Application: |
Dairy Products |
| Automatic Grade: |
Automatic |
| Structure: |
PE Fim Packing Machine |
| Series: |
Shrink Packing Machine |
YCTD, Drinks turn-key project Provider, Can provide customers with bottle drink water production line, barrel water production line, carbonated beverage production line, fruit juice/tea beverage production line, vegetable protein beverage production line and other solutions.
Beijing YCTD Packaging Machinery Co., Ltd. is high and new technology enterprise which focuses on Drinks Turn-key Project, founded in Daxing district, Beijing in 2001, with its brand YCTD. Company has more than 350 full-time employees, including more than 60 people of research and development technical team, more than 40 customer service and after-sales engineers. Our company has complete ability of technology research & development, product design, manufacturing, service of pre-sales and after-sales. We are the best professional complete packaging line solution provider of shrink packing machine, carton packing machine, palletizer and conveying system. It was awarded China Packaging Machinery Top 10 Well-known Brands, Beijing Promise-keeping Enterprise. Meanwhile, as China National Light Industry Council Governing Units. As member of China Packaging Federation, China Beverage Industry Association, and China Alcoholic Drinks Industry Association.
YCTD has two big research and development, manufacture factories of Beijing and Daming. YCTD covers an area of more than 150, 000 square meters. Beijing headquarters base covers an area of 20, 000 square meters, as company marketing center, R&D center and new product testing center. Hebei Daming production base (Handan) covers an area of more than 130, 000 square meters, as manufacture center, realize standardized, refined production. YCTD has become China bench-marking enterprise in the field of complete packaging project.
YCTD has passed ISO9001: 2008 international quality management system certification, European national safety standards CE certificate, and has lots of packaging machinery national patents.
Our products are widely used in beer, beverages, pure water, mineral water, fruit juice, dairy products, condiment and other industries. With 16 years of dedicated research and development, master the core technology, Beijing YCTD has become back-end secondary packaging equipment reliable cooperation partner for Well-known brands at home and abroad, such as Huiyuan group, Coca-Cola, Pepsi, Dali group, Wanglaoji, Cestbon, Ganten, Uni-President Group, Master kong, Hon Chuan, Harbin Pharmaceutical Group, JDB, Red bull, Eastroc Super Drink, Qinghai Jingdu, Quanyangquan, Watsons, Xinjiang Glacier and so on.
Our company products and the turn key project have been exported to more than 60 countries and regions such as North America, Europe, South America, Asia, Africa, the Middle East and so on.
