Zipper Automatic Open Closed End Injection Molding Machine
| Price: |
US $ 2000-8000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
JY |
| Brand Name: |
Jieyang |
| Automatic: |
Yes |
| After-Sales Service Provided: |
Overseas Service Is Available |
| Place Of Origin: |
Dongguan |
| OEM: |
Yes |
| Machinery Color OEM: |
Any Color Is Available |
| After-Service: |
Oversea Technician Service |
| Technical Support: |
Professional Enginers Will Technical Assistance |
| Any Inquiry: |
Reply Soon |
| Language: |
English, Spanish, Korea, Portugal, etc. |
| Type: |
Preform Injection |
| Structure: |
Vertical |
| Plastic Type: |
Thermoplastic |
| Plasticizing Way: |
Screw Type |
| Clamping Way: |
Hydraulic |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
SGS |
Product Description
Dongguan JieYang Machinery Co., Ltd is established in 2010, located in the Xincheng Industrial Zone of Hengli Town with a planted area of 2,000 square meters. We are specialized in manufacturing the vertical injection molding machines with proficient skills and professional team for more than 20 years.
With the rapid growth of the business, JieYang created the first overseas office in Vietnam in order to offer best service in 2015. Our machines are mainly sold in Southeast Asia, South Asia, Middle East, Russia, Africa, South America, Europeans and North America. We have established a reliable brand in the industry.
"Customer Satisfaction, Continual Improvement & Innovative Service" is the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
1. Function of Plastic Injection Molding Machine Machinery:
1.Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.
2.With double slide table or rotary design, putin, take out products and molding finish at the same
time, which is more safe and efficient for production , thenreduce the cost of production.
3.High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatlyextend machine
& mold life.
4.Nitride and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and
provide superior acid/alkaline resistance.
5.Standard : Varuable Pump for Energy Saving 30%-50%
2. Parameter of Plastic Injection Molding Machine Machinery:| JY-250ST-D/500ST-D/1000ST-D Technique specification |
| Model | Units | JY-250ST-D | JY-500ST-D | JY-1000ST-D |
Injection
System | Screw Diameter | mm | 26 | 28 | 30 | 32 | 35 | 42 | 42 | 45 | 48 |
| Injection Pressure | Kg/cm2 | 1530 | 1270 | 886 | 1642 | 1358 | 960 | 1469 | 1280 | 1125 |
| Theoretical Shot volume | cm3 | 61 | 70.8 | 81 | 113 | 134 | 194 | 221 | 254 | 288 |
| Max. Shot Weight(P.S) | 9 | 56 | 64 | 74 | 102 | 102 | 176 | 199 | 228 | 260 |
| Injection Rate | cm3/sec | 57 | 66 | 76 | 49 | 59 | 84 | 106 | 121 | 183 |
| Screw speed Max | rpm | 0-205 | 0-190 | 180 |
| Temperature Control | ZONE | 3 | 4 | 5 |
| |
Clamping
System | Clamping Force | T | 35 | 55 | 120 |
| Slide Platen Size | mm | 350*350 | 450*450 | 550*550 |
| Distance Between Tie Bare | mm | 375*205 | 410*280 | 630*425 |
| Min Mold Height | mm | 150/100 | 250/200 | 480/280 |
| Opening Stroke | mm | 180 | 200 | 300 |
| Max. Open Daylight | mm | 3300/280 | 450/400 | 780/580 |
| Ejector Force | T | 1.3 | 1.5 | 4.8 |
| Ejector stroke | mm | 135 | 150 | 200 |
| |
Power&Heading
System | Max. Hydraulic Pressure | Kg/cm2 | 140 | 140 | 140 |
| Pump Output | L/min | 34.5 | 40 | 56 |
| Pump Motor Power | Kw/HP | 3.75/7.5 | 7.5/10 | 14.5/22 |
| Barrel Heating Power | Kw | 2.4 | 4.5 | 6 |
| Total Wattage | Kw | 6.3 | 12 | 20 |
| Others | Machine Dimensions(L*W*H) | m | 1.5*1.05*2.72 | 2.2*1.2*33.33 | 2.3*1.4*2.7 |
| Shipping Size(L*W*H) | m | 1.8*1.5*3.2 | 2.4*1.3*2.6 | 2.45*1.5*2.8 |
| Machine Weight | T | 1.7 | 3.3 | 6.5 |
| Shipping Weight | T | 2 | 3.6 | 6.7 |
3. Application:
1.Electric parts
2.Coil encapsulation parts
3.Daily products like microwave electriciron shells etc.
4.Auto industry
-Lamp reflector/Large parts of hood ,and rear doors,electric heating box,engine hood,horn box,big lamp shell and branch electric head etc.
5.Precision parts
Circuit breakers shell without fuses,motor shell ,loudspeaker box,cassette and video parts,copying machine,faxing machine,printing machine,medical equipment,measuring apparatuses etc.

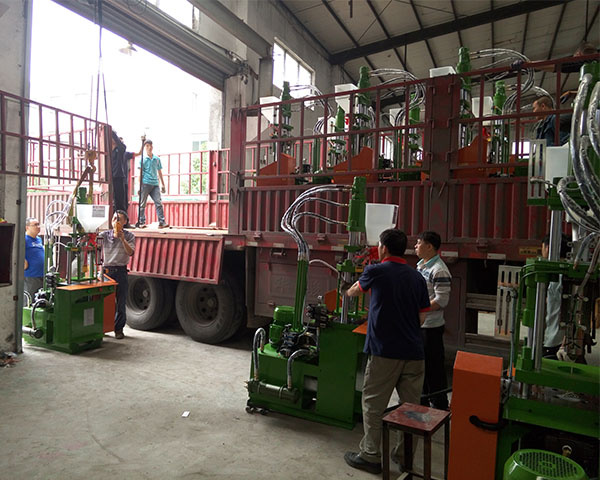

4. Packing & Shipping:
1. Before shipping,we will check and test the machine carefully.
2. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 25 days.
3. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us.
5. Video of Vertical Injection Molding Machine:
1. https://youtu.be/dgv7HaKg1Ro (15, 30 ton)
2. https://youtu.be/G348PTJSlK4 (standard,35, 45, 55, 85, 120 ton)
3. https://youtu.be/nLU_Atu1vTA (PC, 35, 45, 55, 85, 120 ton)

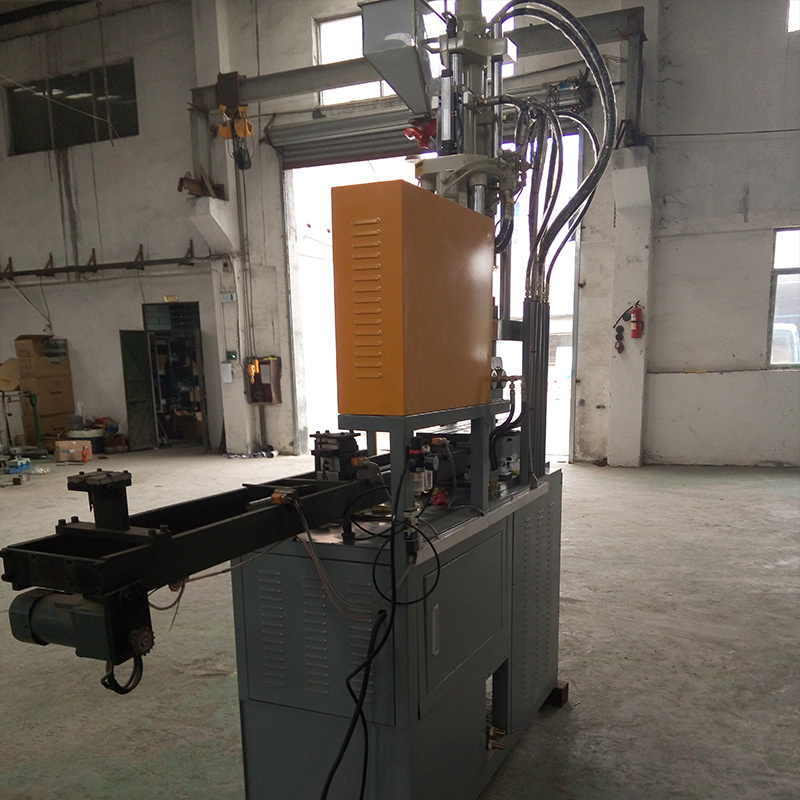

4. https://youtu.be/fYOD2omwP7Q (zipper making machine)
5. https://youtu.be/bu_9s4mYFvA (zipper making machine)
6. https://youtu.be/t-6_cSh_dCo (zipper making machine)
7. https://youtu.be/v-gU0rQIWnc (Workshop in the night)
8. https://youtu.be/eiecpUPhGP4 (USB Cable Production)
9. https://youtu.be/cZTeIqcBjvo ( USB Production)
10. https://youtu.be/vPLE-tvpkoo Plastic Staple Injection Molding Machine
11. https://youtu.be/5U9eAOhcHRI Plastic Fitting Injection Molding Machine
12. https://youtu.be/FYqTr1P9S0Y Mobile Phone Case Vertical Injection Moulding Machine
13. https://youtu.be/GvvR_LNdRmk Single Sliding Vertical Injection Molding Machine
14. https://youtu.be/jRS46TR-SvY Injection Molding Machine Operation in Vietnam
15. https://youtu.be/WWZiuse2F0s Video of Shoe sole production process by Double Sliding Vertical Injection Molding Machine
16. https://youtu.be/qaEaoy2LFm8 Shoe Sole Injection Molding Machine
17. https://youtu.be/H7o8s3Qb_hk Garments Accessories Injection Molding Machine
18. https://youtu.be/Fno7_FFUY1c 85 Ton Vertical Injection Molding Machine
19. https://youtu.be/_fb1PvWRn00 Operation Youtube Video of Mobile Phone Case Vertical Injection Molding Making Machine
20. https://youtu.be/aDure8mvh1E Vertical Injection Molding Machine Produce Shower Head Product
21. https://youtu.be/8N_ryW3g-MI 55 ton and 85 ton Vertical Plastic Injection Molding Machine
22. https://youtu.be/yoJU9iOxcxI Double Slide Vertical Injection Molding Machine
6. RFQ:| Q1: Are you a trading company or a manufacturer? |
| A1: Factory we are, all the machine are made by ourselves. Besises, you can get the customize service with your requirements |
| Q2: What's your warranty for the machine? |
| A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
| Q3: What's your Delivery Time? |
| A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
| Q4: Where is your factory? How can visit you? |
| A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. |
| Q5: Why choose Jieyang Machinery Co., Ltd.? |
| A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
Dongguan JieYang Machinery Co., Ltd is established in 2005, which is located in the Xincheng Industrial Zone of Hengli Town with a planted area of 2, 000 square meters. We are specialized in manufacturing the vertical injection molding machines with proficient skills and professional team for more than 20 years.
With the rapid growth of the business, JieYang created the first overseas office in Vietnam in order to offer best service in 2015. Our machines are mainly sold in Southeast Asia, South Asia, Middle East, Russia, Africa, South America, Europeans and North America. We have established a reliable brand in the industry.
"Customer Satisfaction, Continual Improvement & Innovative Service" is the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
We have professional engineers team who can design suitable vertical injection molding machines according to your requests. If you need us to customize the machine for you, Please tell us below information at your best:
1) The size of the mold? The product pictures? The product Drawing/Specifications?
2) How many PCS of products are made in one mold? How many gram per product?
3) What's the material will be used for the products: Rubber, PP, ABS, PE, PVC, TPE, TPU, POM, PA66, PBT, PS, Glass Fibre, HDPE, etc.?
We warmly welcome you to visit our factory, we are waiting for you at JieYang!
