Price: | US $ 20000-50000/Piece |
---|---|
Trade Terms: | FOB,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | RZ6/8-200/300A |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty: | 1 Year |
Established Time: | Since 1998 |
Quality: | Quality-Oriented in China |
Package Accuracy: | Error Not Exceed 1% |
Automatic Grade: | Automatic |
Application: | Food |
Driven Type: | Electric |
Packaging Material: | Plastic |
Material Type: | All Kinds of Material |
Packaging Type: | All Kinds of Bag |

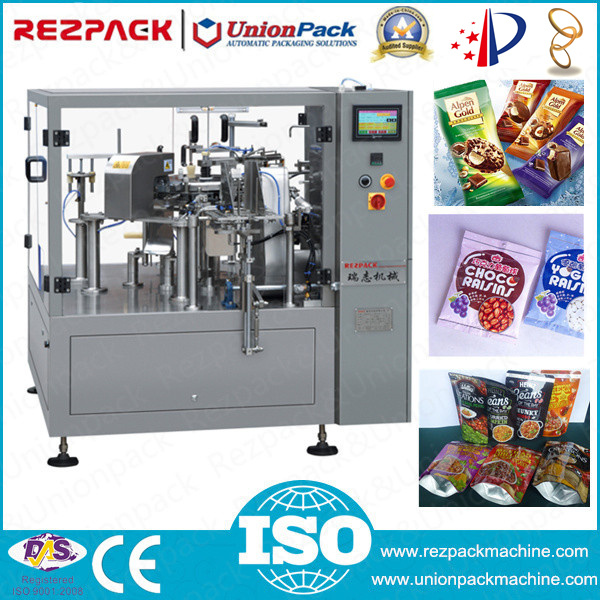

Automatic Premade Bag Packaging Machine
Applications for Automatic Premade Bag Packaging Machine:
1. Solid: Candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food, daily necessities, etc.
2. Granule: MSG, chicken, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials.
3. Powder: Spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, detergent powder, pesticides, fertilizers, chemical raw materials, etc.
4. Liquid: Rice wine, soy sauce, rice vinegar, fruit juice, beverage, detergent, etc.
5. Thick liquid: Tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.
6. Other materials can be bagged.
Main Features ofAutomatic Premade Bag Packaging Machine:
A wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/ without zip).
Easy to operate: PLC controller, HMI system, fault indication on the touch screen.
Easy to adjust: Only about 10 minutes to change different pouches.
Frequency control: Speed can be adjusted by frequency conversion within the range.
High Automation: Unmanned in weighing and packing process, machine alarm automatically when failure.
Safety and Hygiene of Automatic Premade Bag Packaging Machine:
No pouch/ incorrect pouch opening-no fill-no seal, machine alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted SUS304 stainless steel.
Imported engineering plastic bearings, no need to oil, no contamination.
Oil-free vacuum pump, avoid the pollution of the production environmental
Main Specification:
Machine name | Premade Bag Packaging Machine |
Bag types | Standup bag, Portable bag, Zipper bag, 4-side sealing bag, 3-side sealing bag, paper bag, etc., and all kinds of compound bags |
Bag sizes | W:80-320mm L:100-380mm |
Stations | Six/Eight |
Filling range | 5-1500g |
Packing speed | 30-45bags/min (depended on the product and filling weight) |
Package accuracy | Error≤±1% |
Total power | 2.2 kw |
Compress air requirement | ≥0.4 m3/min |
Optional Accessories
Date coder
Automatic card delivery device
Automatic deoxidizer delivery device
Horizontal bag feeder
Automatic zipper opening device
Squeezer
Vibrating device
Dust cleaning device
Standard Accessories
PLC controller
HMI
Pneumatic components
Oil-free vacuum pump
Engineering plastic bearings
With experience of 20 years, a team of highly qualified professionals, and the most advanced design and manufacturing technologies, we offer innovating solutions in packaging equipment and systems with a main target, to contribute an additional value to customers.
We are a flexible packaging industry leader with an extensive product line, leading edge designs and the strongest commitment to customer service.
As an ISO9001 certified company, we constantly focus on the quality of our products, so we passed the CE certification.
Thousands of our machines are used in a variety of industries including food, beverage, hardware, electronics and pharmaceuticals.
Our customers are primarily in the USA, Canada and South America. Installations can also be found in many European countries, the Middle East, New Zealand and Australia.
