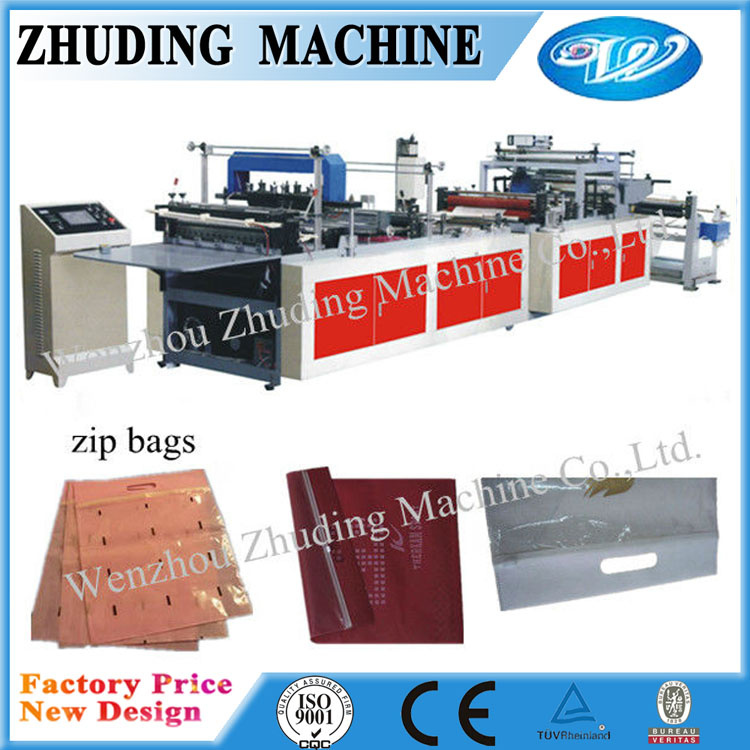

Zipper bag making machine

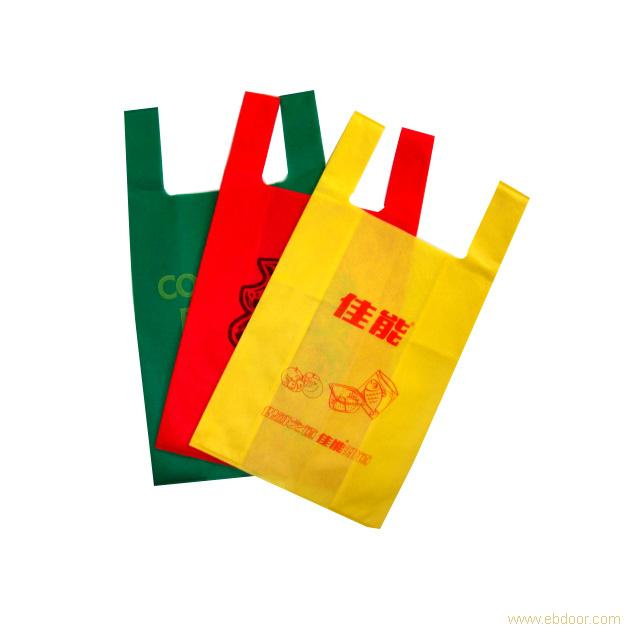

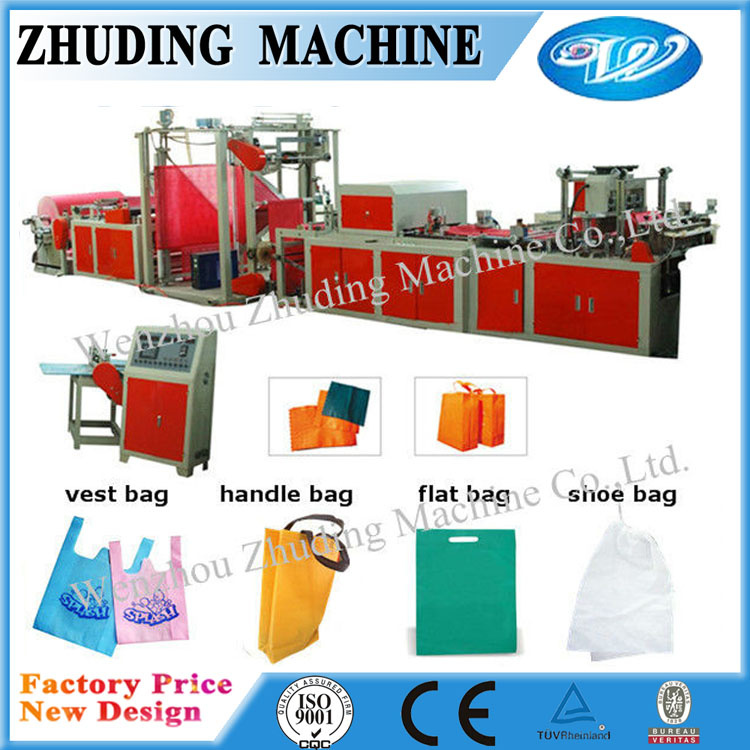

Use: Suitable for non-woven fabric material. It can make vest bag(t-shirt bag), flat bag, side gusset bag, bottom gusset bag, handle bag and so on. Used widly in all kinds of area.
Feature: Stepping(servo) motor feeding material, computer fixed-length, auto error correction, magnetic powder braking, auto-stopping, ultrasonic roll off, ultrasonic sealing bottom, auto counting. Alarm system etc
Main machine material: Channel steel, armor plate.
Configuration:
Machine Use Industrial Control Level PLC Mitsubishi Japanese
Touch Screen Use Mitsubishi Japanese
Transmission Are Drived And Controlled By Yaskawa Japanese
Servo Motor For Feeding The Material By Yaskawa Japanese
Main Motor Siemens
Unwinder Equiped With Magnetic Tension
Unwinder Equiped With Two Photocell For Tracking, Sensor, Use German Sick Brand
Edge Guider For Unwinding Unit
Air Cylinder Loader Material
Omron Brand Temperature Control
Schneider Brand Switch
Air Component Use Taiwan Airtack
Bearing Use Japanese NSK Brand
| Model (bag making machine) | WQB600 | WQB600 | WQB600 |
| Products | D-cut Flat bags | T-shirt bags | Rope bags |
| Fabric width (mm) | 1300 | 1300 | 1300 |
| Speed(pcs/min. ) | 20-80 | 20-80 | 20-80 |
| Bag weight(gsm) | 25-100 | 25-80 | 25-60 |
| Bag width(cm) | 10-60 | 20-45 | 10-45 |
| Bag length(cm) | 15-59 | 30-60 | 15-59 |
| Voltage(V) | 380/220 | 380/220 | 380/220 |
| Power(KW) | 10 | 10 | 10 |
| Weight(Kg) | 1900 | 1900 | 1900 |
| Size(mm) | 9700 X 1800 X 1800 | 9700 X 1800 X 1800 | 9700 X 1800 X 1800 |
Wenzhou Zhuding Machine Co., Ltd. (Wan Qun Industrial Company Limited) is an enterprise which was recognized by the state, gathering scientific research, manufacturing, sales, import and export business as a whole.
The company was founded in 1995, All employees through the unremitting efforts of 17 years, now has developed to the factory covers an area of 25, 00 square meters, 80 workers.
Our company specializes in manufacturing Non woven fabric production line, non woven bag making machine, rice bag cutting and sewing machine, laminating machines, flexographic printing machine, film blowing machine, shopping bag making machines etc plastic machinery equipment. Products have sold throughout the country, as well as Turkey, Mexico, Brazil, Zimbabwe, Russia, Vietnam, Indonesia and other overseas countries and regions.
We will, as always, adhere to the "Credit creates benifits, quality produces life" purposes. Company president Mr Zhu QingRong and G. Manager Mr Ye Michael with all the staff sincerely hope to have a pleasure cooperation with customers both at home and abroad in the future.
