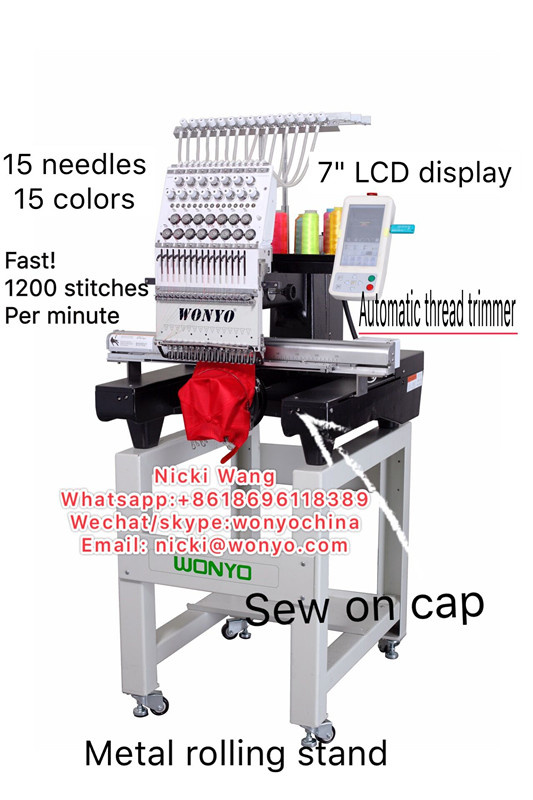

1 Head Hat Embroidery Machine

Prod Model:	WY1501CS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Head:	1
Needles:	12/15
Speed:	1200rpm
Overall Size:	845*845*930mm
Computer:	7 Inch LCD Touch Screen with 12 Languages
Votage:	220V, 50/60Hz
Trimming:	Automatic Trimming and Cutting
Embroidery Area:	360*510mm
Warranty:	12 Months for Whole Machine
Package Material:	Standard Wooden Box

Product Description

Single Head Head Number and Cap Embroidery Machine Type Embroidery
Machine
is single head computerized embroidery machine with 12 needles, which is suitable for flat embroidery, cap
embroidery, T-shirt embroidery and finished garments embroidery, with touch screen computer.


I. Main features
Automatic thread trimmer
Maximum speed 1200 SPM
270° Wide cap frame unit
Color LCD display showing real time stitching
USB input port

Automatic color change
Thread break detection
Pre-sew design trace capable
Memory size 2, 000, 000 stitches
Emergency stop
Electricity: 110V/60Hz or 220V/50Hz available
Machine Size: 75X74X85CM and NW90KG/200Lbs
Built-in bobbin winder
II. Full color control panel



Color LCD display showing real time stitching
Manual Color Change
Function keys including Menu, Speed up and slow Down (also Page Up and Page
Down), Help, USB-Input, Parameter Settings, Clear, ESC, Enter, etc.
Multi languages available(English, Spanish, Chinese),
Frame-moving keys

Manual Trimming
Start, Stop, and emergency Stop
Embroidery Status down (also Page Up and Page Down), USB Input,
DOT Key to return to 100 degrees, Parameter Settings, Clear, ESC, Enter, etc.
On-board lettering

Cap Attachment Included


III. Frames/hoops
2 x Shirt Front Round Hoop 9 cm (3.5")
2 x Shirt Front Round Hoop 23 cm (9")
2 x Shirt Front Round Hoop 12 cm (4.7")
2 x Jacket Back Square Hoop 30 x 30 cm
2 x Shirt Front Round Hoop 15 cm (5.9")
1 x Sash Frame 56 x 38 cm



Technical Parameters:
Head & Needles	Head: 1      Needles: 9/12/15
Weight	Net weight: 150KG       Gross Weight: 170KG
Size	Overall Dimension: 745*870*840mm  Package Size: 840*840*930mm
Embroidery Area	Standard: 360*510mm, can be customized as customer required
Embroidery Purpose	Suitable for Cap, T-shirt, Finished Garments, Shoes, Socks, Pocket and Cloth embroidery
Memory	20,000,000 Stitches matched with 200 patterns
Max. Color Change	Auto start and color change, 200 times color change setted
Readable Data	Compatible with designs of Tajima(DST), Barudan(DSB) and etc.
Design Input	By U disk, USB and Transmission from PC to Control System
Multi Languages	12languages:Chinese,English,French,Russian,Dutch,Spanish,Portuguese,Turkish,German,Arabic,Thai, Vietnamese
Full sets of Accessories	2 round embroidered frame-90 per head  2 round embroidered frame-120 per head  2 round embroidered frame-150 per head   2 round embroidered frame-200 per head  2 round embroidered frame-290*290 per head   1 piece of flat embroidery frame 2 pieces of cap rings per head   1 set of cap drive
Optional Devices	Simple Sequin device, Simple Cording device, Eight in one device, Boring device, Simple Taping device, laser position device
Motor	Main Motor: Servo Motor  XY Motor: Stepper Motor
X,Y Driving	Reinforced high speed linear guide rail

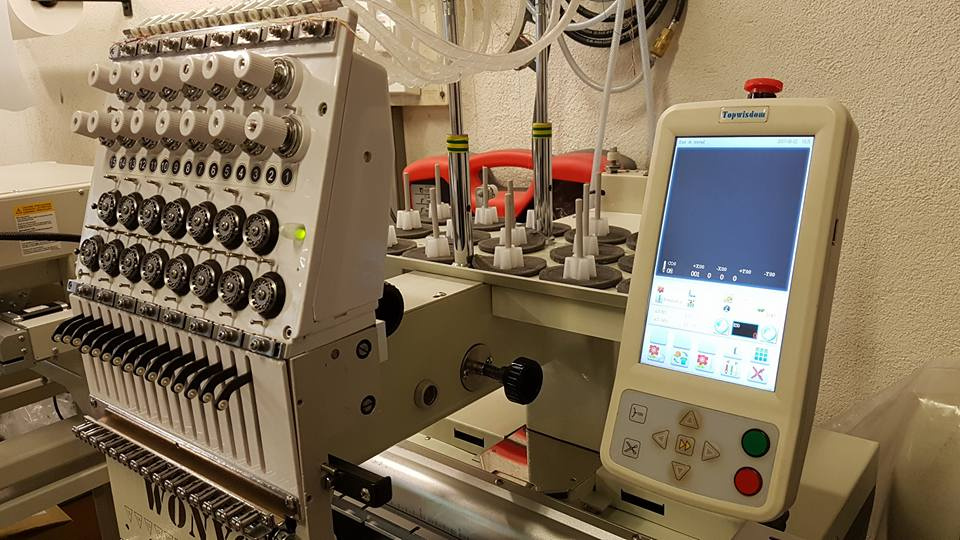

Computer System	7"  "TOPWISDOM" LCD touch screen
Main Parts	Japanese Rotary Hook, Groz-Beckert Needles, Italy Brand Belt
Embroidery Speed	Single head high speed: 1200RPM
Embroidery Trimming	Automatic trimming
Protection Device	Emergency Stop, Prevent Accidents. Avoid hitting and etc. intelligent inflect mistake system
Warranty	12 Months for whole machine,24 months' free upgrade for control system,lifetime maintaining,2-3 days' training for customers/operators
After-sale service	Engineers available serve overseas
Packing	Standard Vacuum wooden case or as customer requested
Delivery Term:	Production takes around 20 days, ship within 7-10 days after payment received
Payment Term:	30% down payment before production, all balance cleared before shipping
