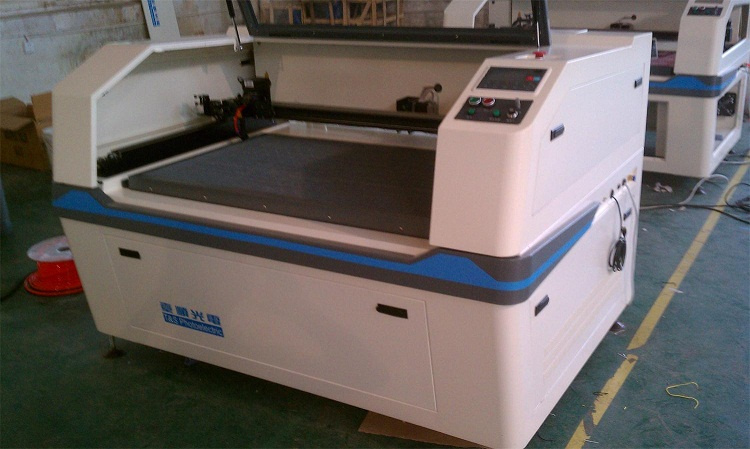

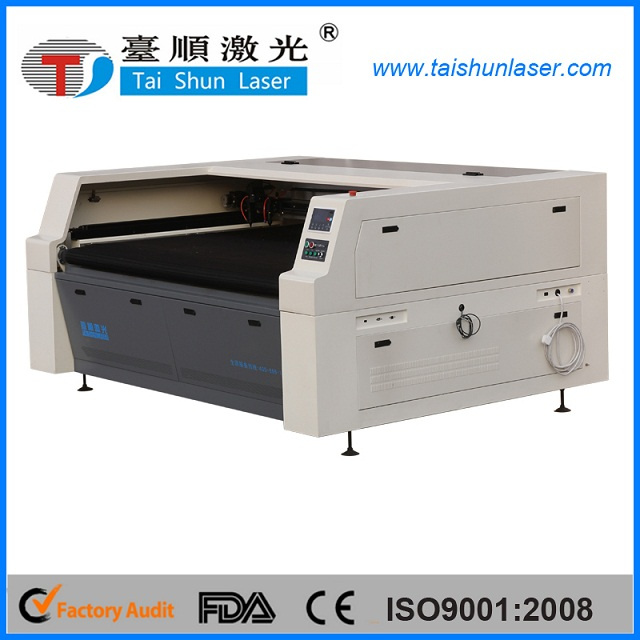

100W CO2 Veneer Laser Cutting Machine for Carpentry
| Price: |
US $ 4000-4500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
THSY10060 |
| Laser Type: |
CO2 |
| Application Area: |
Car Accessories, Toys, Home Textiles, Garments |
| Main Board: |
DSP System, LCD Screen |
| Power Supply: |
AC220V+-5%50Hz |
| Graphic Format Supported: |
Ai, Plt, Dxf, BMP, Dst, Dwg, Dxp |
| Cutting Area: |
1000mmx600mm |
| Output Power: |
100W |
| Cutting Speed: |
1000mm/S |
| Working Table: |
Knife Working Table |
| Movement System: |
Stepping Motor |
Product Description
Feature:
1 Unique and modern design appearance reflects caring idea of Tai Shun Design department
2.Advanced DSP control system and special motion control ship make the machines cut curve continuously and rapidly,the selection function of the shortest path makes efficiency higher.

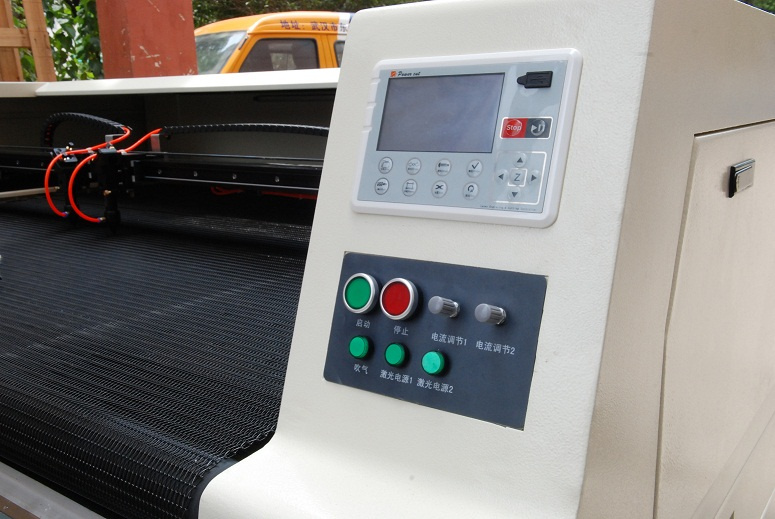

3.All machines are configurated with U-disk offline control system,so it is more simple and easier to operate.
4.The red-light positioning device can indicate process site of laser head to avoid trouble of manual position.
5 Strong steel frame structure body makes the engraving process stable without deformation
Technic parameter:| Working size: | 1000mmx600mm | Smaller size 210300,160300 are for optional |
| Laser power: | 100W | 100W,110W,130W,150W available |
| Laser tube: | RECI laser tube | Domestic Weiju laser tube for optional |
| Engraving speed | 0-1000mm/s | adjustable |
| Cutting speed: | 0-800mm/s | adjustable |
| Repeating location: | ±0.1mm | |
| Resolution ratio: | 0.025mm | |
| Minimum shaping character | English Letters 1 x 1mm | |
| Highest scanning precision | 2000DPI | |
| Laser output control | 1-100% software setting | |
| Control system | DSP control system,Ruida control software | |
| Interface | USB | |
| Software supported | Coreldraw Phototshop ,Autocad output | |
| Support graphic format | DST, PLT, BMP, DXF AI,CDR | |
| Cooling system | water-cooling and protection system | industrial Chiller |
| Driving system | Stepper motor | |
| Exhaust system | exhaust fan and air pump | |
| Offline work: | support | |
| Working voltage: | AC220V+/-5% 50/60HZ | |
| Operating temperature: | 0-45°C | |
| Operating humidity: | 5%-95% free of condensed water | |
Samples
Our strength:1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime.4. For water chiller, we use CW3000 CW5000 for single head, and CW5200 for double head laser machine.5. Good quality and unique design for red pointer and auto feeder6. All the machine have LCD offline control system + USB port.7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.8. the transforming belt adopt the famous FULONG brand, it have the metal inside, so it is fasten and not easy to loosen.9. All the power supply and laser device are kept on running for at least 24 hours testing to ensure it's in good performance.Application:
1. Industrial textile: filter cloth, bolting cloth, filter fabric, nonwoven, glass fiber, felt, synthetic fibre, fabric ducting, polypropylene (PP), polyethylene (PE), polyester (PES), polyamide (PA), cement packing, geotextile, coated fabric, sponge, insulating material and other industrial flexible materials.
2. Non-woven fabrics for health & medical: insulating material, glass fibre, polyester fibre, Microfiber, Cleanroom Wiper, Glasses cloth, Micro-fiber Wiper, non-dust cloth, clean wiper, paper diaper, etc.
3. Home furnishing fabrics: upholster, carpet, mat, floor rug, mattress, curtain, doormat, valance, wall paper, tablecloth, bed sheet, bedspread, counterpane, dust cover, sofa fabric, etc.
4. Garment fabrics: sportswear, swimwear, diving suit, exposure suit, liner, lining, adhesive interlining, wadding piece, case-hardened cotton, synthetic leather, genuine leather, etc.
5. Automotive interiors: car seat cover, car cushion, car mat, car carpet, car rug, pillowcase, air bag, auto dustproof cover, seat belt (safety belt), etc.
6. Outdoor products: polyester, nylon, PE/PVC/TPU/EVA/Oxford fabric, Oxford polyester cloth, PVC coated fabric, Tarpaulin, canvas, PVC tarpaulin, PE tarpaulins, Sail cloth, Inflatable products, tents, Inflatable toys, Inflatable castle, Inflatable boats, surf kites, fire balloon, parachute, paraglider, parasail, rubber dinghy, canopy, awning, etc.
Order Notice:
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cutting, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.

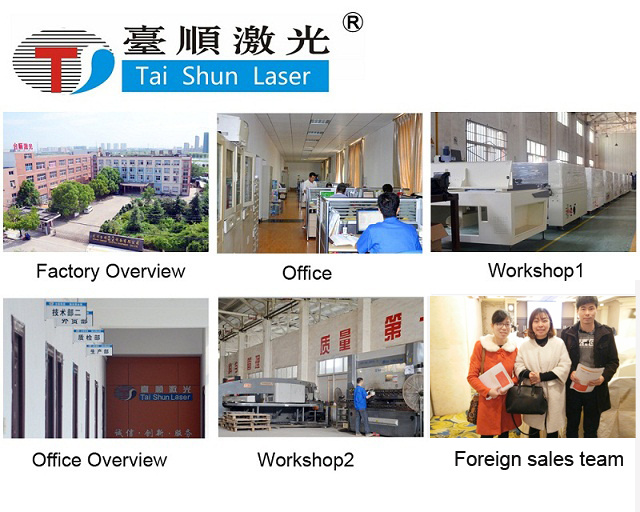

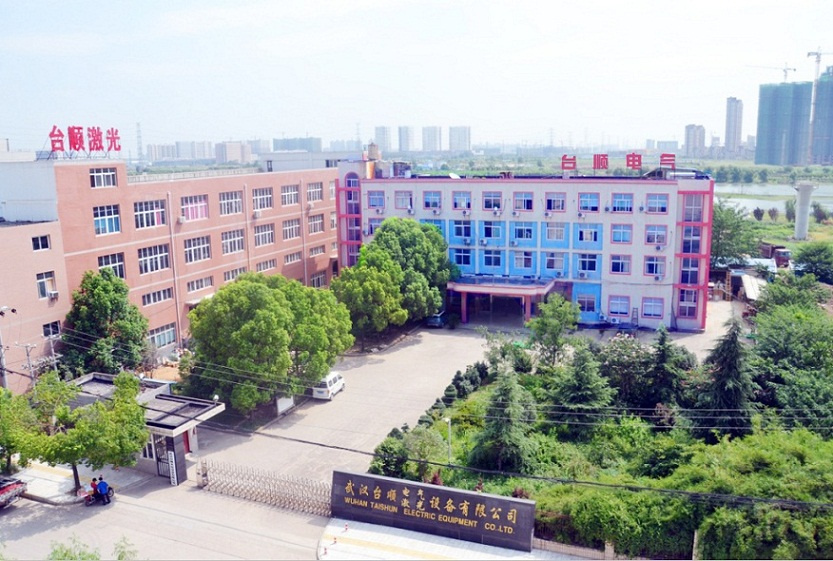

Taishun laser equipment Co., Ltd has been in the field of laser technology development and production for more than 20 years since the company was established, and always stand in the fore front product research and development.
Taishun company has strong Technical force and established set of perfect quality Management system, passed ISO9001: 2008 Quality Management System Certification, BV authentication, SGS and National Mandatory Product "3C" certification, which has reliable quality.
We developed 6 series of more than 10 types laser products which adopt international advanced technology. Such as, fiber laser metal cutting machine, YAG laser metal cutting machine, CO2 laser cutting and engraving machine, Fabric Flatbed laser cutting machine, Conveyor working table machine, laser marking machine and so on.
Taishun laser are good at produced medium and small laser power laser cutting machine, specially to supply one whole sets of laser processing solution scheme and related facilities for customers in plush toys, leather cutting, plush fabrics, automobile, textile, textile clothing, advertising handicrafts, electronics, medical equipment and etc. These laser equipment were widely applied in electronic circuit, auto spare parts, hardware tool, medical instrument, digital products, apparatus and instrument, optic communication component, packing and printing etc. To create a new Second-Generation small power laser cutting machine with more rapid and refinement manufacturing.
