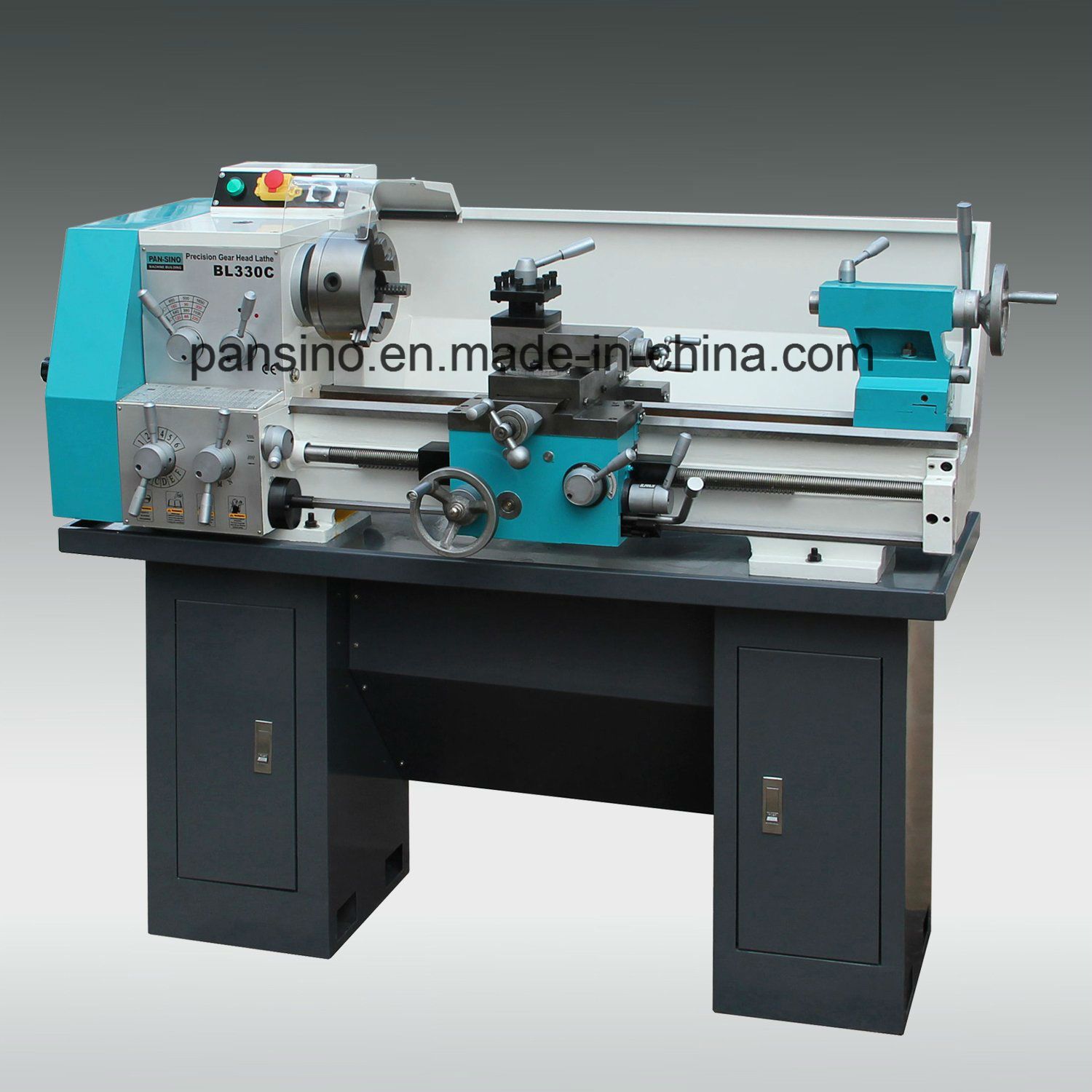

13'' High Precision Gear Head Metal-Work Lathe Machine
Price: |
US $ 1000-1400/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Money Gram |
Prod Model: |
BL330C |
Type: |
Horizontal Lathe |
Power Source: |
Electric |
Controlling Mode: |
Artificial |
Automatic Grade: |
Semiautomatic |
Setting Mode: |
Table |
Precision: |
Precision |
Processing Accessory: |
Gear/Thread/Metal |
Tool Holder: |
4 Station Toolpost |
Product Description
Model | BL330C |
Swing over bed | 330mm / 12½" |
Swing over carriage | 180mm / 7¼" |
Distance between centers | 750mm / 30" |
Bed width | 160mm / 6¼" |
Spindle bore | 38 mm / 1½" |
Spindle taper | MT5 |
Spindle speed | 60-1800rpm |
Tool post travel | 100mm / 4" |
Cross travel | 160mm / 6¼" |
Longitudinal travel | 720mm / 28½" |
Range of longitudinal feeds | 0.1 - 1.5mm/ 0.004"-0.259"/r |
Range of cross feeds | 0.045 - 0.6mm/0.0018"-0.024"/r |
Metric threads | 20 / 0.5--9 mm |
Inch threads | 28 / 4 - 56 TPI |
Max. travel of tailstock sleeve | 85 mm / 3½" |
Taper of tailstock sleeve | MT3 |
Motor power | 1100W |
Net weight | 348kg / 770Ib |
Packing size | 1570x760x700mm / 62"x 30"x 28" |
FEATURES: BL330C - Gear driven headstock and quick change spindle speed
- MT5 spindle taper with diameter 38mm spindle bore
- Two 'V' guaidway are hardened and ground
- Sildeway are sticked with soft wear strip for lightweight and sensitive operating
- 12 steps spindle speed from 60-1800rpm
- Original creation of big operating bar for change longitudinal-cross feed
- Quick change gearbox for easy threads cutting
STANDARD ACCESSORIES ARE INCLUDED- Dia. 160mm self-centering 3 jaw chuck with reversel jaws
- Dead center #:MT5
- Dead center #:MT3
- Metric or inch change gear set (be selected one of the two size)
- Necessary tools and tool kit
- Operation manual and packing list
- Test report
OPTIONAL ACCESSORIES BY EXTRA COST- Dia. 160mm independent 4 jaw chuck with back plate
- Dia. 200mm follow rest
- Dia. 200mm steady rest
- Dia. 220mm face plate
- Coolant system( 5Liter tank)
- Halogen working lamp
- Protective cover for leadscrew(left side or left/right side)
- Protective cover for chuck(with microswitch for CE requirement)
- Protective cover for tool-post
- Two cabinet stand with chip tray
ANHUI PANSINO MACHINE BUILDING Co., Ltd., established in 1996 in China.
PANSINO, 20 years development, over 40 years experienced senior technician team in respect of D&R, product field covering from Metal-working bench lathe machine, Precision gear head lathemachine, Heavy-duty lathe machine, Bench drill/mill machine, Multi-purpose machine, CNC machine and appreciated offering reliable services for the clients, the workshops, the wholesale trade firm and service stores.
Our company supplies lathe machines. We stick to the principle of "quality first, service first, continuous improvement and innovation to satisfy the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality and reasonable price.
