| Prod Model: |
LPoutdoors |
| Clear Roof Wedding Tent Size: |
15m Width, The Length Is Unlimited |
| Clear Roof Wedding Tent Frame: |
6061/T6 203X110X4mm Aluminum Profile |
| Clear Roof Wedding Tentt Fabric: |
850g/Sqm &650g/Sqm Double PVC |
| Clear Roof Wedding Tent Wind Loading: |
80km/H |
| Clear Roof Wedding Tent Snow Loading: |
0.3 Kn/Sqm |
| Top Style: |
Ridge Tent |
| Capacity: |
>10 |
| Material: |
PVC |
| Usage: |
Party Tent or Wedding, Exhibition etc |
| Pole Material: |
Flexible Poles,aluminium Alloys |
| Structure: |
Single Skin |
| Waterproof: |
Waterproof |
| Customized: |
Customized |
| Style: |
Any Accessories as Your Special Request |
| Color: |
Transparent, Any Colors Can Be Available |
| Season: |
All Seasons |
Product Description
Product Name: Party Wedding Tent, Outdoors Tent
Guarantee: Frame 5 years, fabric 3 years.
Wind loading: 80km/h.
Snow loading: 0.3 kn/sqm

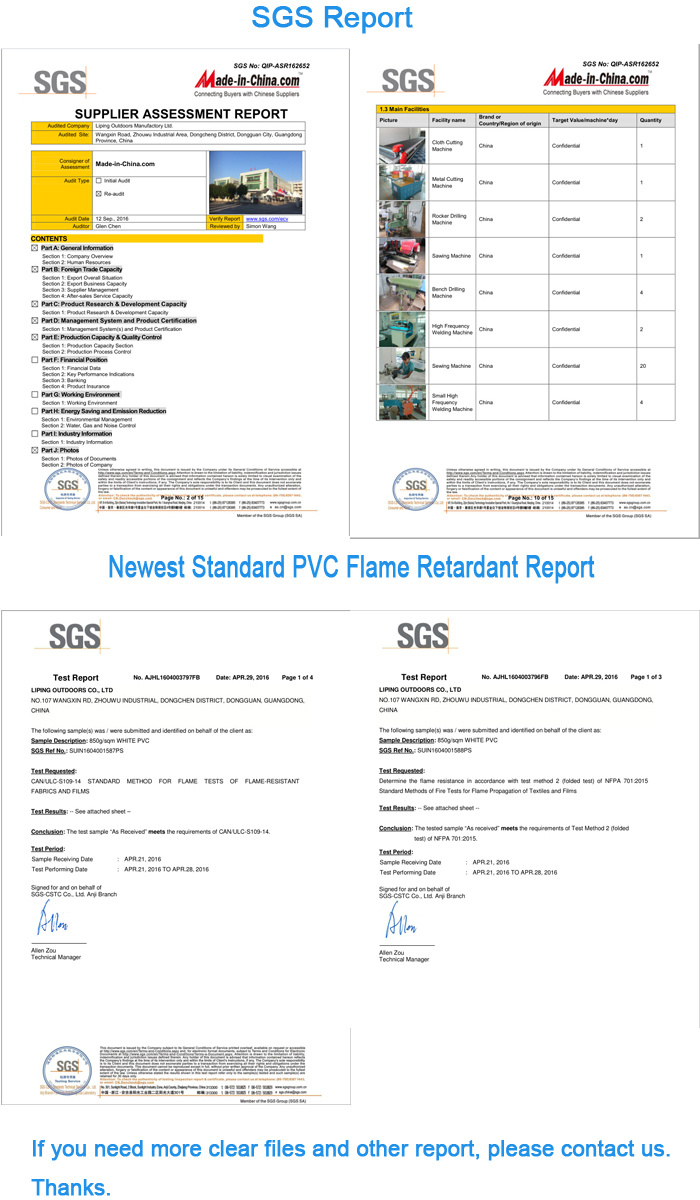

Certificate: 80km wind loading test, Vinyl Flame retardant M2, lining flame retardant BS5867
Galvanized Salt spray 144hours test, UV aging certificate, Aluminum 6061 test
Fabric RoHS certificate. Transparency PVC -20º C to 70º C resistant
1. Size: 15m width, the length is unlimited, 4m side height, 6.4m top height., 5m per bay.
Material:
(2)Frame: Hard pressed extruded aluminum 6061/T6 anodized, hot dip galvanized steel joints, and passed the 144hours of salt spraying test.
(3) Cover material: 850g/m2 vinyl blockout for top cover, 650g/m2 for sidewalls vinyl blockout, waterproof, UV protection, rotproof Flame retardant M2.
Optional accessories:
1. Transparent PVC windows, glass door, rolling door
2. Glass wall, ABS hard wall, Sandwich wall
3. Grass anchors, anchor puller
4. Flooring system ( economic plain wooden flooring and VIP cassette flooring )
5. Inner lining and curtain
6. Tables, chairs and other furniture for the parties are also provided for your option.
If you need above clear certificates copy, Pls feel free to contact with me now.
| Item | Our manufactory | Some manufactories |
| Side height | 4m | lower 3.7m or3.5m |
| Aluminum profile | Bigger 203x110x4mm | Smaller 166x88x3mm profile |
| Fabric | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
| Steel joints | Good welding, Spray salt resistant 144hour | Bad welding, Spray salt resistant about 80 hour |
| Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
| TransparencyPVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be -20º C resistant, breaken |
| Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy breaken. or cotton rope, easy rot |
| Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
| Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
| Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
| Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
| Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
| Wind loading | Wind loading 80km/h test report | No Wind loading test report |
Our Factory:
