| Prod Model: |
WY902C/WY1202C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Topwisdom |
| Computer: |
8" Touch Screen |
| Main Motor: |
Panasonic Servo Motor |
| Warranty: |
12 Months |
| Memory Size: |
20million Stitch with 200 Patterns |
| Thread Broken Checking: |
Auto |
| Trimming: |
Auto |
| Needle: |
9/12/15 |
| Embroidery Area: |
400*450mm |
| Power: |
100V/60Hz - 240V/50Hz |
Product Description

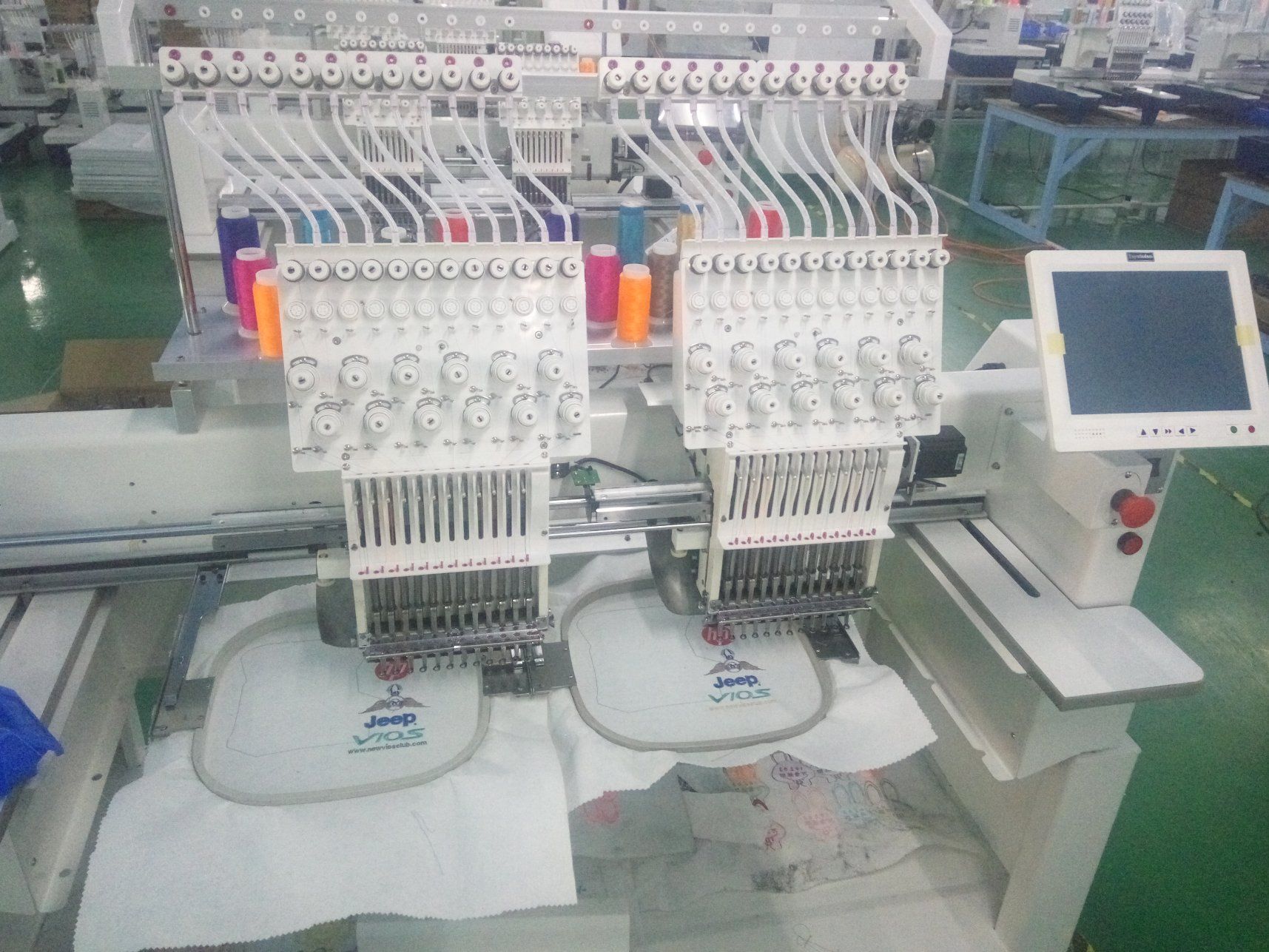

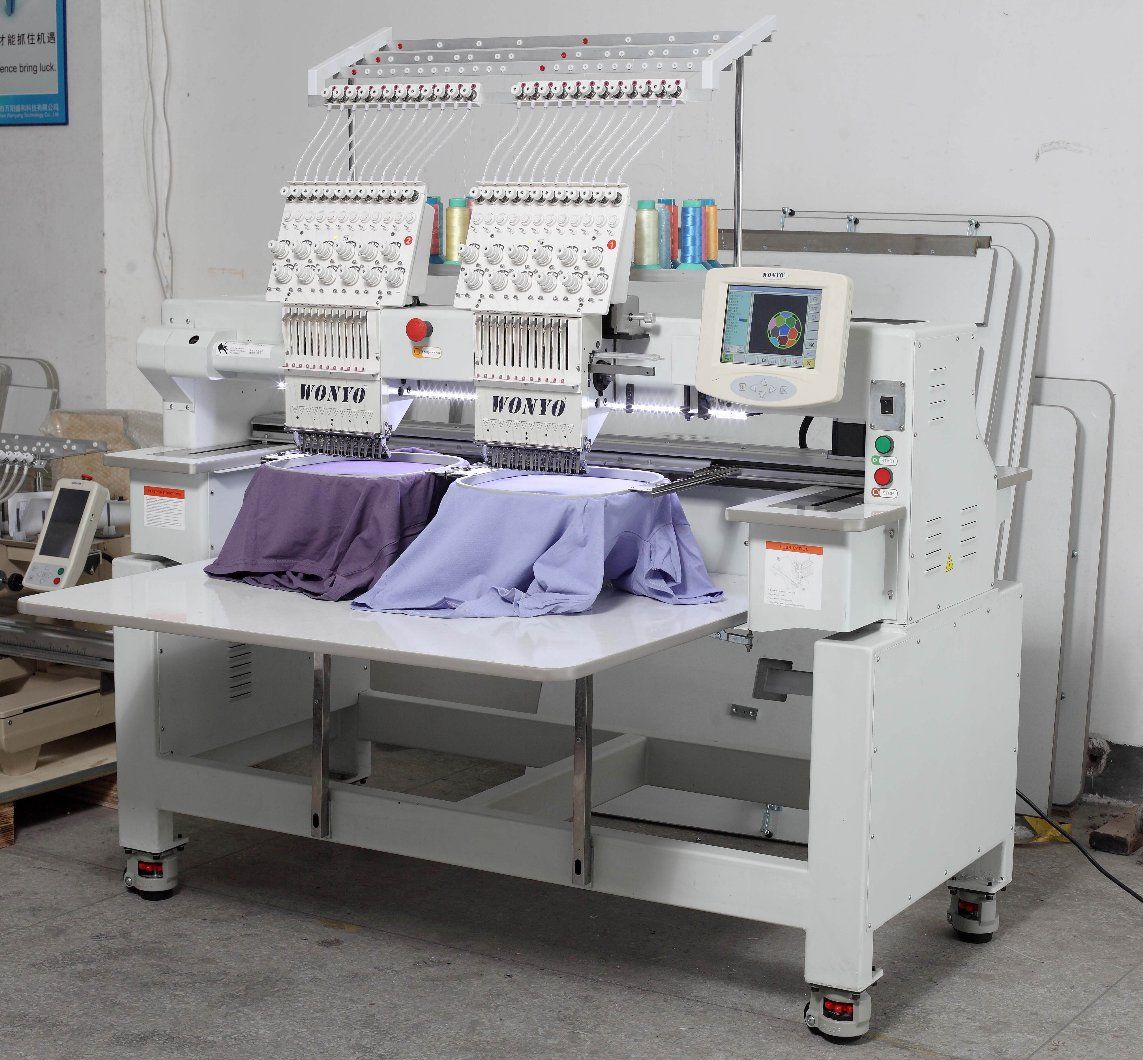

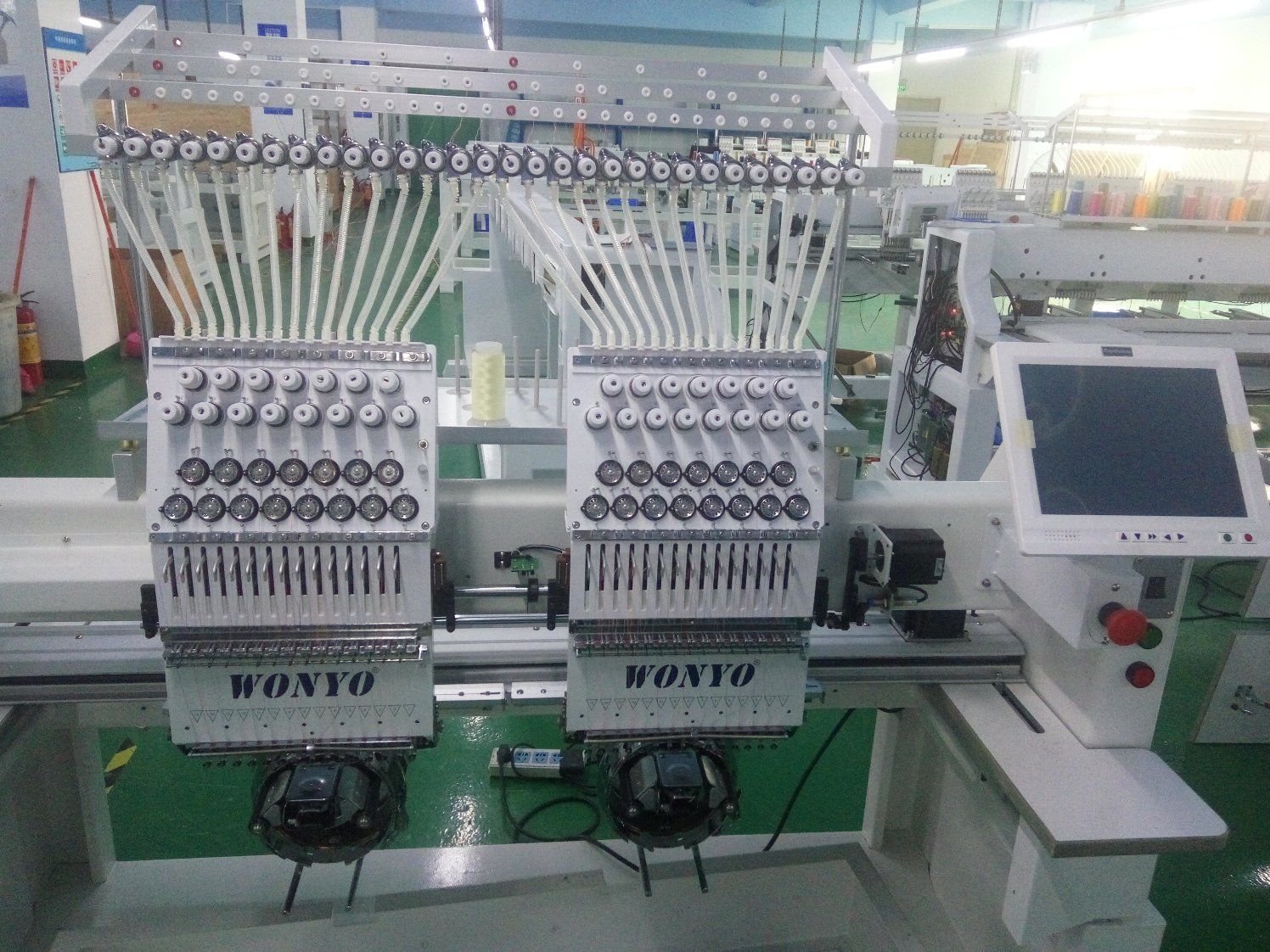

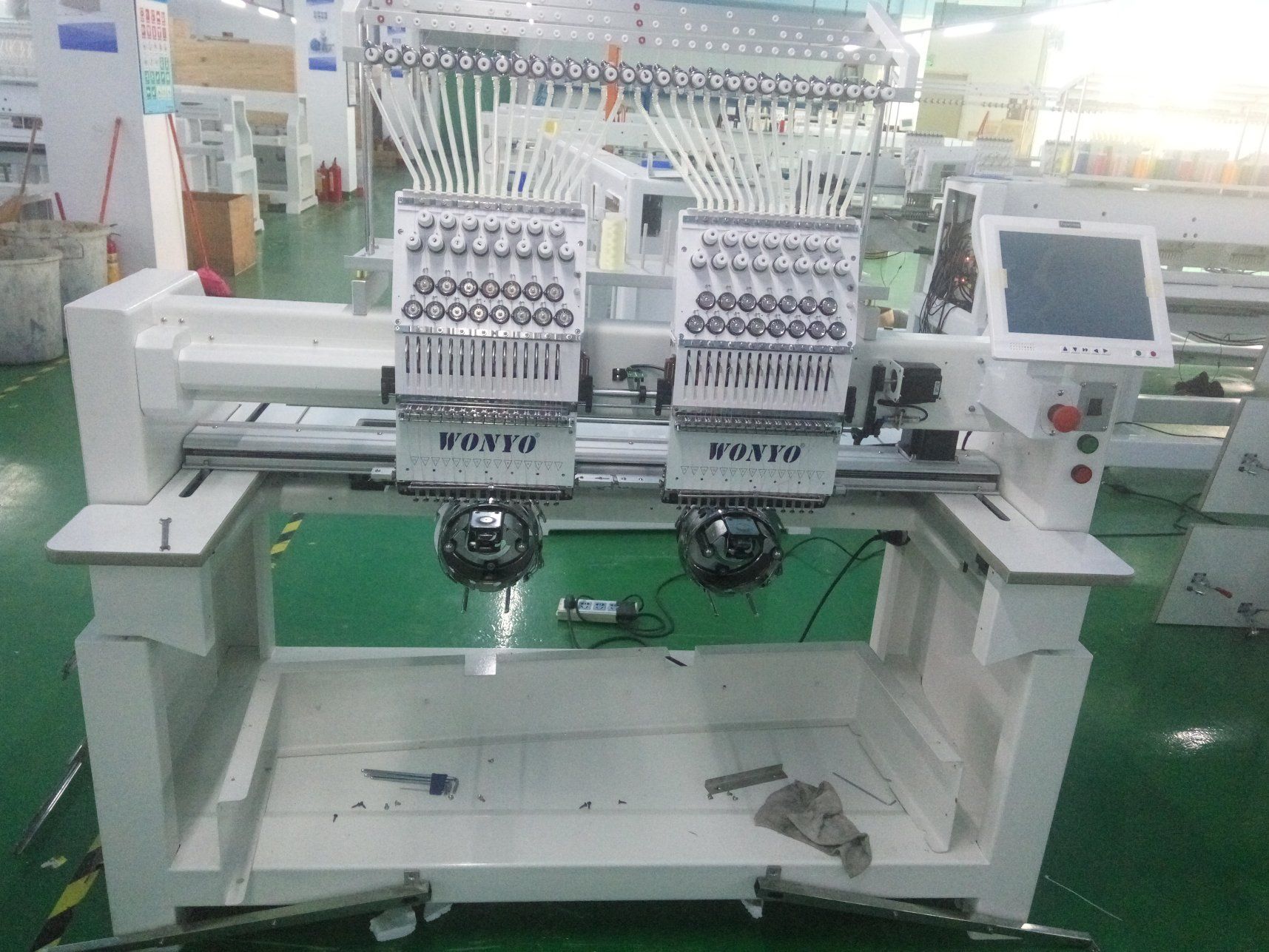

WONYO Durable 2 Head Embroidery Machine with USB/U Disk/Network Port to Transfer the Design WY1202CWonyo embroidery machine which for cap, t shirts, and Flat embroidery with 8 inches Touch screen, 12 kinds of languages including English, Spanish, French and other 9 kinds of languages.
Product Description:I. Main features of the embroidery machine.1.9 needles, 2 heads, suitable for flat bed embroidery, cap
Embroidery and finished garments embroidery
2. Embroidery area: 400 X 450 mm, or 15.7" X 17.7"
3. Automatic thread trimmer
4. Maximum speed 850 SPM
5.270° Wide cap frame unit
6.8" color LCD display showing real time stitching
7. USB port ready
8. Auto color change
9. Thread break detection
10. Pre-Sew Design Trace capable
11. Memory size: 1, 000, 000 stitches
12. Electricity: 110V/60Hz or 220V/50Hz available
13. Start, Stop, and Emergency Stop
14. On-board lettering
II. Full coler control panel1.8" High Definition color LCD display showing real time stitching
2. Function keys including Menu, Speed up and slow
Down (also Page Up and Page Down), Help, USB-
Input, Parameter Settings, Clear, ESC, Enter, etc.
3. Numeric keys for selection of needles
4. Frame-moving keys
5. Manual Trimming
6. Manual Color Change
7. Embroidery Status
8. Embroidery Method
9. DOT Key to return to 100 degrees
10. Mutli languages available
III. Frames/hoops1 Sash Frame: 40.5cm X 48cm (16" X 19") for single head, 81cm X 48cm (32" X 19") for 2 head
2 sets of back hoops for 30cm X 30cm (11.80" X 11.80") for each head
2 sets of front hoops of 19cm (7.50") for each head
2 sets of front hoops of 15cm (5.90") for each head
2 sets of front hoops of 12cm (4.70") for each head
2 sets of front hoops of 9cm (3.50") for each head
IV. AccessoriesTable top
Operation Manual
Tool Kit
Optional Devices:Single sequin device:
install on both side of the head
(first needle or end needle) | Simple coiling/cording device:
install on both side of the head
(first needle or end needle) |
Eight in one device:
install on hoop frames
(embroidery on pocket, sock,ect) | Simple taping device:
install on both side of the head
(first needle or end needle) |
Boring device:
install on each needle | laser position device:
install on all single head machine |
Models:| Model | Needle | Head | N.weight | Embroidery area |
| WY1202C/902C | 12/9 | 2 |
450kg | 400*450mm |
| WY1204C/904C | 12/9 | 4 | 700kg | 400*450mm |
| WY1206C/906C | 12/9 | 6 | 1100kg | 400*450mm |
| WY1208C/908C | 12/9 | 8 | 1200kg | 400*450mm |
| WY1212C/912C | 12/9 | 12 | 1800kg | 400*450mm |
Packing and DeliveryDelivery term: Production takes around 13 days ship within 7-10days after receiving 100% payment
Payment term: 30% TT advance payment before production, 70% TT remaining balance before shipping.
Service1. Pre-sale & in-sale service sOffer consulting service, sample's process experiment , equipment selection, training and the installation to the engineers and the user of the buyer.
1) Training : after the acceptance check by the buyer, the supplier offer the free training for 2-3 operators and maintenance persons of the buyer.
2) Training and installation time is 3-5 days
3) Installation & adjustment : When the buyer receives the equipment, the supplier install and adjusts the equipment with buyer's assistance on site then finally deliver it to the buyer. 2. After-sale services Our company offer One-year warranty and lifetime maintenance for the buyer , during the warrantyperiod, if there is any fault in the course of using the equipment (except the man-made factors and factors other than force majeure), we offer free maintenance, the parts which need to change also provided by us(except the consumable parts) . After the warranty period, we will charge appropriately according to the maintenance situation.FAQ Hot Questions Q: Is this a trustable long-term strategic partner?A: Just ask our customers, view our company profile, assessment of capability, factory glimpse, and the honor we had. And why not contact us or pay a visit to us?
Q: What service will I get with this buying?A: Simply at your service: available consultancy before sales, easy communication during sales, easy payment term, smooth and safe delivery of guaranteed quality, and assured timely services after sales.
Q: What kind of embroidery work and embroidery machine do I need?A: Think: ready-made garment/cap/hat, or garment before sewing, or just flat fabric?
Normal flat stitch, or special chenille/chain/loop stitch, or sequin/paillette, or cord/tape/ribbon to add value to your embroidery?
Q: How many heads do I need and what embroidery area on each head?A: Think: how big is your factory and how much is your expected production?
The embroidery area on each head depends on the maximum area of your embroidery design to run.
Q: How many stitches do I get per minute (SPM) on each head?A: Super high speed model gives max. 1500SPM,
High speed model gives max. 1200SPM,
Normal speed model gives max. 1000SPM,
Lower speed model gives max.850SPM.
Q: Do I need the Elite model or economy model?A: Think: How much would you pay for a machine? What we offer is what you need!
Q: Can I represent and sell ORDER machines in my market?A: Welcome to join ORDER family and grow to be a strong distributor.
